Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 14 illustrations

Illustrations

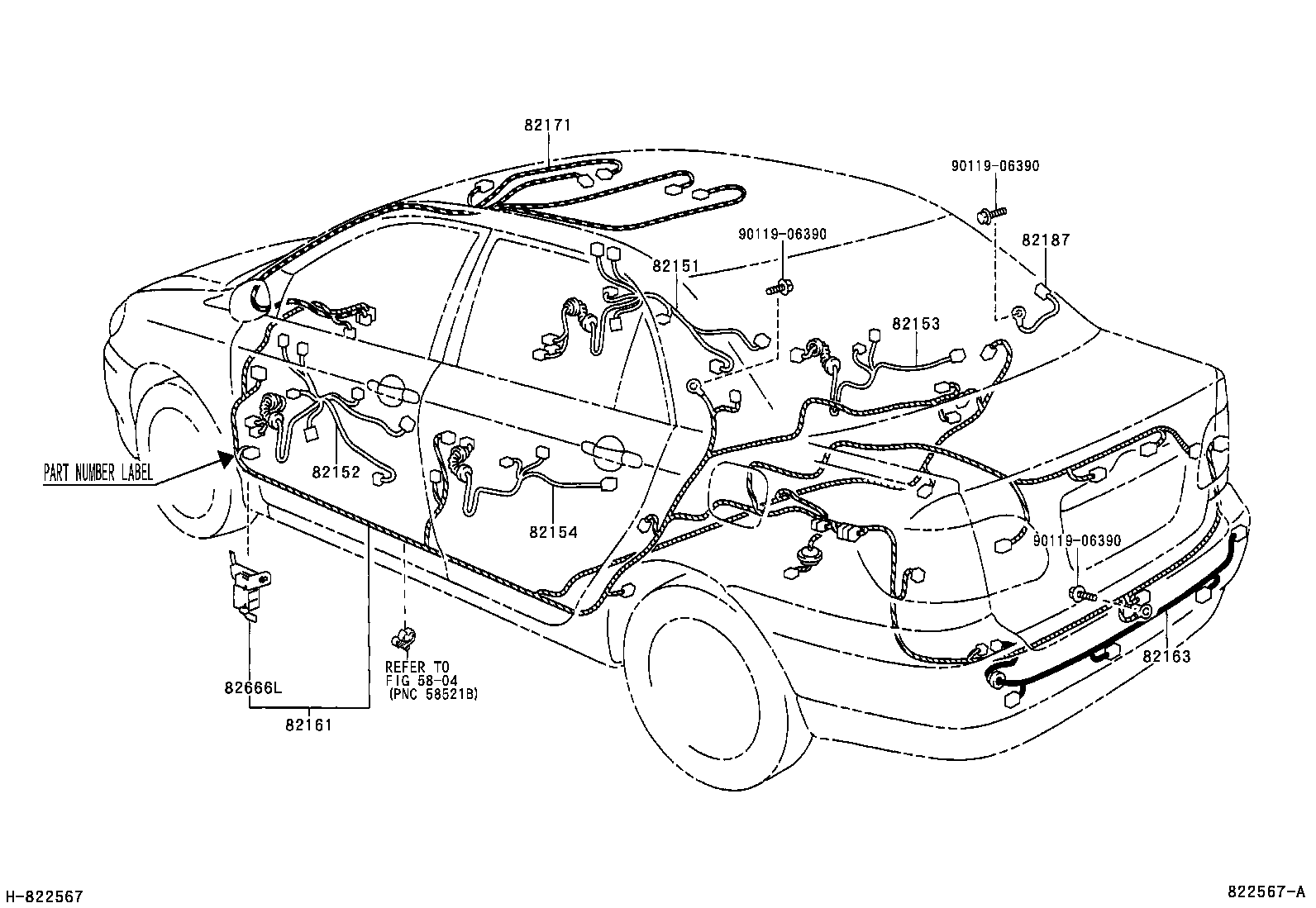

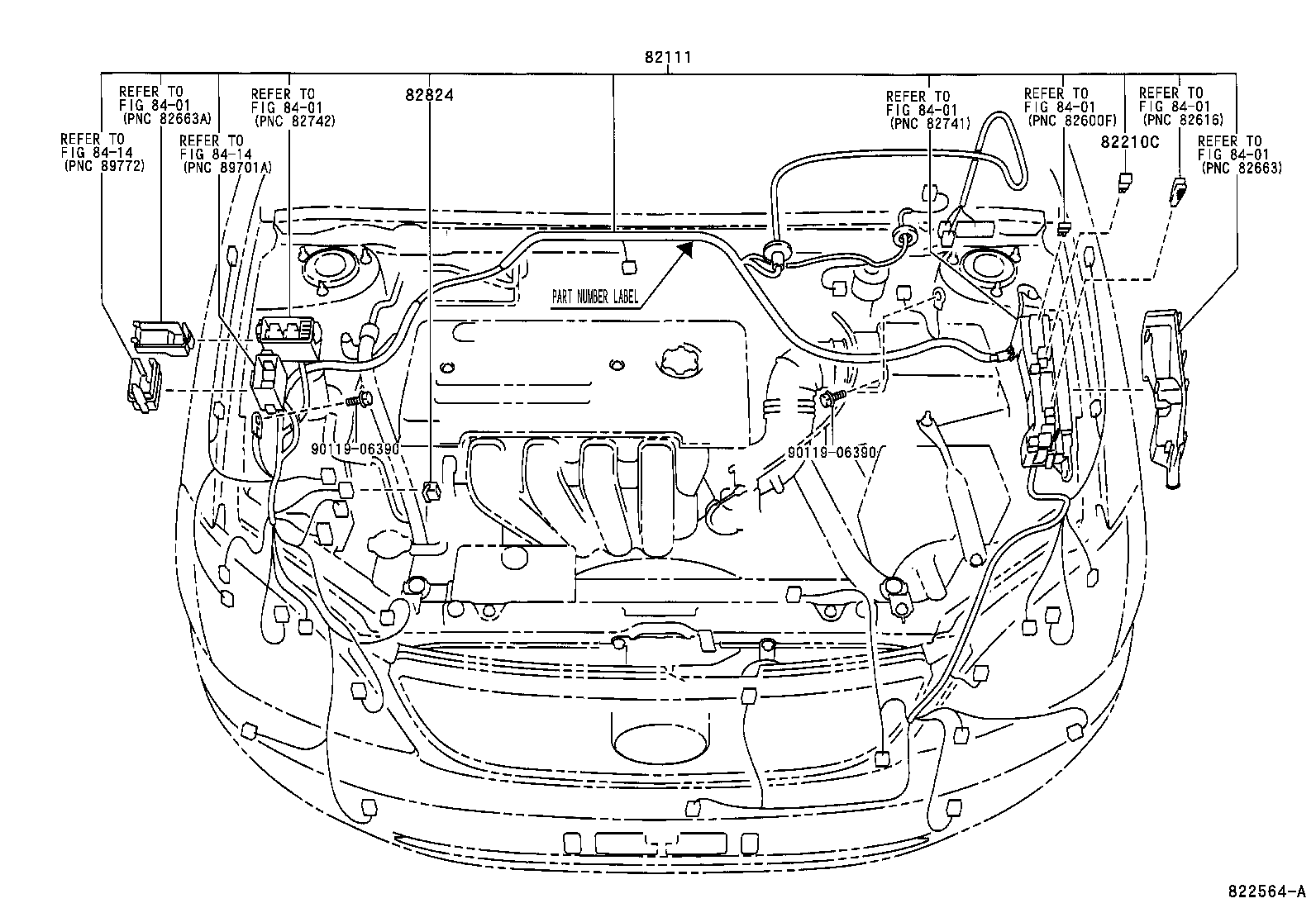

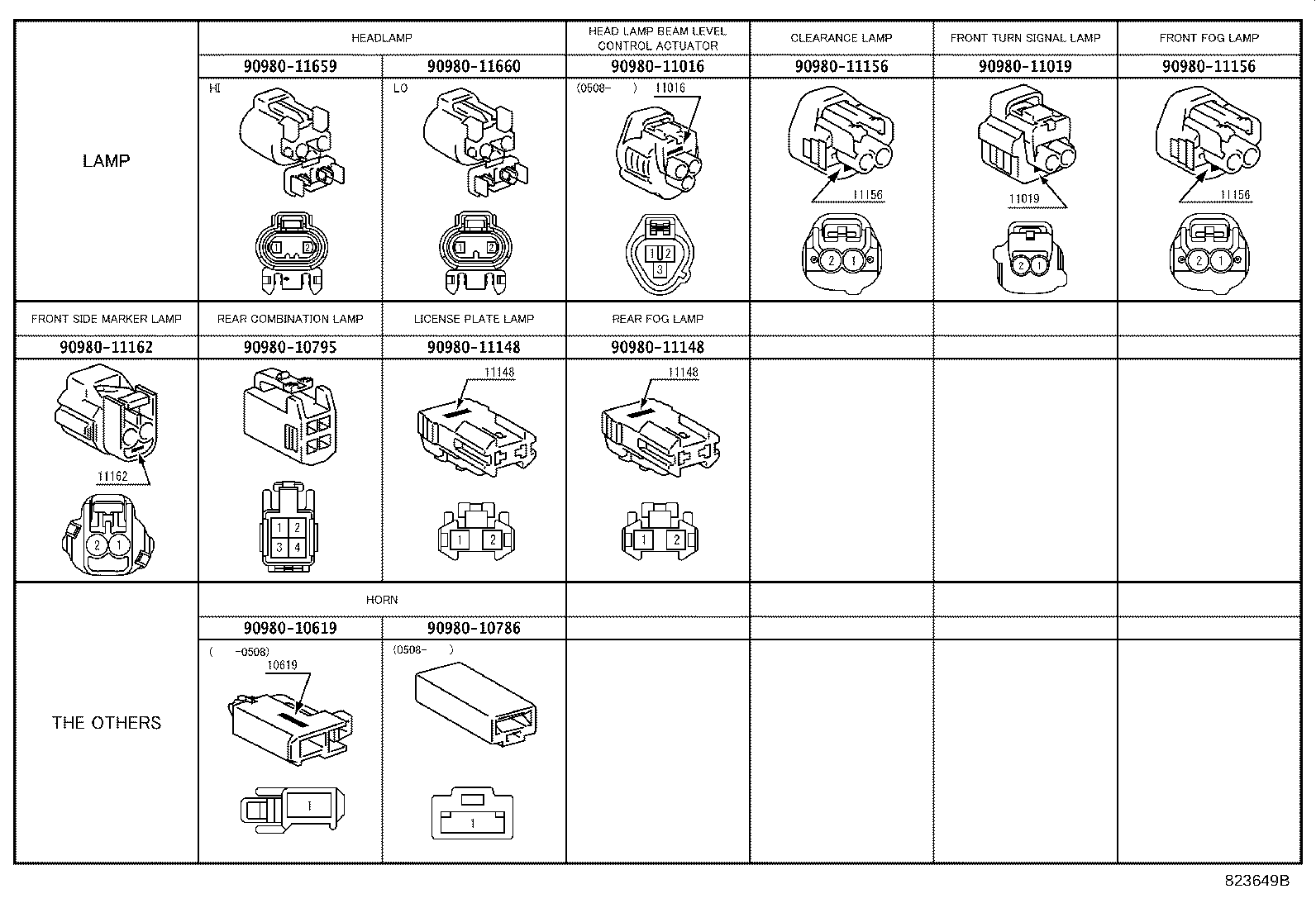

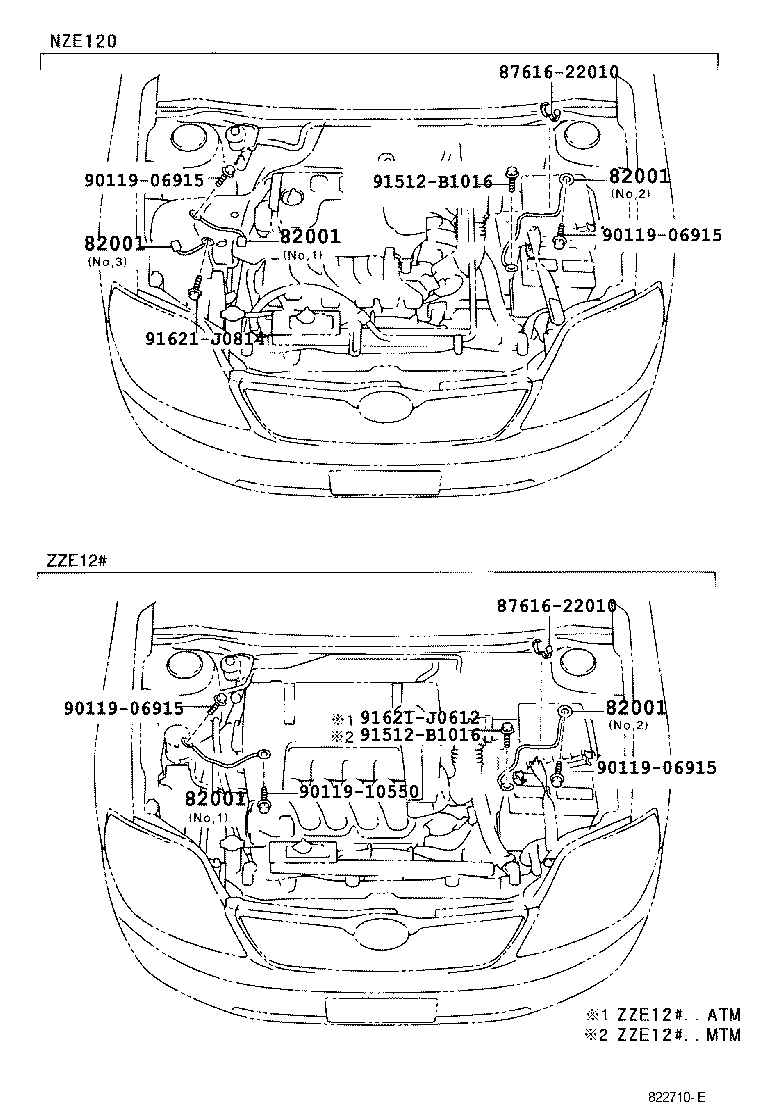

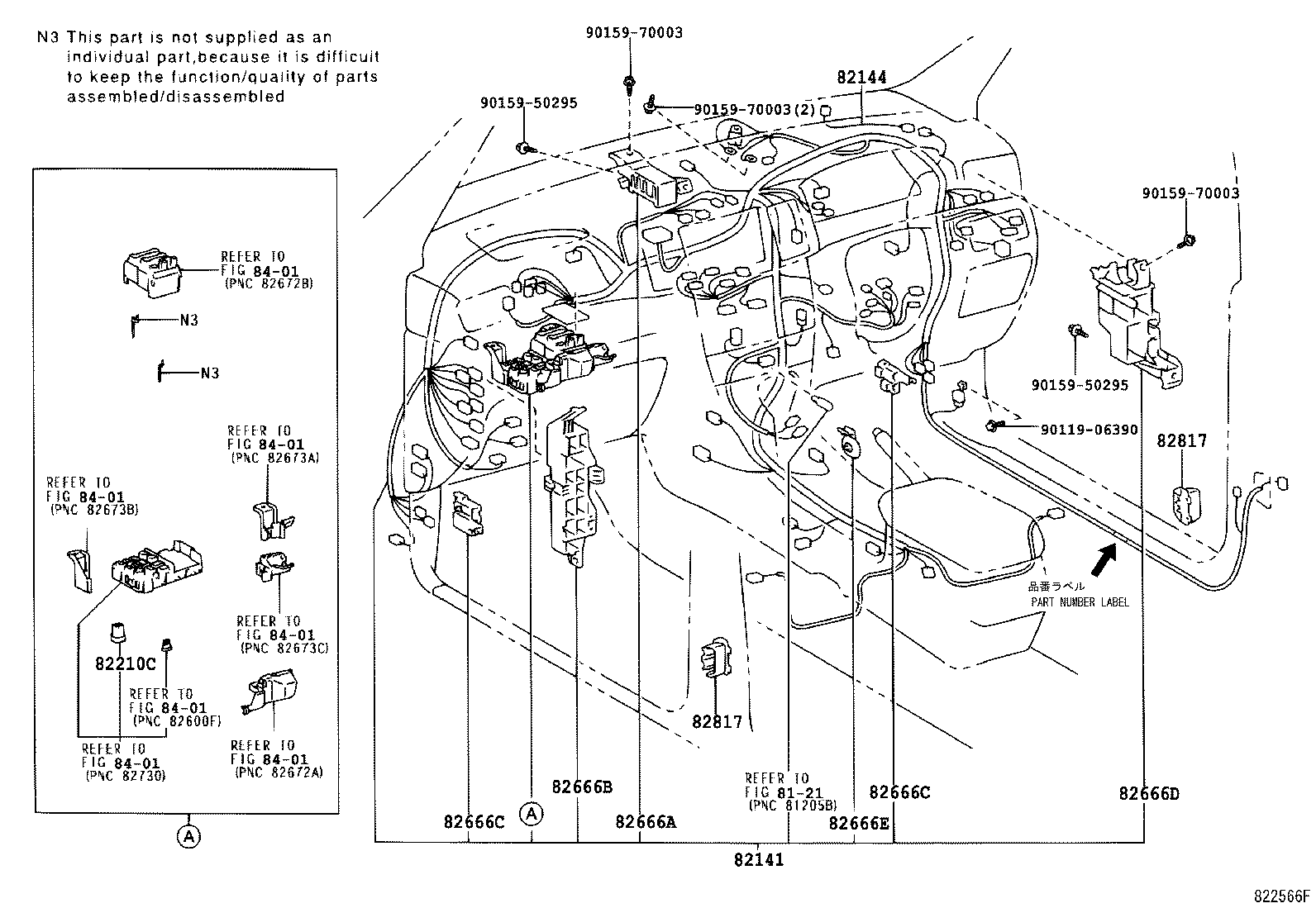

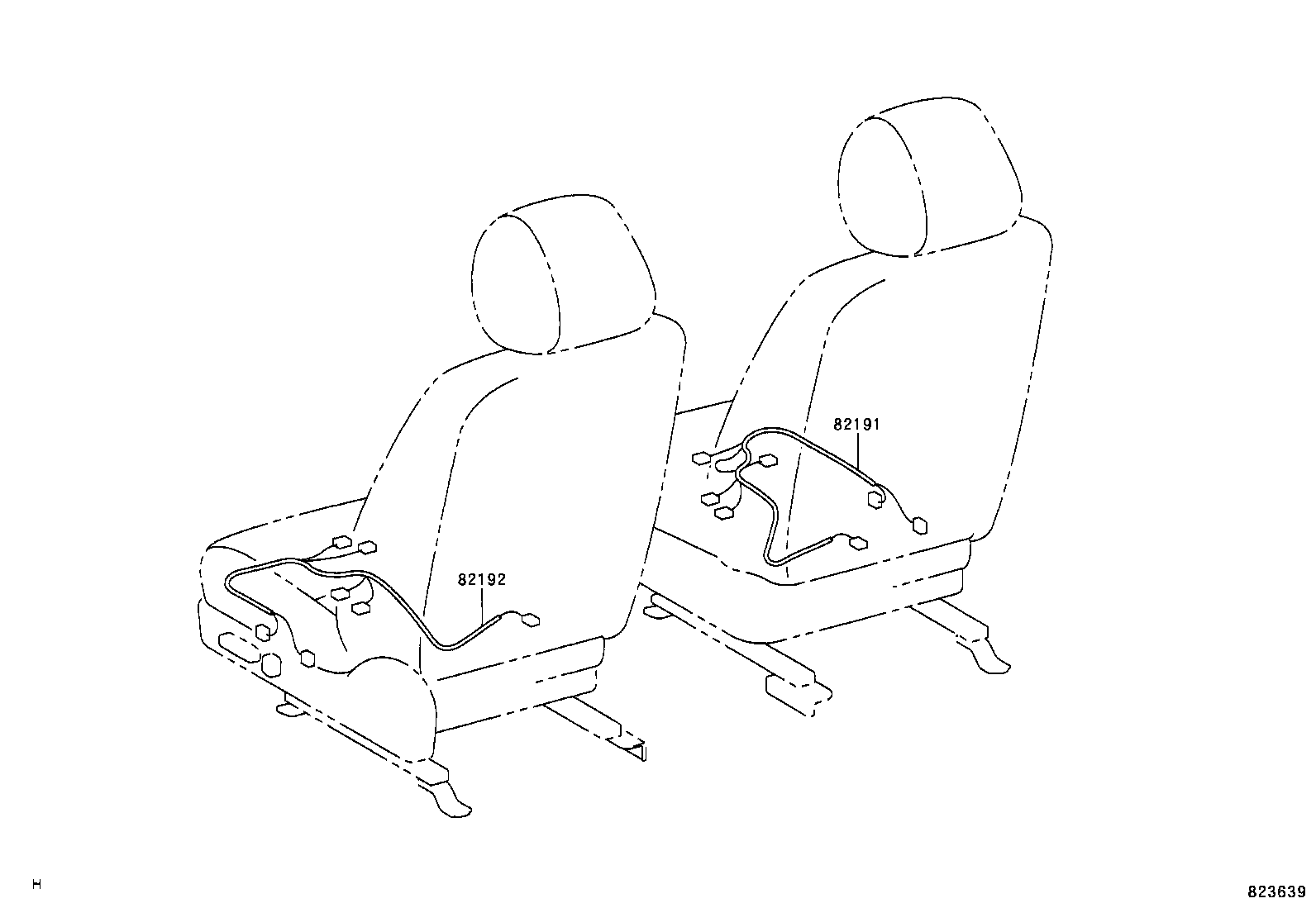

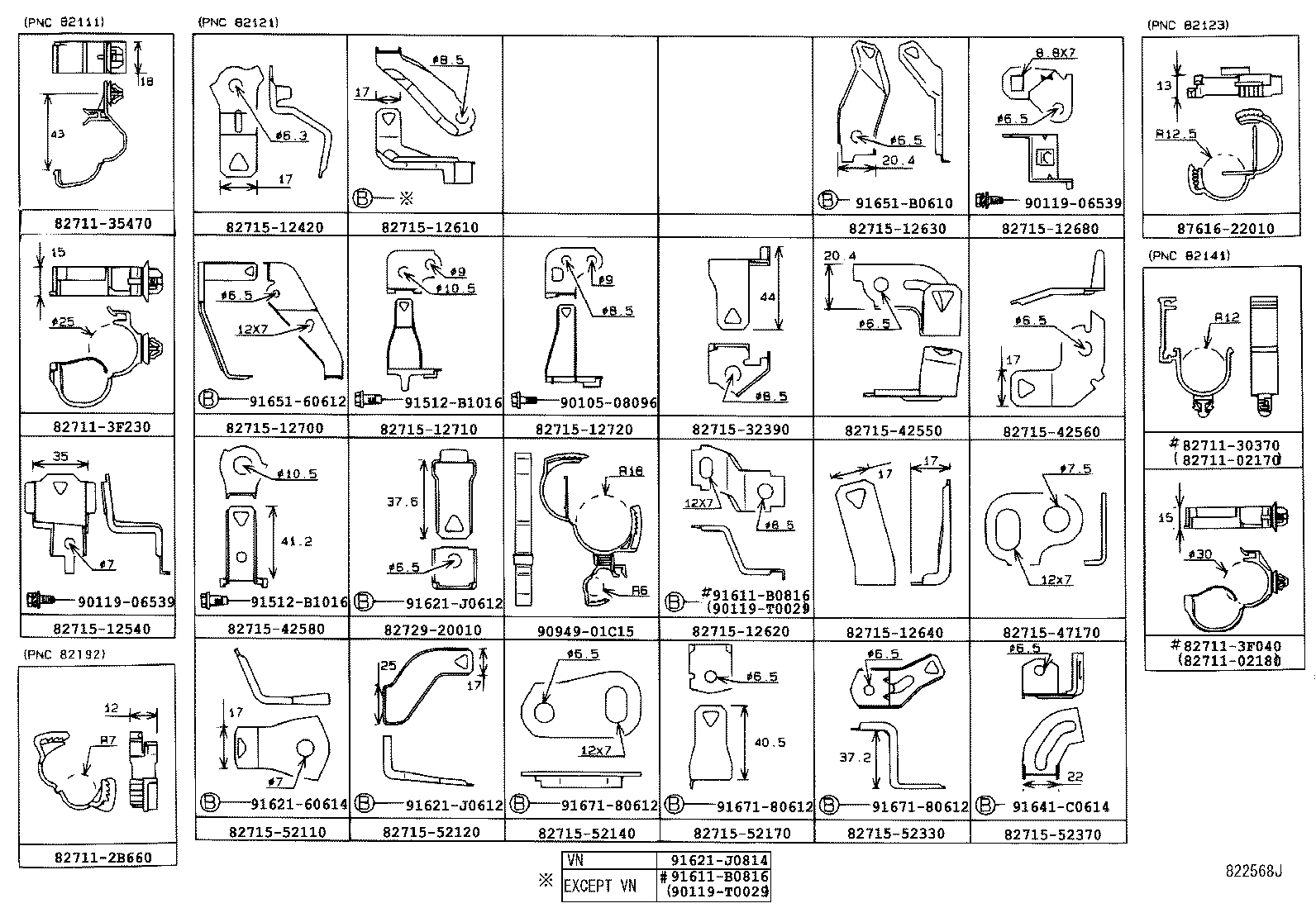

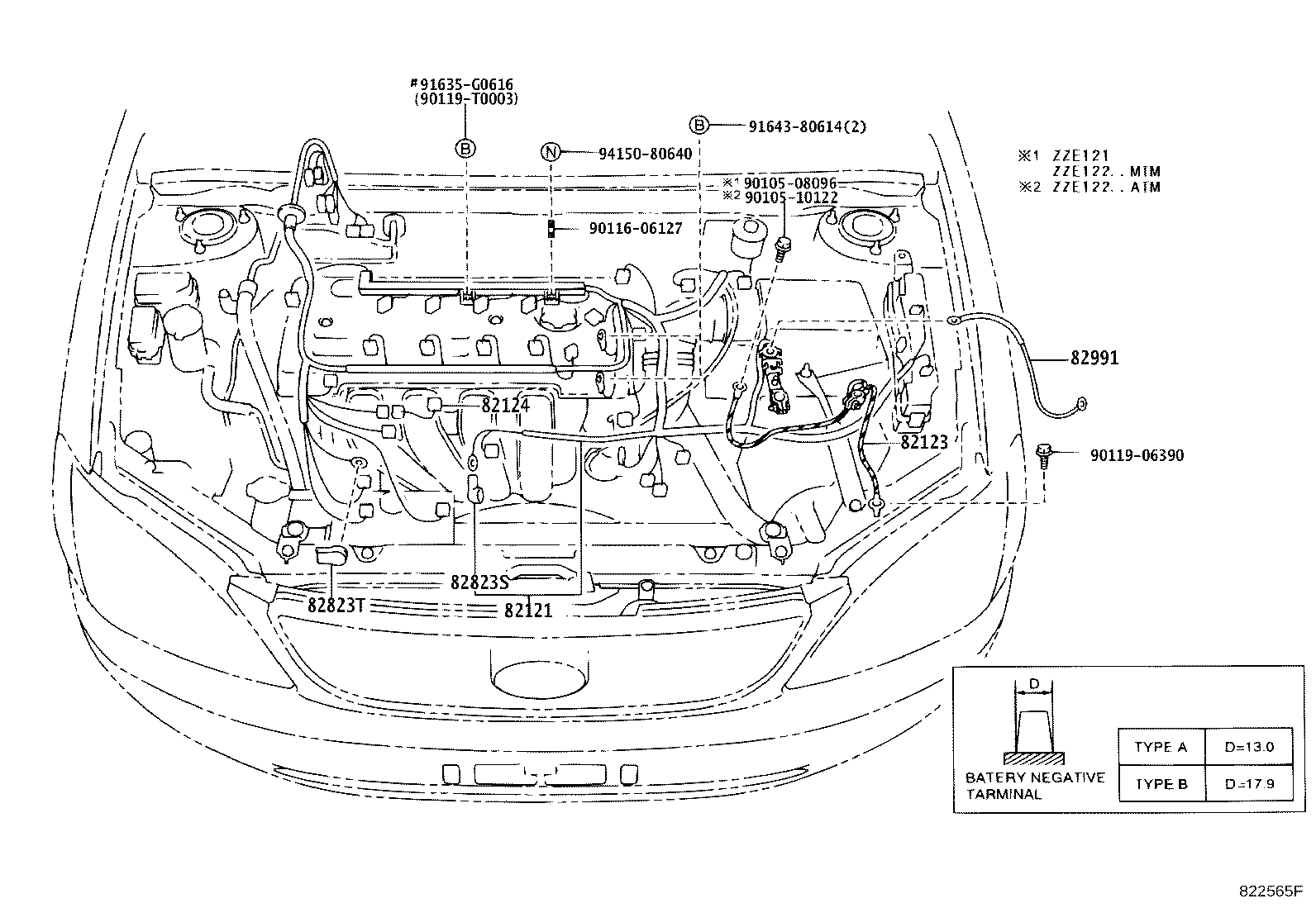

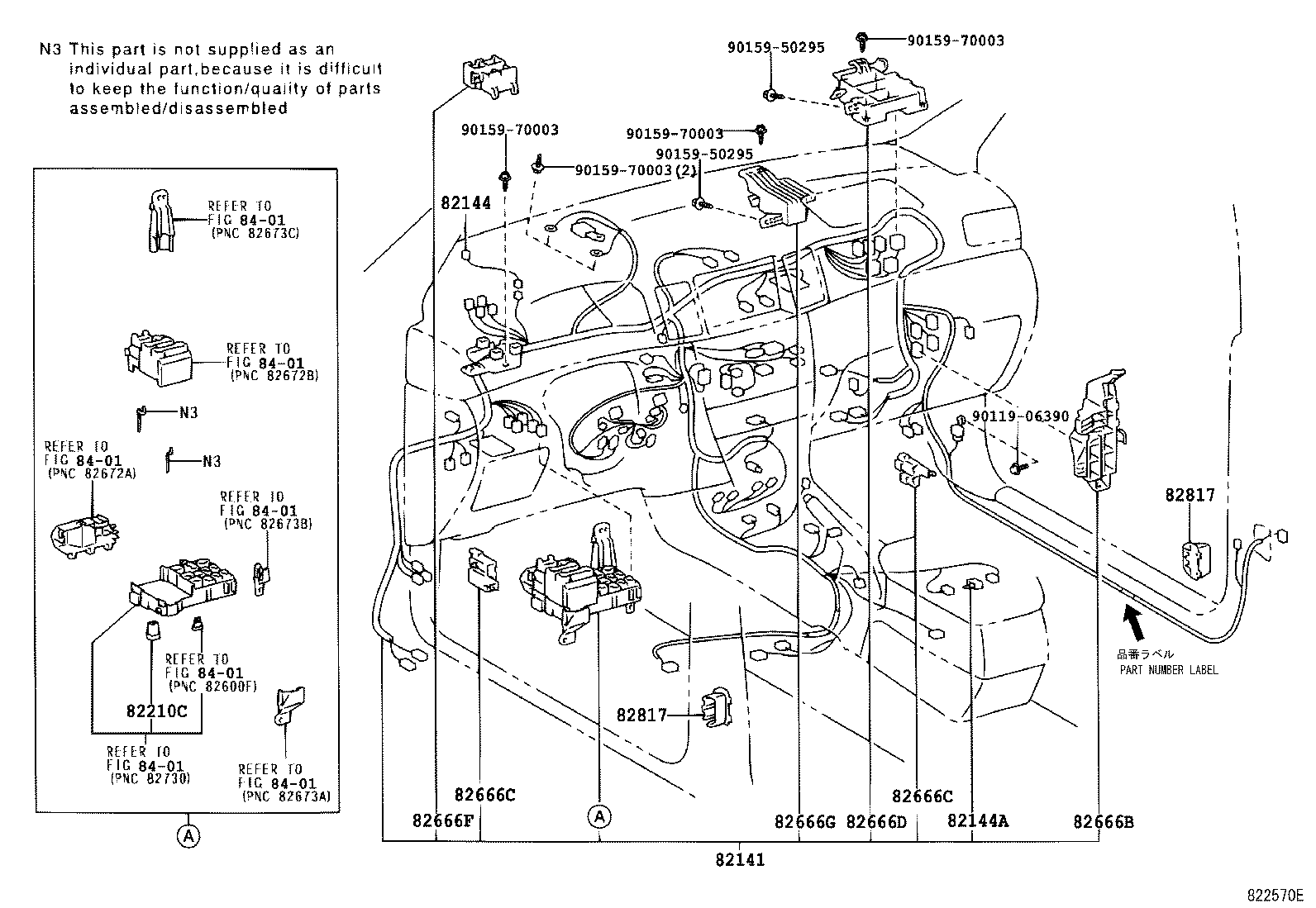

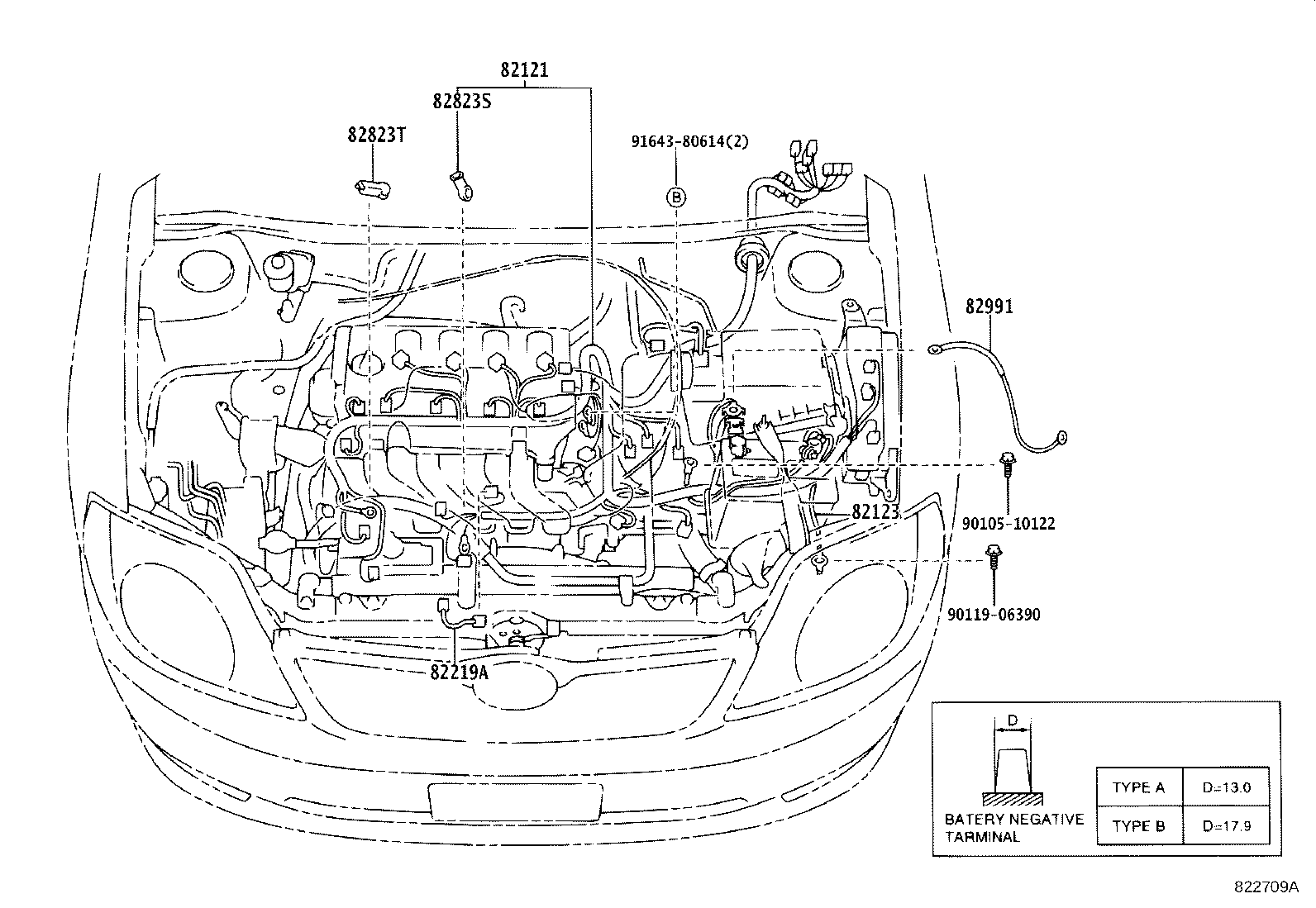

Figure 822564A 822564A 2001-03 → — Figure 822565F 822565F 2001-03 → — Figure 822709A 822709A 2001-07 → — Figure 822566F 822566F 2001-03 → — Figure 822570E 822570E 2001-03 → — Figure 822567A 822567A 2001-03 → — Figure 823639 823639 2003-10 → — Figure 823639 823639 2003-11 → — Figure 823639 823639 2004-01 → — Figure 823639 823639 2004-11 → — Figure 823639 823639 2006-03 → — Figure 822568J 822568J 2001-03 → — Figure 822710E 822710E 2001-03 → — Figure 823649B 823649B 2001-03 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82144 Wire, Instrument Panel, NO.4
82144A Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82210C Fusible Link
82219A Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
