Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 5 illustrations

Illustrations

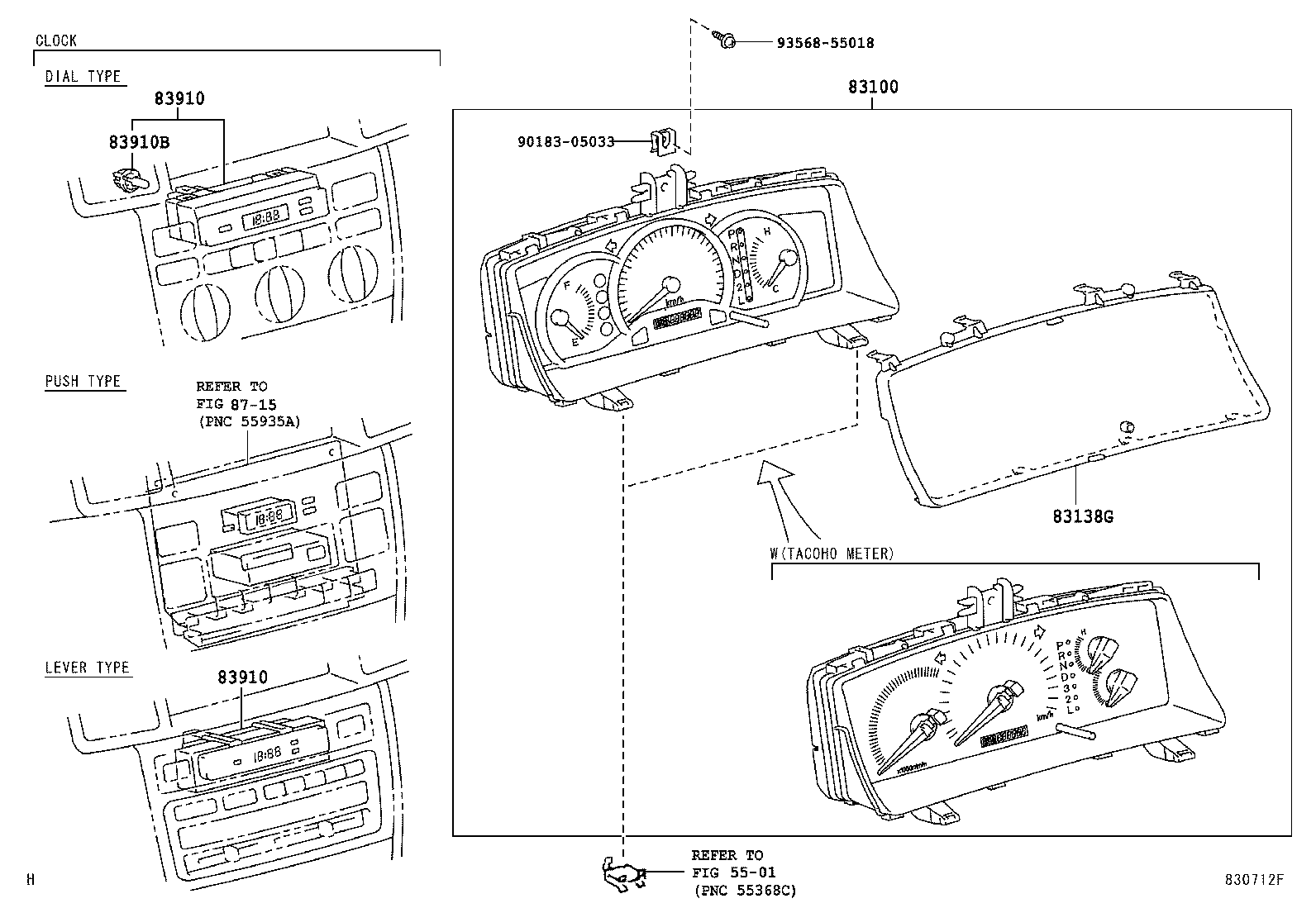

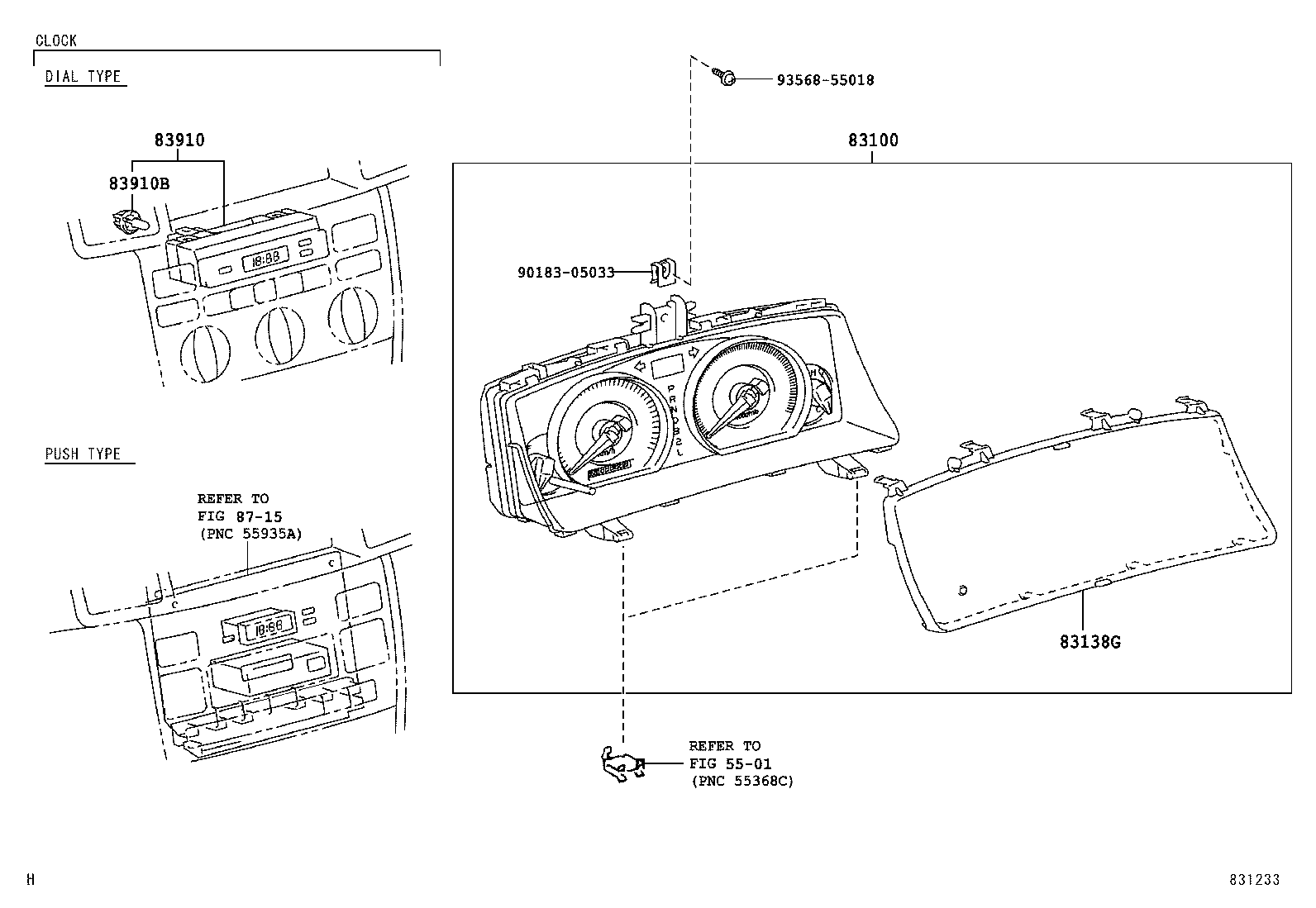

Figure 830712F 830712F 2001-03 → 2006-03 Figure 830712F 830712F 2006-03 → 2006-05 Figure 830712F 830712F 2006-03 → — Figure 831233 831233 2006-03 → — Figure 831233 831233 2006-05 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
83910 Clock Assy
83910B Bulb, Clock Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
