Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01
Abs & Vsc

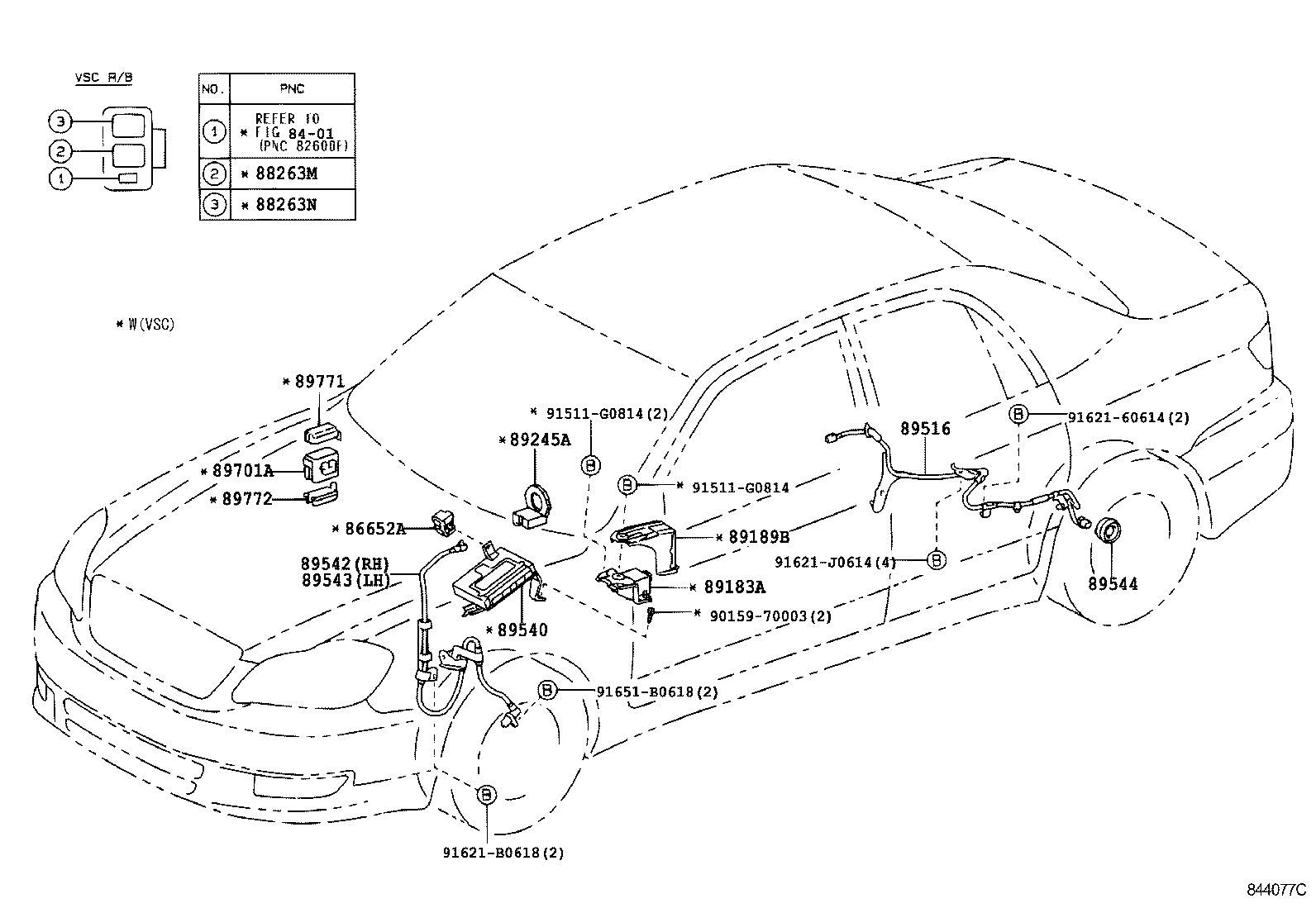

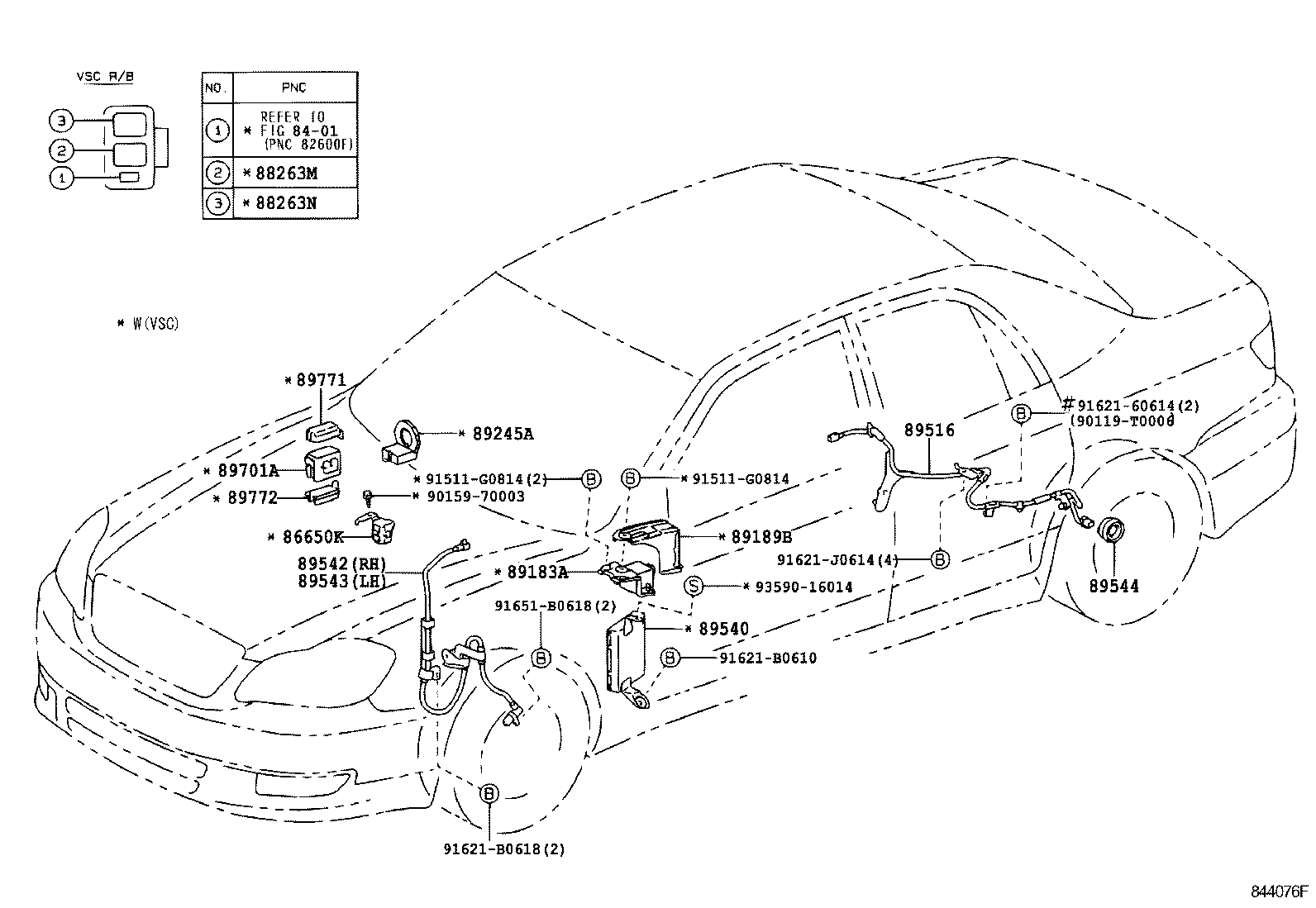

15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86650K | Buzzer Assy, Skid Control |
| 86652A | Buzzer Assy, Skid Control |
| 88263M | Relay, Abs Solenoid |
| 88263N | Relay, Abs Motor |
| 89183A | Sensor, Yawrate |
| 89189B | Bracket, Yawrate Sensor |
| 89245A | Sensor, Steering |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89701A | Block Sub-assy, Abs Relay |
| 89771 | Cover, Abs Relay Block, Upper |
| 89772 | Cover, Abs Relay Block, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
