Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01

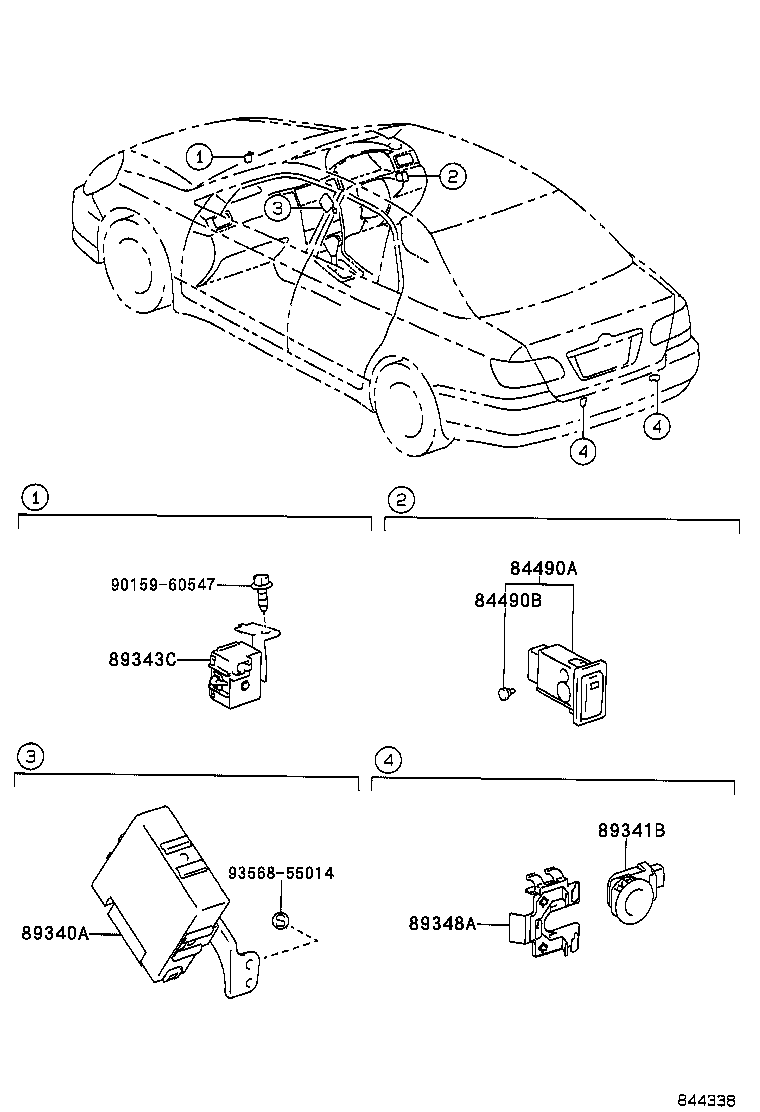

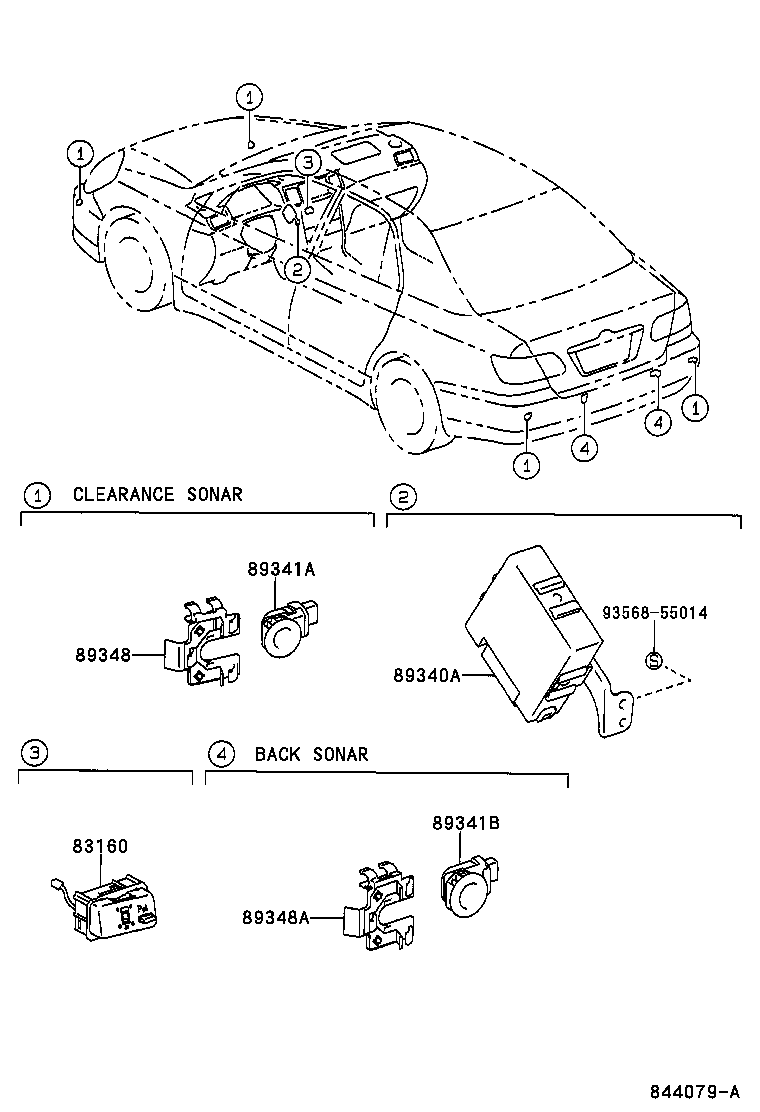

Clearance & Back Sonar
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83160 | Indicator Assy, Clearance Warning |
| 84490A | Switch Assy, Back Sonar OR Clearance Sonar |
| 84490B | Bulb(FOR BACK SONAR SWITCH) |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348 | Retainer, Ultrasonic Sensor, NO.1 |
| 89348A | Retainer, Ultrasonic Sensor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
