Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

7 part groups · 11 illustrations

Illustrations

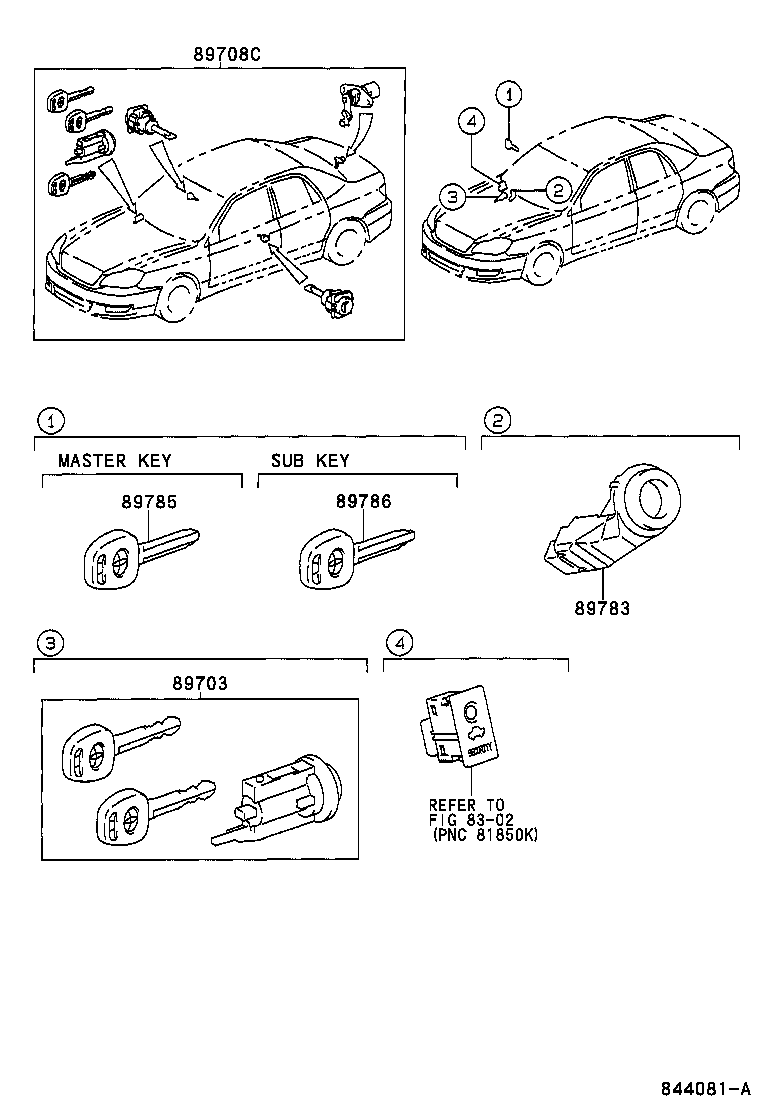

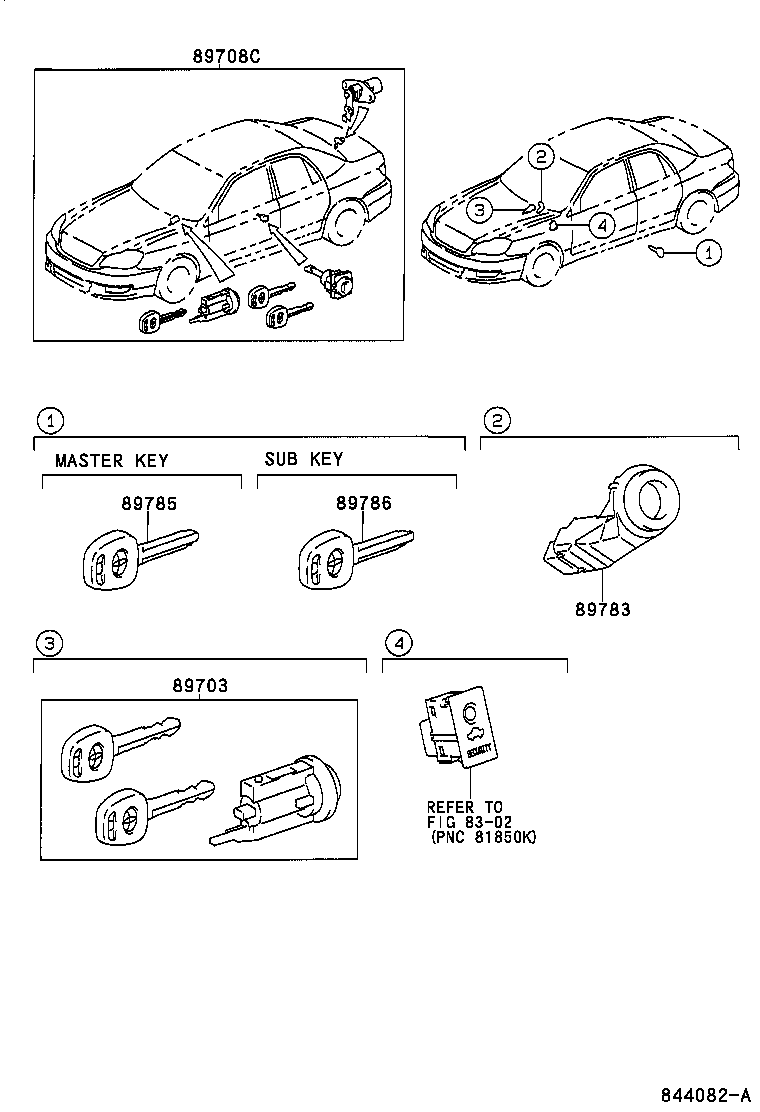

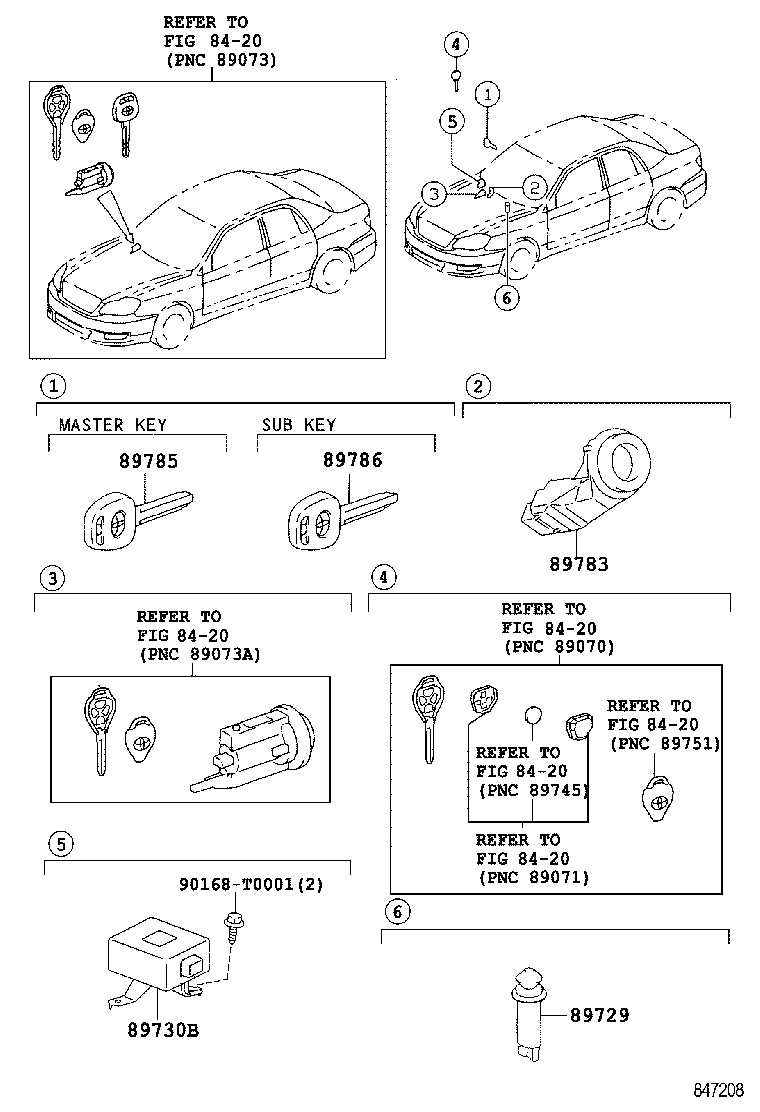

Figure 844082A 844082A 2001-03 → 2003-10 Figure 844082A 844082A 2003-10 → 2006-03 Figure 844081A 844081A 2001-05 → 2003-11 Figure 844081A 844081A 2003-01 → 2005-08 Figure 844081A 844081A 2003-11 → 2006-03 Figure 844081A 844081A 2003-11 → 2007-12 Figure 844081A 844081A 2006-08 → — Figure 847208B 847208B 2005-08 → — Figure 847208B 847208B 2006-03 → — Figure 847286B 847286B 2006-03 → — Figure 847286B 847286B 2006-05 → —

Part groups

PNCDescription
89703 Cylinder & Key Set, Ignition W/Transponder
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89729 Switch, Theft Warning Courtesy
89730B Computer Assy, Theft Warning
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
