Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01
Windshield Wiper
16 part groups · 1 illustrations

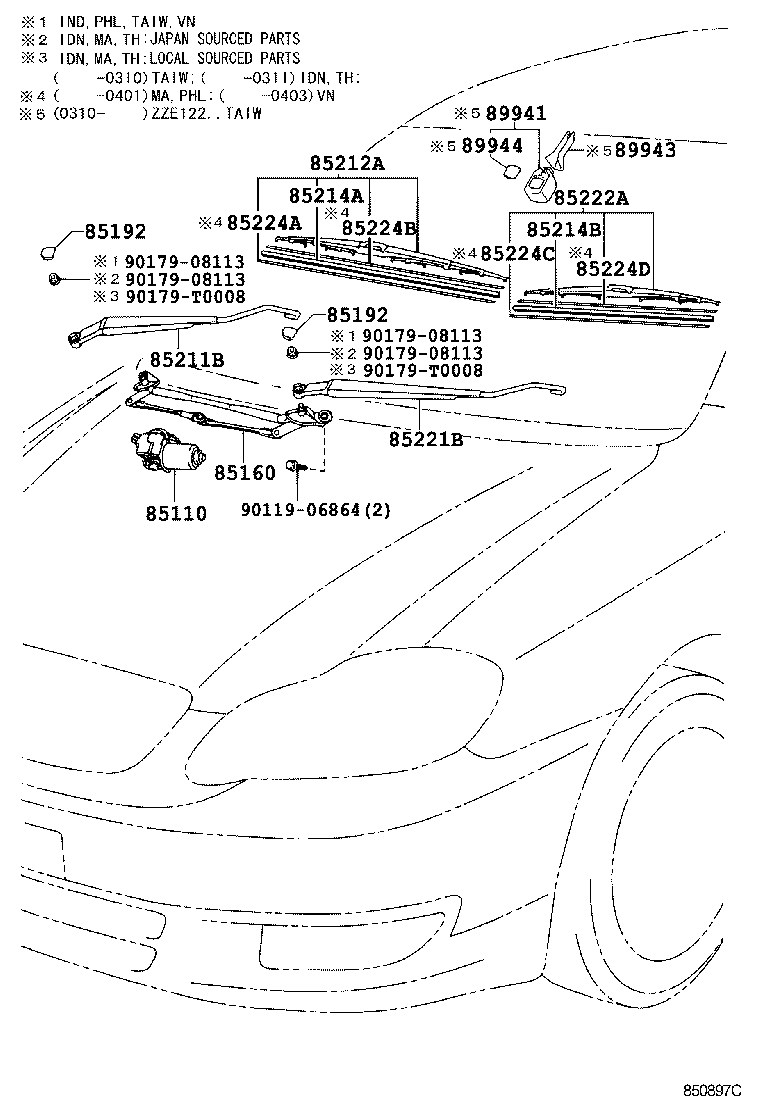

Illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85192 | Cover, Windshield Wiper Arm |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85224A | Plate, Wiper Rubber Backing, NO.1 |
| 85224B | Plate, Wiper Rubber Backing, NO.2 |
| 85224C | Plate, Wiper Rubber Backing, NO.3 |
| 85224D | Plate, Wiper Rubber Backing, NO.4 |
| 89941 | Sensor, Rain |
| 89943 | Cover, Rain Sensor |
| 89944 | Tape, Rain Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
