Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 3 illustrations

Illustrations

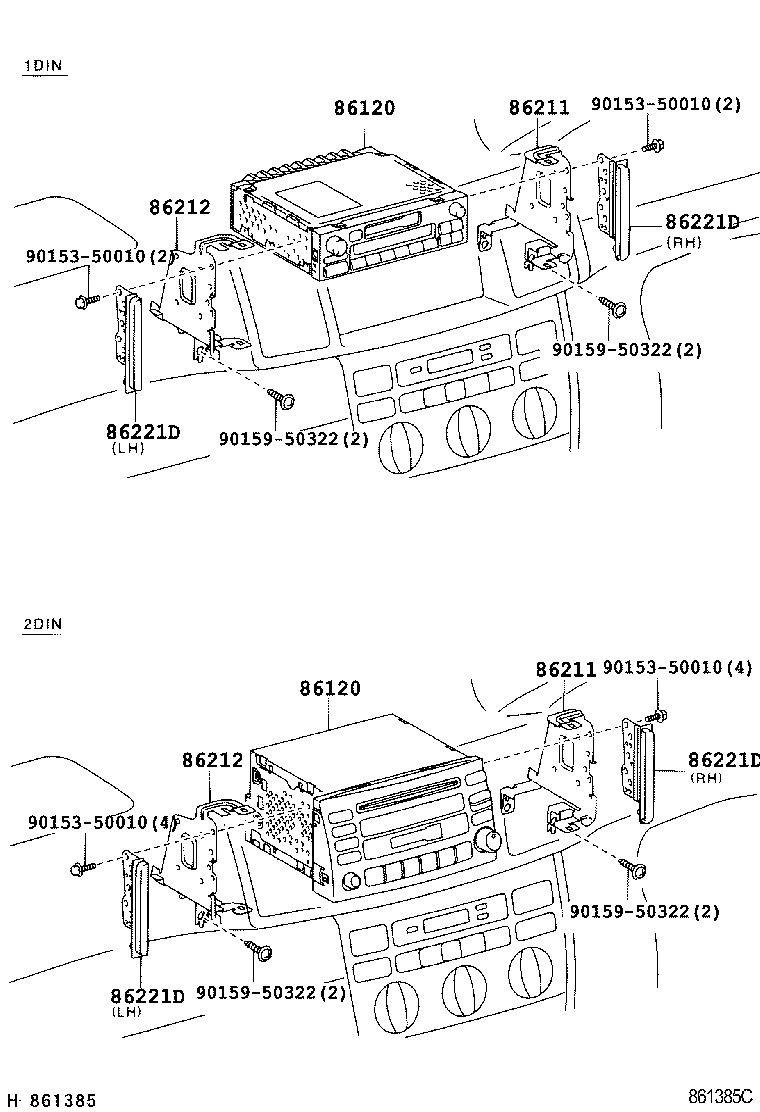

Figure 861385C

861385C 2001-03 → —

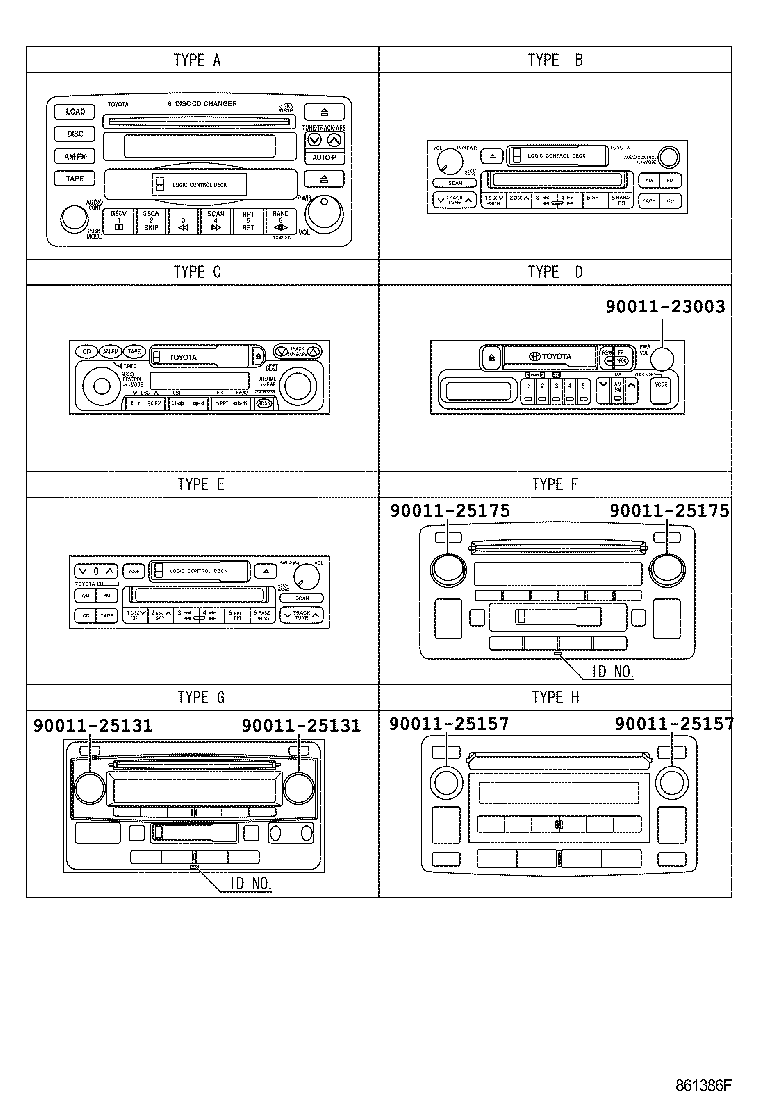

Figure 861386F

861386F 2001-03 → —

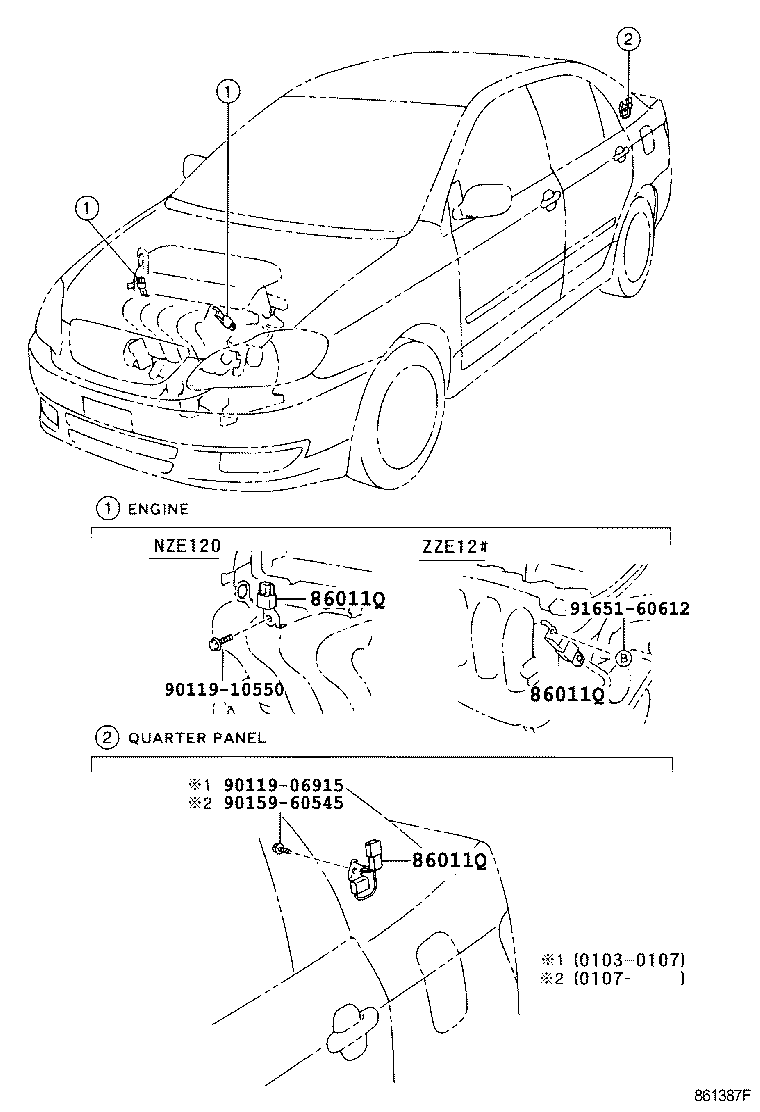

Figure 861387F

861387F 2001-03 → —

Part groups

PNC	Description
86011Q	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86221D	Panel, Radio Receiver

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
