Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

15 part groups · 13 illustrations

Illustrations

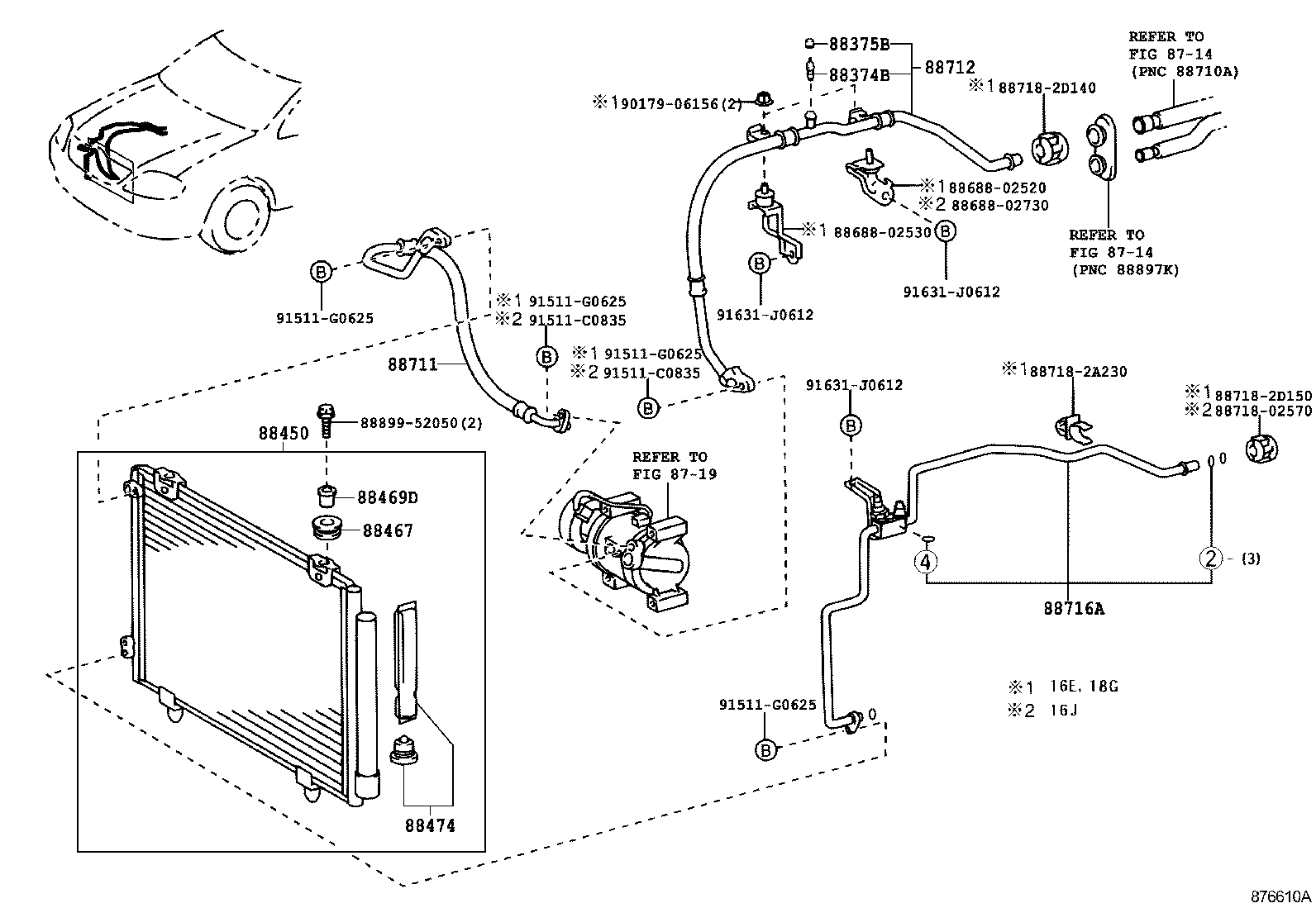

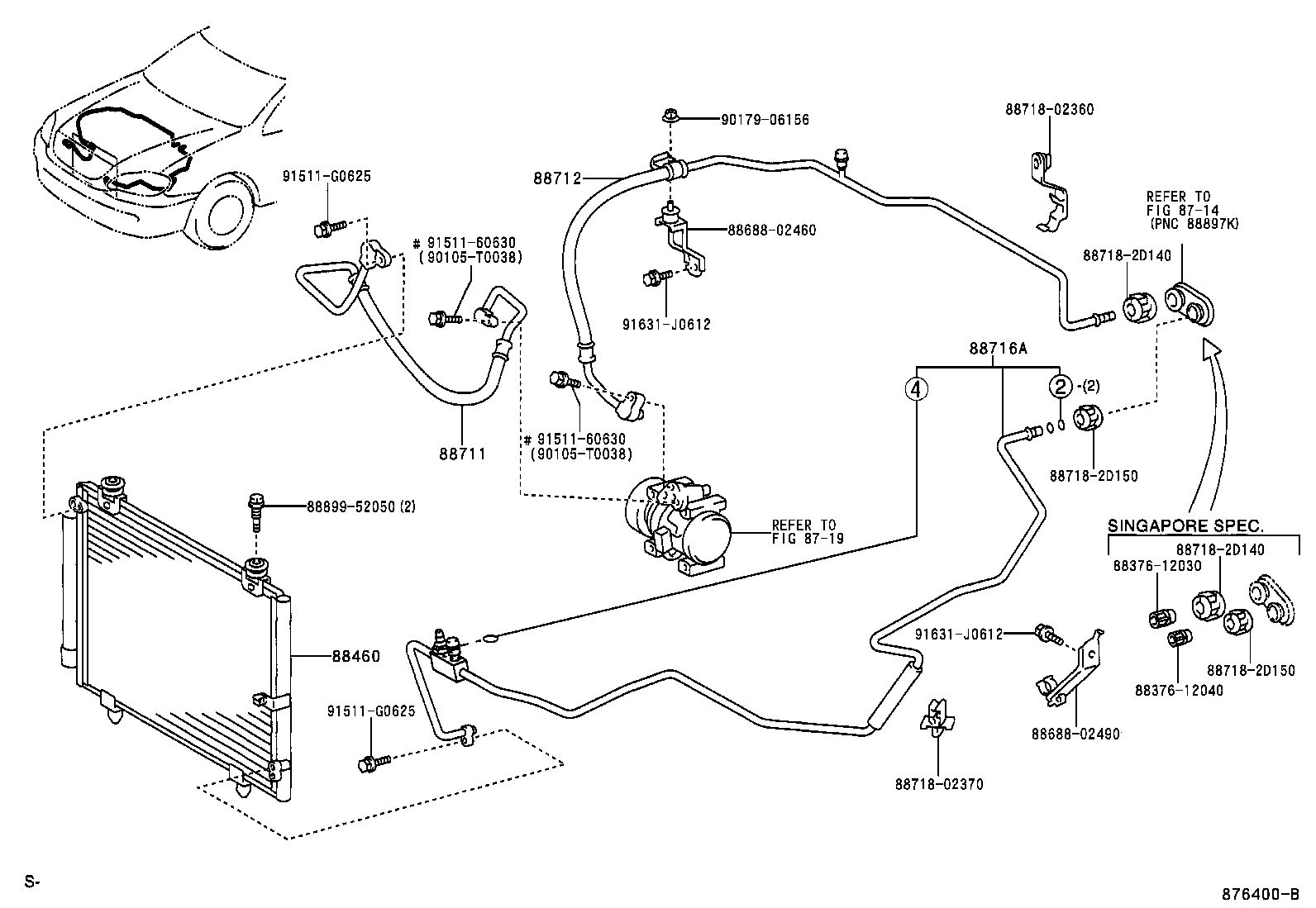

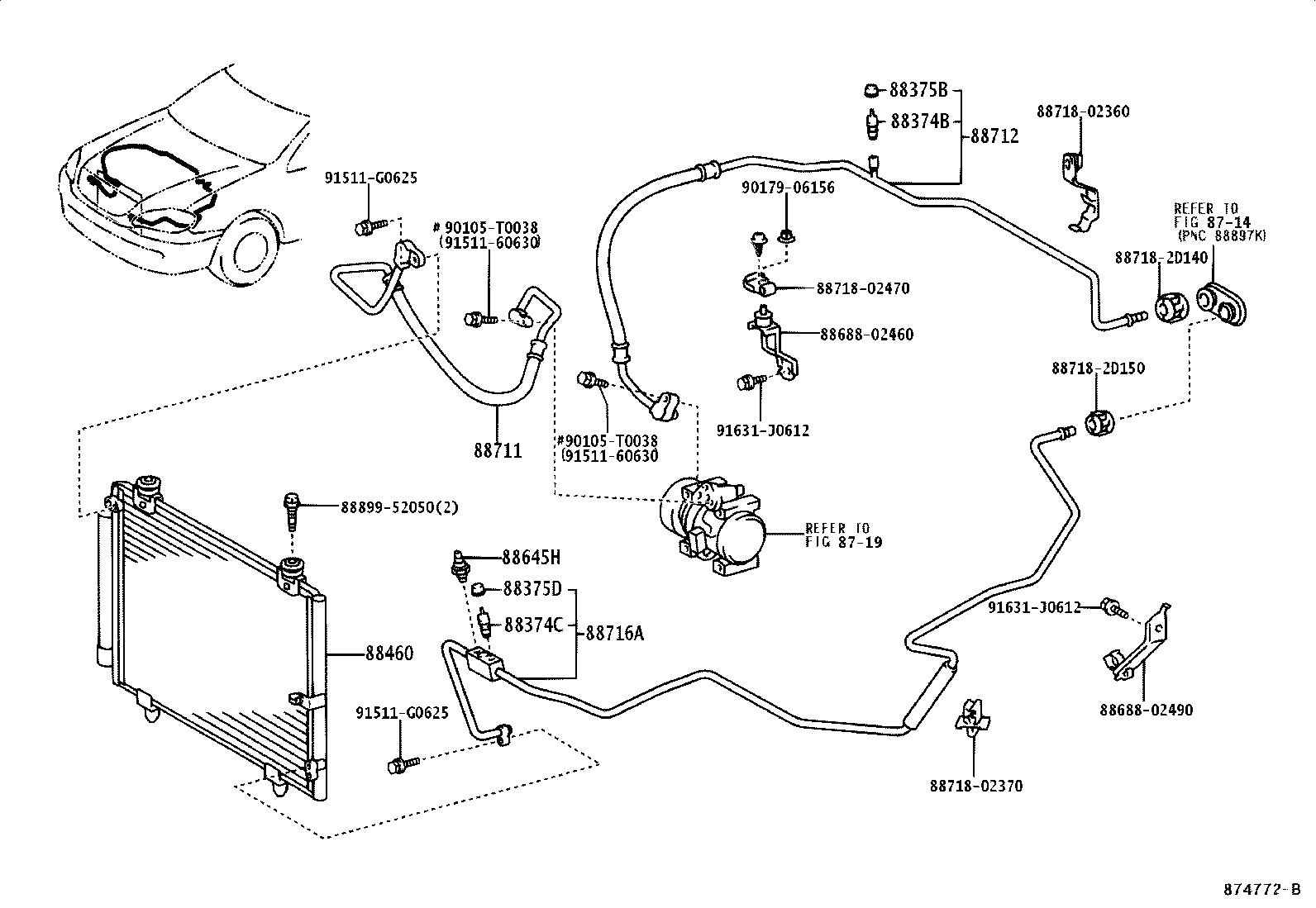

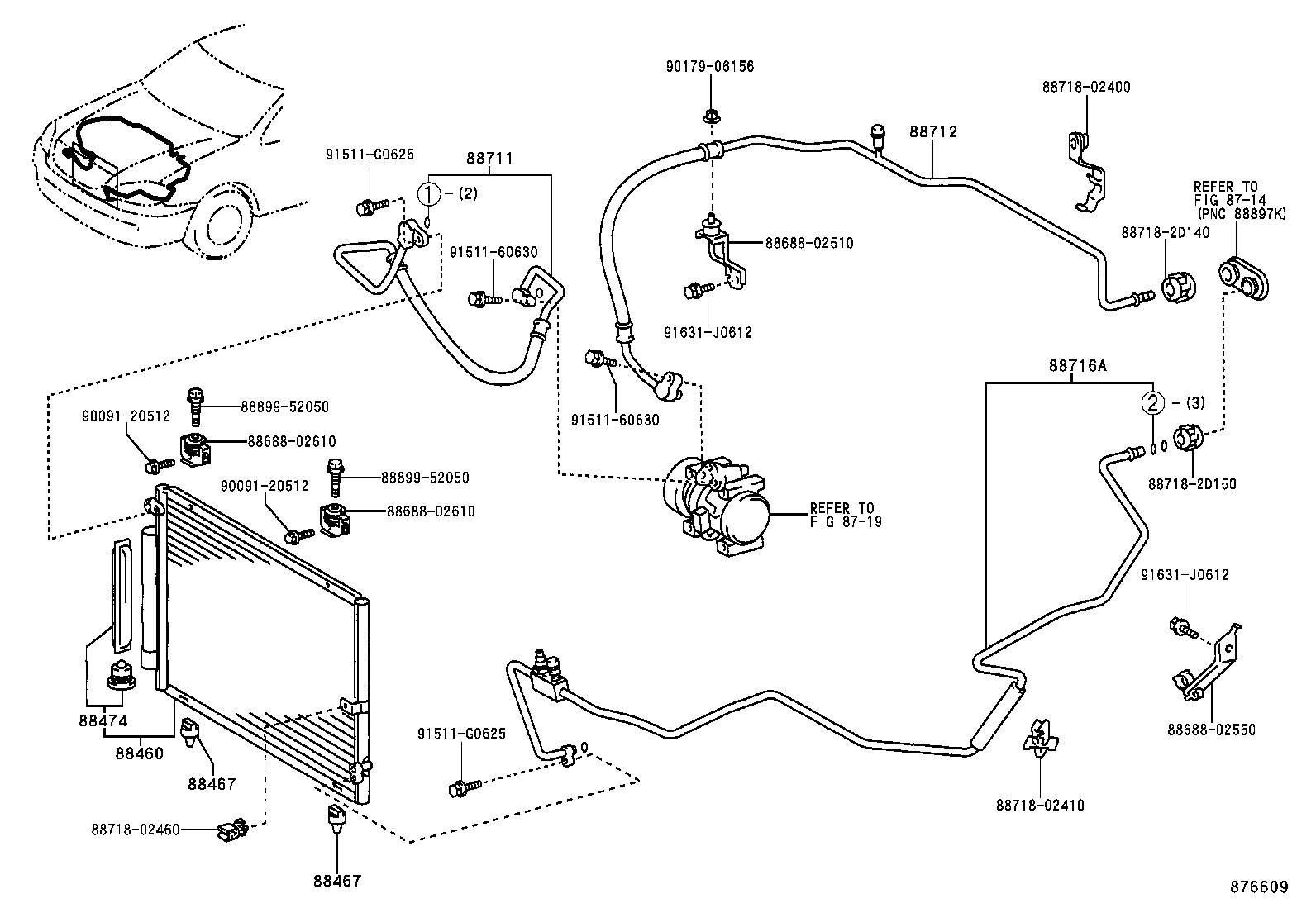

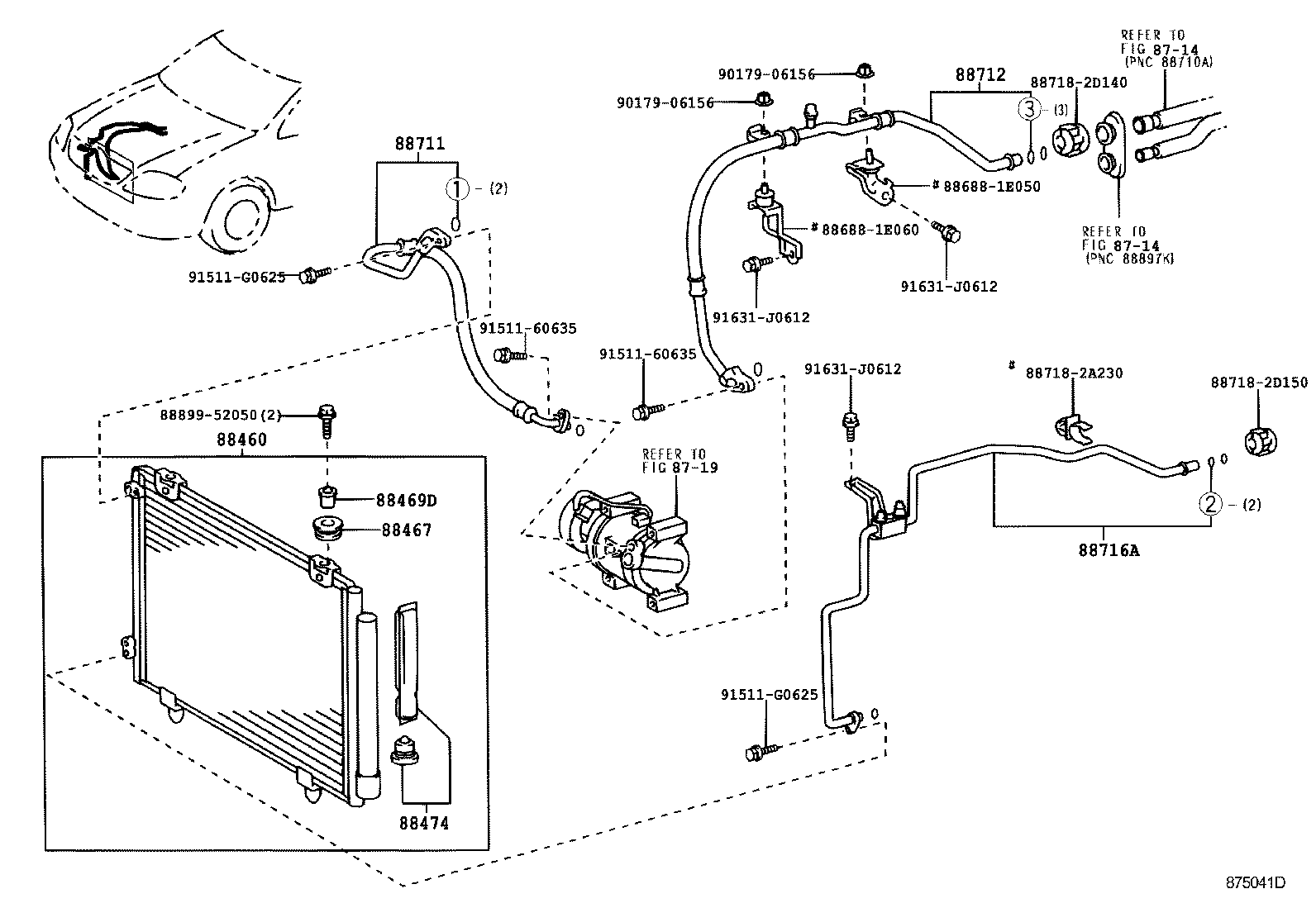

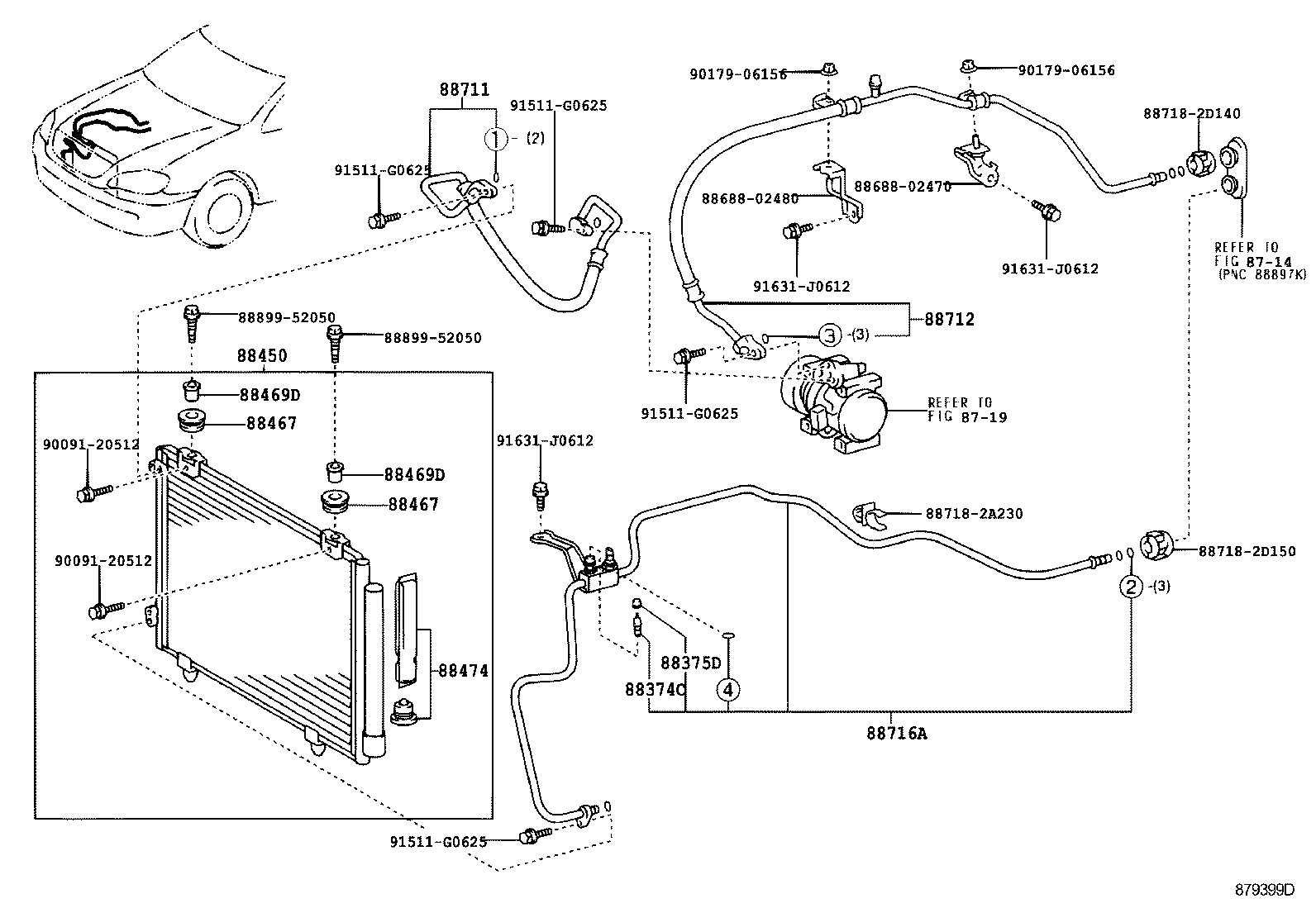

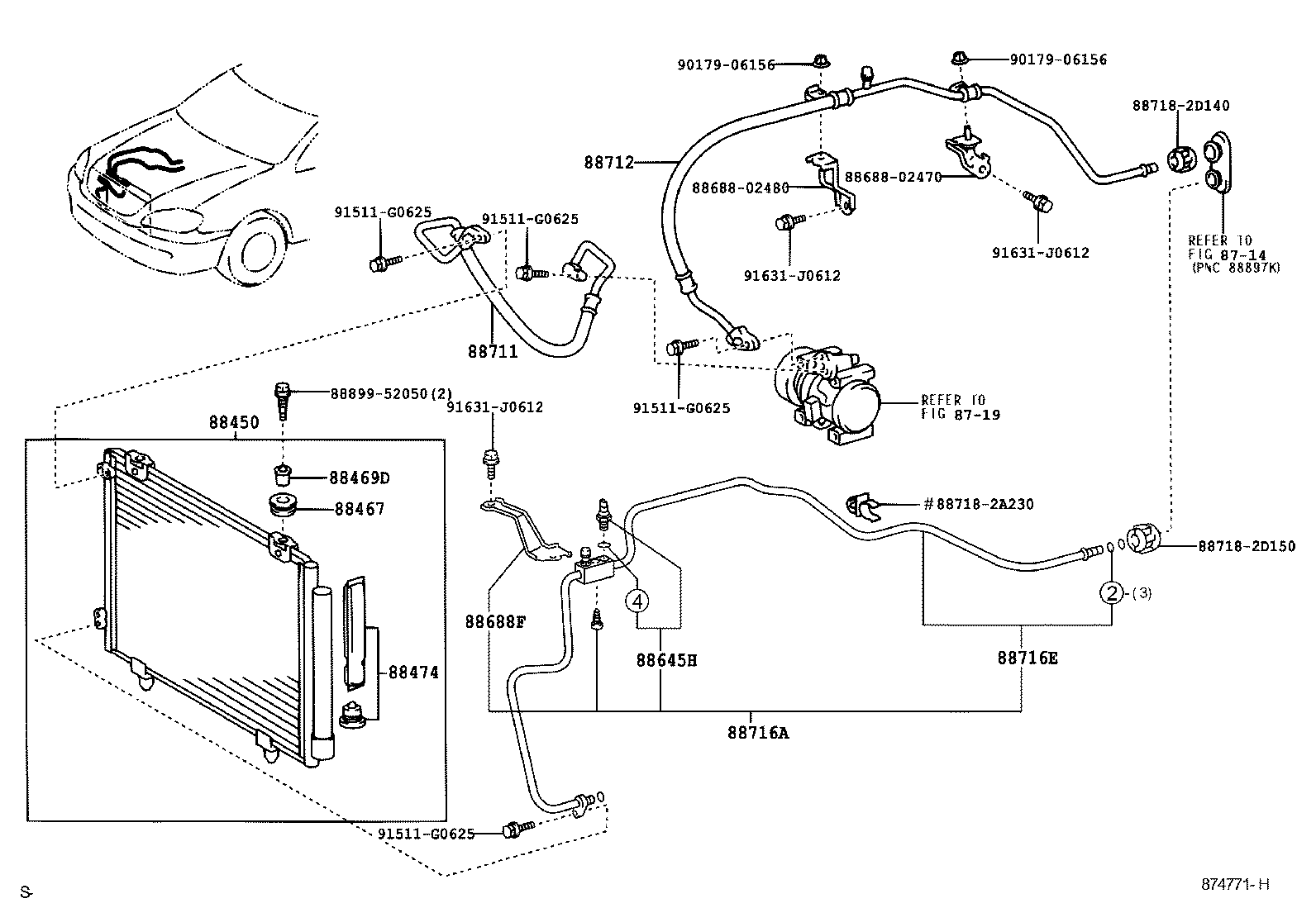

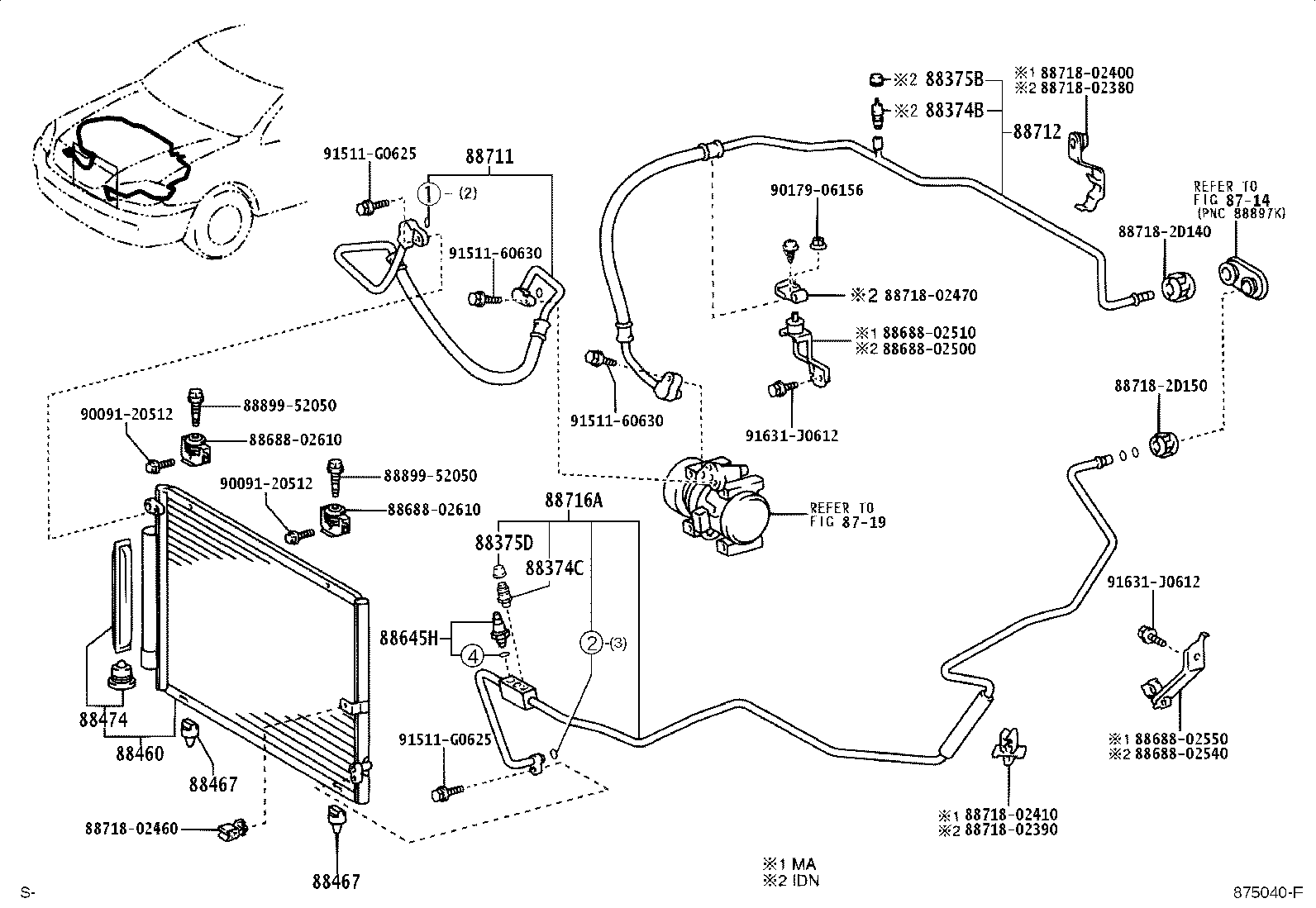

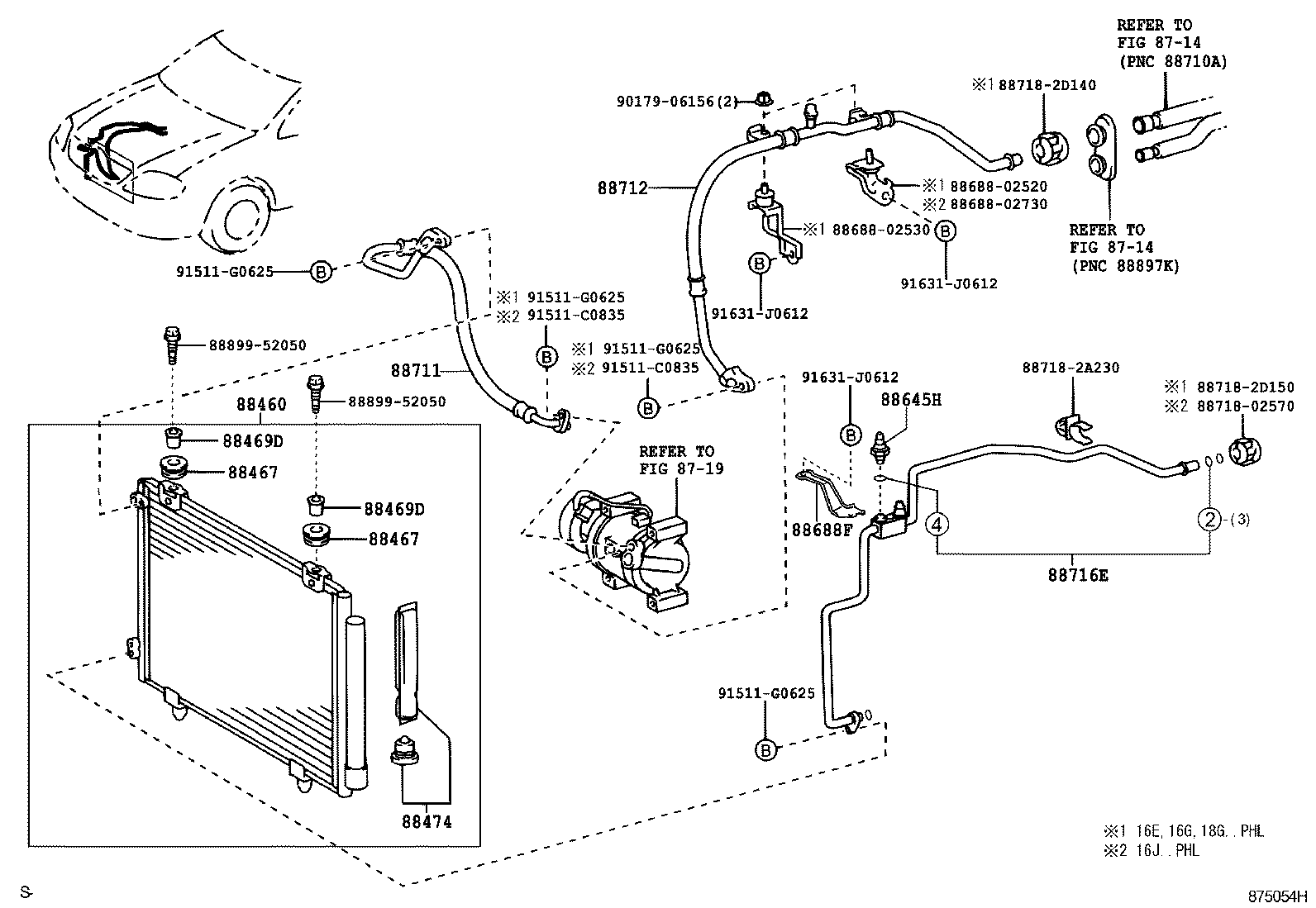

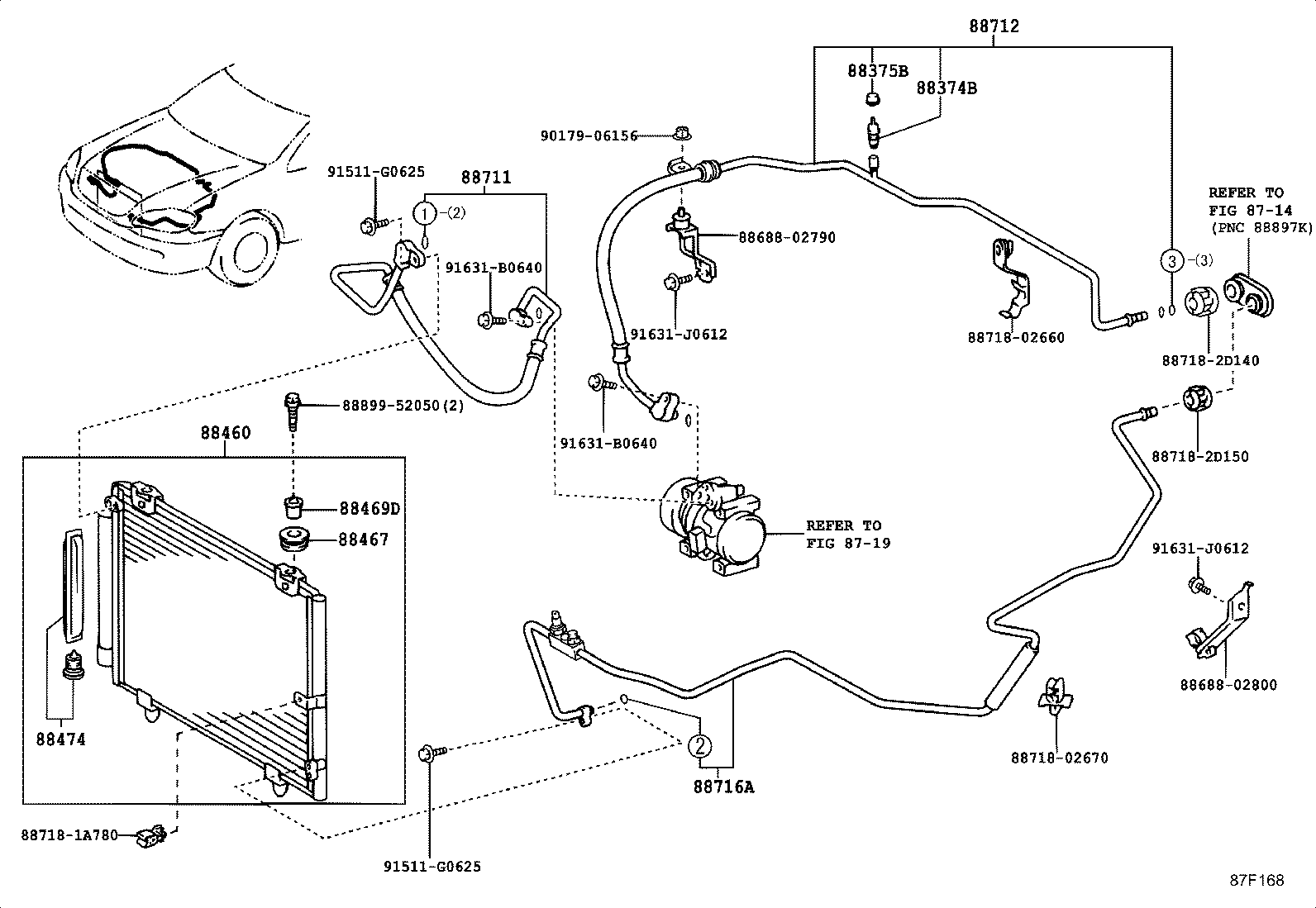

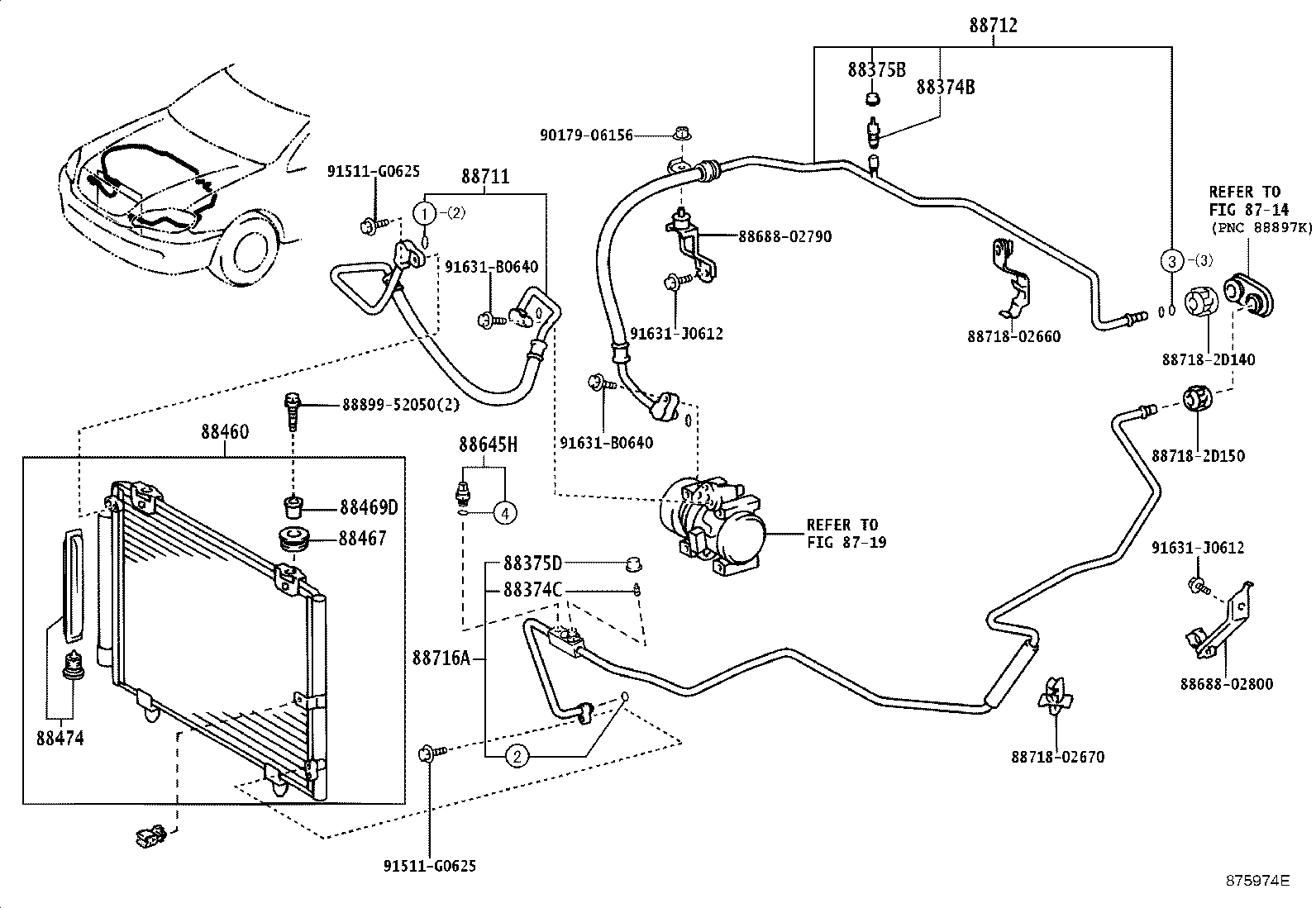

Figure 874771H 874771H 2001-03 → 2003-10 Figure 874772C 874772C 2001-05 → 2003-11 Figure 875040G 875040G 2001-07 → 2003-11 Figure 875040G 875040G 2003-11 → 2004-01 Figure 875054H 875054H 2001-07 → 2004-01 Figure 875041D 875041D 2001-07 → — Figure 875974E 875974E 2003-01 → 2005-08 Figure 876399D 876399D 2003-10 → 2007-12 Figure 876400B 876400B 2003-11 → 2008-01 Figure 876609 876609 2004-01 → — Figure 876610A 876610A 2004-01 → 2008-02 Figure 87F168 87F168 2005-08 → — Figure 874408 874408 2001-03 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
