Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

21 part groups · 13 illustrations

Illustrations

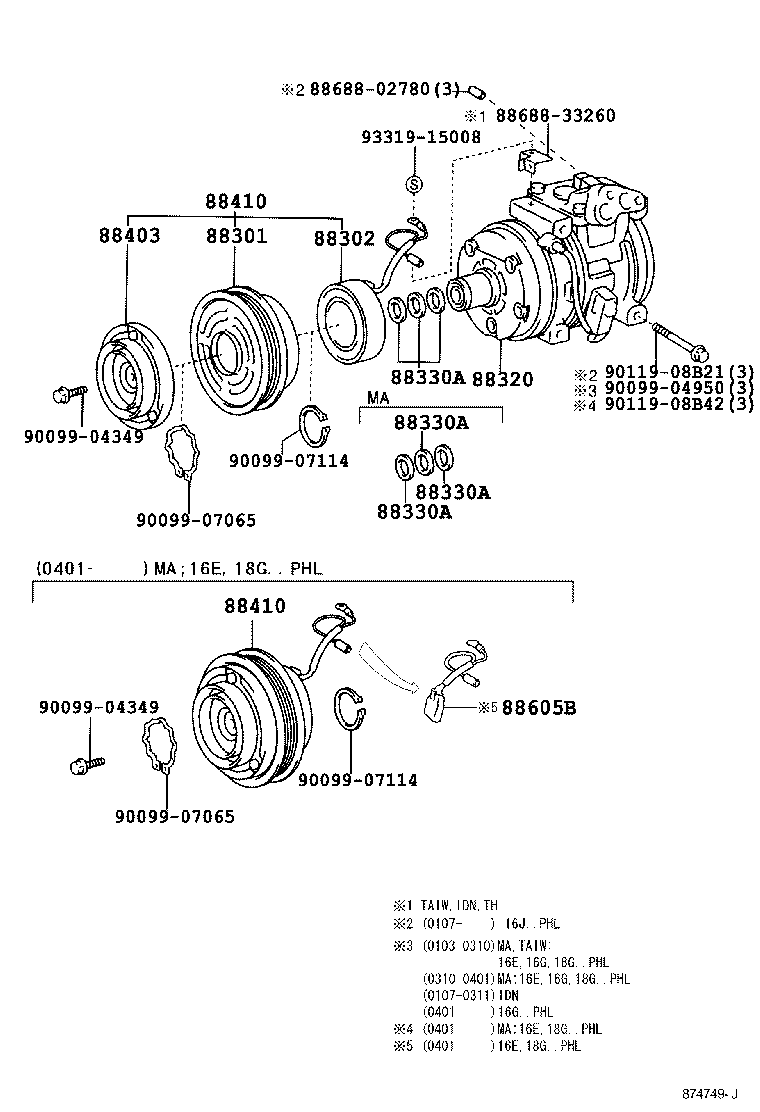

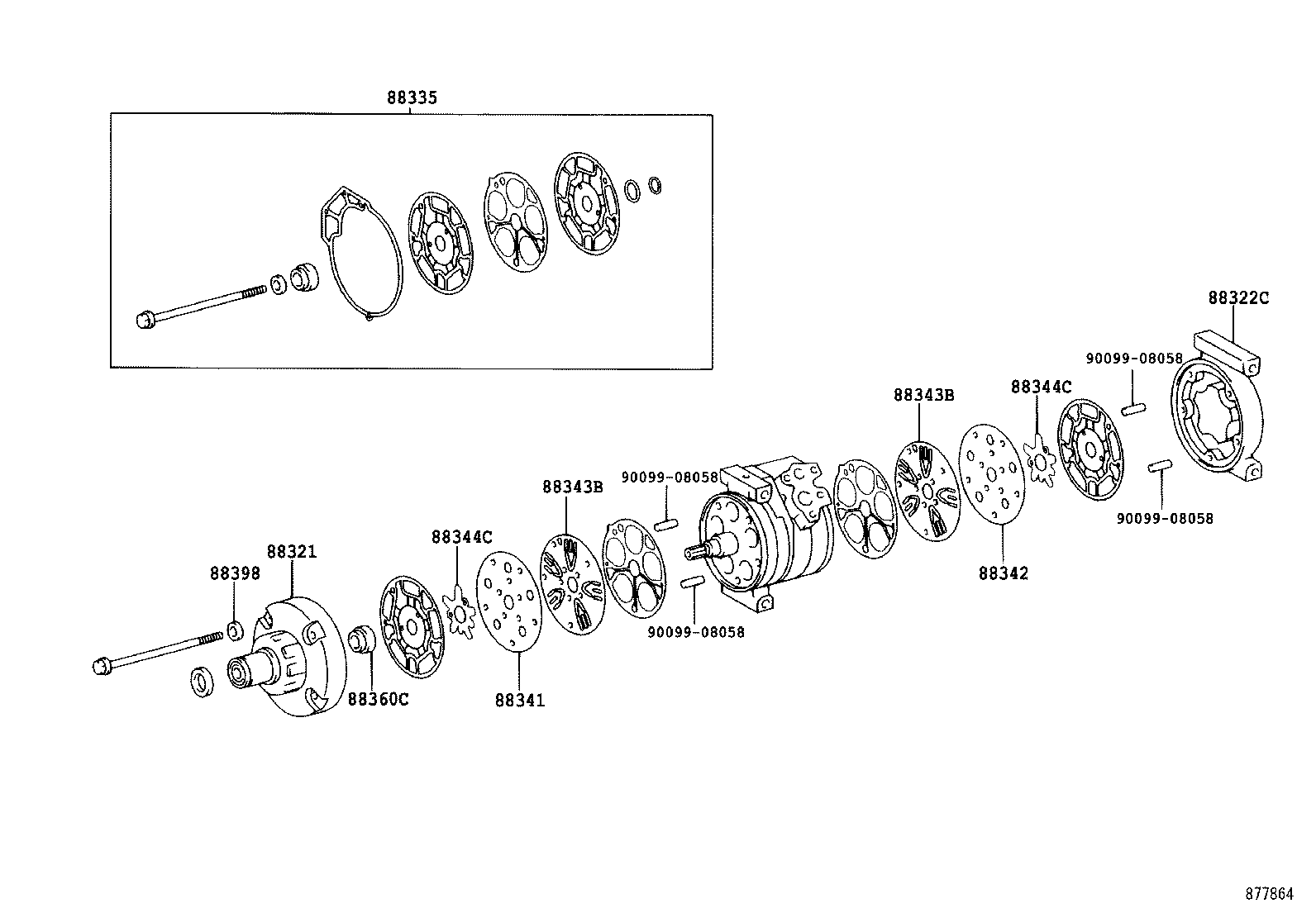

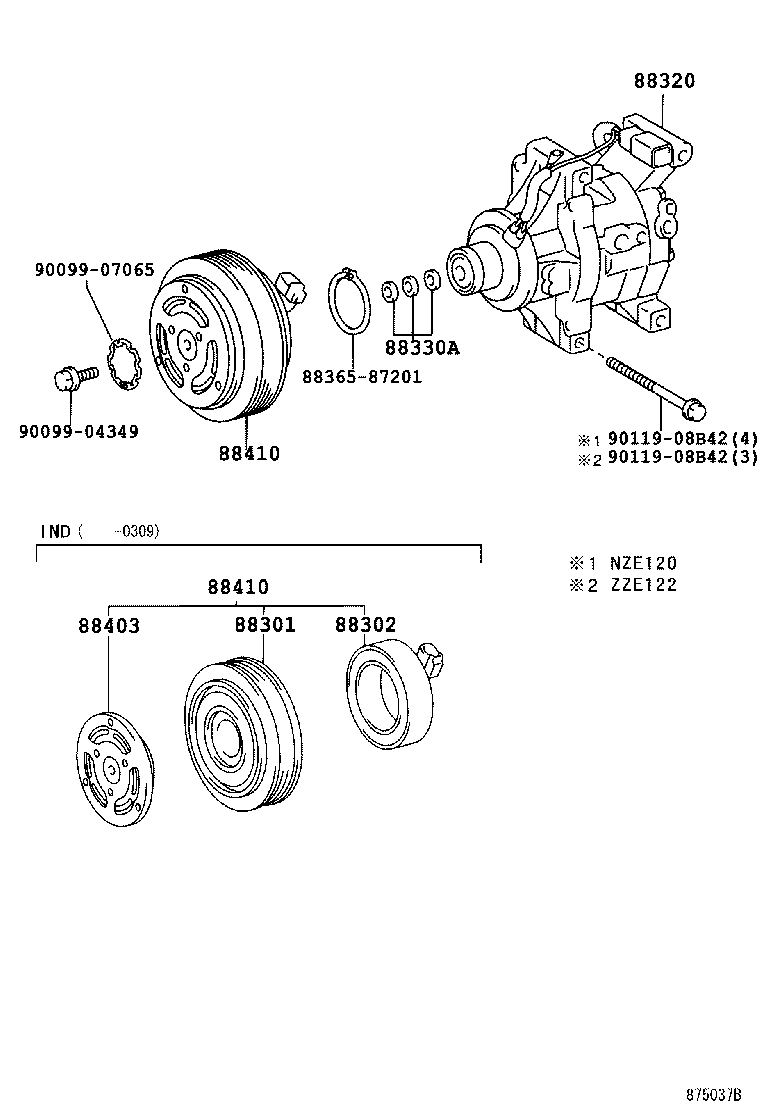

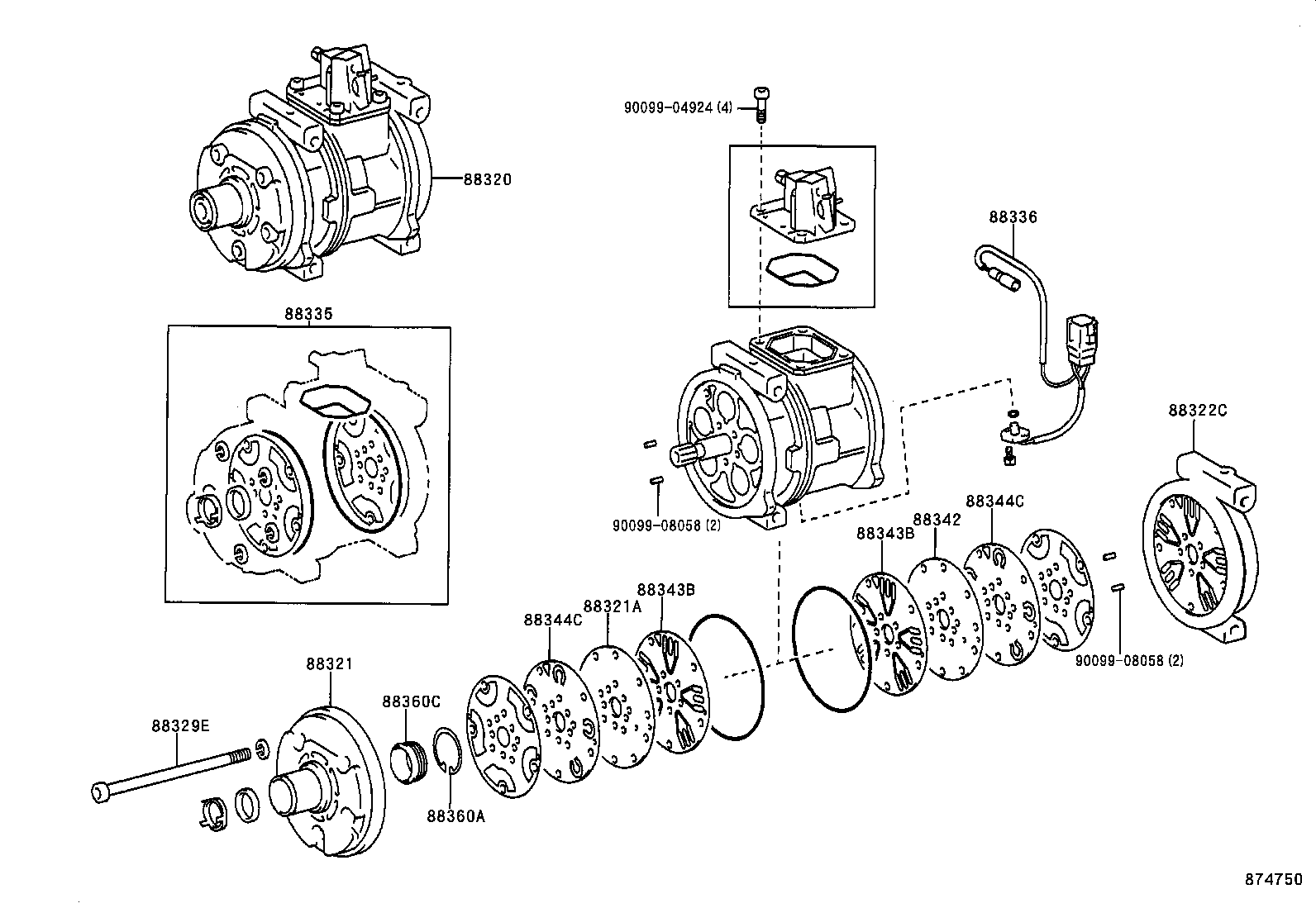

Figure 874749J 874749J 2001-03 → 2003-10 Figure 874749J 874749J 2001-03 → 2003-11 Figure 874749J 874749J 2001-03 → 2008-02 Figure 874749J 874749J 2001-03 → — Figure 874750 874750 2001-03 → 2003-10 Figure 874750 874750 2001-03 → 2003-11 Figure 874750 874750 2001-03 → 2004-01 Figure 874751B 874751B 2001-05 → 2003-11 Figure 878701 878701 2003-11 → 2008-01 Figure 875037B 875037B 2001-07 → — Figure 875037B 875037B 2003-01 → — Figure 877824A 877824A 2003-10 → 2007-12 Figure 877864 877864 2003-10 → 2007-12

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88322C Head, Cylinder, Rear
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88336 Sensor, Compressor
88341 Plate, Front Valve
88342 Plate, Compressor Valve, RR
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88398 Packing, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88605B Harness Sub-assy, Air Conditioner Wiring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
