Toyota Corolla/Altis
2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General
Supported model
Data version 2015-01
Cylinder Head
42 part groups · 6 illustrations

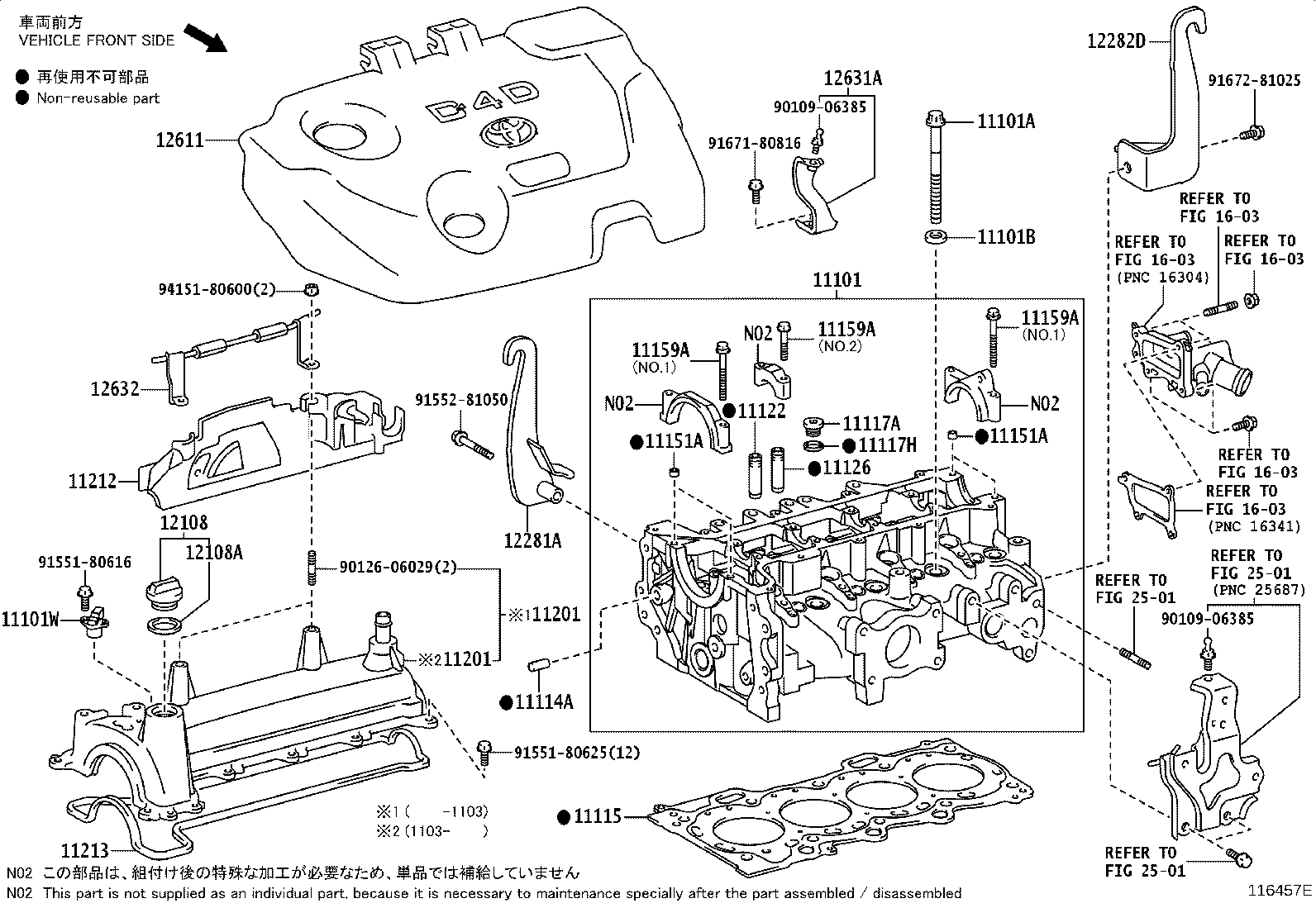

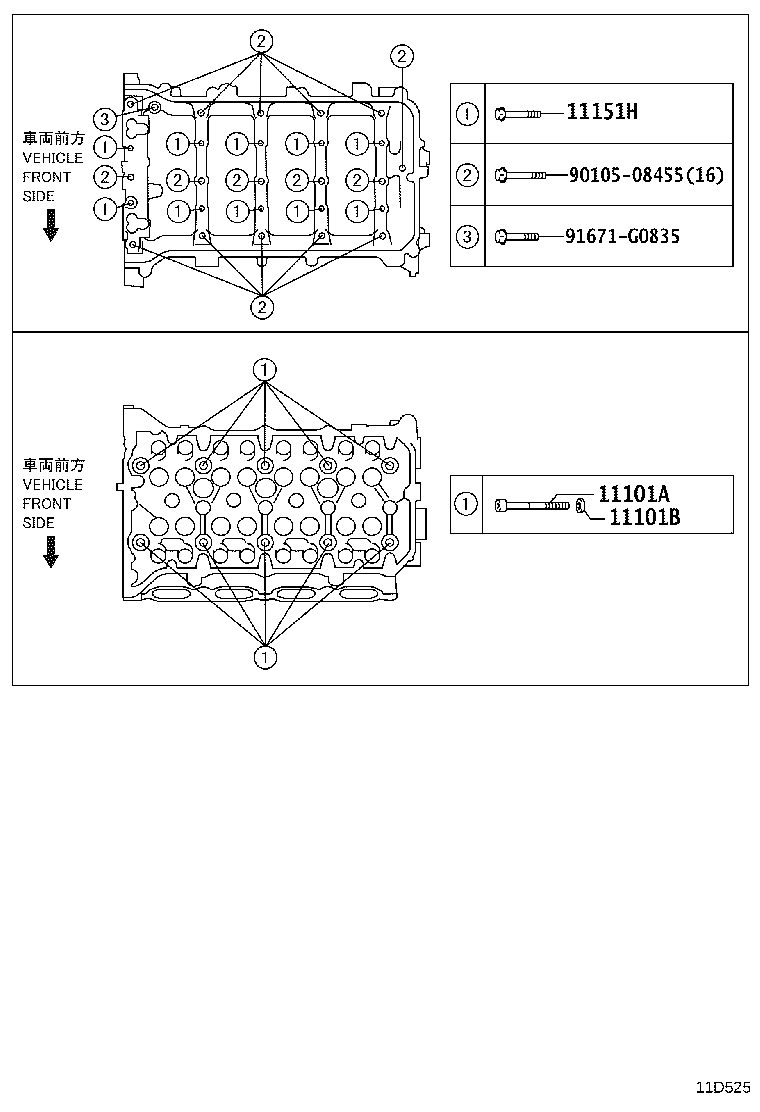

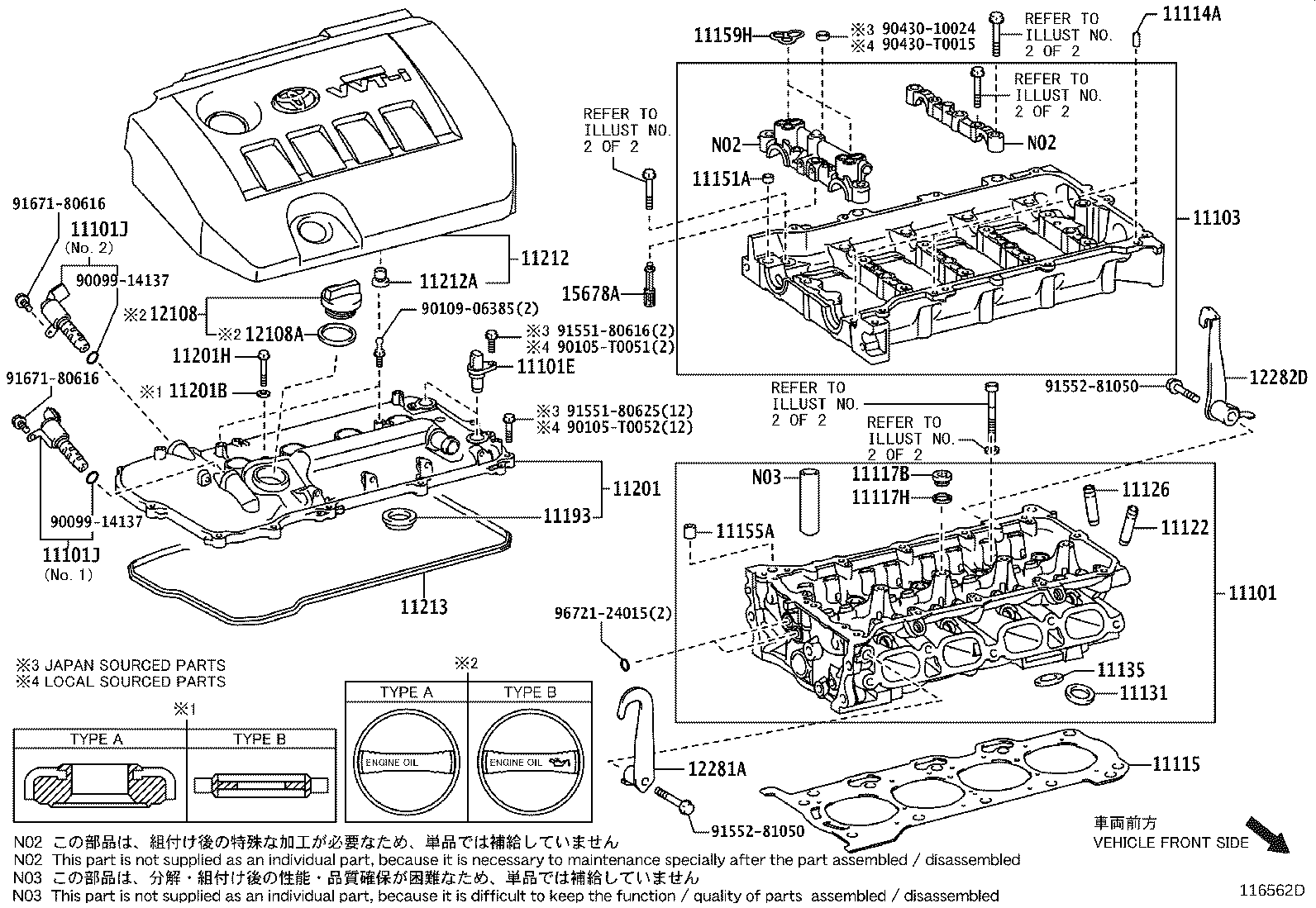

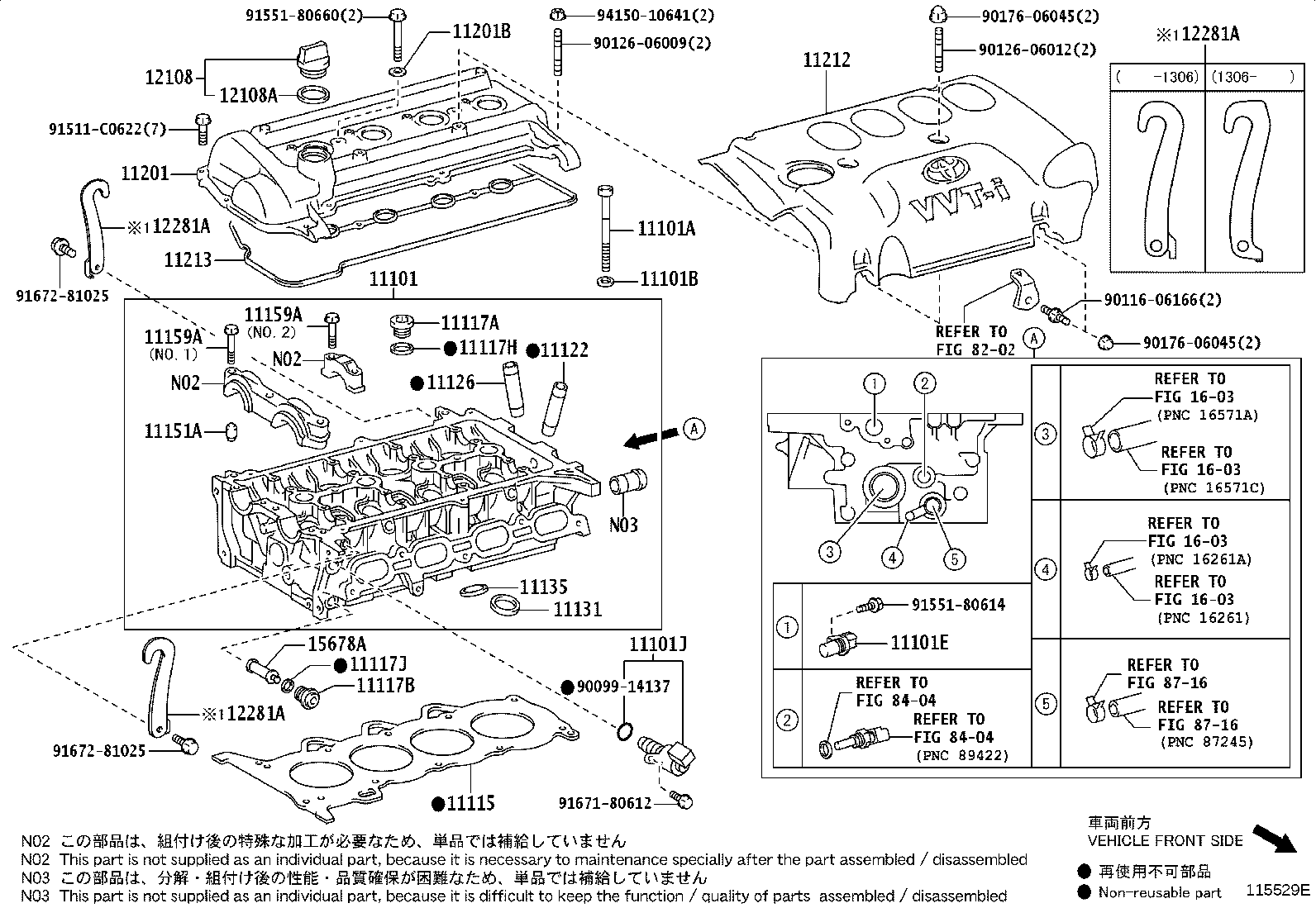

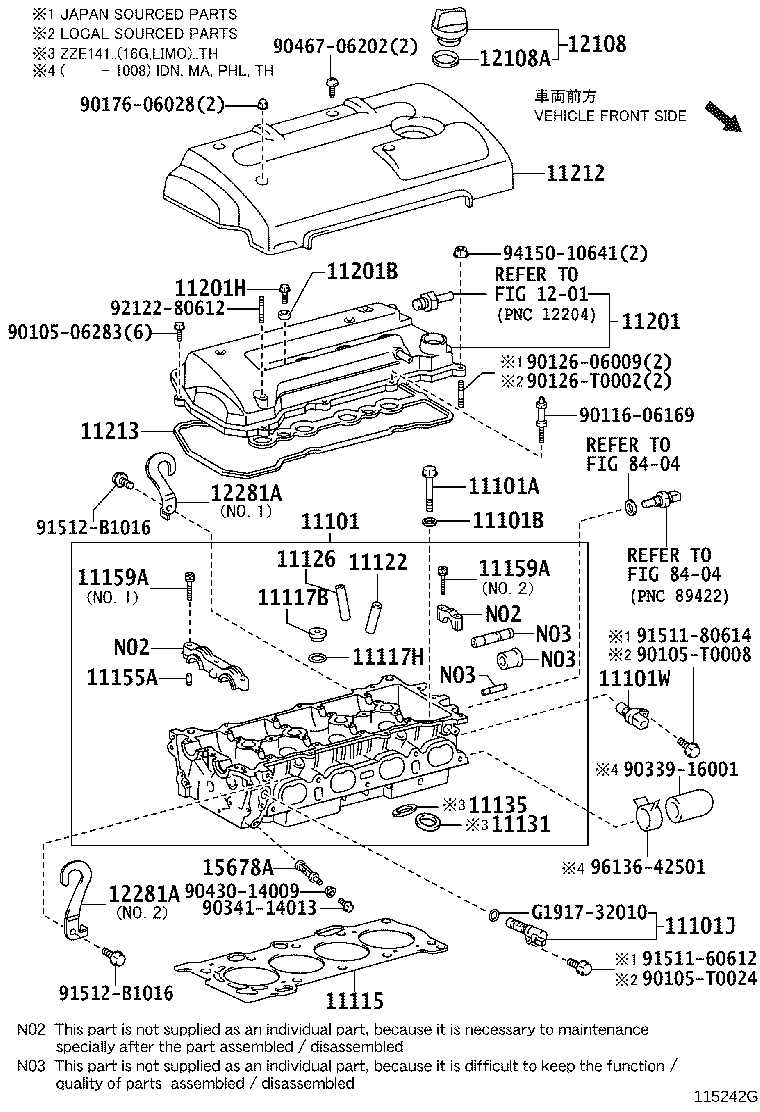

Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101W | Sensor, Crank Position, NO.1 |
| 11103 | Housing Sub-assy, Camshaft |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151H | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11183 | Plug, Semicircular |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11212 | Cover, Cylinder Head, NO.2 |
| 11212A | Cushion, Cylinder Head Cover |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12611 | Cover, Engine, NO.1 |
| 12631A | Bracket, Engine Cover |
| 12632 | Bracket, Engine Cover, NO.2 |
| 15678A | Filter, Oil Control Valve |
| 15794 | Nozzle, Cylinder Head Oil |
| 16334A | Cover, Water Outlet Housing |
| 16341A | Gasket, Water Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
