Toyota Corolla/Altis
2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General
Supported model
Data version 2015-01
Cylinder Block
57 part groups · 9 illustrations

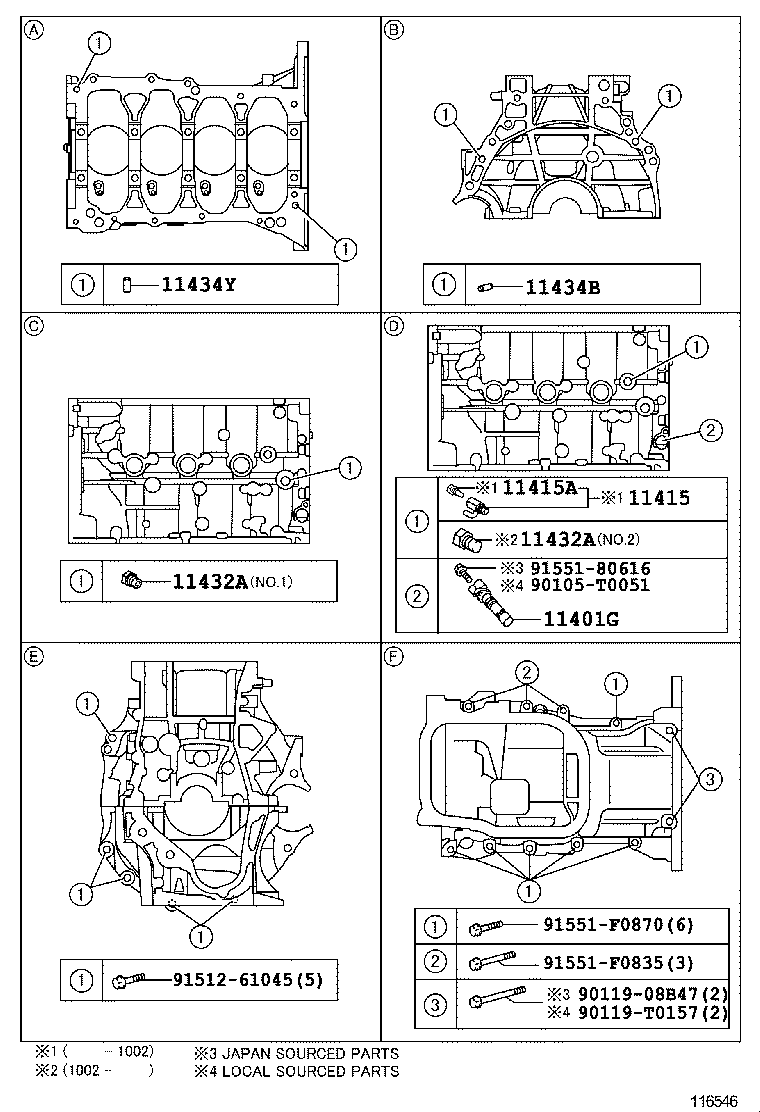

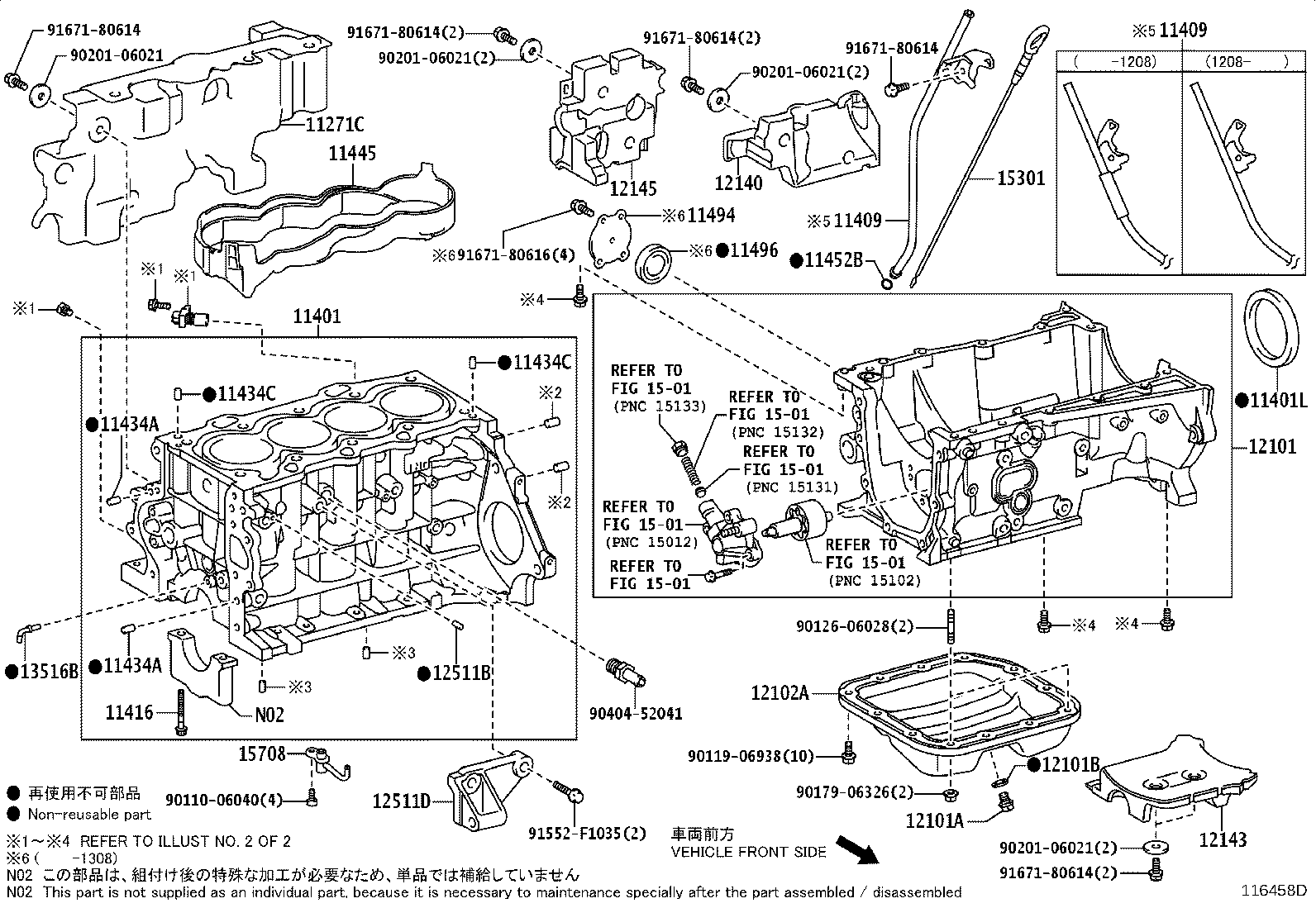

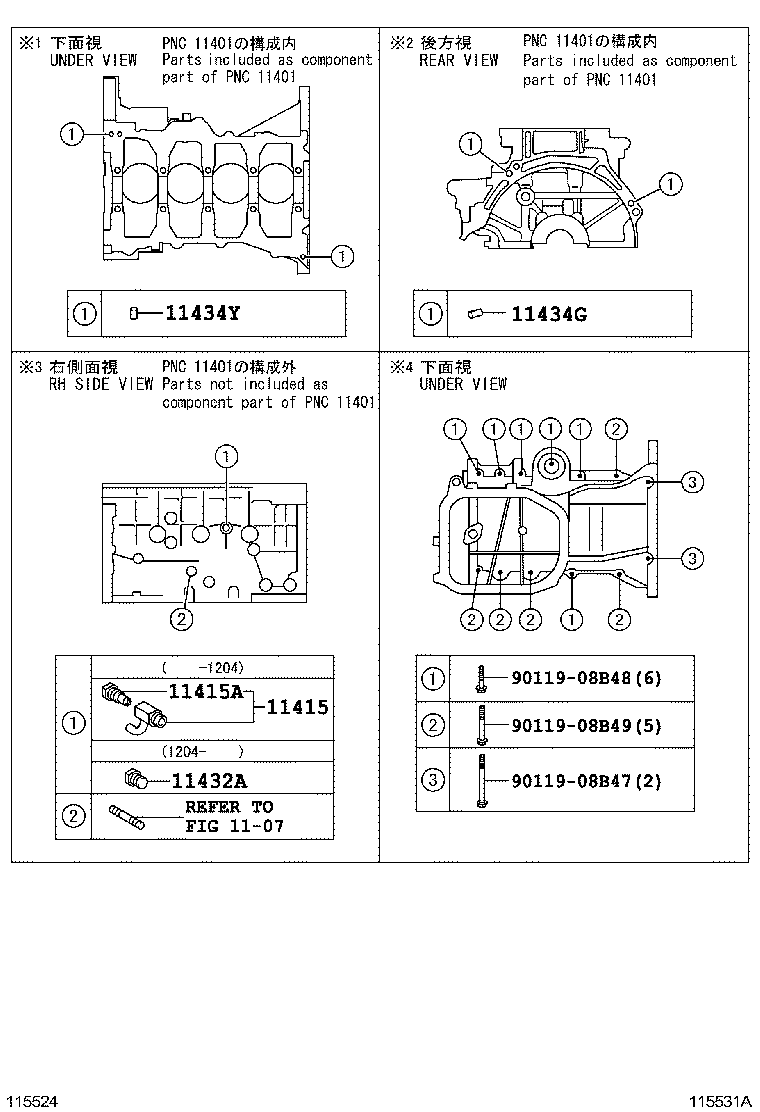

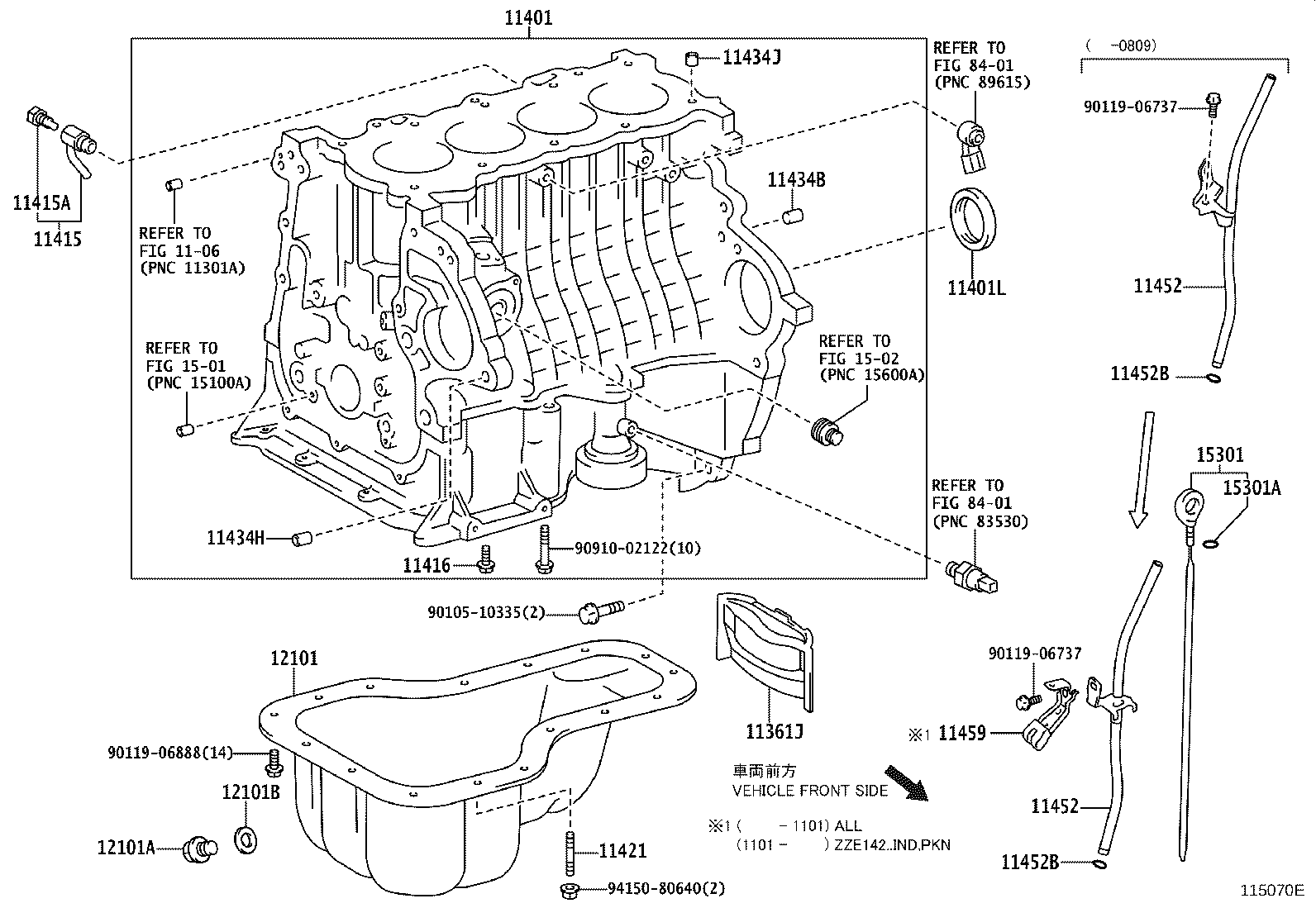

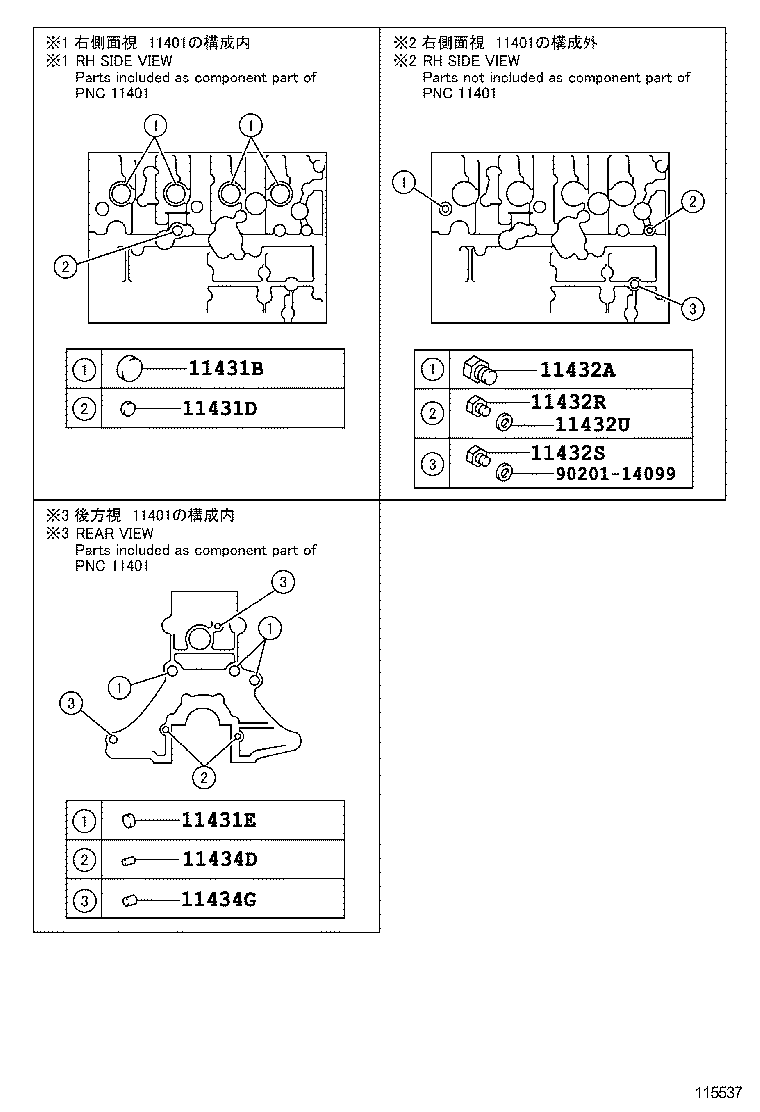

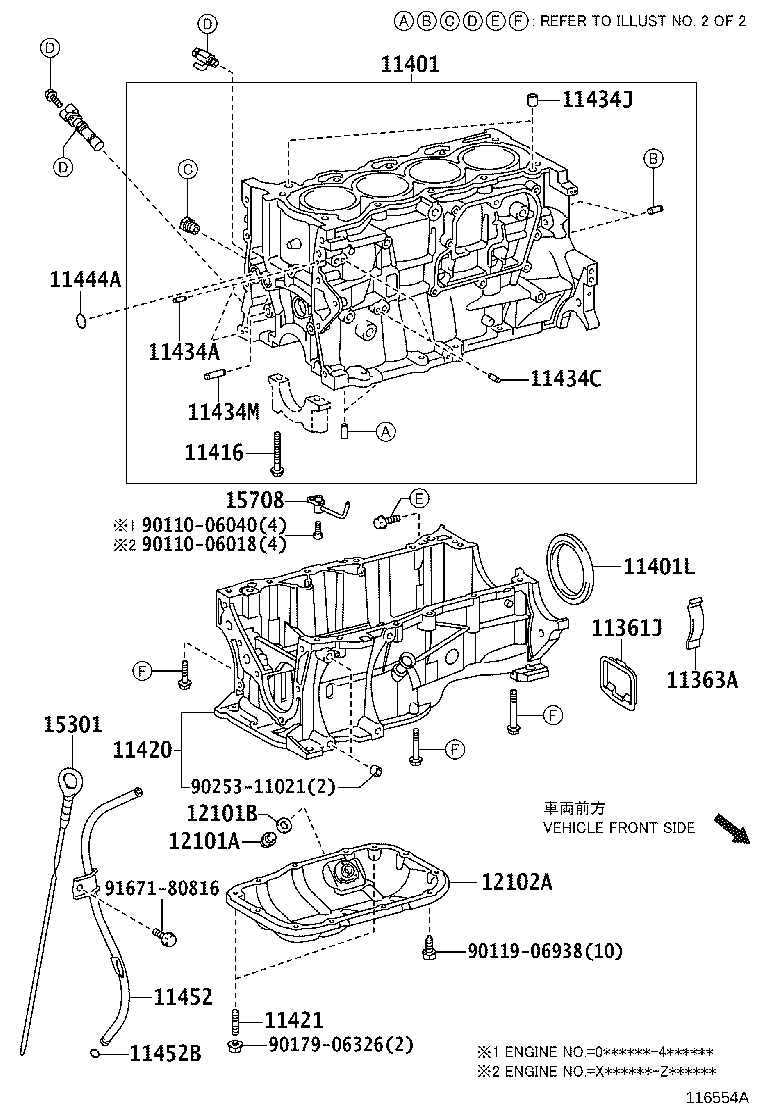

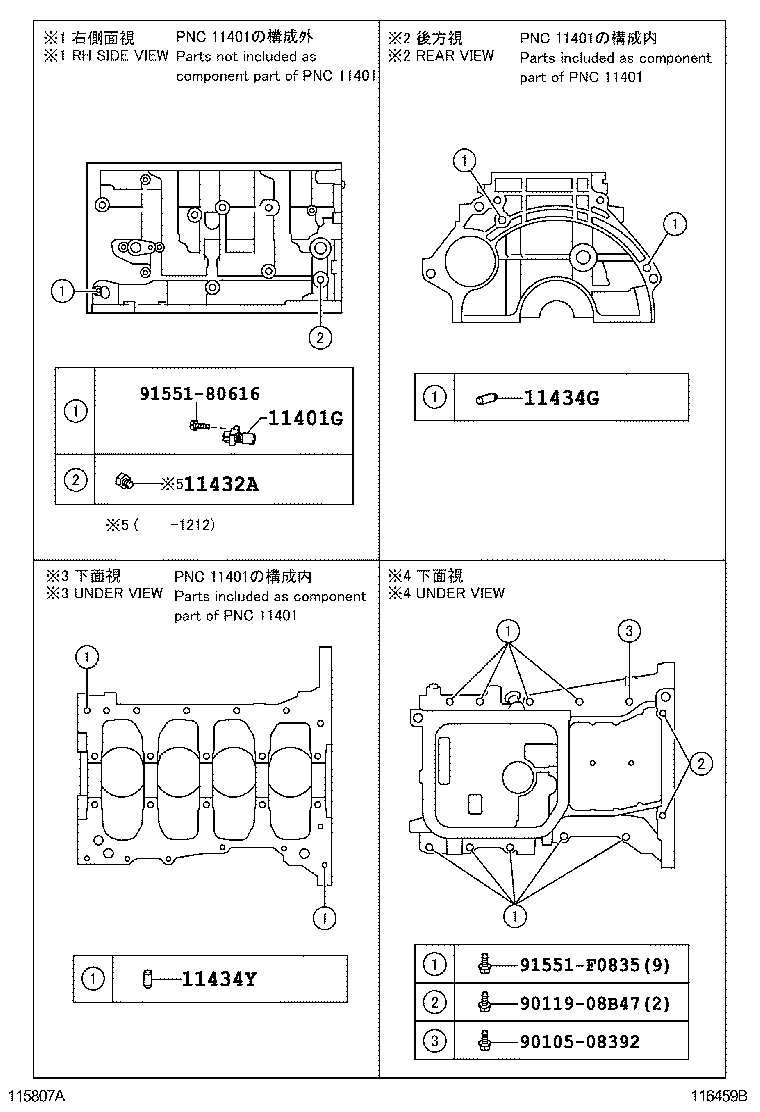

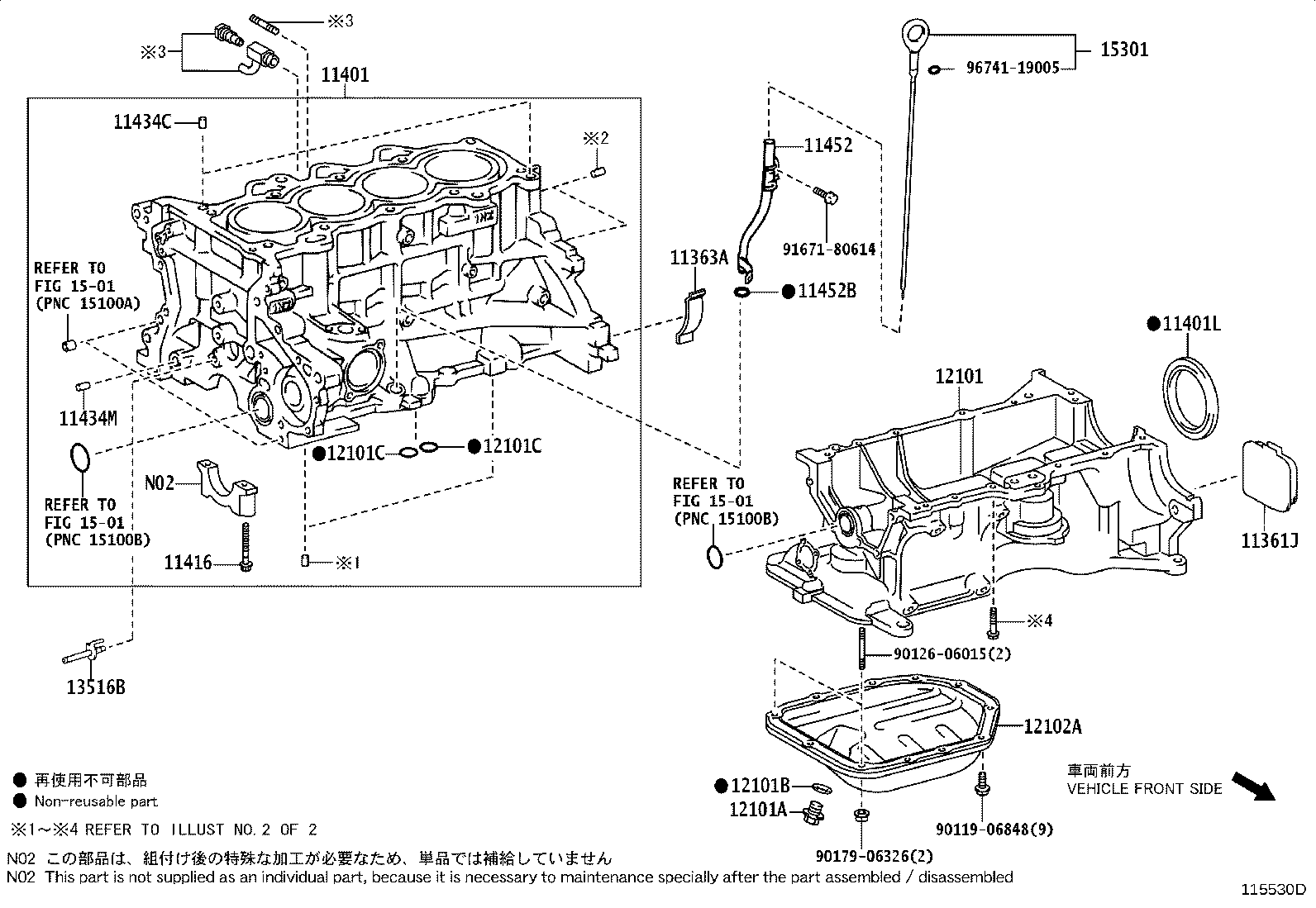

Part groups
| PNC | Description |
|---|---|
| 11271C | Cover, Cylivder Block Side |
| 11361J | Cover, Flywheel Housing Under |
| 11363A | Cover, Flywheel Housing Side |
| 11401 | Block Sub-assy, Cylinder |
| 11401C | Flange(FOR WATER BY-PASS) |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11409 | Guide Sub-assy, Oil Level Gage |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431D | Plug, Tight, NO.4(FOR CYLINDER BLOCK) |
| 11431E | Plug, Tight, NO.5(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432G | Plug, W/Head Straight Screw, NO.5 |
| 11432R | Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK) |
| 11432S | Plug, W/Head Straight Screw, NO.2(FOR CYLINDER BLOCK) |
| 11432U | Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK) |
| 11432V | Gasket, Straight Screw Plug NO.2(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434M | Pin, Straight(FOR CHAIN TENSIONER) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11444A | Ring, O |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11448 | Orifice, Cylinder Block Oil |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11459 | Support, Oil Level Gage Guide |
| 11494 | Plate, Oil Hole Cover |
| 11496 | Gasket, Oil Hole Cover Plate |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101C | Ring, O(FOR OIL PAN) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12112 | Pan, Oil NO.2 |
| 12140 | Cover, Oil Pan |
| 12143 | Cover, Oil Pan |
| 12145 | Silencer, Oil Pan Cover, NO.2 |
| 12511B | Pin, Ring(FOR ALTERNATOR BRACKET) |
| 12511D | Bracket, Alternator |
| 13516B | Jet, Oil |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15605 | Valve Sub-assy, Oil Check |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
