Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

7 part groups · 11 illustrations

Illustrations

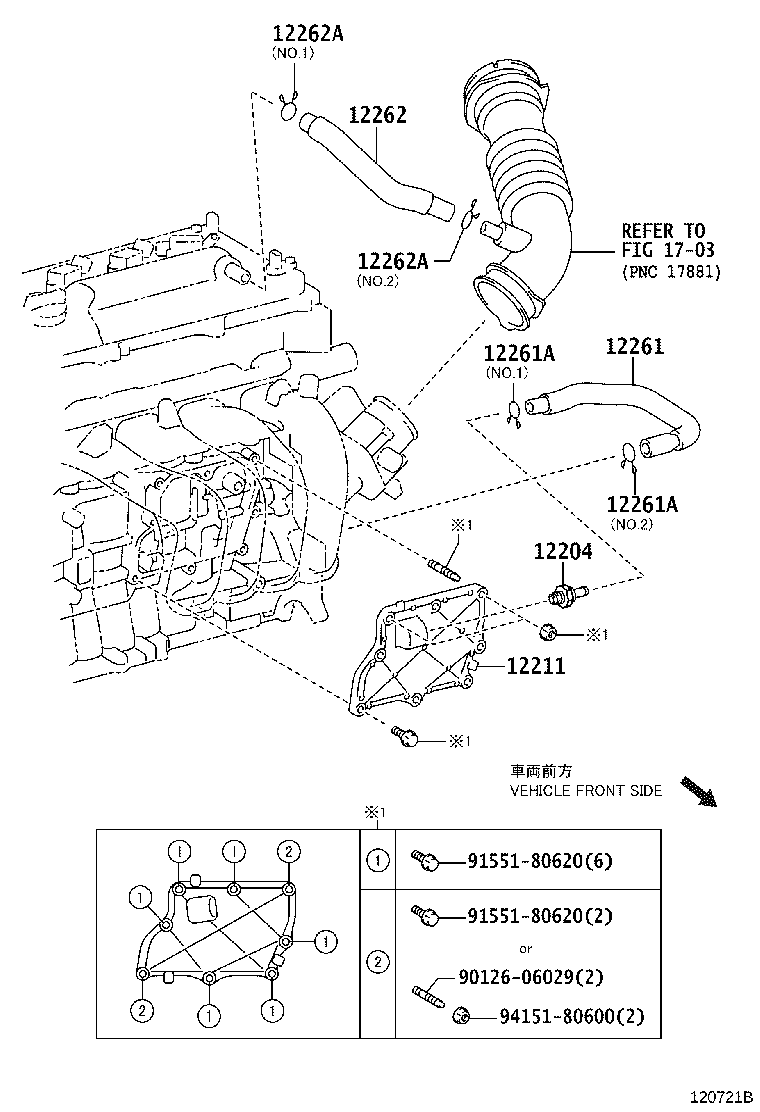

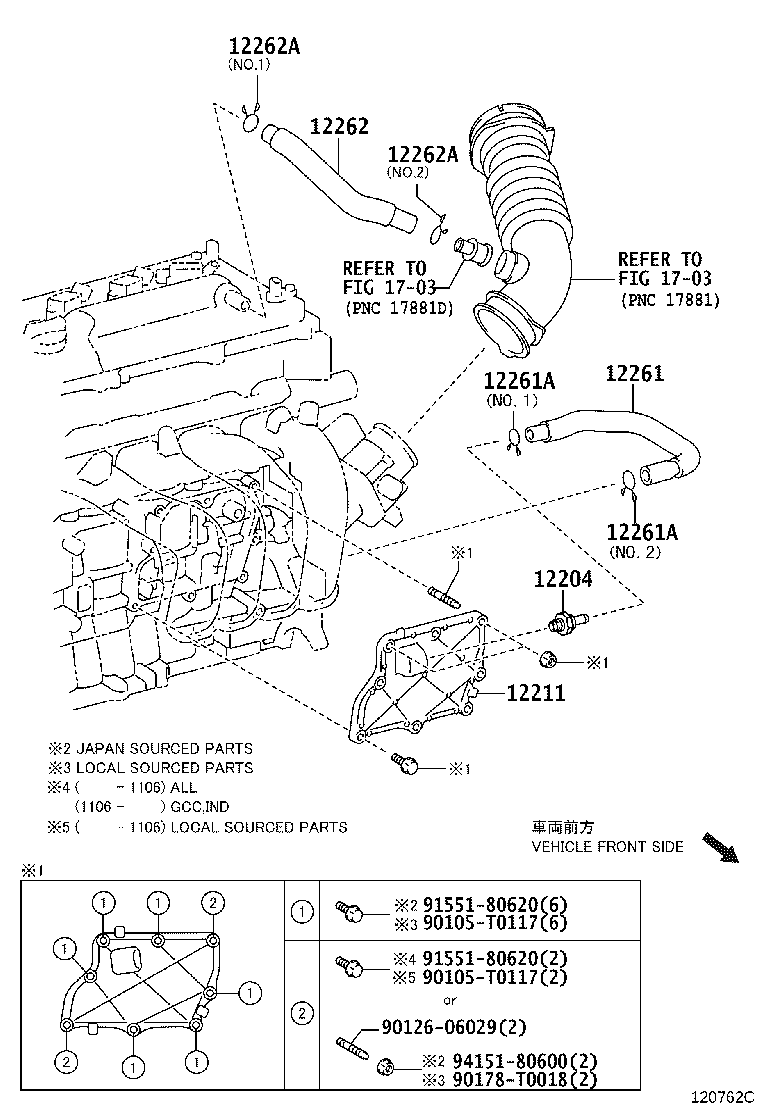

Figure 120645B 120645B 2008-08 → — Figure 120644A 120644A 2008-08 → — Figure 120749A 120749A 2010-06 → — Figure 121225 121225 2007-12 → — Figure 120704A 120704A 2007-12 → — Figure 120721B 120721B 2008-11 → 2010-07 Figure 120721B 120721B 2008-12 → 2010-08 Figure 120721B 120721B 2009-06 → 2010-10 Figure 120762C 120762C 2010-07 → — Figure 120762C 120762C 2010-08 → — Figure 120762C 120762C 2010-10 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
