Toyota Corolla/Altis
2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General
Supported model
Data version 2015-01

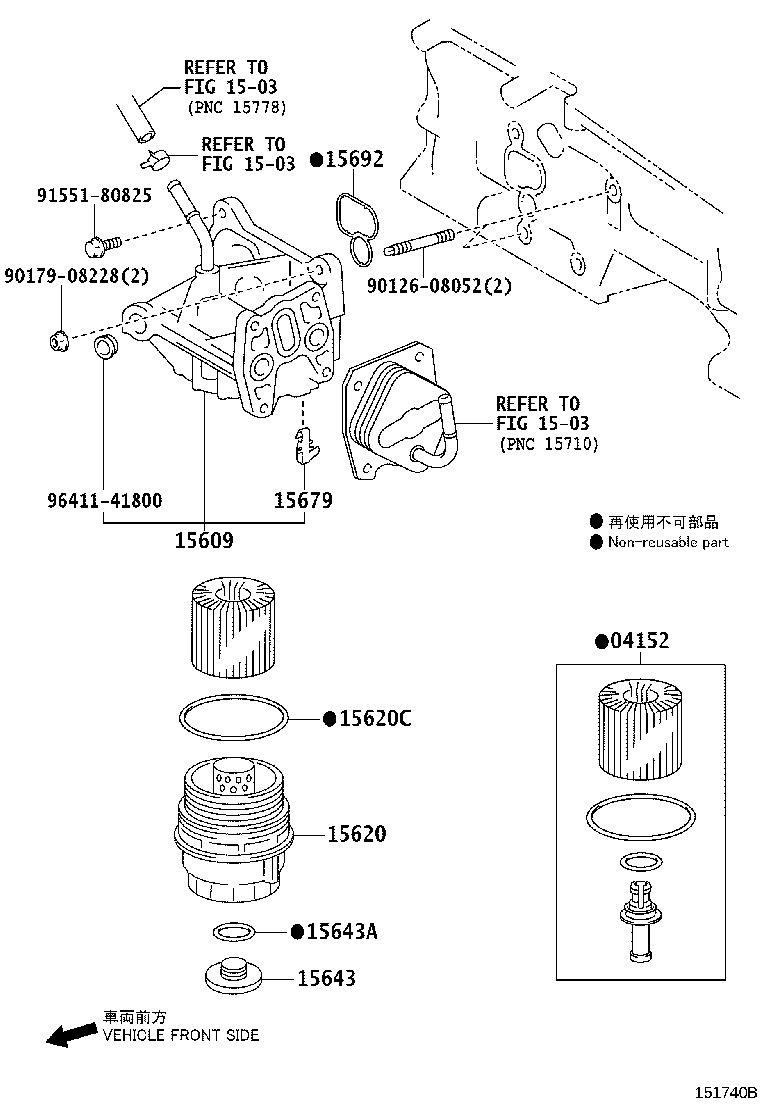

Oil Filter
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15409 | Pipe OR Hose, Oil Filter Outlet |
| 15409C | Bolt, Union(FOR OIL FILTER OUTLET PIPE) |
| 15409D | Gasket(FOR OIL FILTER OUTLET PIPE) |
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
| 15679 | Clip, Oil Filter Bracket |
| 15691 | Gasket, Oil Filter |
| 15692 | Gasket, Oil Filter Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
