Toyota Corolla/Altis
2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General
Supported model
Data version 2015-01

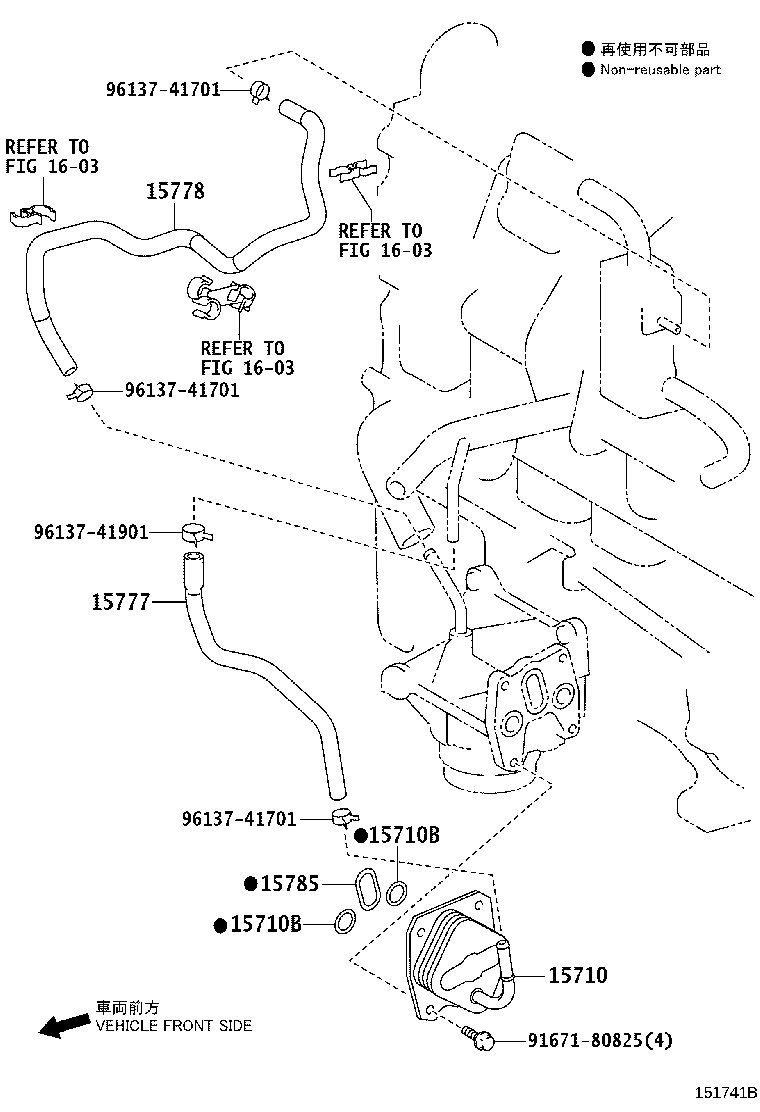

Engine Oil Cooler
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15690 | Valve Assy, Oil Cooler Relief |
| 15690A | Gasket(FOR OIL COOLER RELIEF VALVE) |
| 15710 | Cooler Assy, Oil |
| 15710A | Bolt, Union(FOR OIL COOLER) |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15767 | Pipe, Oil Cooler |
| 15768 | Pipe, Oil Cooler, NO.1 |
| 15769A | Pipe, Oil Cooler, NO.2 |
| 15777 | Hose, Oil Cooler |
| 15777G | Clamp OR Crip, Hose |
| 15777J | Bolt, Union(FOR OIL COOLER PIPE) |
| 15777R | Gasket(FOR OIL COOLER PIPE UNION BOLT) |
| 15778 | Hose, Oil Cooler, NO.2 |
| 15785 | Gasket, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
