Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 5 illustrations

Illustrations

Figure 163590C

163590C 2008-08 → —

Figure 163586C

163586C 2008-08 → —

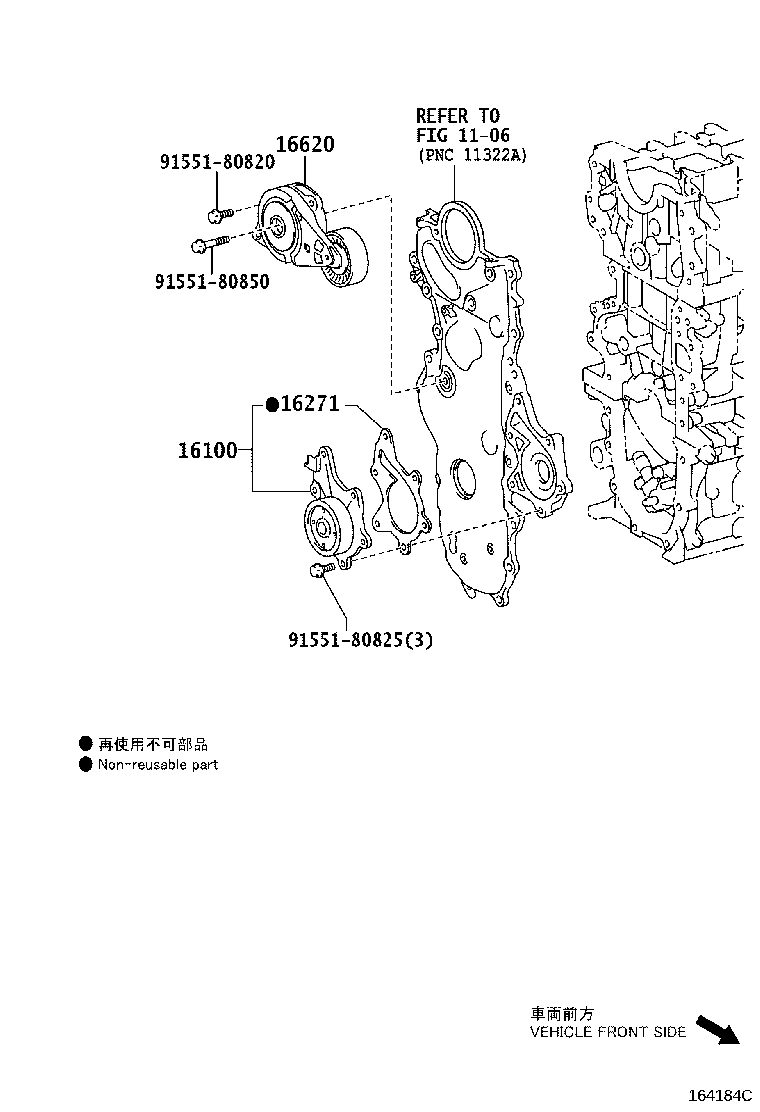

Figure 164184C

164184C 2010-06 → —

Figure 163381D

163381D 2007-12 → —

167019 2008-11 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16100H	Ring, O(FOR WATER PUMP)
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
