Exhaust Pipe

8 part groups · 4 illustrations

Illustrations

Figure 175874E

175874E 2007-12 → —

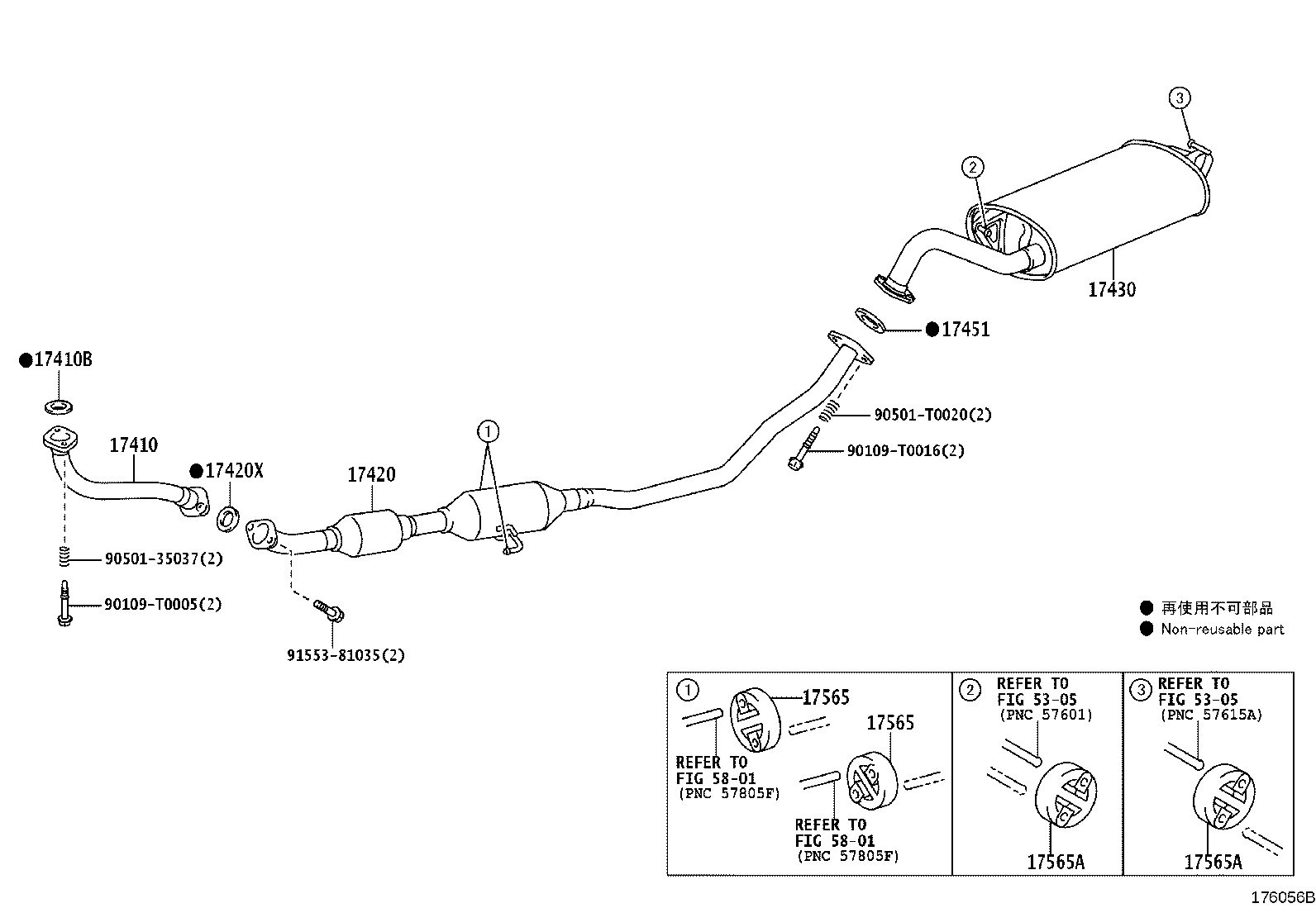

Figure 176056B

176056B 2008-08 → —

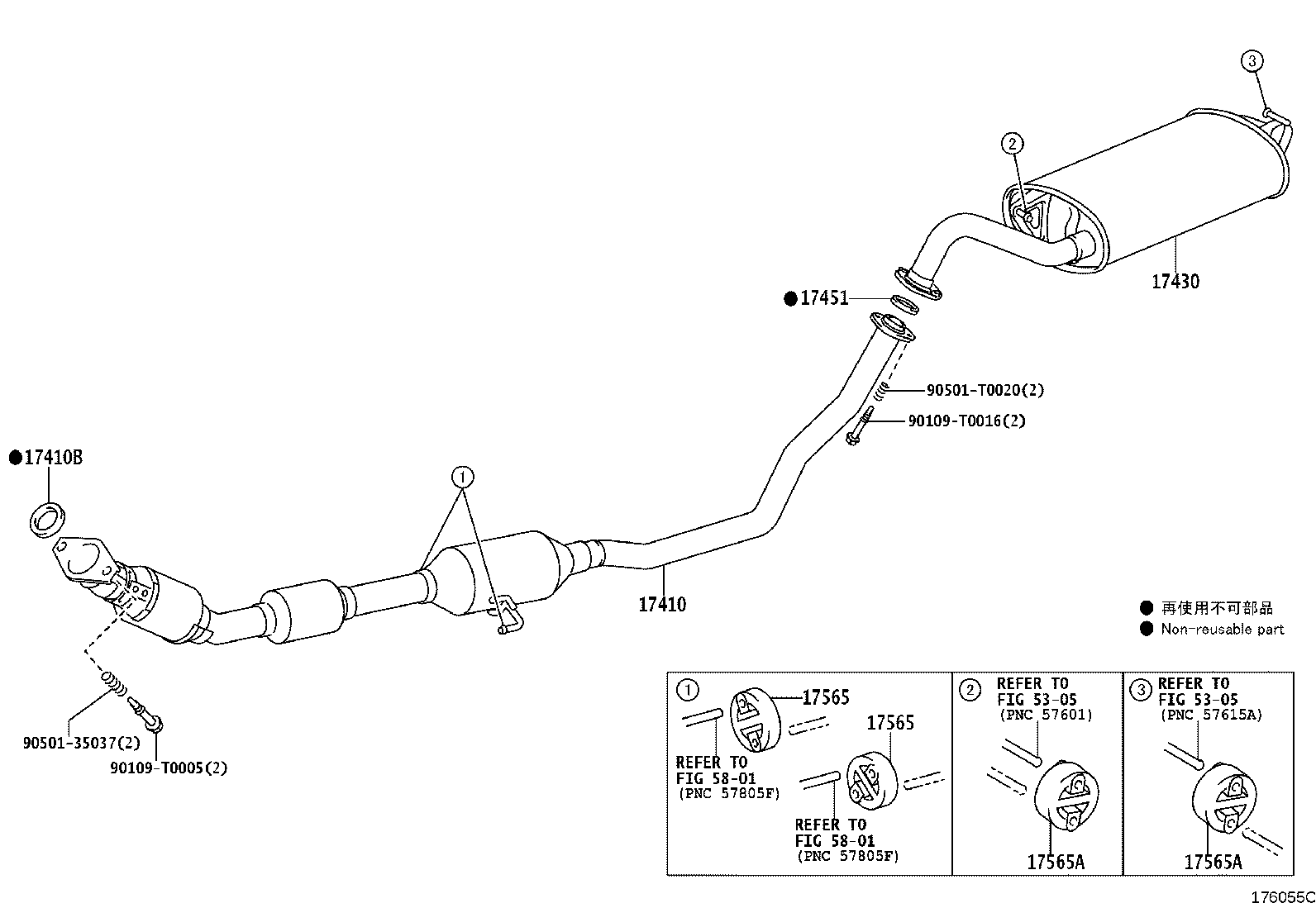

Figure 176055C

176055C 2008-08 → —

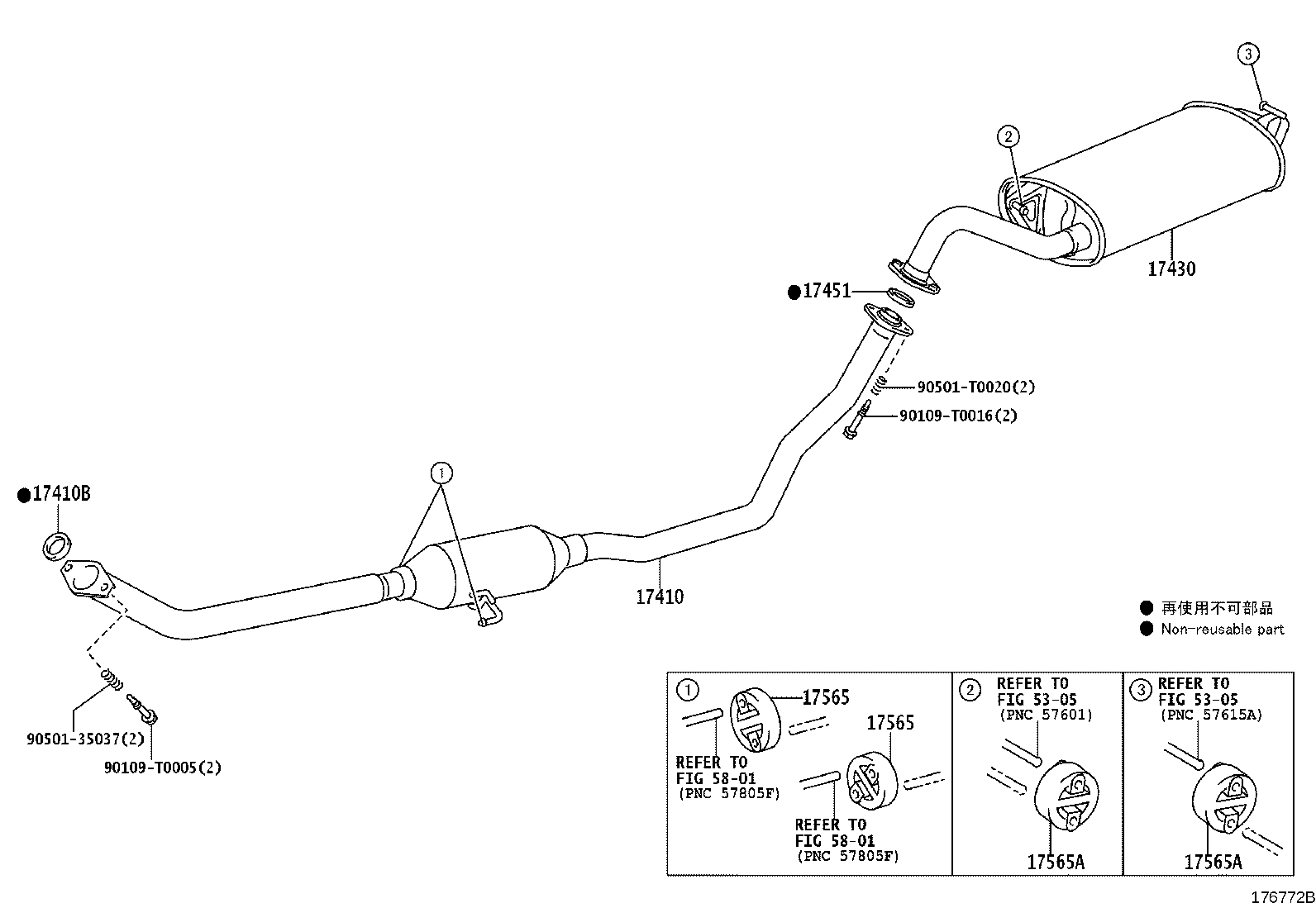

Figure 176772B

176772B 2010-06 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17420	Pipe Assy, Exhaust, Center
17420X	Gasket, Exhaust Pipe, Center
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17565	Support, Exhaust Pipe, NO.5
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
