Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 17 illustrations

Illustrations

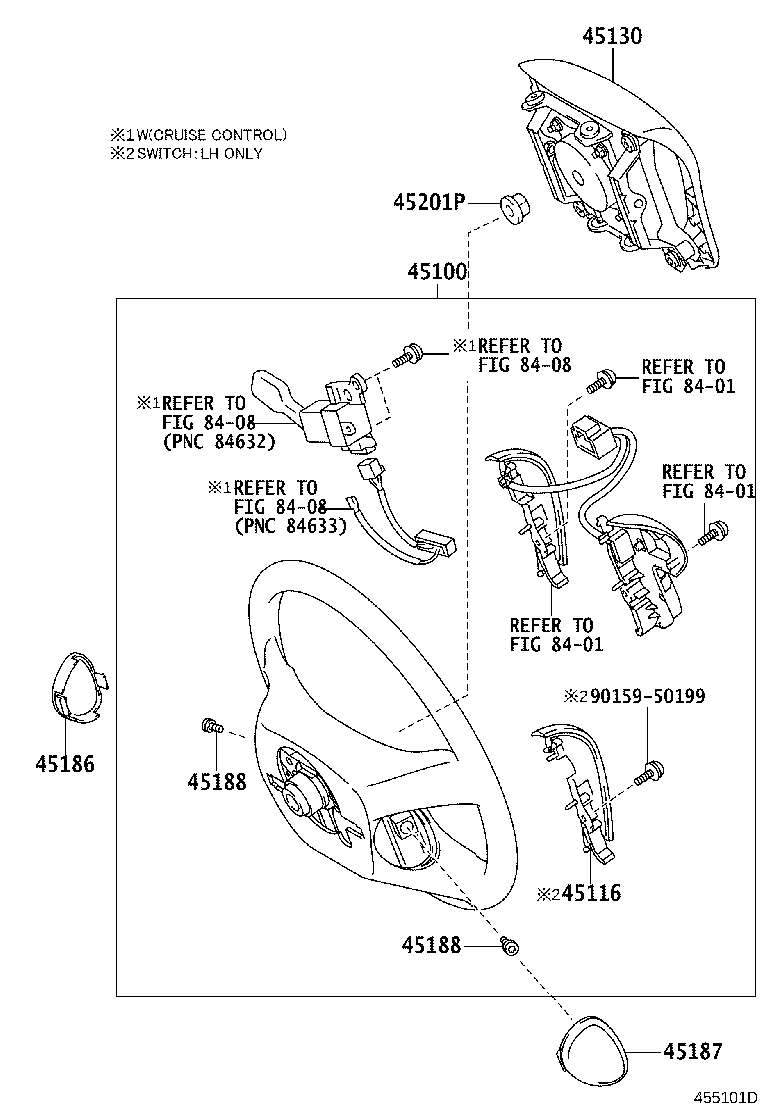

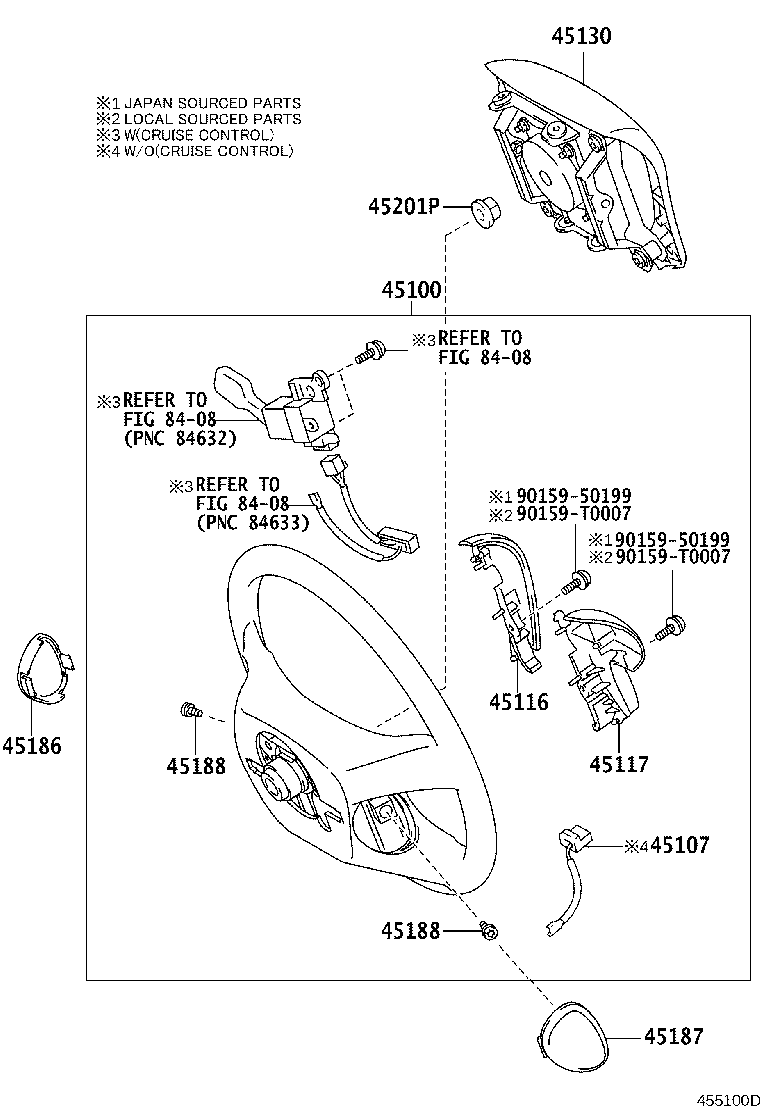

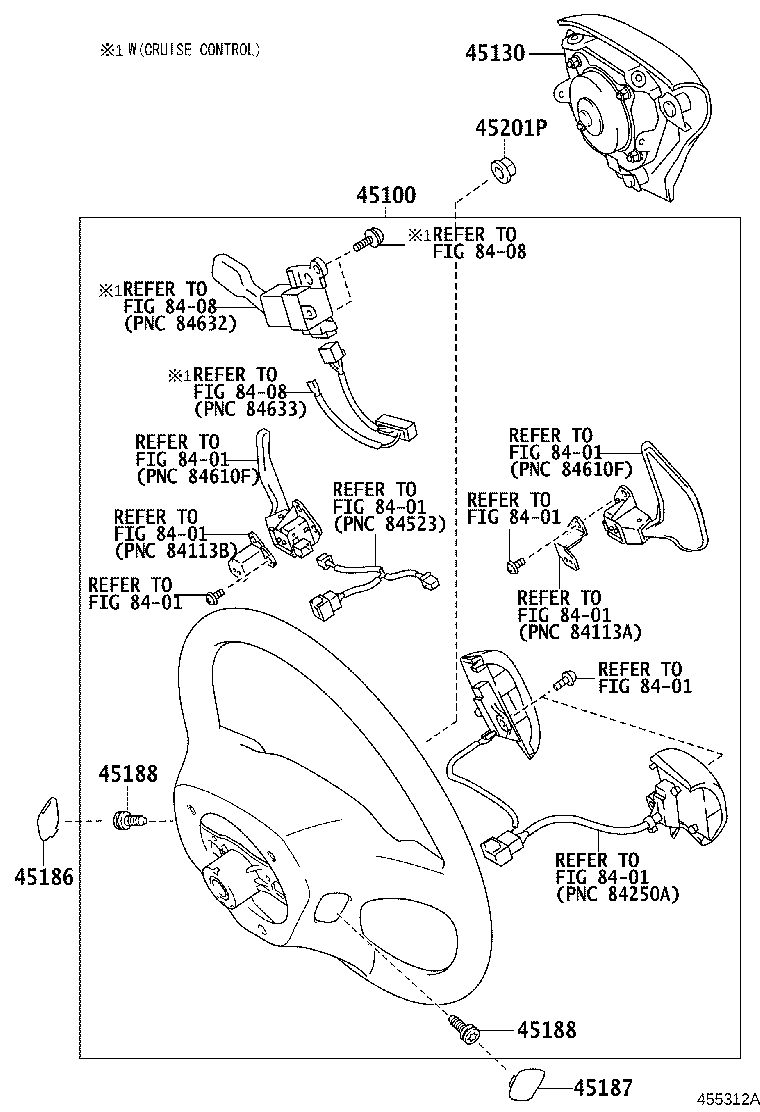

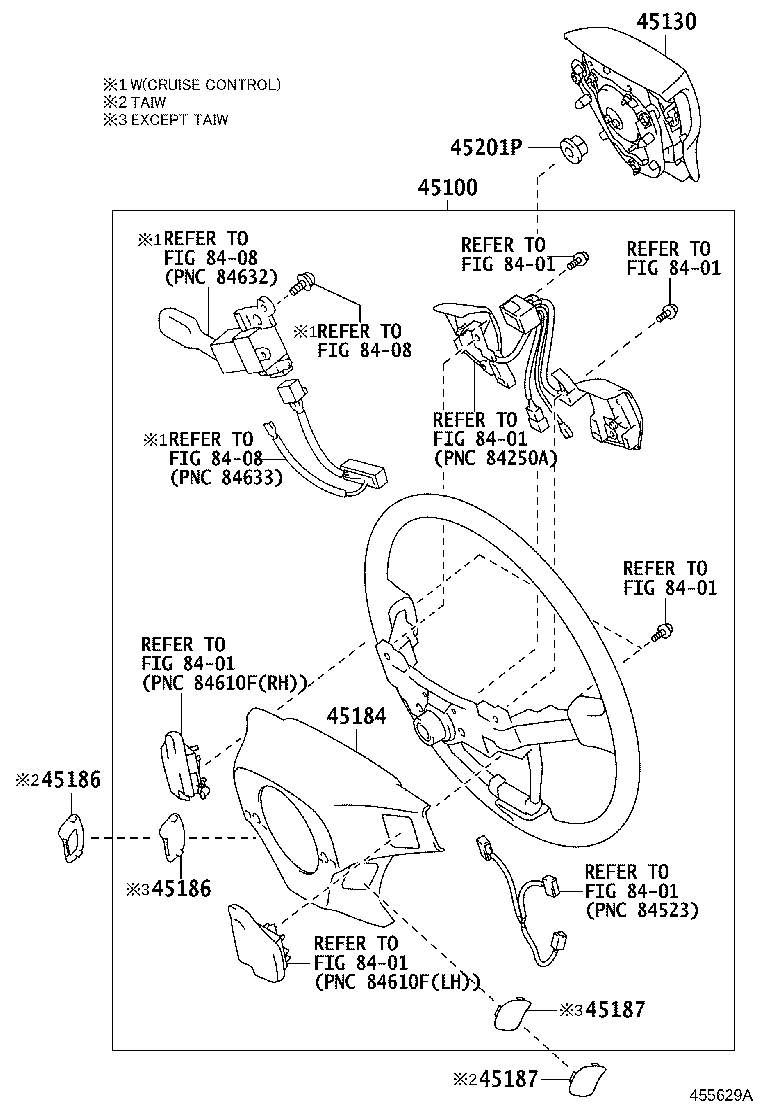

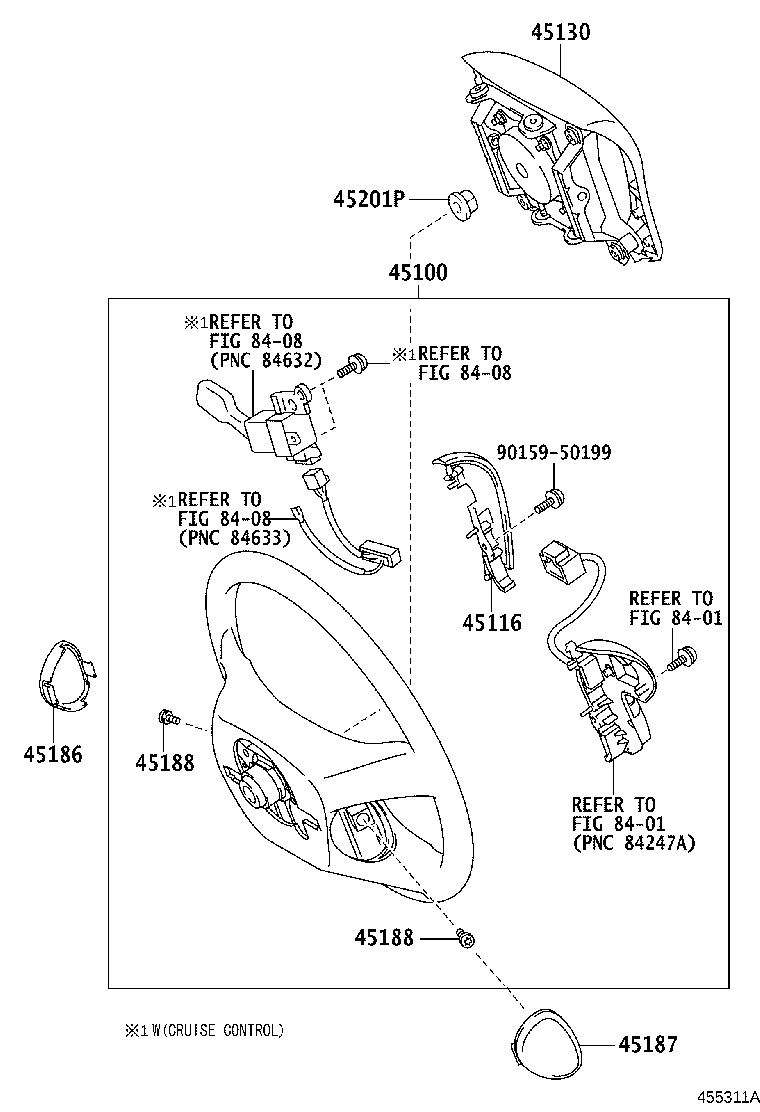

Figure 455099E 455099E 2008-01 → 2012-09 Figure 455099E 455099E 2008-01 → — Figure 455100D 455100D 2007-12 → 2012-03 Figure 455100D 455100D 2007-12 → — Figure 455100D 455100D 2007-12 → — Figure 455100D 455100D 2012-09 → — Figure 455100D 455100D 2013-01 → — Figure 455101D 455101D 2007-12 → 2013-05 Figure 455101D 455101D 2007-12 → — Figure 455101D 455101D 2007-12 → — Figure 455101D 455101D 2012-03 → — Figure 455210A 455210A 2008-08 → 2013-01 Figure 455210A 455210A 2008-08 → — Figure 455312A 455312A 2008-11 → — Figure 455311A 455311A 2009-01 → — Figure 455629A 455629A 2010-07 → — Figure 456412A 456412A 2013-05 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
