Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 11 illustrations

Illustrations

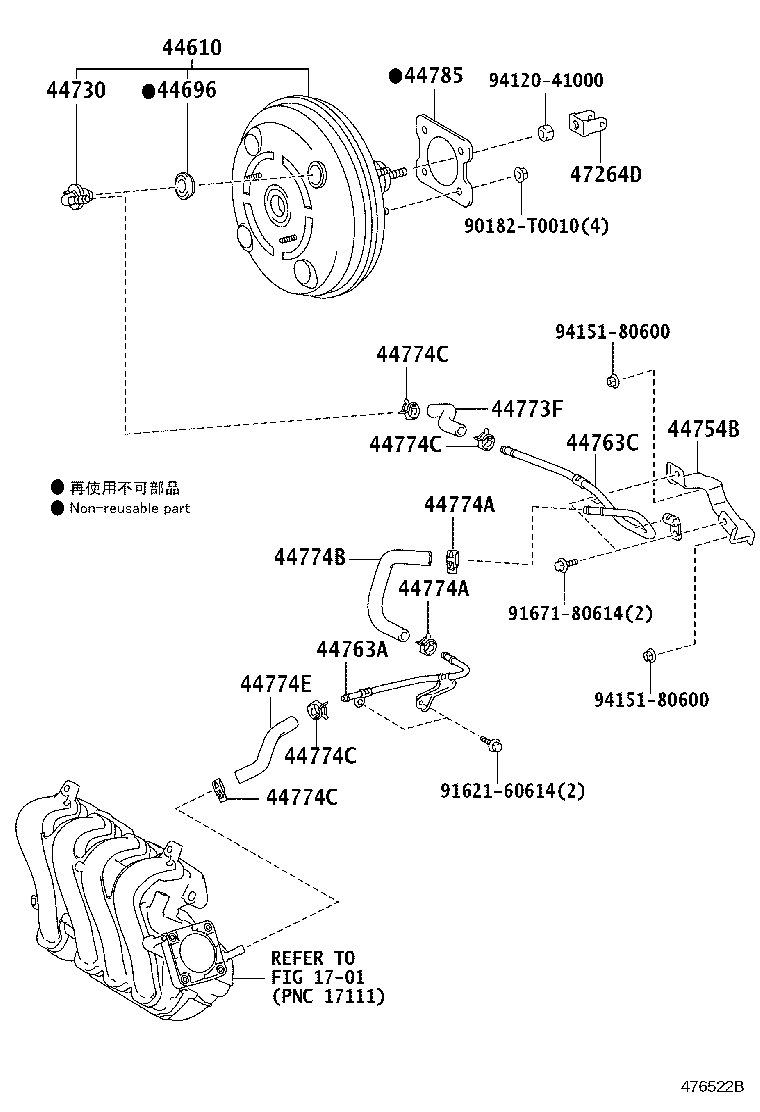

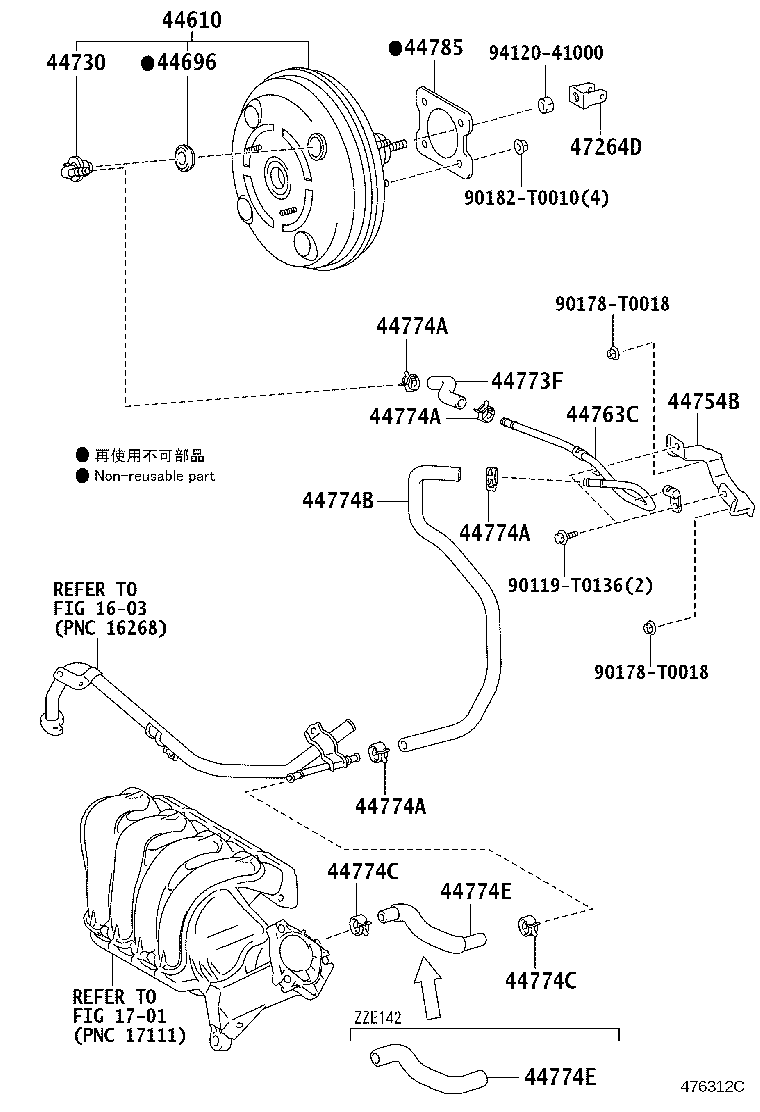

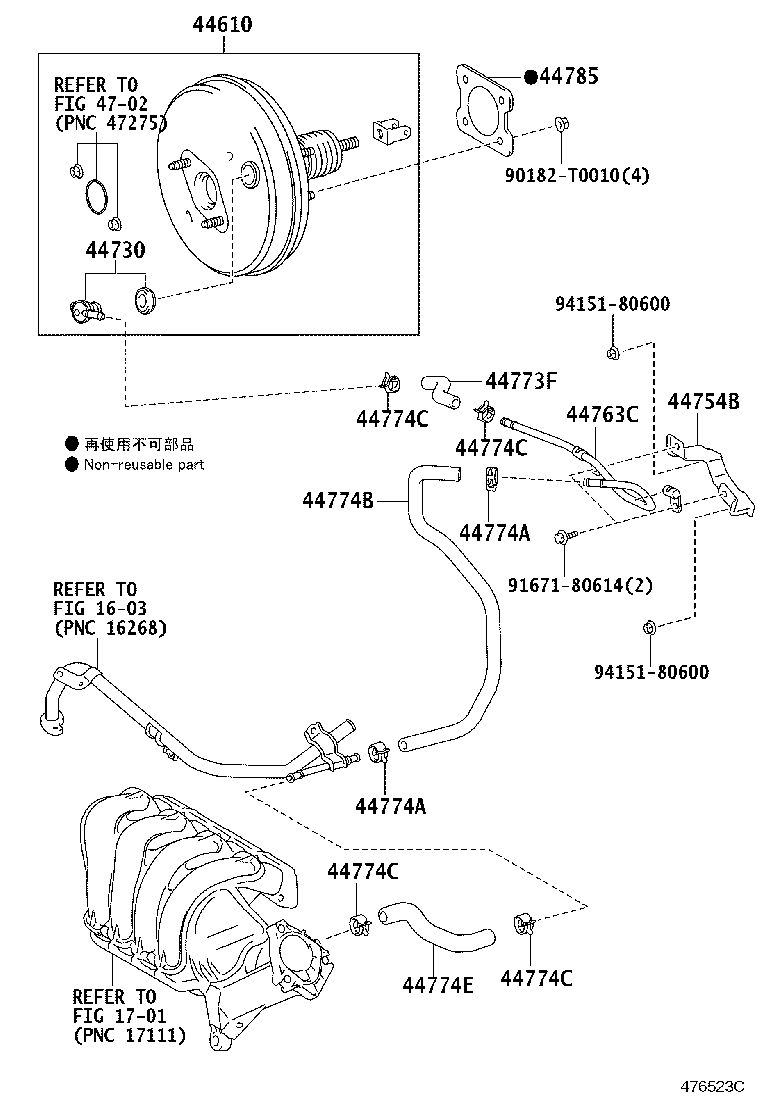

Figure 476313C 476313C 2007-12 → — Figure 476312C 476312C 2008-01 → — Figure 476521B 476521B 2008-08 → — Figure 476522B 476522B 2008-08 → — Figure 476523C 476523C 2008-08 → — Figure 476708E 476708E 2008-11 → — Figure 476709C 476709C 2008-12 → 2011-01 Figure 476709C 476709C 2011-11 → — Figure 477510B 477510B 2011-01 → 2011-11 Figure 477242C 477242C 2010-06 → — Figure 477461B 477461B 2011-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44754B Bracket, Vacuum Tube
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
