Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 9 illustrations

Illustrations

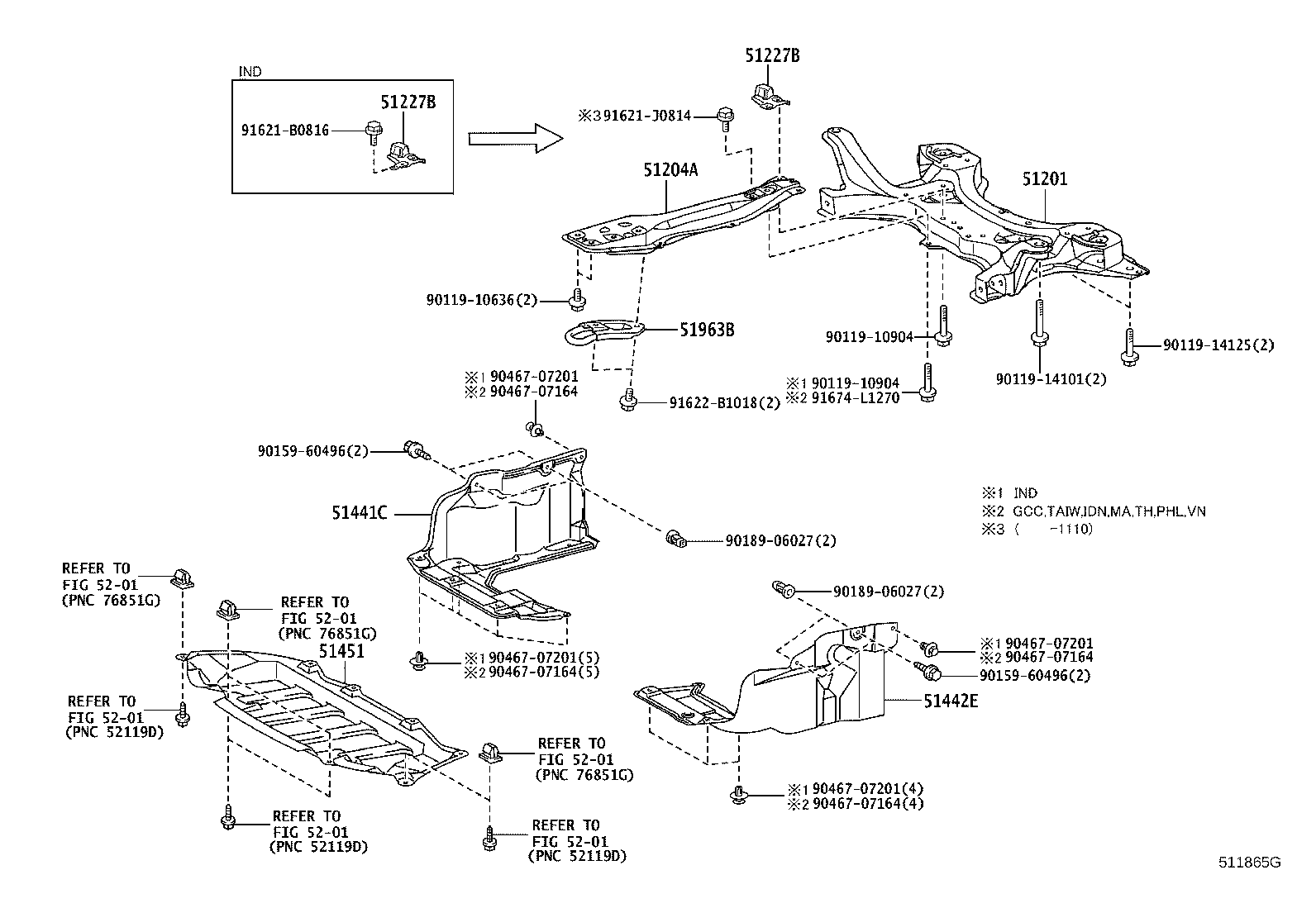

Figure 511797F 511797F 2007-12 → 2008-11 Figure 511797F 511797F 2008-01 → 2008-12 Figure 511797F 511797F 2008-08 → 2009-06 Figure 511797F 511797F 2008-08 → — Figure 511865G 511865G 2008-08 → — Figure 511865G 511865G 2008-11 → — Figure 511865G 511865G 2008-12 → — Figure 511865G 511865G 2009-06 → — Figure 511865G 511865G 2010-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51442E Cover, Engine Under, NO.2
51451 Cover, Engine Under, NO.4 RH
51963B Hook, Transport, Front RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
