Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 11 illustrations

Illustrations

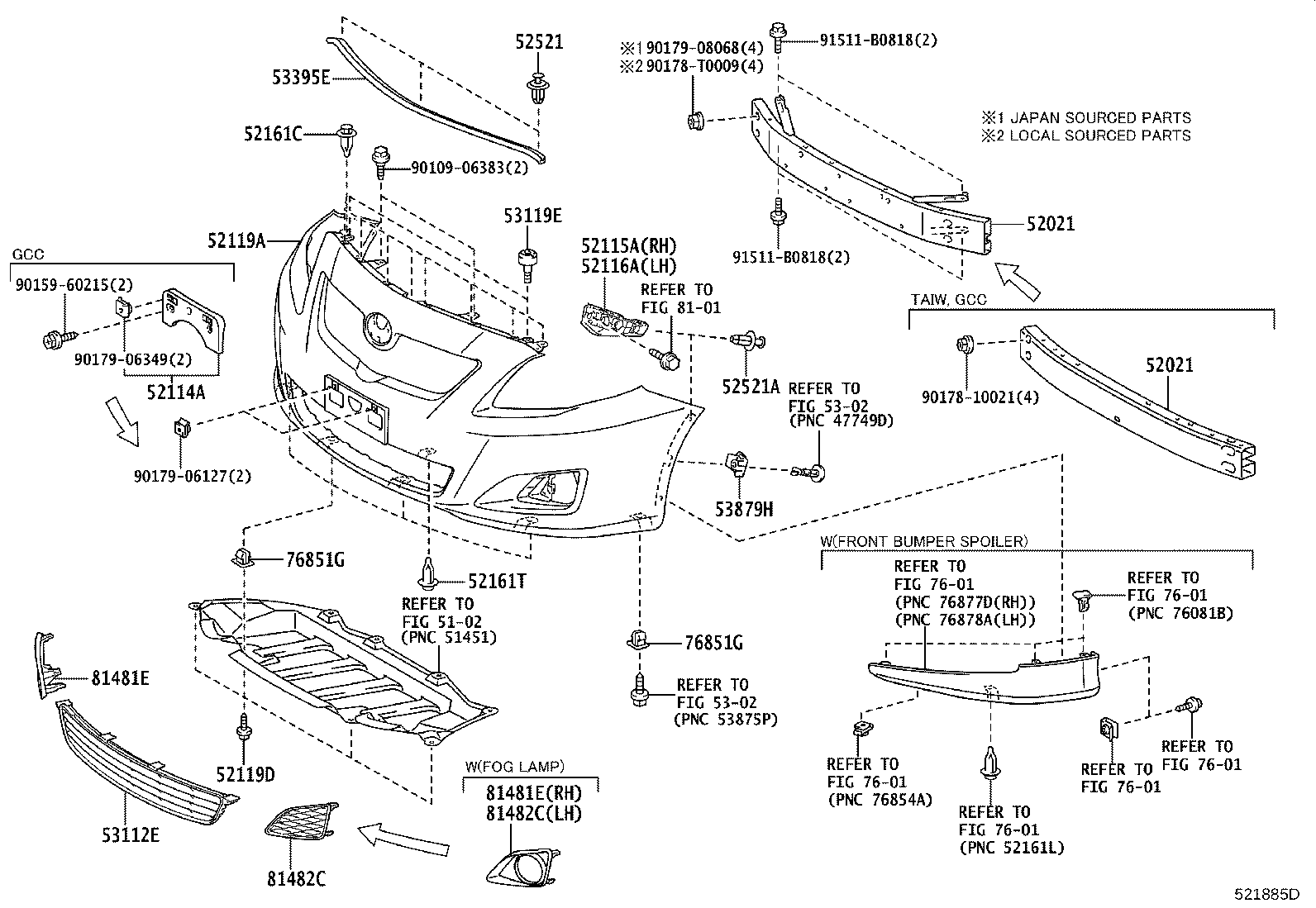

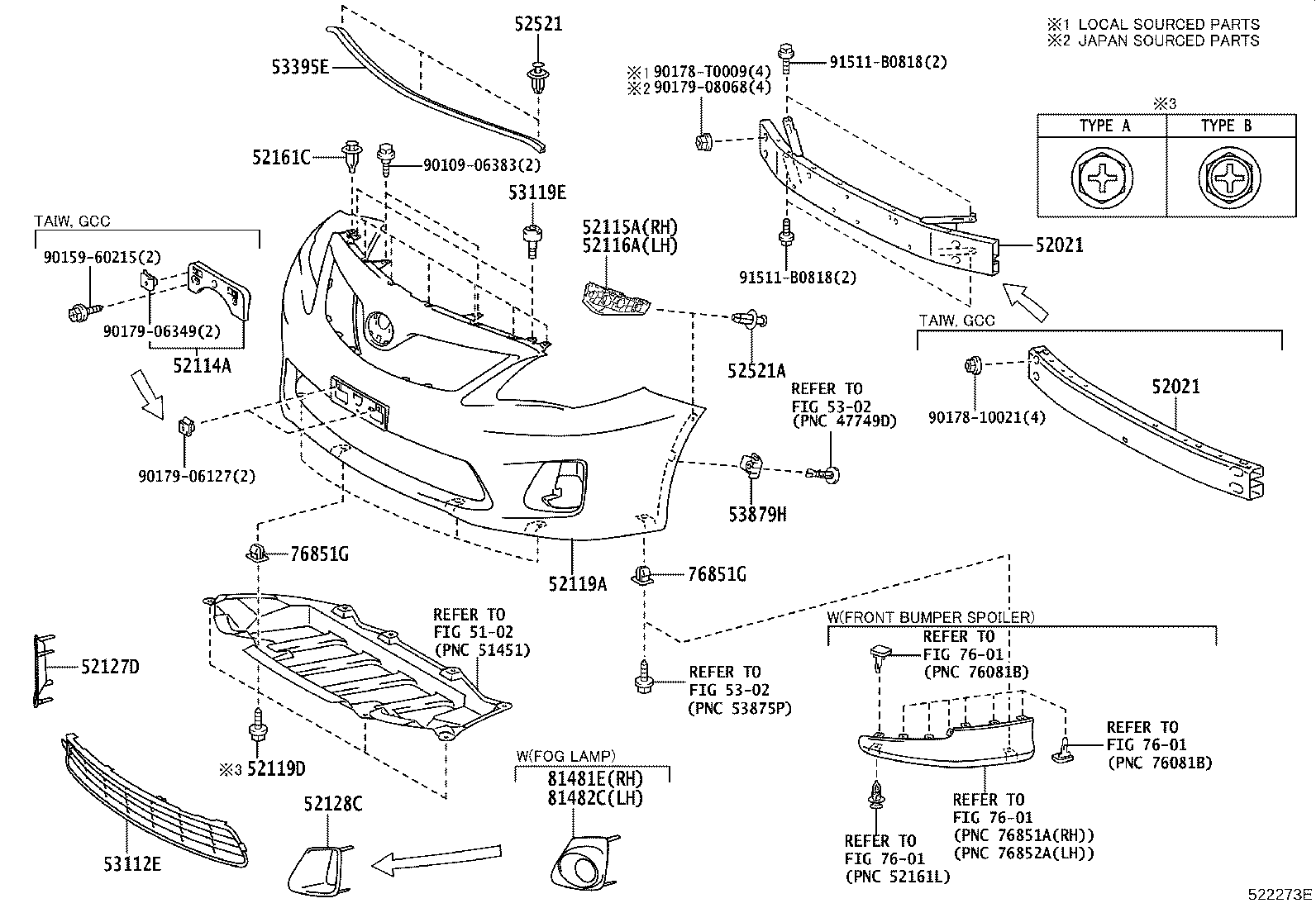

Figure 521886F 521886F 2007-12 → 2009-01 Figure 521885E 521885E 2008-01 → 2010-08 Figure 521885E 521885E 2008-08 → 2010-10 Figure 521885E 521885E 2008-08 → 2011-04 Figure 521885E 521885E 2008-08 → 2011-05 Figure 521885E 521885E 2009-01 → 2010-07 Figure 522273E 522273E 2010-07 → — Figure 522273E 522273E 2010-08 → — Figure 522273E 522273E 2010-10 → — Figure 522273E 522273E 2011-04 → — Figure 522273E 522273E 2011-05 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52521A Clip(FOR FRONT BUMPER RETAINER)
52542A Protector, Front Bumper, NO.2
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
