Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 10 illustrations

Illustrations

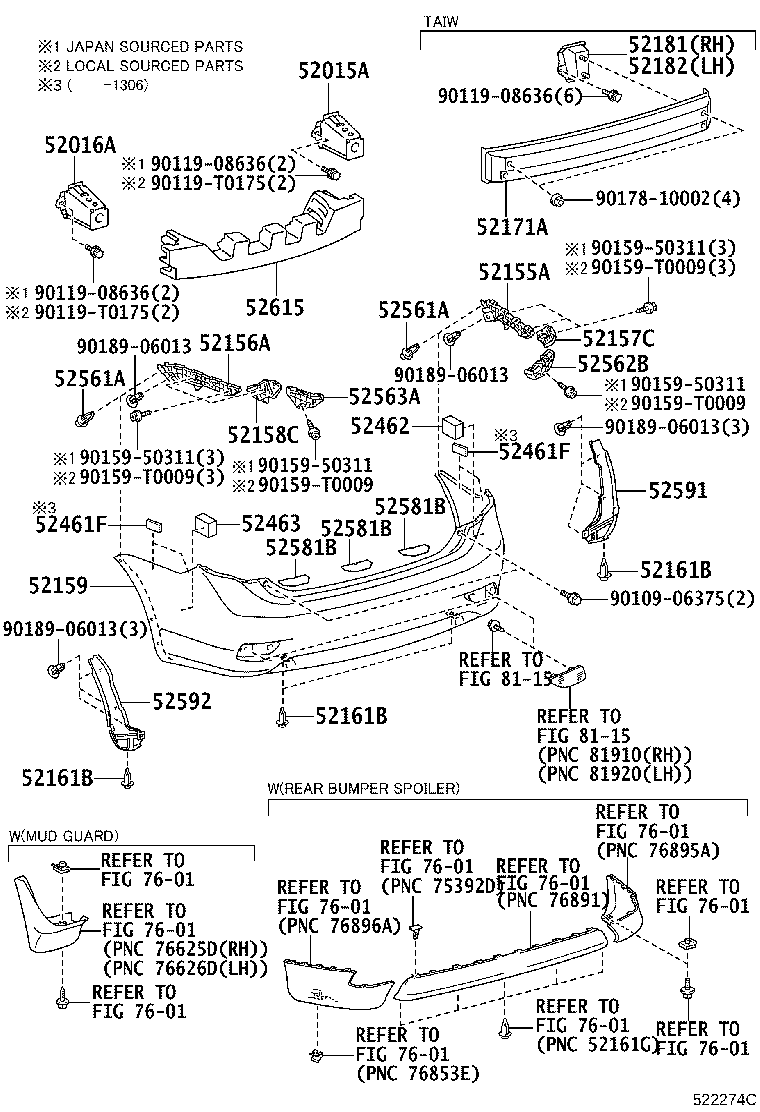

Figure 521888E 521888E 2007-12 → 2010-07 Figure 521888E 521888E 2008-01 → 2010-08 Figure 521888E 521888E 2008-08 → 2010-10 Figure 521888E 521888E 2008-08 → 2011-04 Figure 521888E 521888E 2008-08 → 2011-05 Figure 522274C 522274C 2010-07 → — Figure 522274C 522274C 2010-08 → — Figure 522274C 522274C 2010-10 → — Figure 522274C 522274C 2011-04 → — Figure 522274C 522274C 2011-05 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52461F Pad, Rear Bumper
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52561A Clip(FOR REAR BUMPER RETAINER)
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52581B Protector, Rear Bumper
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
