Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

20 part groups · 4 illustrations

Illustrations

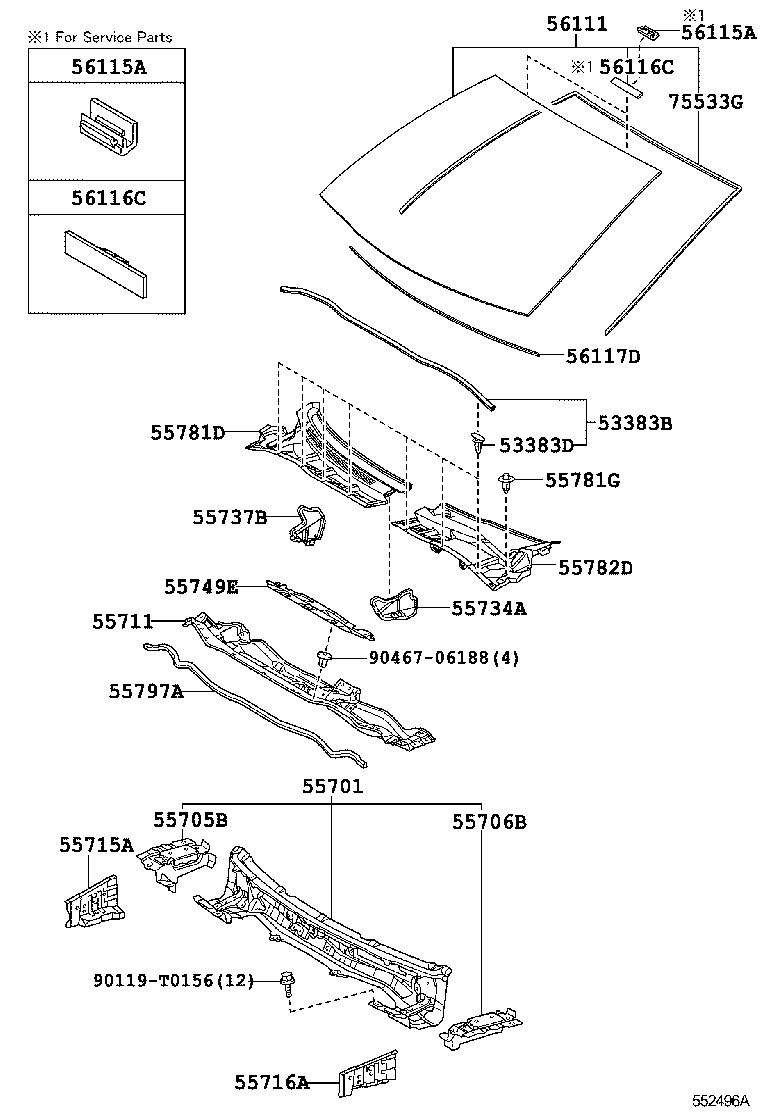

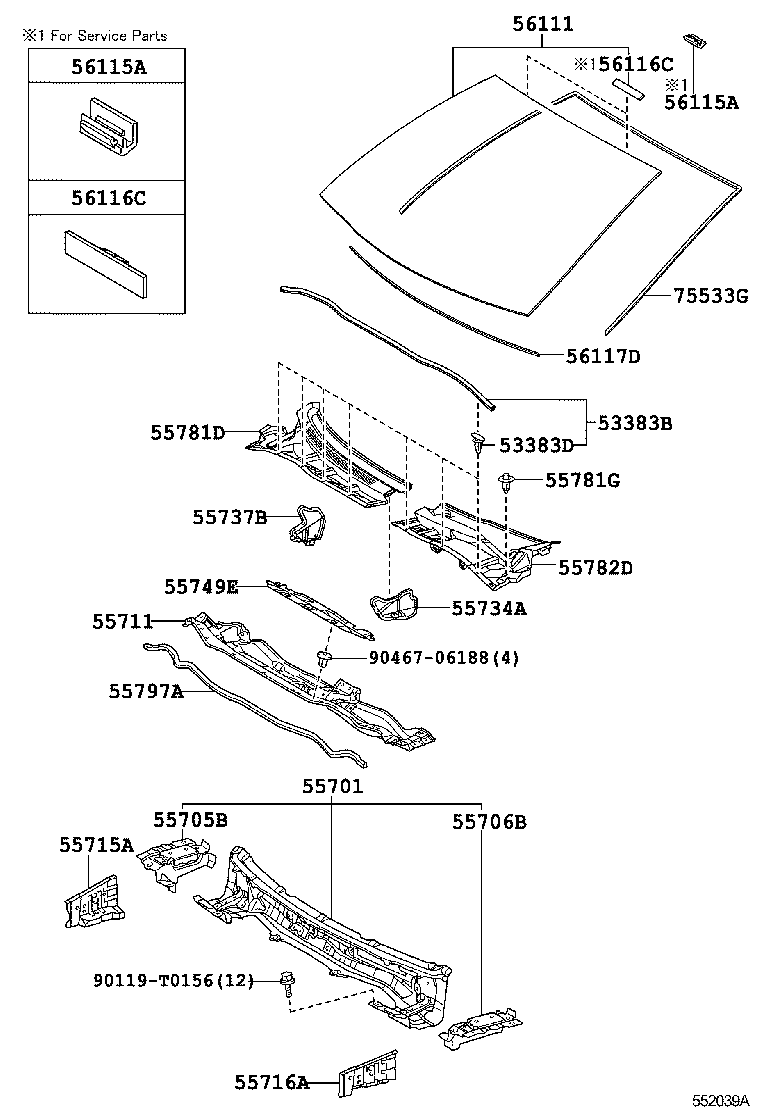

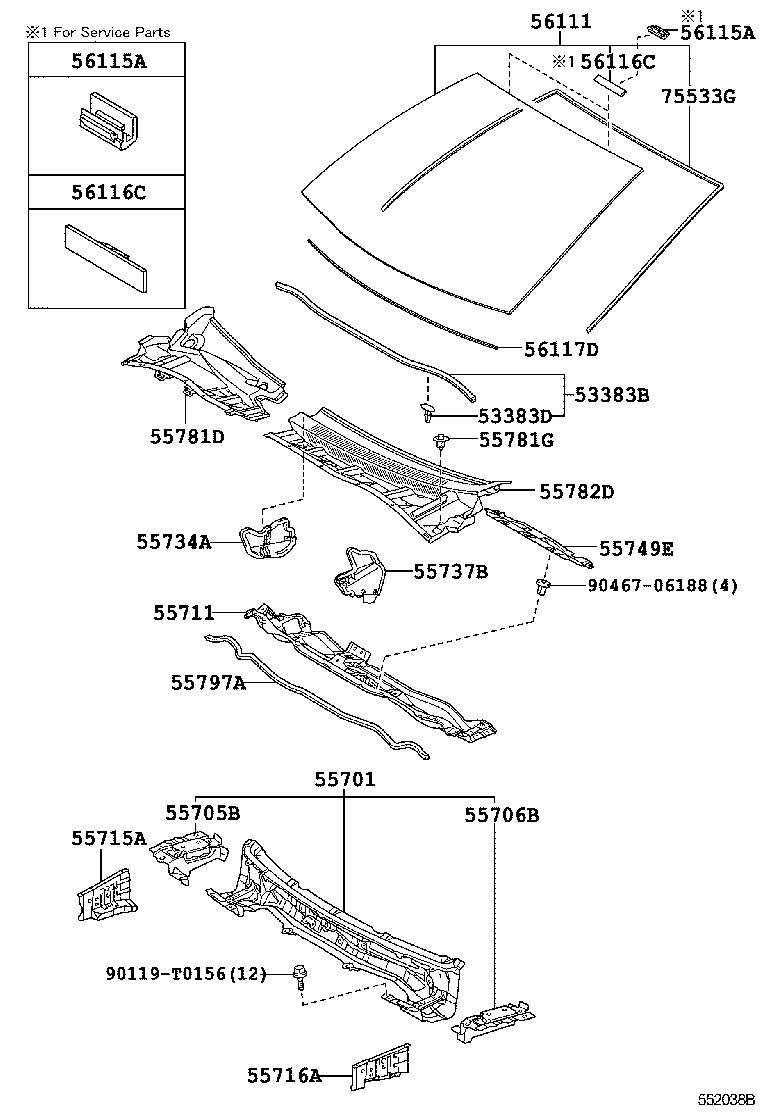

Figure 552495A 552495A 2008-01 → — Figure 552038B 552038B 2008-08 → — Figure 552039A 552039A 2007-12 → — Figure 552496A 552496A 2009-01 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55711 Panel, Cowl Top, Outer
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55734A Plate, Water Guard, RH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55749E Plate, Cowl Top Insulator, NO.2
55781D Louver, Cowl Top Ventilator, RH
55781G Clip, Cowl Top Ventilator Louver
55782D Louver, Cowl Top Ventilator, LH
55797A Seal, Cowl Water Extract
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
