Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

6 part groups · 2 illustrations

Illustrations

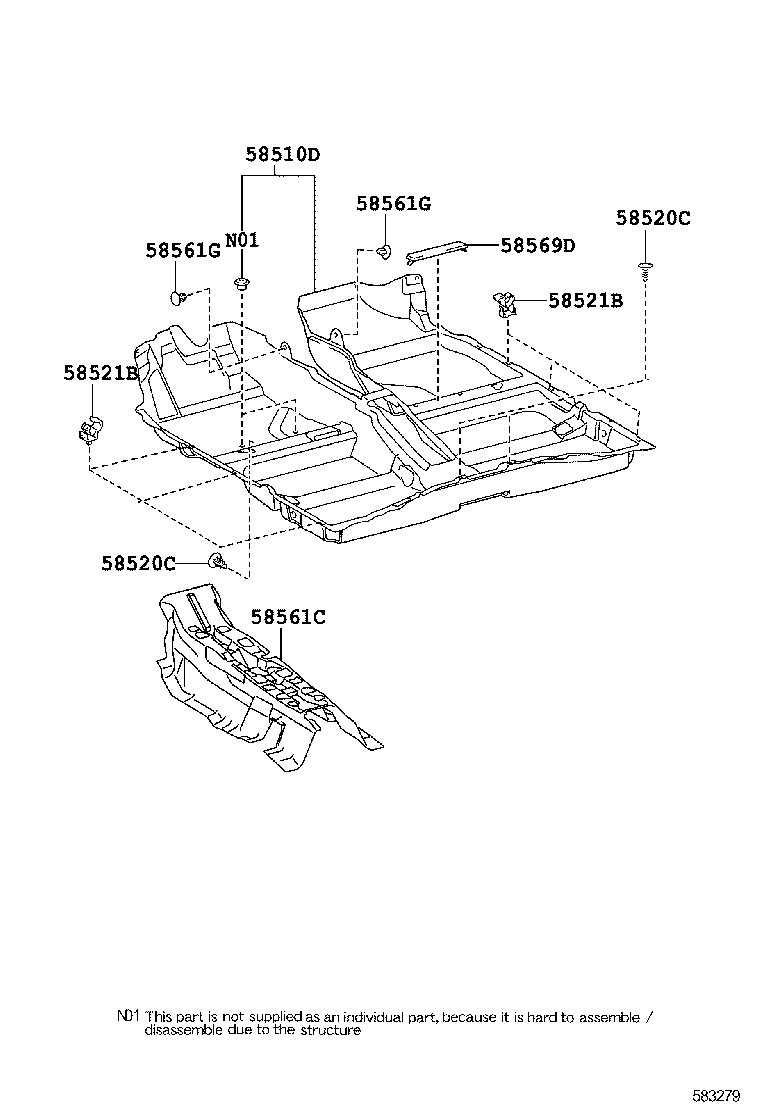

Figure 583278 583278 2008-01 → — Figure 583279 583279 2007-12 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
