Toyota Corolla/Altis
2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General
Supported model
Data version 2015-01

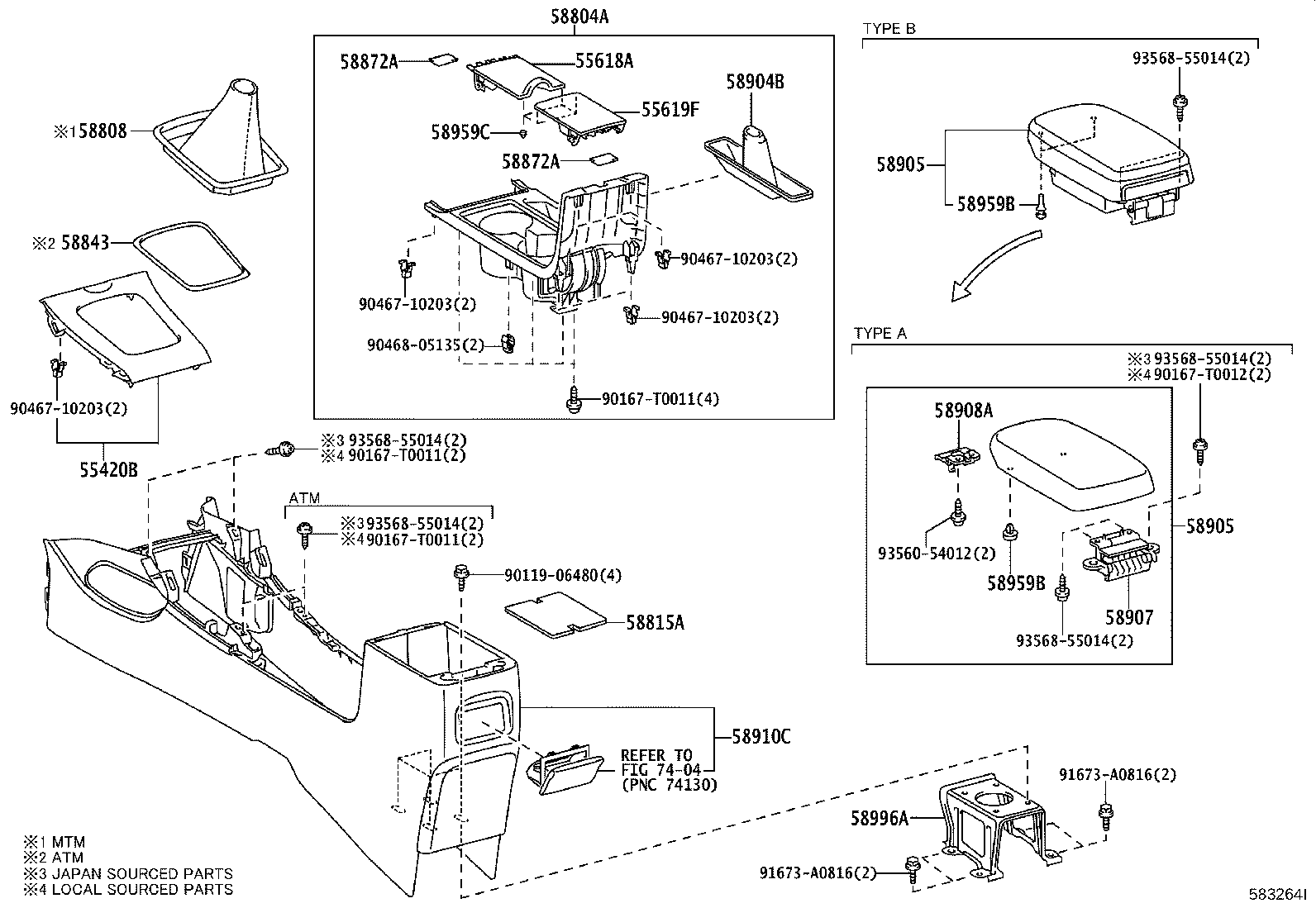

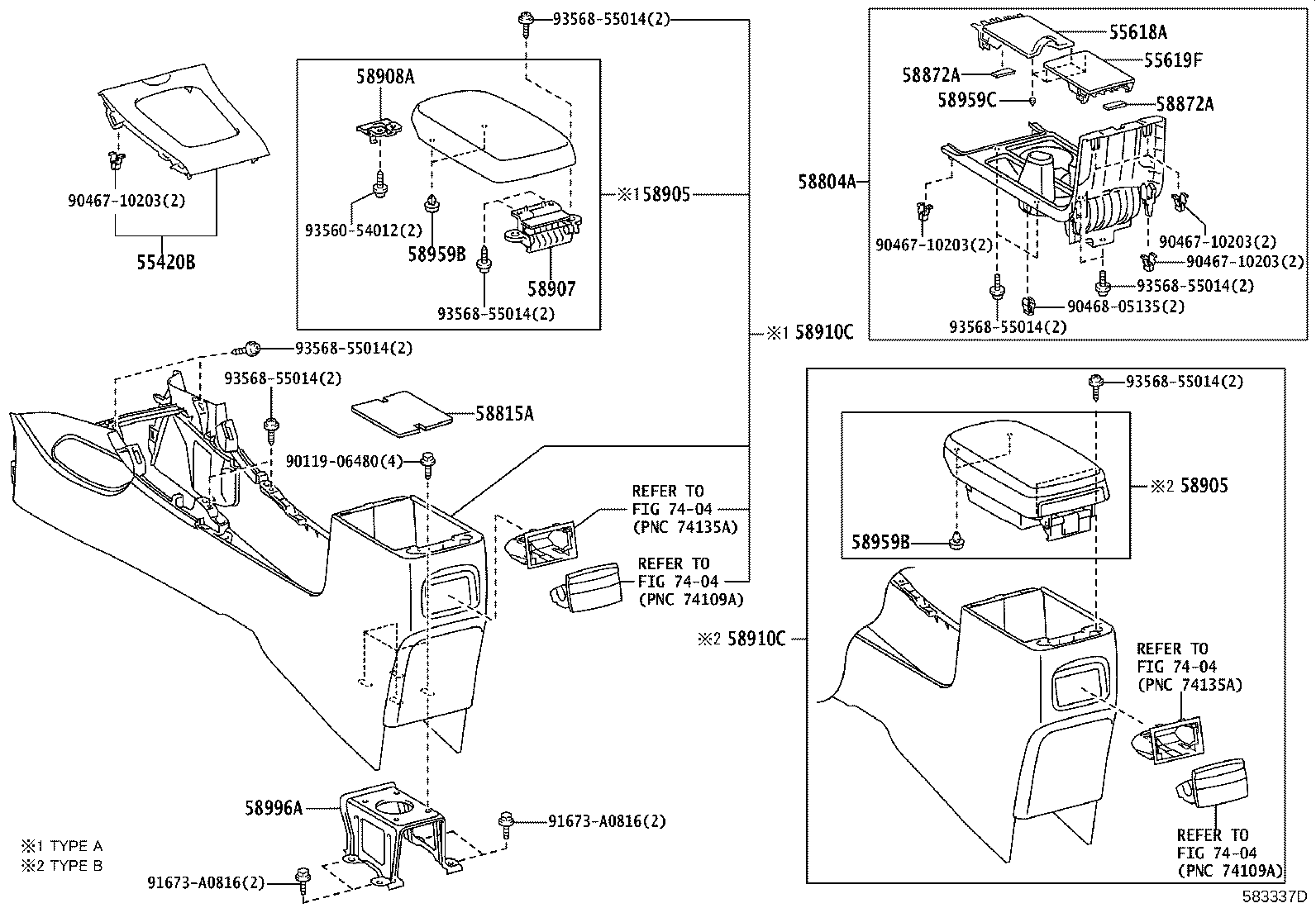

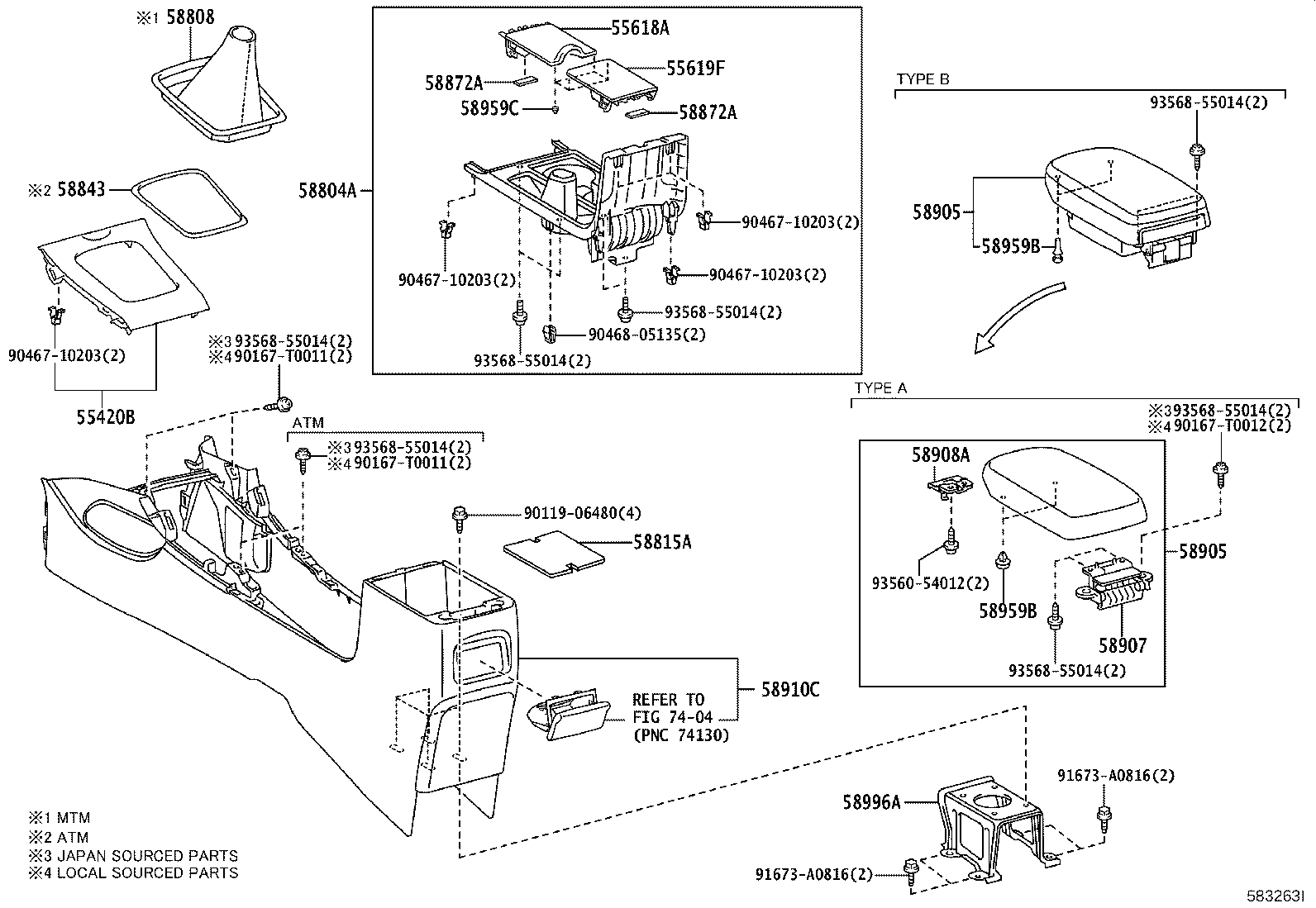

Console Box & Bracket
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55420B | Panel Assy, Instrument Cluster Finish, Center NO.1 |
| 55618A | Holder, Console Box Cup |
| 55619F | Holder, Console Box Cup, NO.2 |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58815A | Carpet, Console Box |
| 58843 | Bezel, Shifting Hole |
| 58872A | Cushion, Console Box, NO.2 |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58959B | Cushion, Console Compartment Door |
| 58959C | Cushion, Console Compartment Door |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
