Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

23 part groups · 3 illustrations

Illustrations

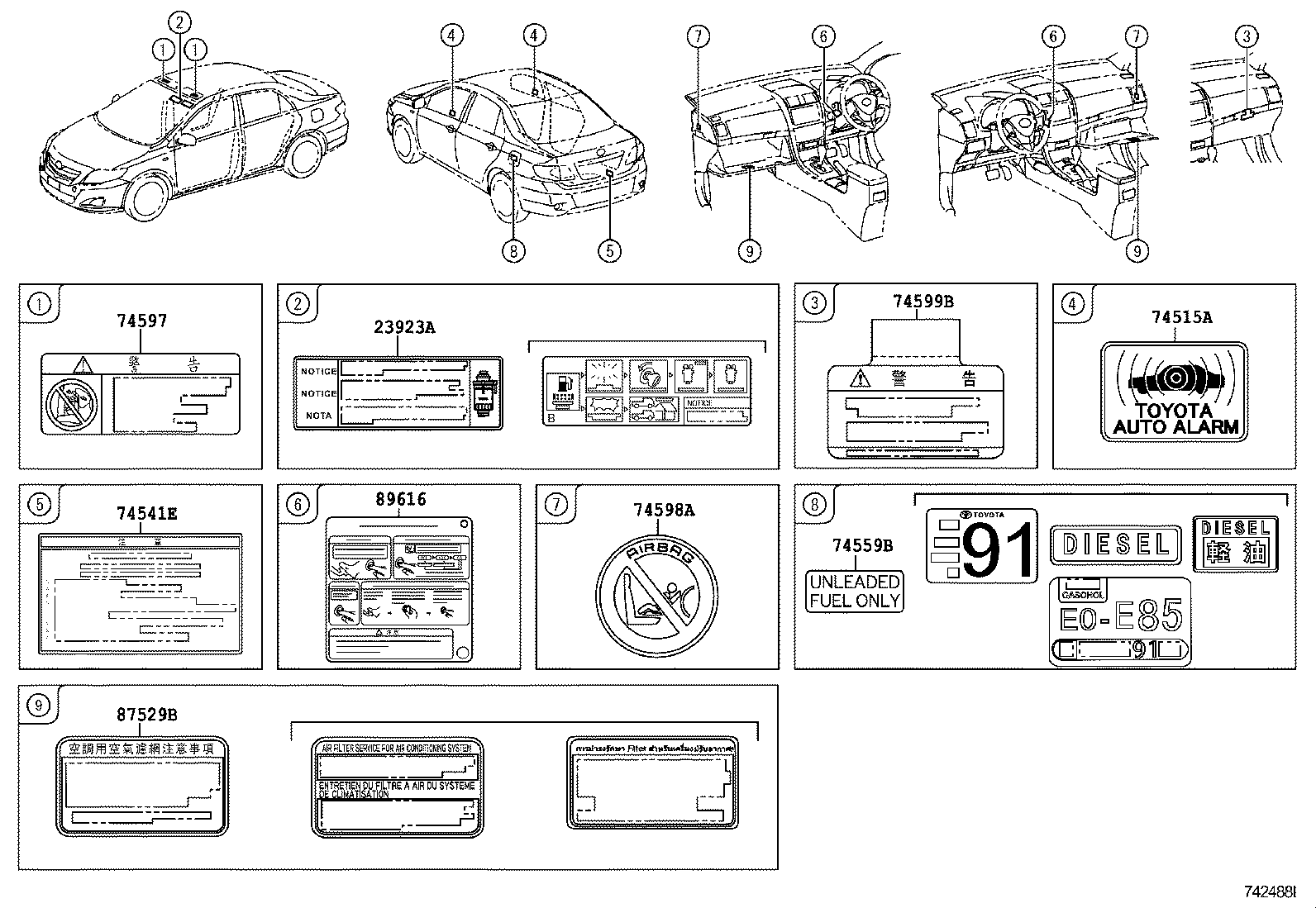

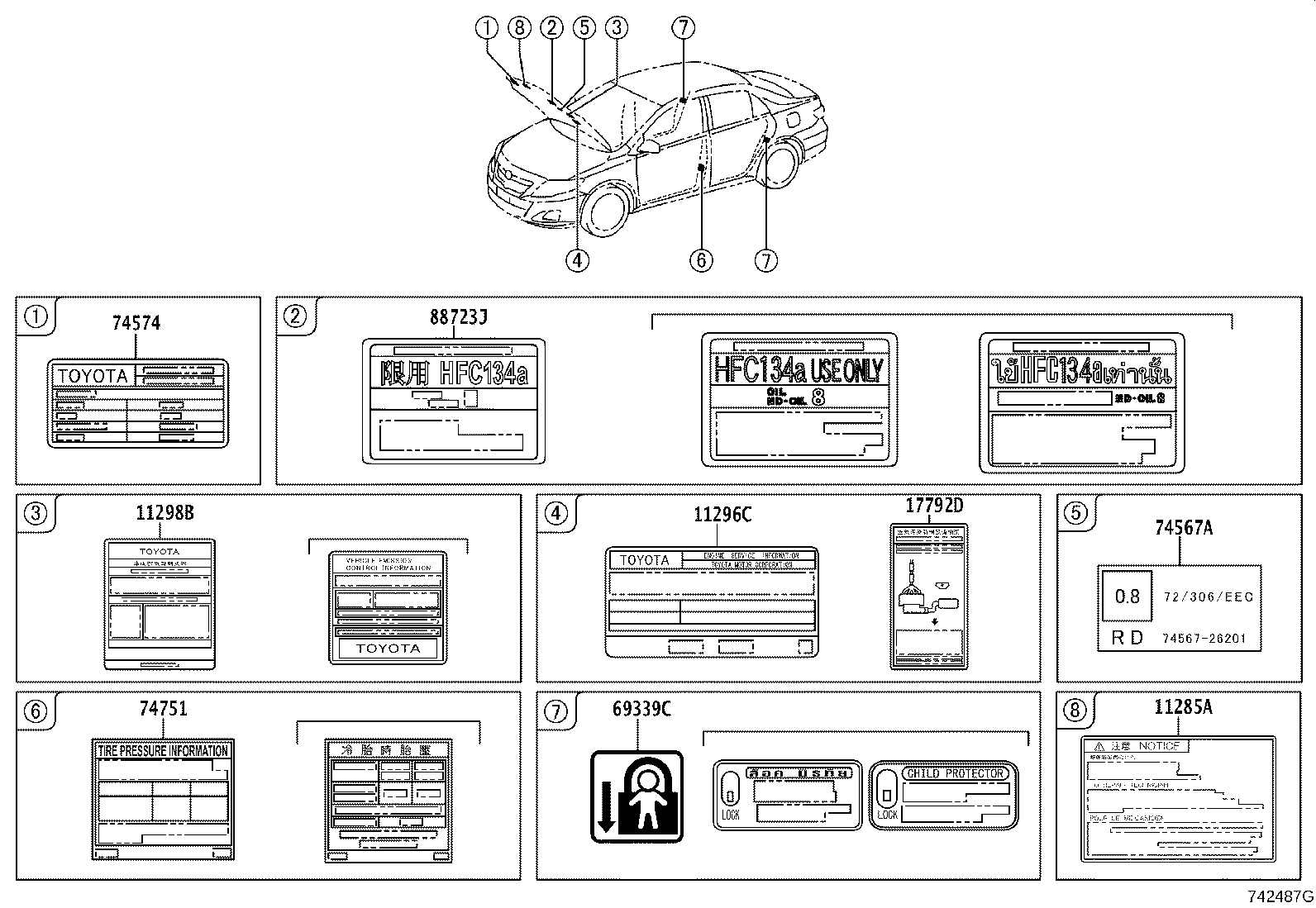

Figure 745462 745462 2007-12 → — Figure 742487G 742487G 2007-12 → — Figure 742488I 742488I 2007-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11295B Label, Engine Service Notice, NO.1
11295C Label, Engine Service Notice, NO.2
11296C Label, Engine Service Information
11296D Label, Engine Service Information
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
17791A Label, Maintenance Information
17792D Label, Emission Control Device Information
23923A Label, Fuel Sedimenter Notice
69339C Label, Child Protector Information
74515A Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74567A Plate, E.C.E Approved Number
74574 Plate, Noise Identification
74597 Label, Driver & Passenger Airbag Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723J Label, Cooler Service Caution, NO.2
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
