Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 10 illustrations

Illustrations

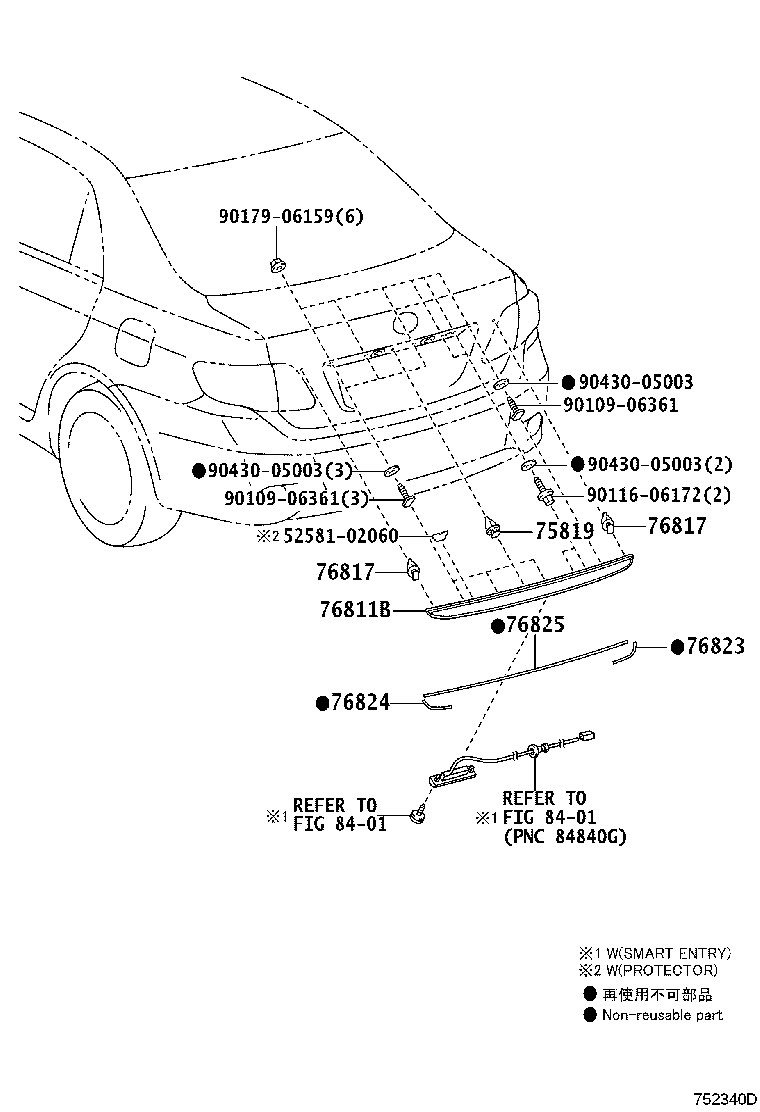

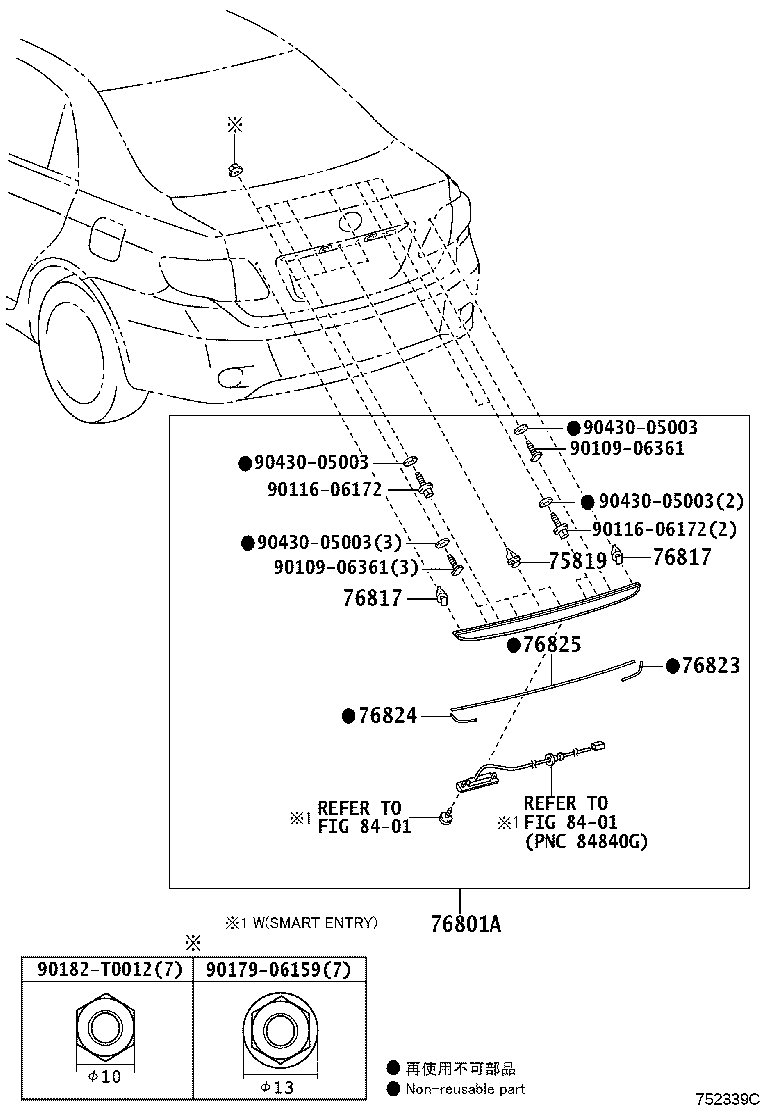

Figure 752022J 752022J 2007-12 → 2010-07 Figure 752022J 752022J 2008-01 → 2010-08 Figure 752022J 752022J 2008-08 → 2010-10 Figure 752022J 752022J 2008-08 → 2011-04 Figure 752022J 752022J 2008-08 → 2011-05 Figure 752340D 752340D 2010-07 → — Figure 752339C 752339C 2010-08 → — Figure 752339C 752339C 2010-10 → — Figure 752339C 752339C 2011-04 → — Figure 752339C 752339C 2011-05 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
