Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01

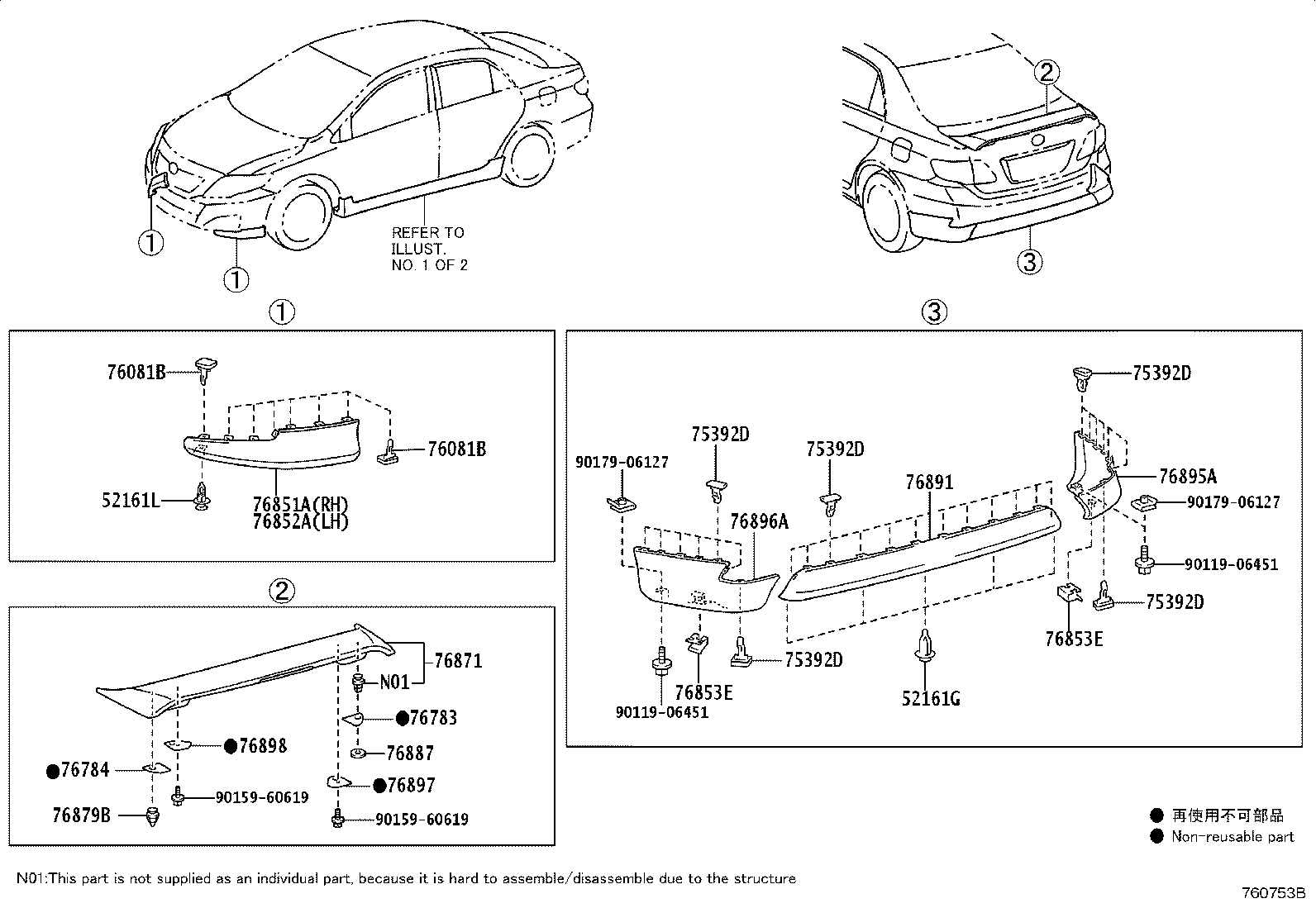

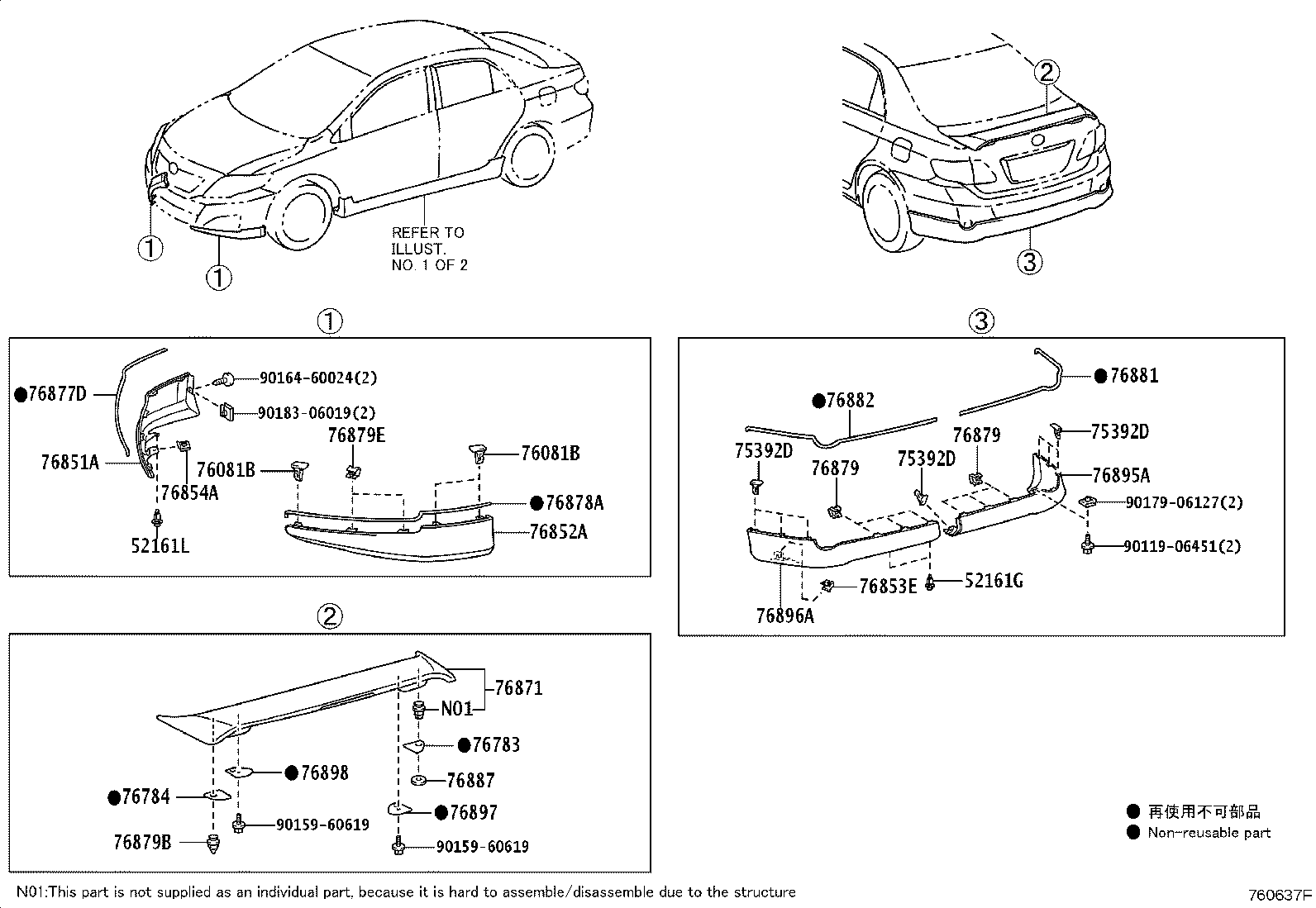

Mudguard & Spoiler

43 part groups · 5 illustrations

PNC	Description
52161G	Piece, Rear Bumper
52161L	Piece, Front Spoiler
65631D	Plate, Rear Wheel House, Front RH
65632D	Plate, Rear Wheel House, Front LH
75392D	Retainer, Outside Moulding
75861M	Retainer, Rocker Panel Moulding, RH
75862J	Retainer, Rocker Panel Moulding, LH
75863D	Protector, Rocker Panel Moulding, NO.3
75865D	Retainer, Rocker Panel Moulding, RH
75866C	Retainer, Rocker Panel Moulding, LH
75867B	Clip, Rocker Panel Moulding
75895F	Tape, Moulding, NO.1
75896D	Tape, Moulding, NO.2
76081B	Retainer, Front Spoiler
76621C	Mudguad, Front Fender, RH
76622C	Mudguard, Front Fender, LH
76625D	Mudguard, Quarter Panel, Rear RH
76626D	Mudguard, Quarter Panel, Rear LH
76647B	Support, Rear Body Mudguard, RH
76648B	Support, Rear Body Mudguard, LH
76783	Tape, Rear Spoiler, Lower RH
76784	Tape, Rear Spoiler, Lower LH
76851A	Cover, Front Spoiler, RH
76852A	Cover, Front Spoiler, LH
76853E	Retainer, Rear Spoiler, NO.1
76854A	Retainer, Front Spoiler, NO.2
76871	Spoiler, Rear
76877D	Protector, Front Spoiler Side, RH
76878A	Protector, Front Spoiler Side, LH
76879	Clip, Rear Spoiler, NO.1
76879B	Clip, Rear Spoiler, NO.2
76879E	Clip, Front Spoiler
76881	Protector, Rear Spoiler Side, NO.1 RH
76882	Protector, Rear Spoiler Side, NO.1 LH
76887	Seal, Rear Spoiler
76891	Spoiler, Rear NO.1
76895A	Spoiler, Rear Bumper, RH
76896A	Spoiler, Rear Bumper, LH
76897	Protector, Rear Spoiler, Side RH
76898	Protector, Rear Spoiler, Side LH
76911B	Mudguard, Side, RH
76912D	Mudguard, Side, LH
76924A	Retainer, Side Mudguard, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
