Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

22 part groups · 14 illustrations

Illustrations

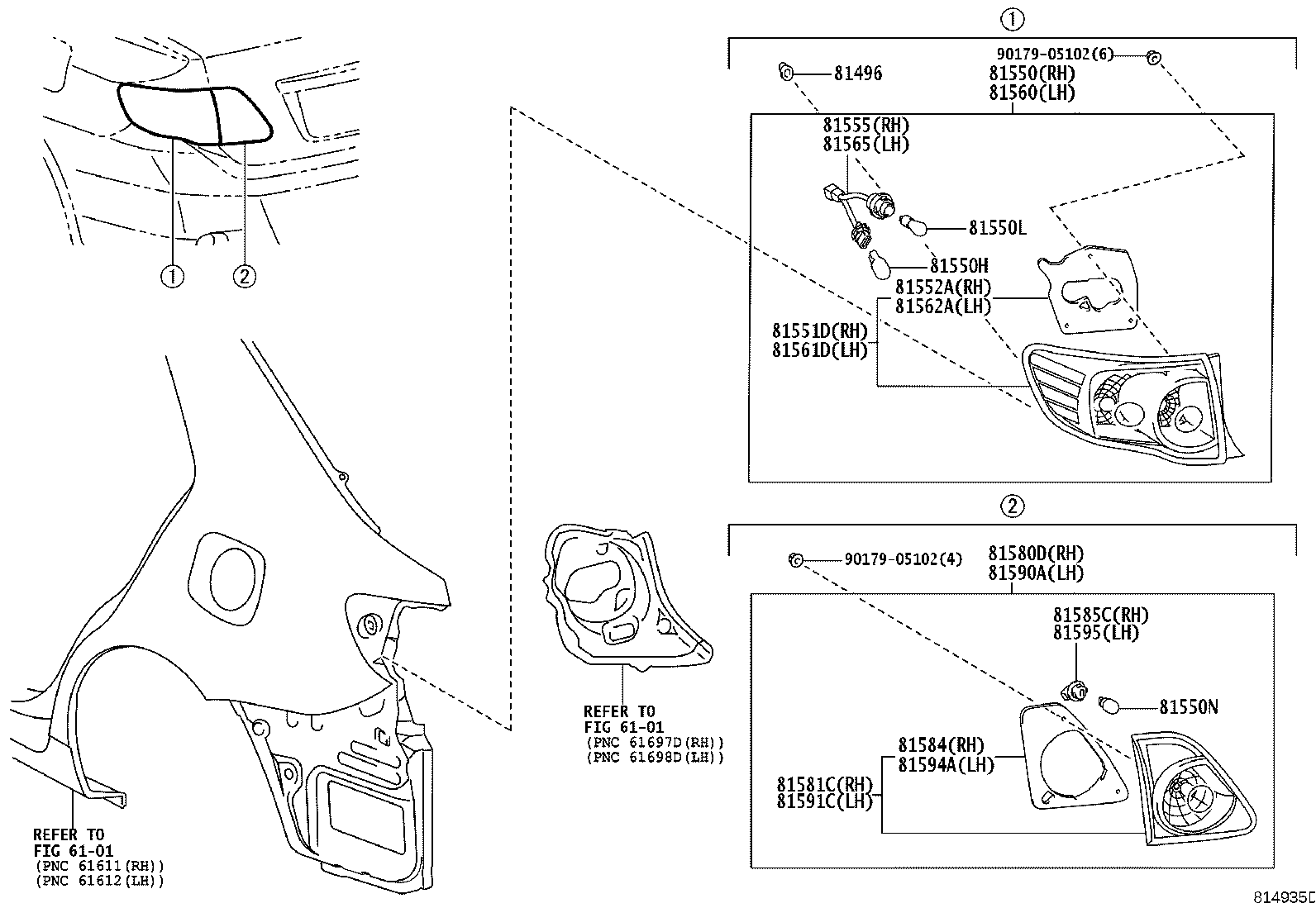

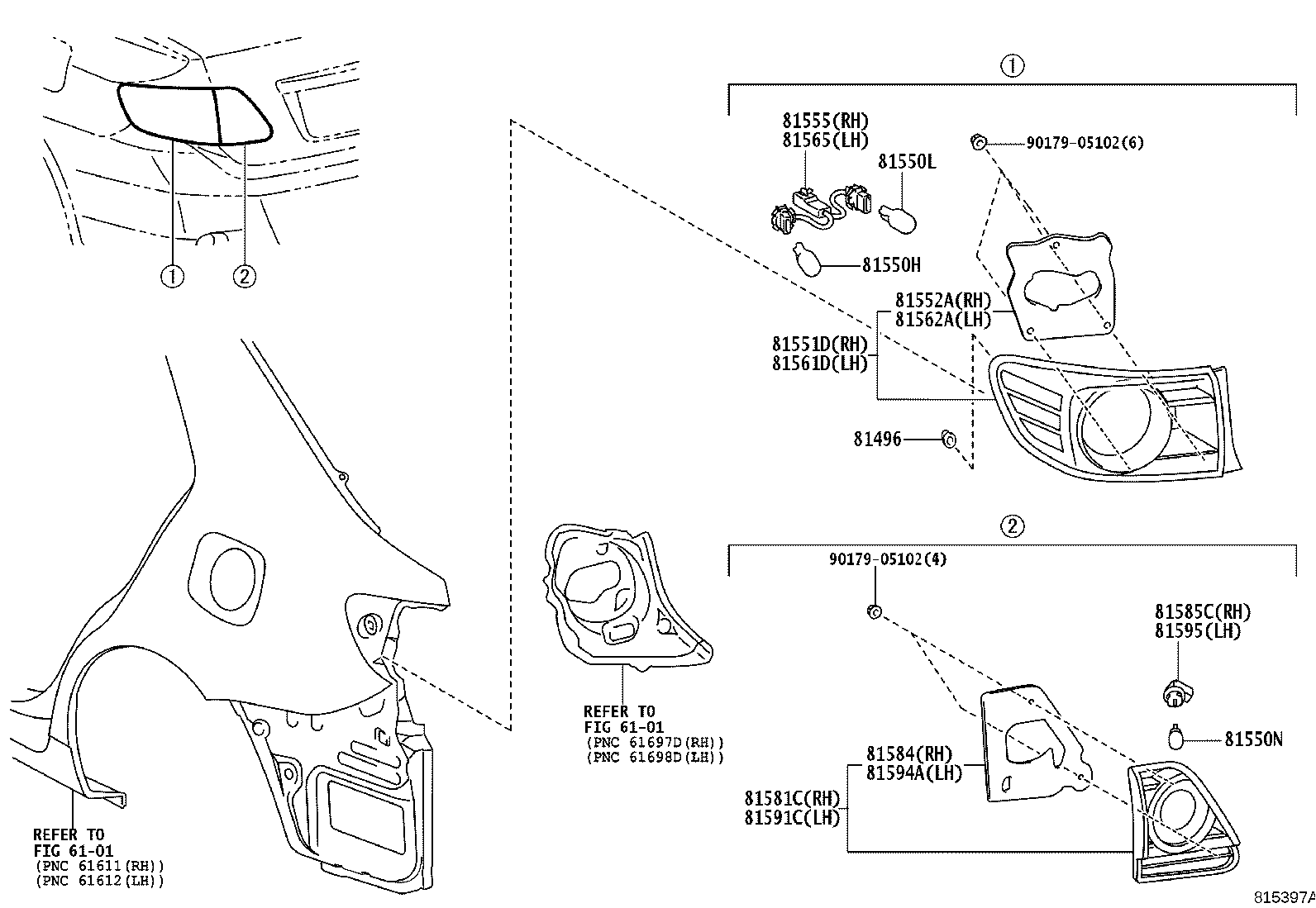

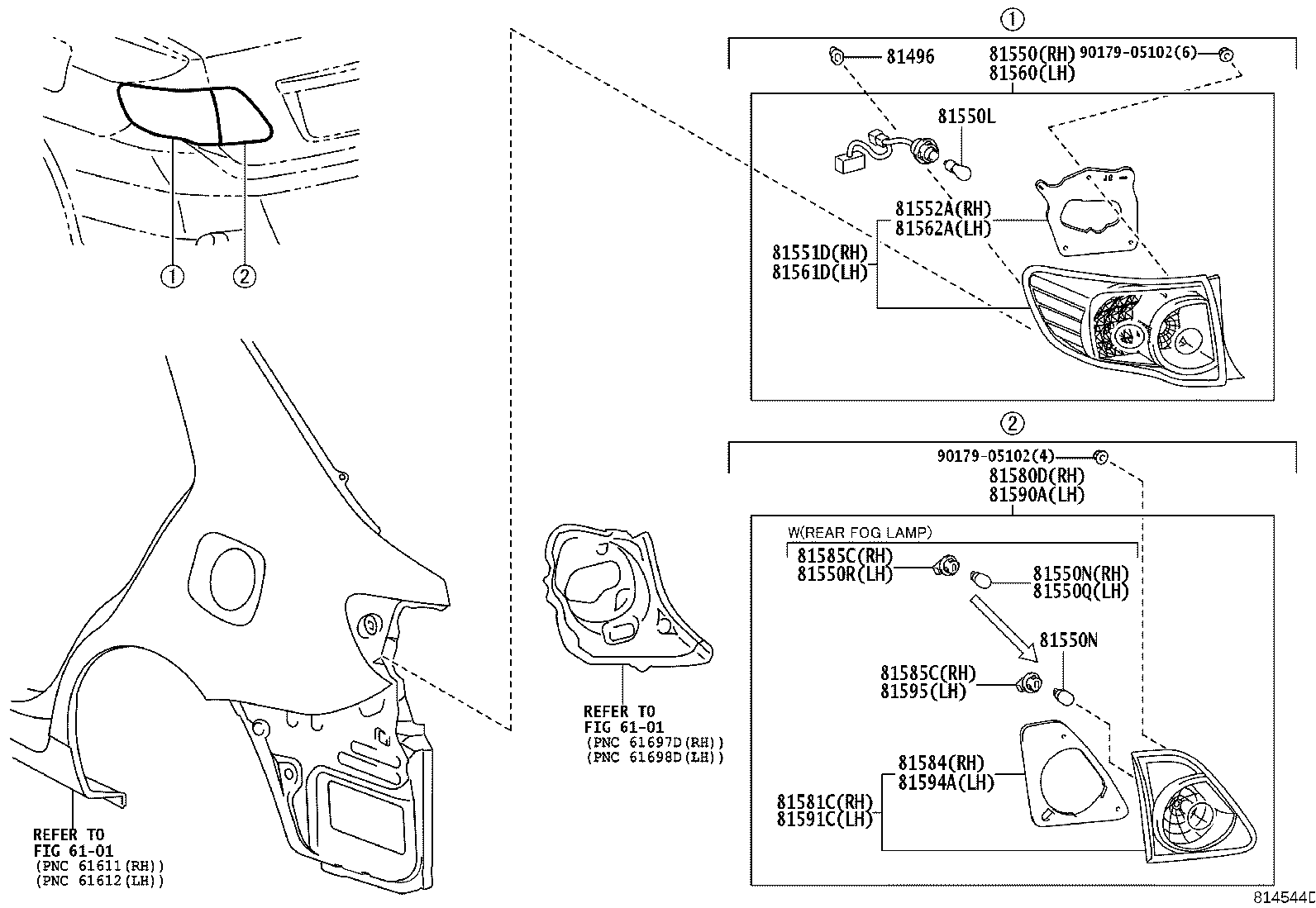

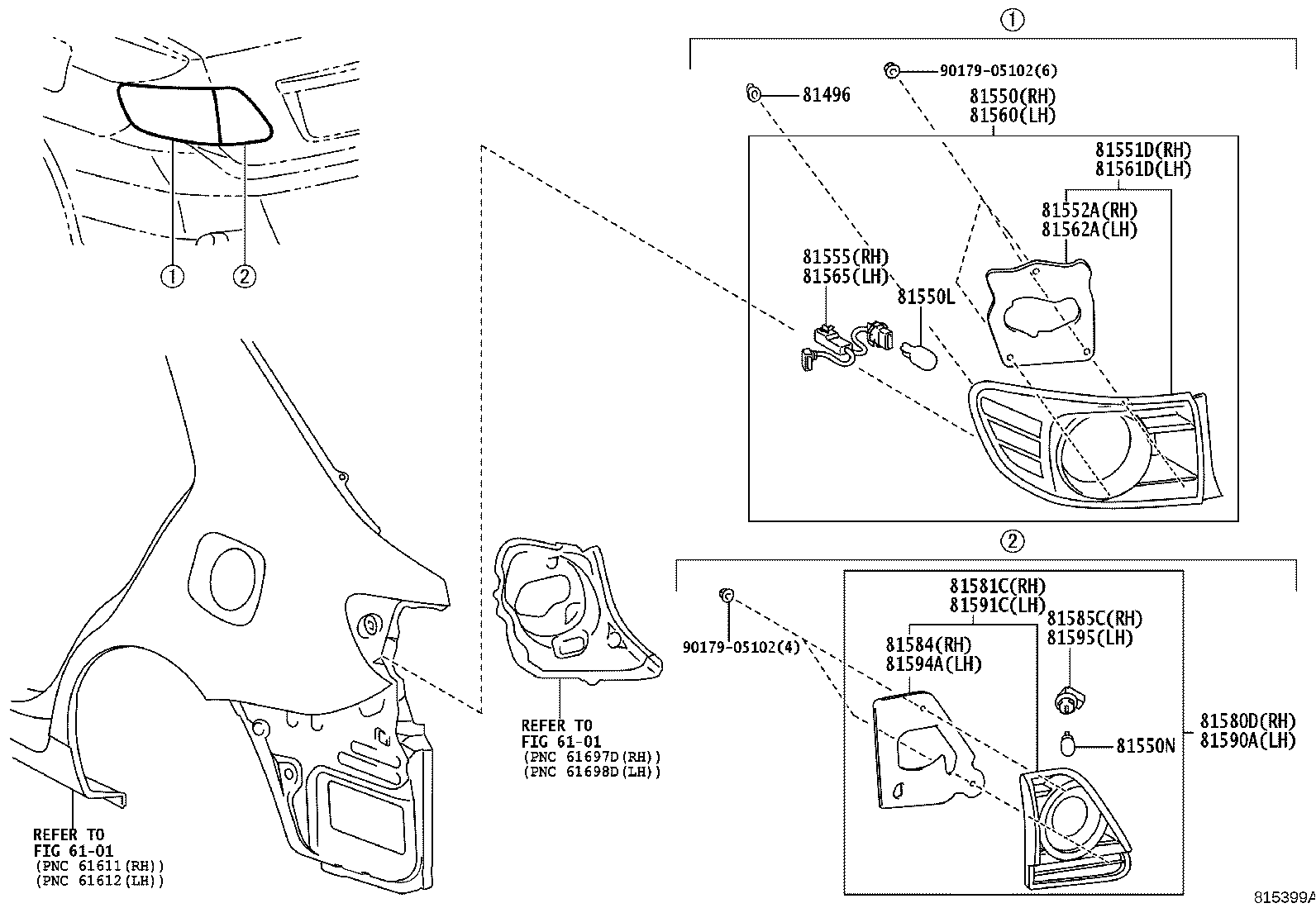

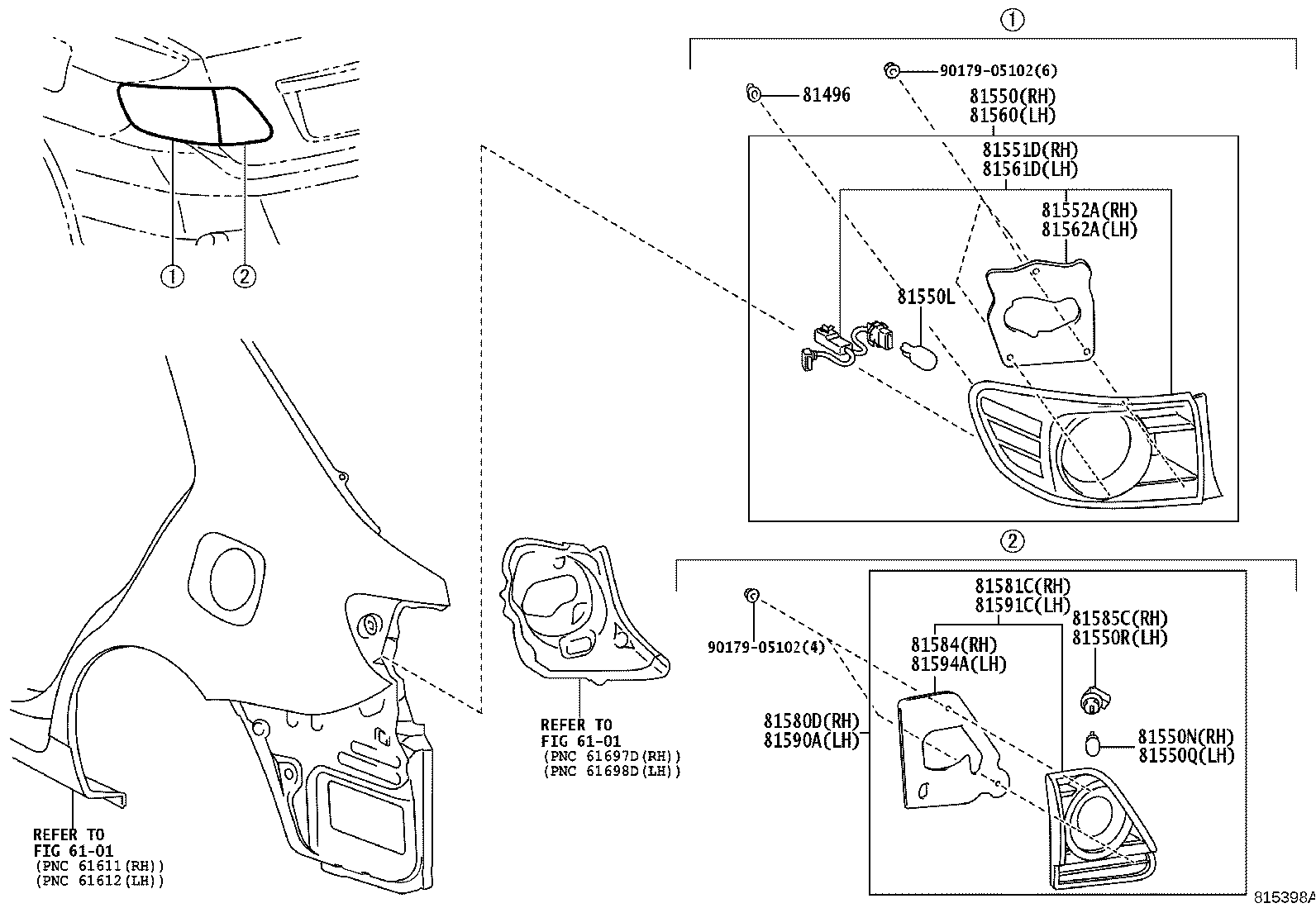

Figure 814540B 814540B 2008-01 → 2010-08 Figure 814540B 814540B 2008-01 → 2011-04 Figure 814540B 814540B 2008-01 → 2011-05 Figure 814540B 814540B 2008-01 → — Figure 814544D 814544D 2007-12 → 2010-07 Figure 814544D 814544D 2008-02 → 2010-08 Figure 814544D 814544D 2008-08 → 2010-10 Figure 814935D 814935D 2009-01 → 2010-07 Figure 815397A 815397A 2010-07 → — Figure 815398A 815398A 2010-07 → — Figure 815399A 815399A 2010-08 → — Figure 815399A 815399A 2010-10 → — Figure 815399A 815399A 2011-04 → — Figure 815399A 815399A 2011-05 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81550R Socket, Rear Fog Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81585C Socket & Wire, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81591C Lens, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
