Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

96 part groups · 19 illustrations

Illustrations

849613E 2007-12 → —

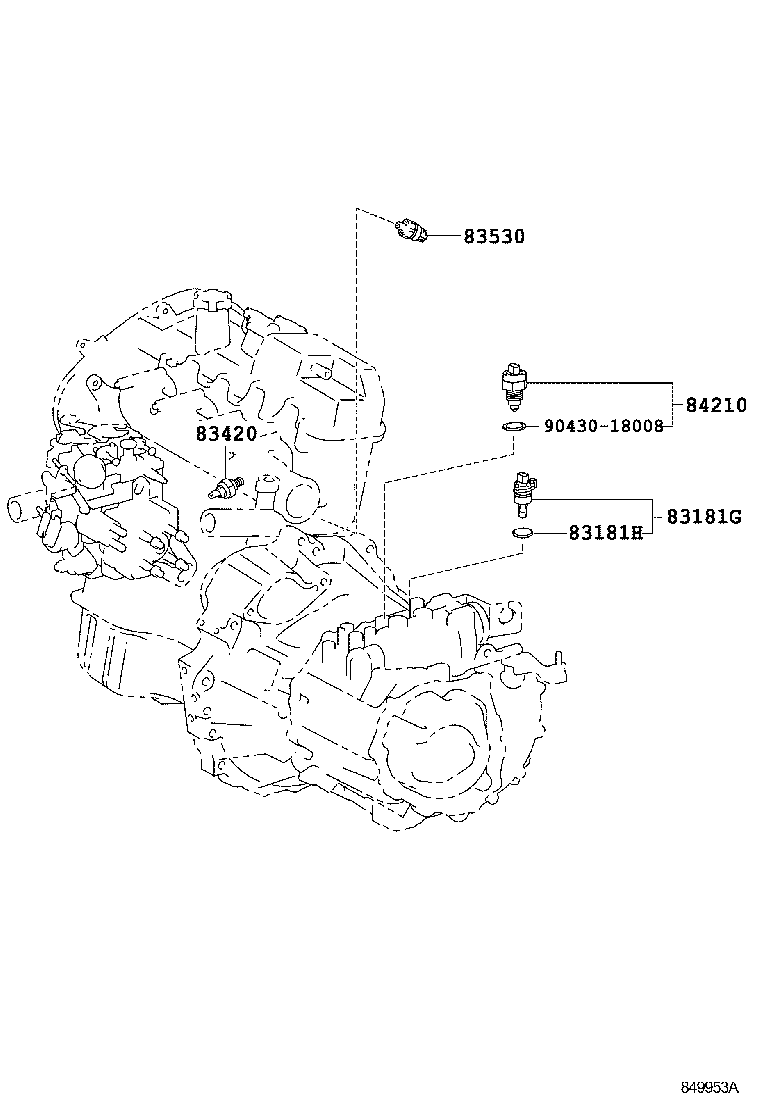

849953A 2008-08 → —

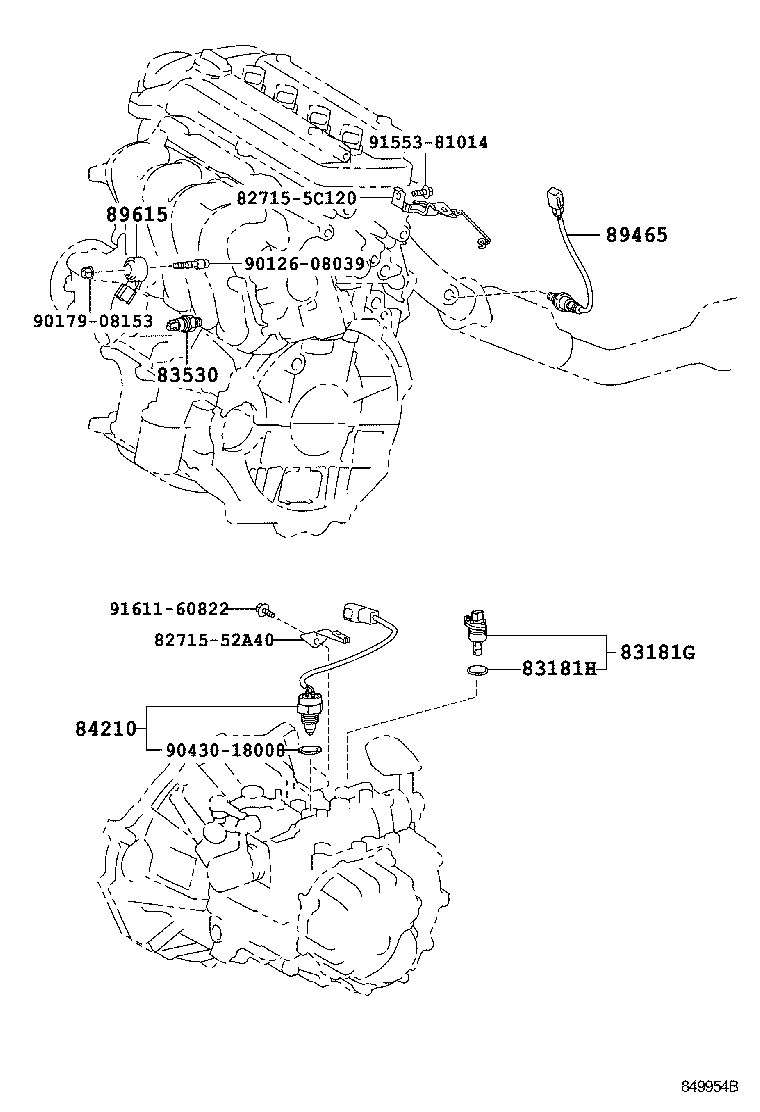

849954B 2008-08 → —

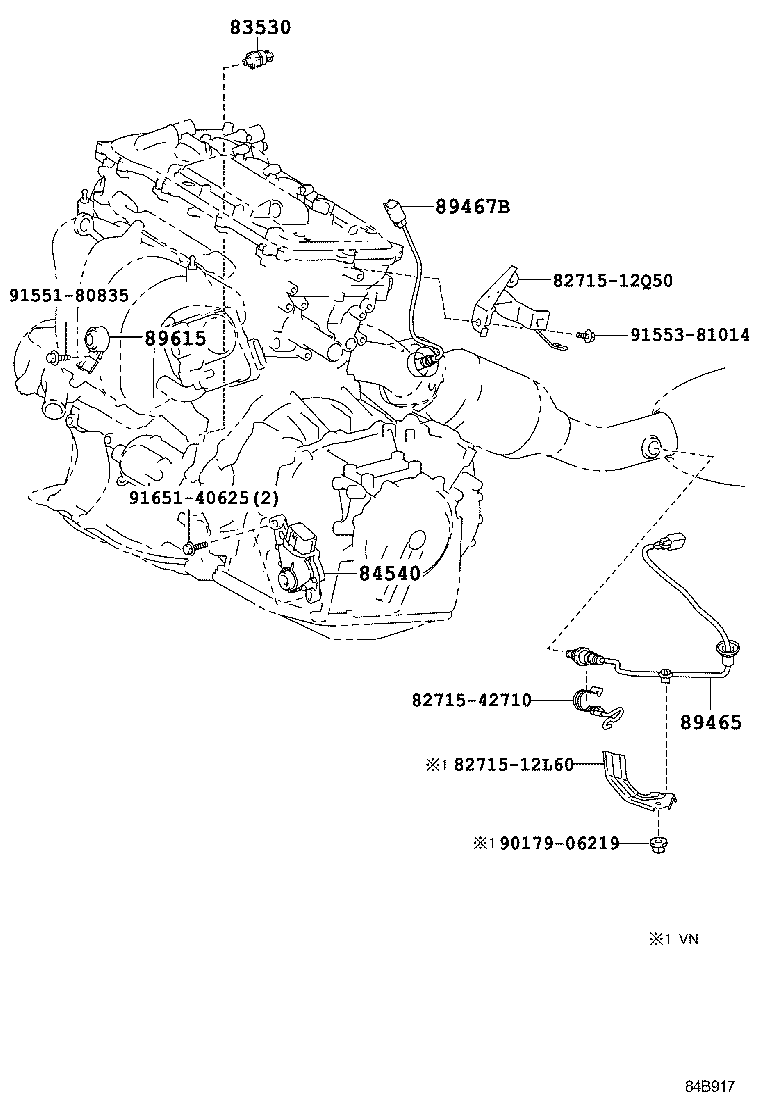

84B917 2008-11 → 2010-07

84B917 2008-12 → 2010-08

84B917 2009-06 → 2010-10

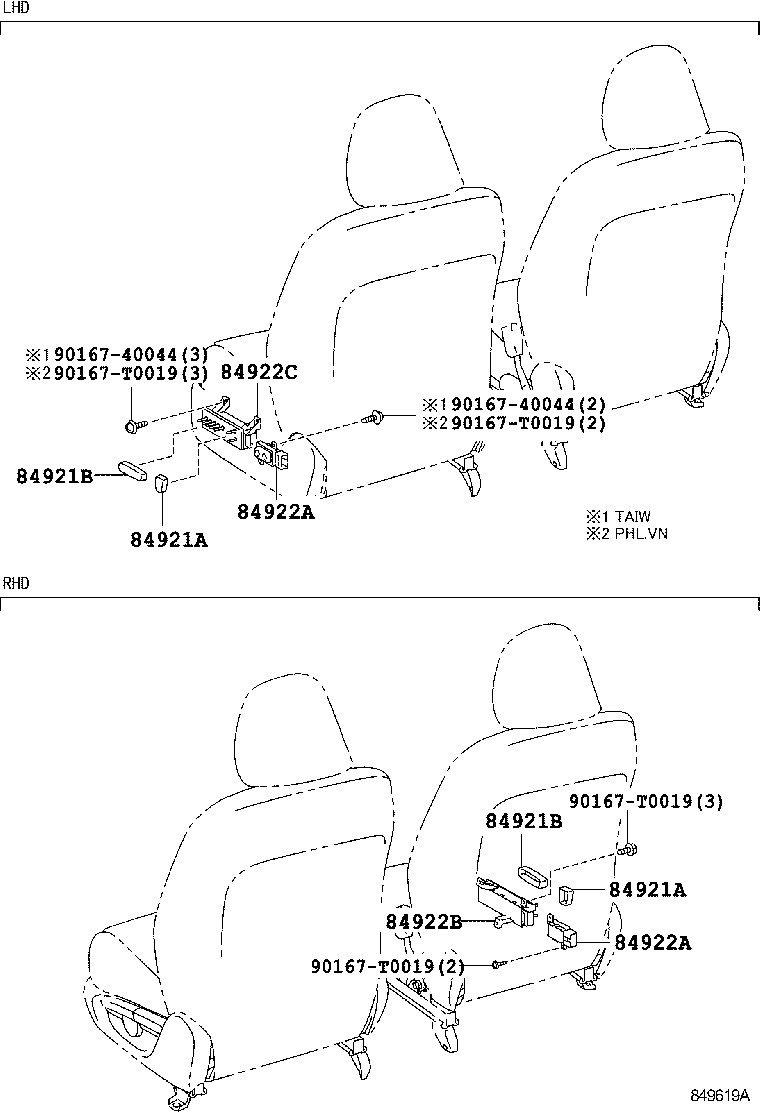

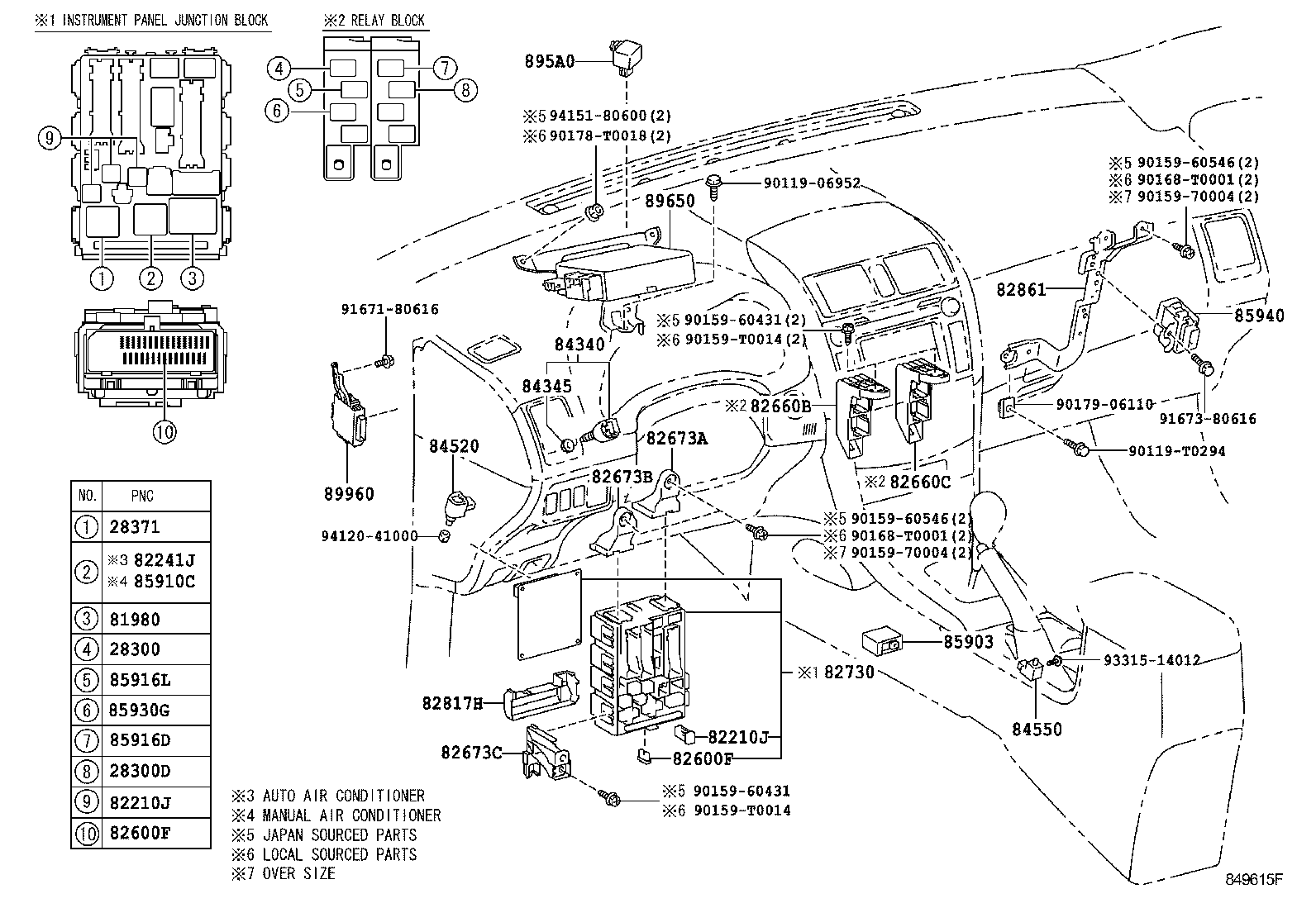

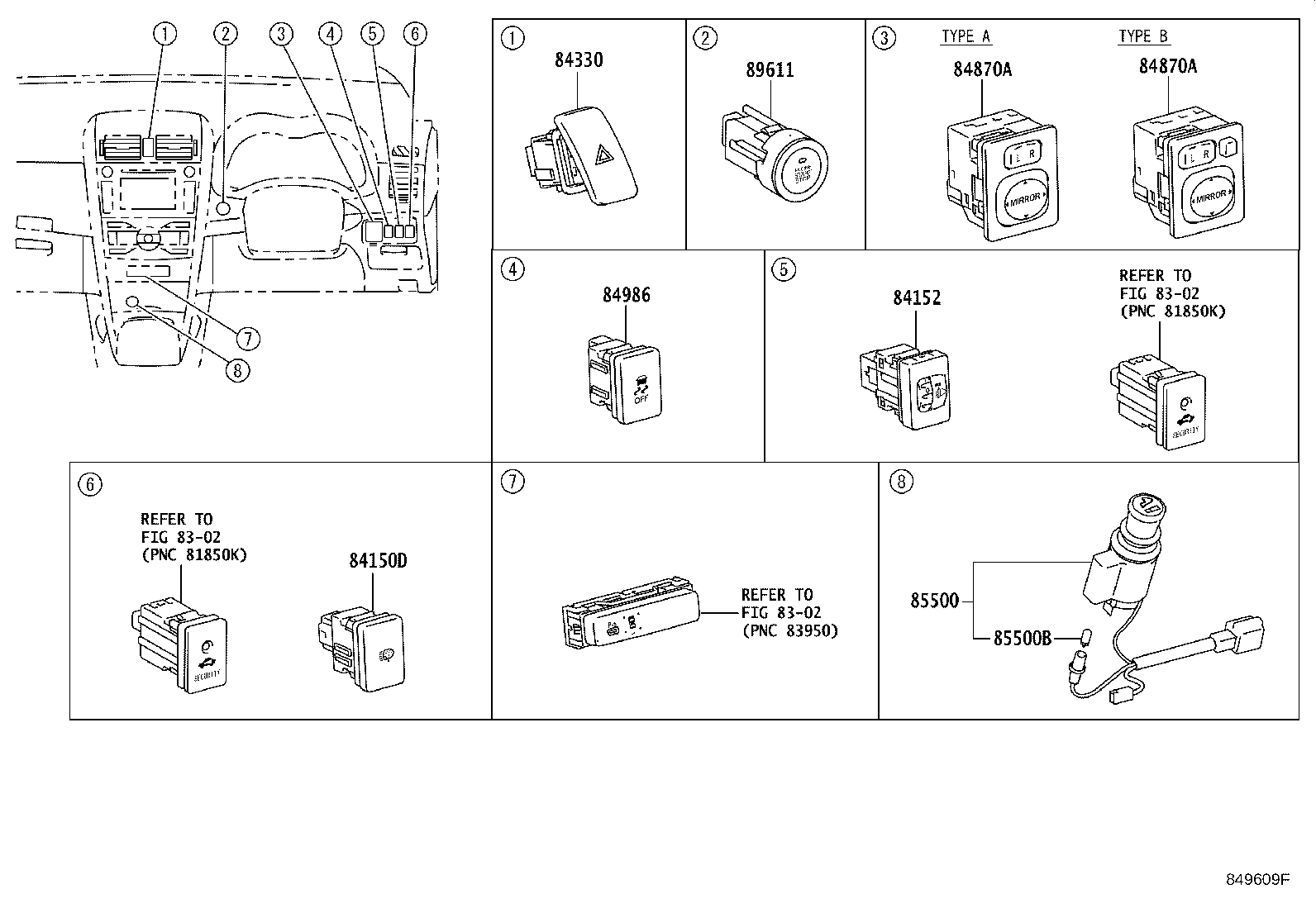

Part groups

PNC	Description
28300	Relay Assy, Starter
28300D	Relay, Starter Cut
28371	Relay, Ignition, NO.1
28520	Timer Assy, Preheating

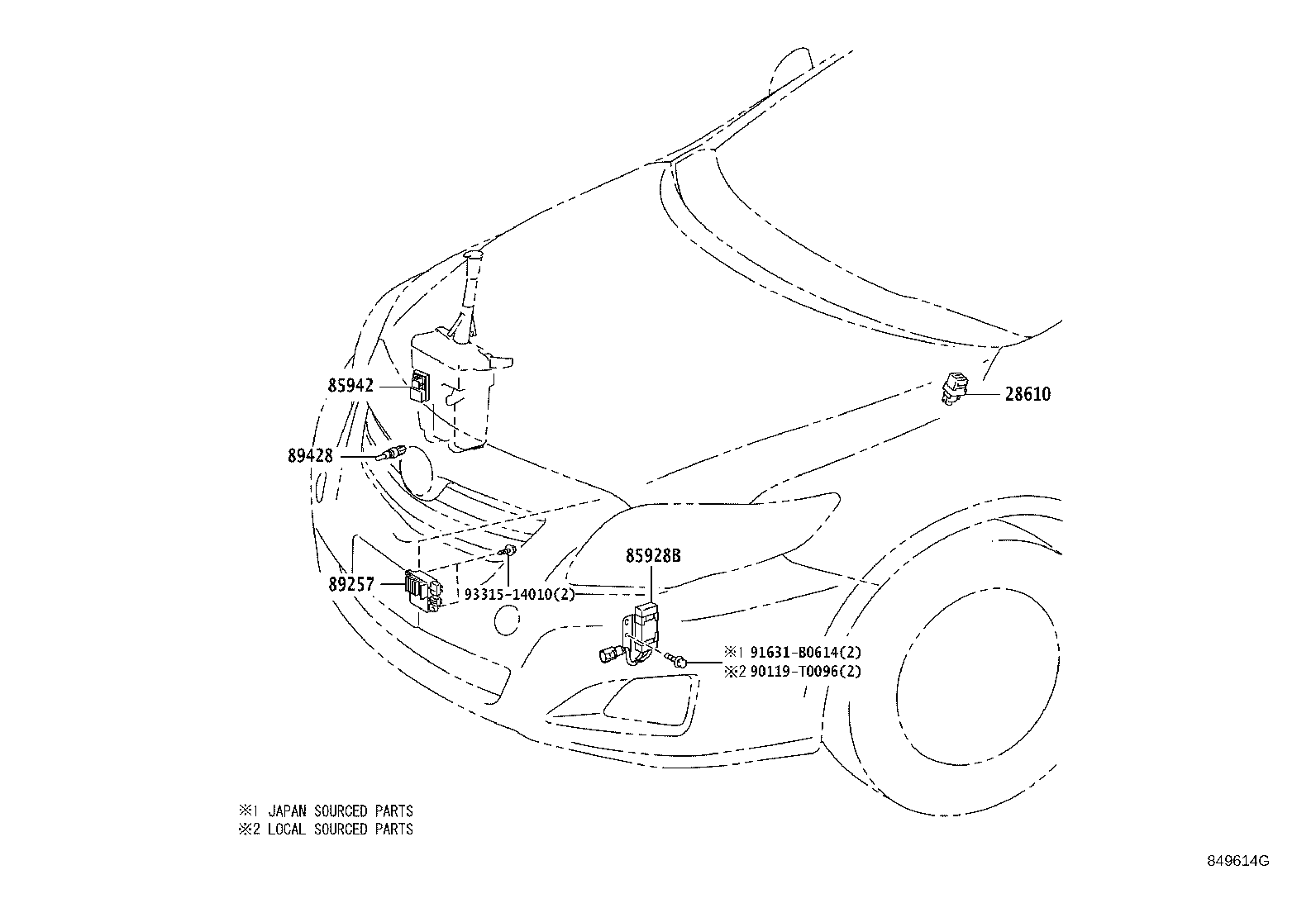

28610	Relay Assy, Intake Heater OR Glow Plug
81980	Flasher Assy, Turn Signal
82210J	Fusible Link
82241J	Pin, Short
82291D	Wire, TO Solenoid
82600F	Fuse, Fuse Block
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82630	Holder Assy, Fuse
82641C	Relay, Integration NO.2
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82663A	Cover, Relay Block, Lower, NO.2
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673C	Bracket, Junction Block

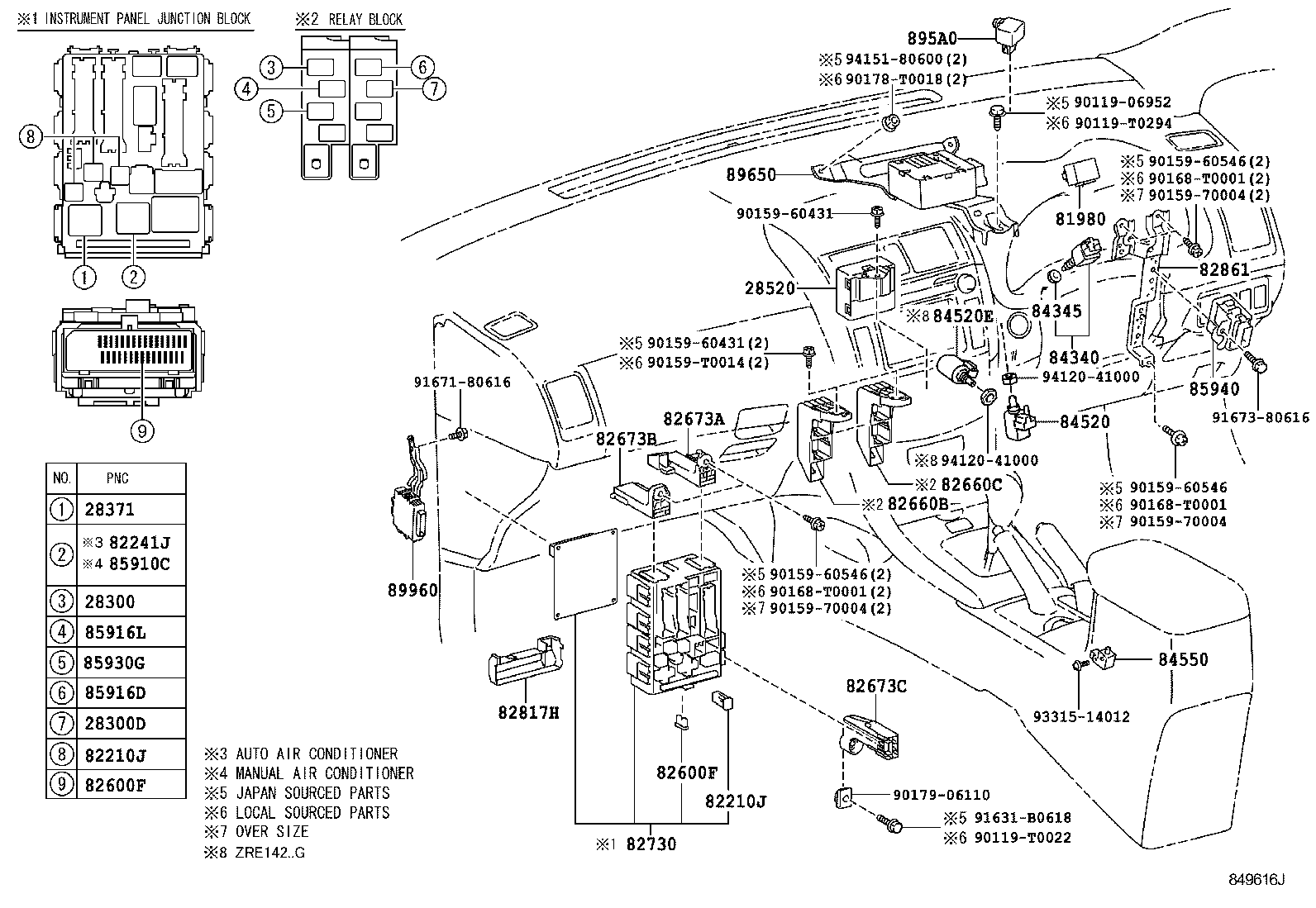

82730	Block Assy, Instrument Panel Junction

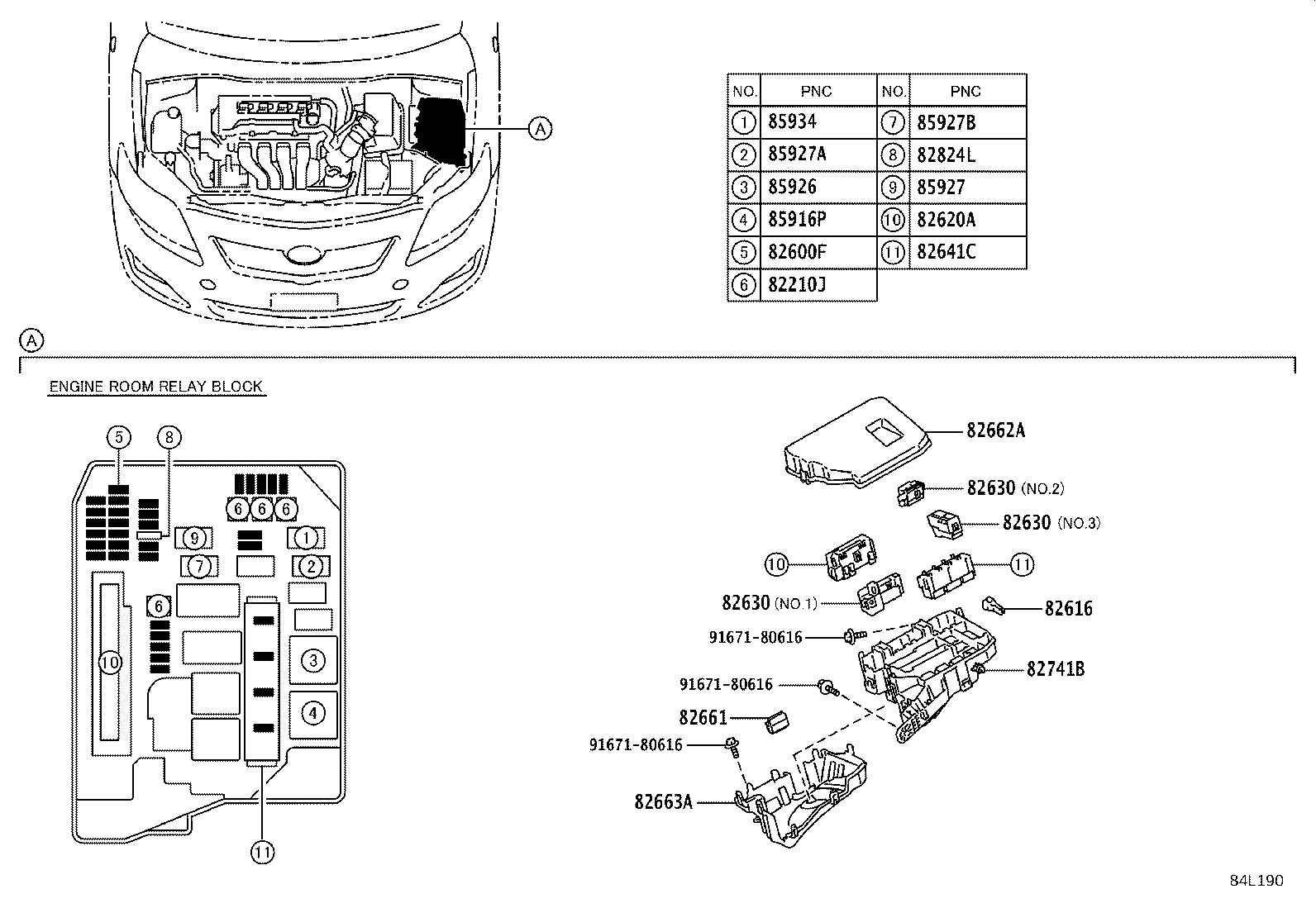

82741B	Block, Engine Room Relay
82817H	Protector, Wiring Harness
82824L	Pin, Short
82861	Bracket, Computer Integration, NO.1
83181G	Sensor, Speedometer
83181H	Ring, O (FOR SPEEDOMETER SENSOR)
83320	Gage Assy, Fuel Sender
83420	Gage Assy, Water Temperature Sender

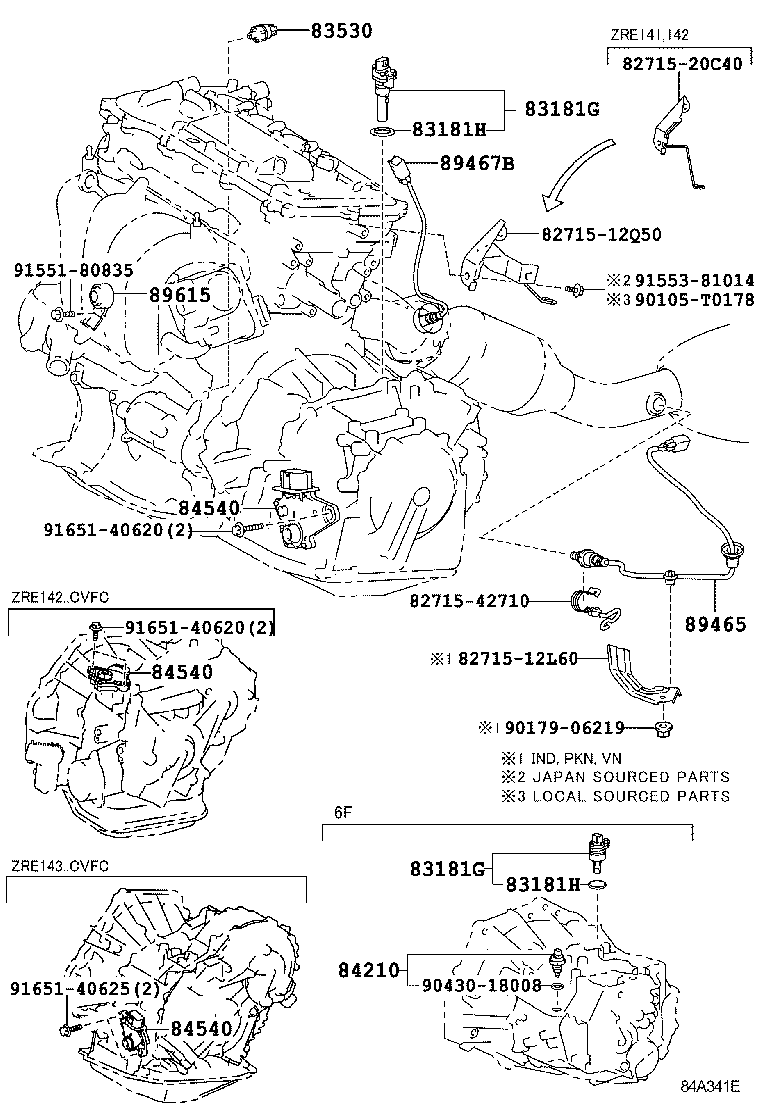

83530	Switch Assy, Oil Pressure (FOR ENGINE)
84052	Switch Assy, Un-lock Warning
84113A	Bracket, Switch, NO.1
84113B	Bracket, Switch, NO.2
84140	Switch Assy, Headlamp Dimmer
84150D	Switch Assy, Headlamp Cleaner

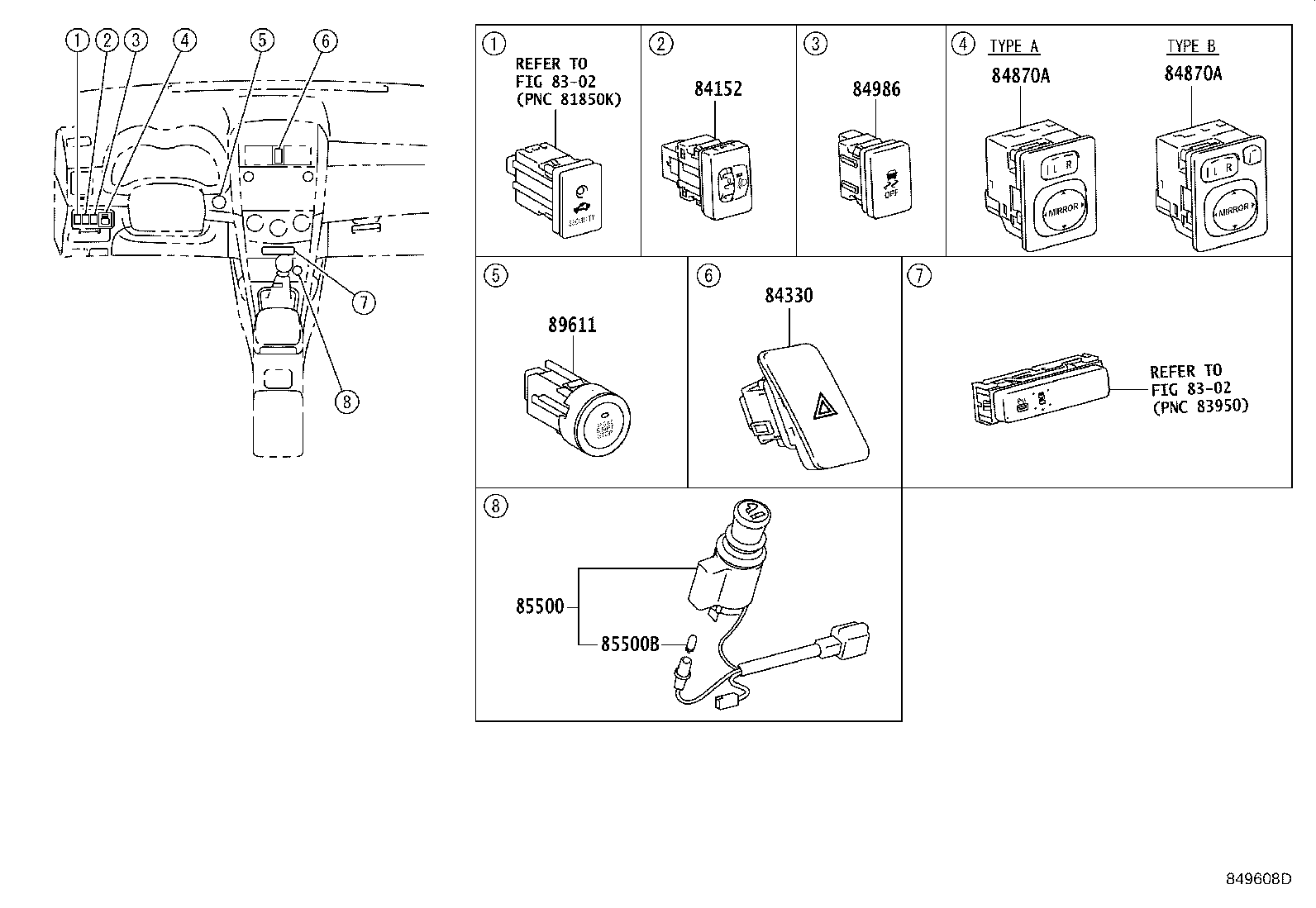

84152	Switch, Headlamp Leveling

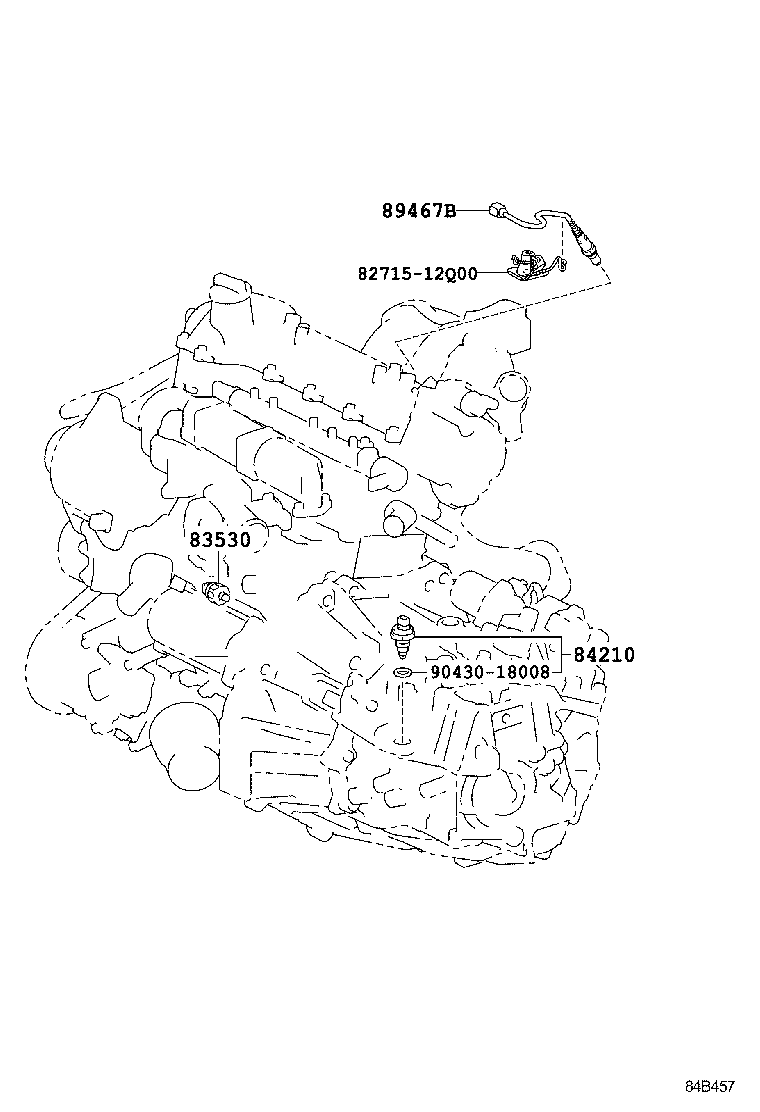

84210	Switch Assy, Back-up Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A	Switch, Steering Pad, LH

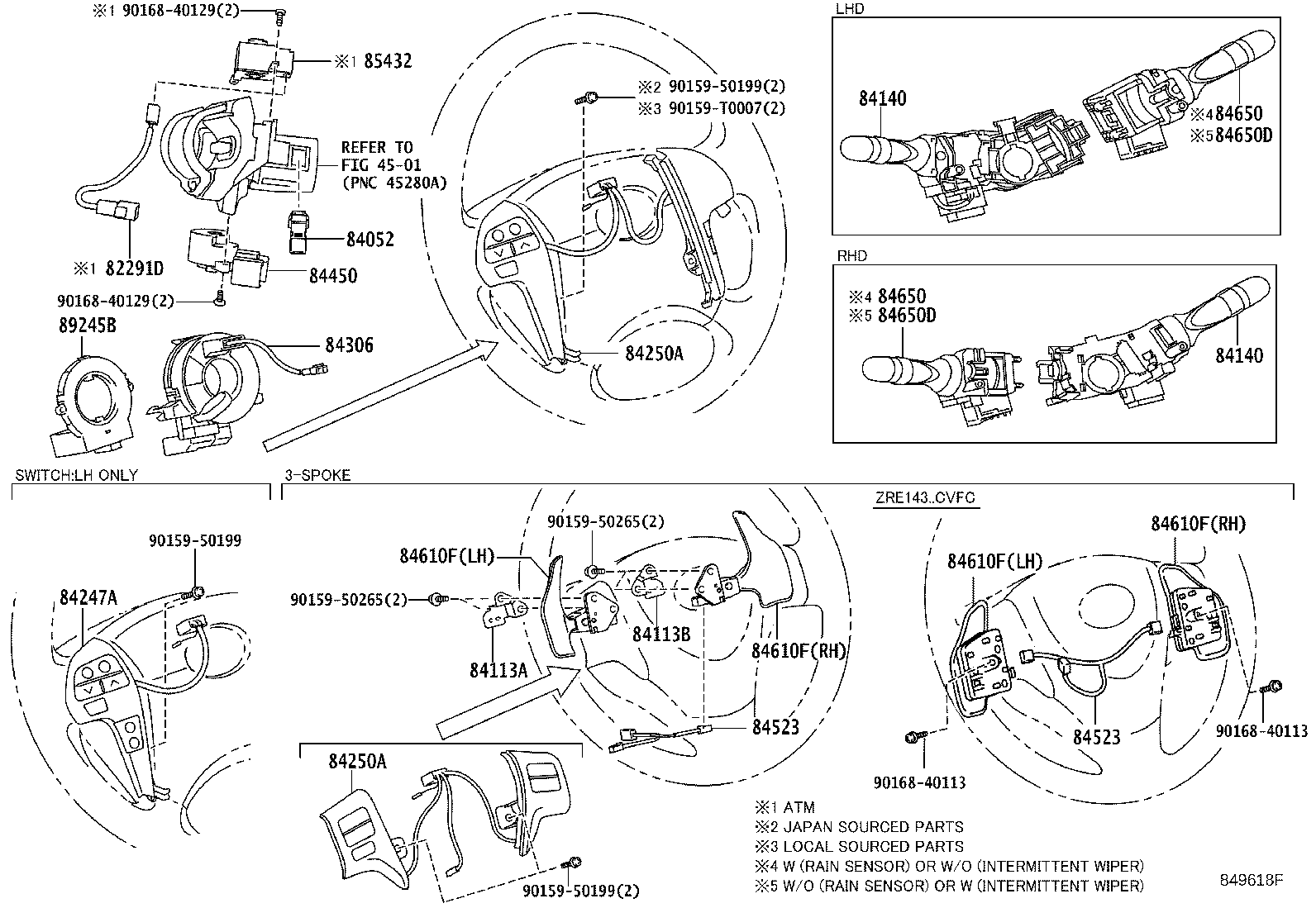

84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84520	Switch Assy, Clutch Start
84520E	Switch Assy, Clutch Start, NO.2
84523	Wire, Switch NO.1
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)

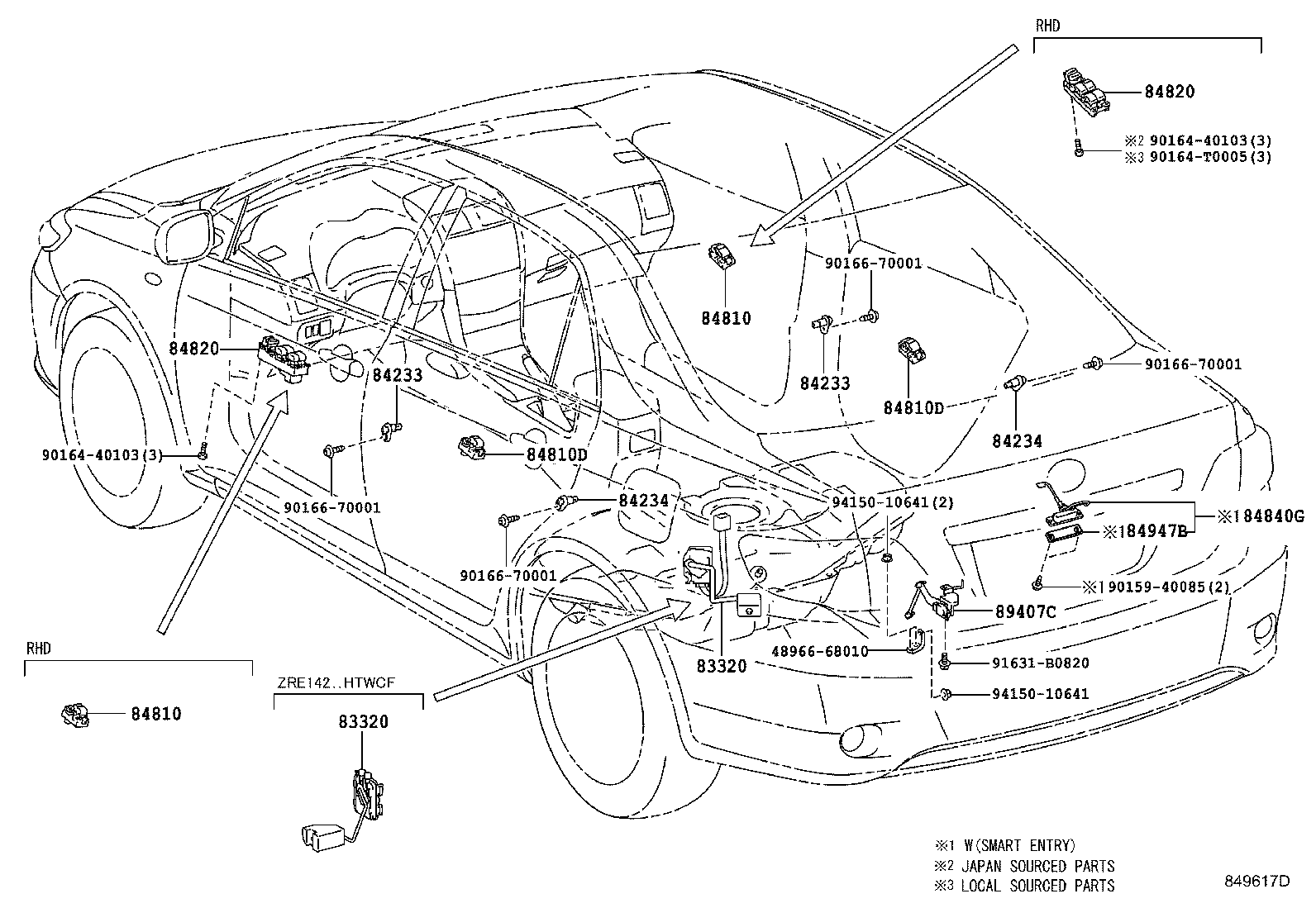

84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84840G	Switch Assy, Back Door Opener
84870A	Switch Assy, Outer Mirror
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A	Switch, Front Power Seat(FOR LUMBAR)
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84947B	Cover, Switch
84986	Switch, Vehicle Stability Control
85432	Solenoid, Key Interlock
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85903	Computer Sub-assy, Shift Lock Control
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85916D	Relay, Fog Lamp
85916L	Relay, Rear Fog Lamp
85916P	Relay, Headlamp
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85928B	Resistor, Cooling Fan
85930G	Relay, Acc
85934	Relay, Magnet-clutch
85940	Relay Assy, Windshield Wiper
85942	Relay, Headlamp Cleaner Control
89245B	Sensor, Steering
89257	Computer, Cooling Fan
89407C	Sensor Sub-assy, Height Control, Rear
89428	Switch, Temperature Detect, NO.2
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
895A0	Relay Assy, Stop Lamp Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89960	Computer Assy, Headlamp Leveling

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
