Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 2 illustrations

Illustrations

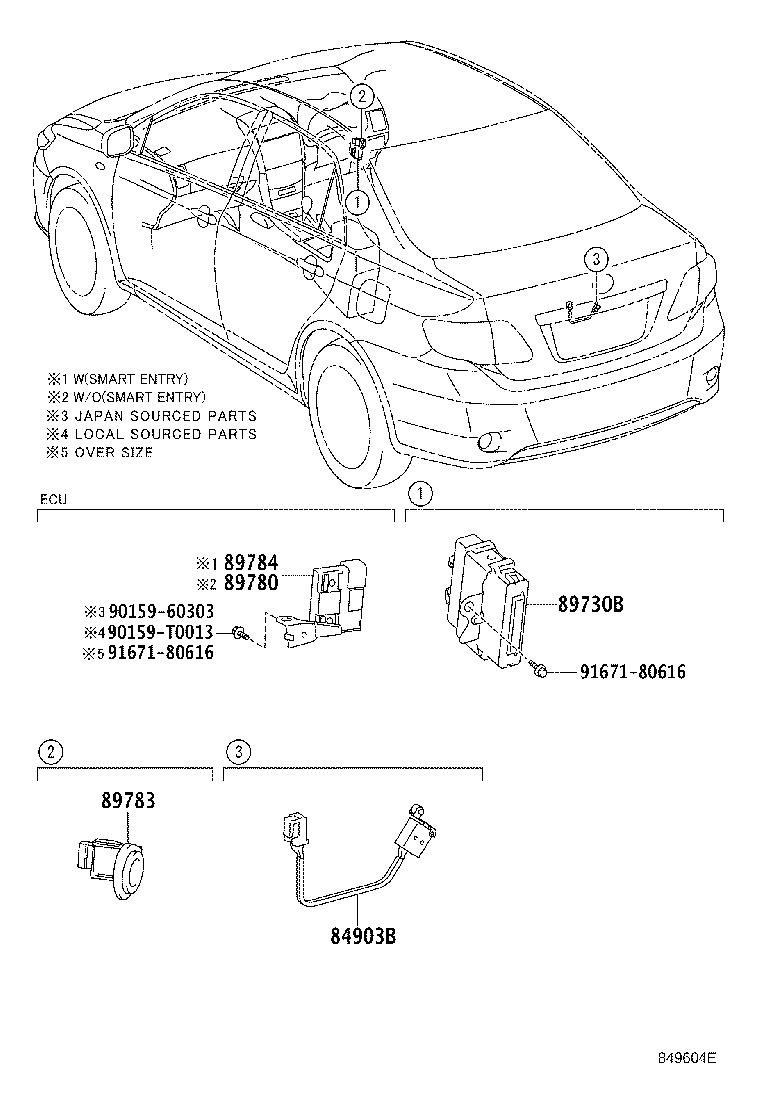

Figure 849605D 849605D 2007-12 → — Figure 849604E 849604E 2008-01 → —

Part groups

PNCDescription
84903B Switch Sub-assy, Door Unlock
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
