Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 9 illustrations

Illustrations

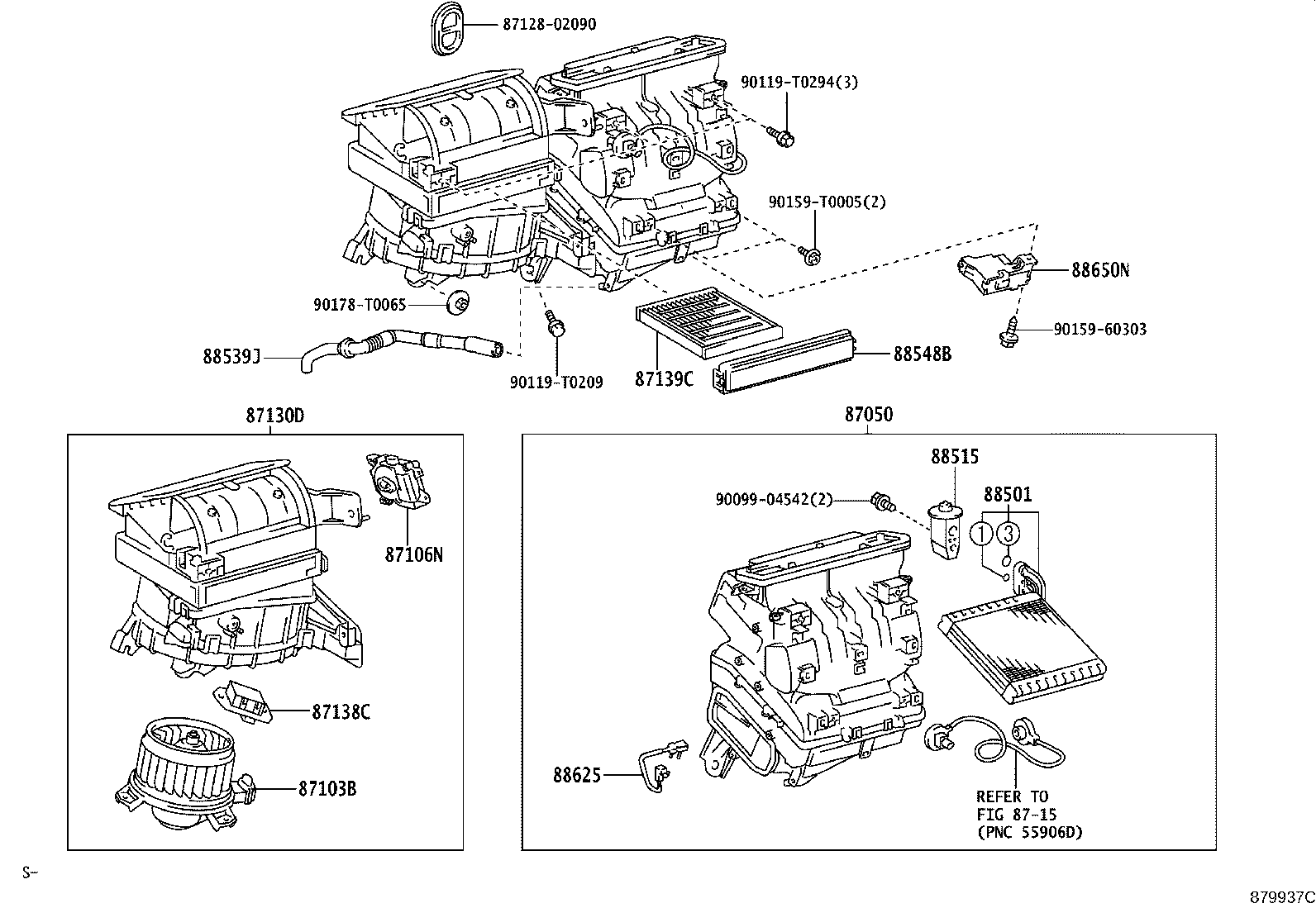

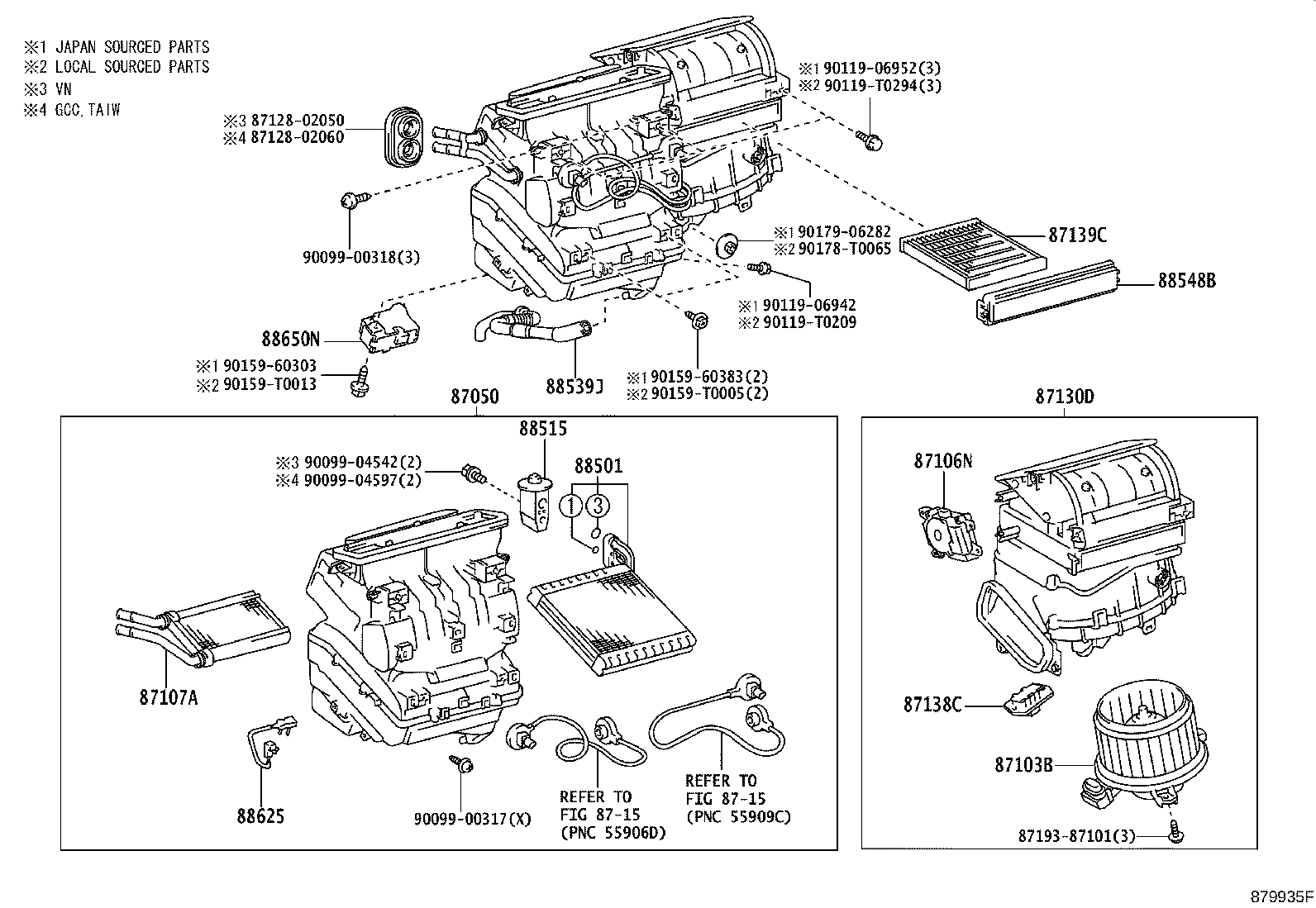

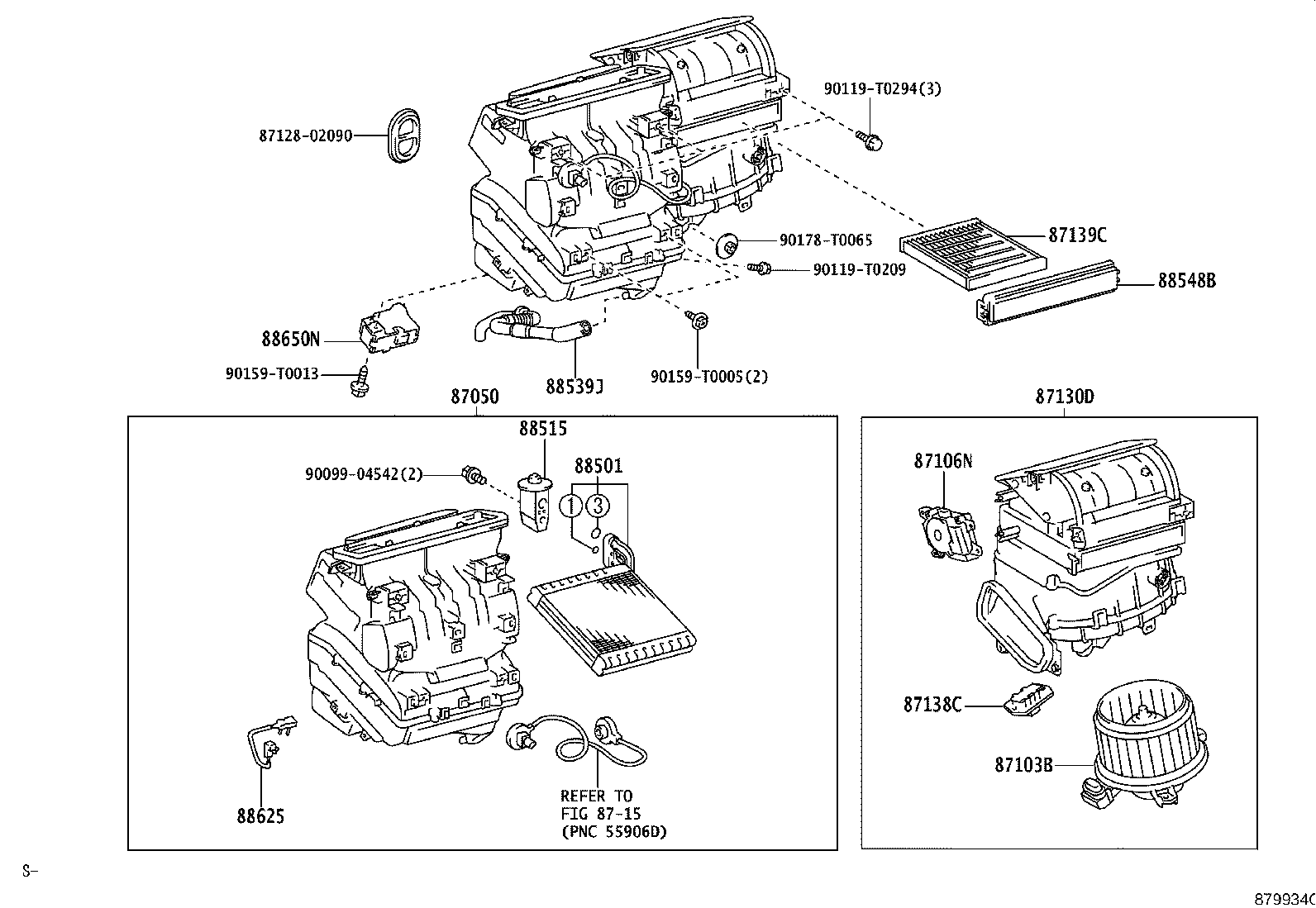

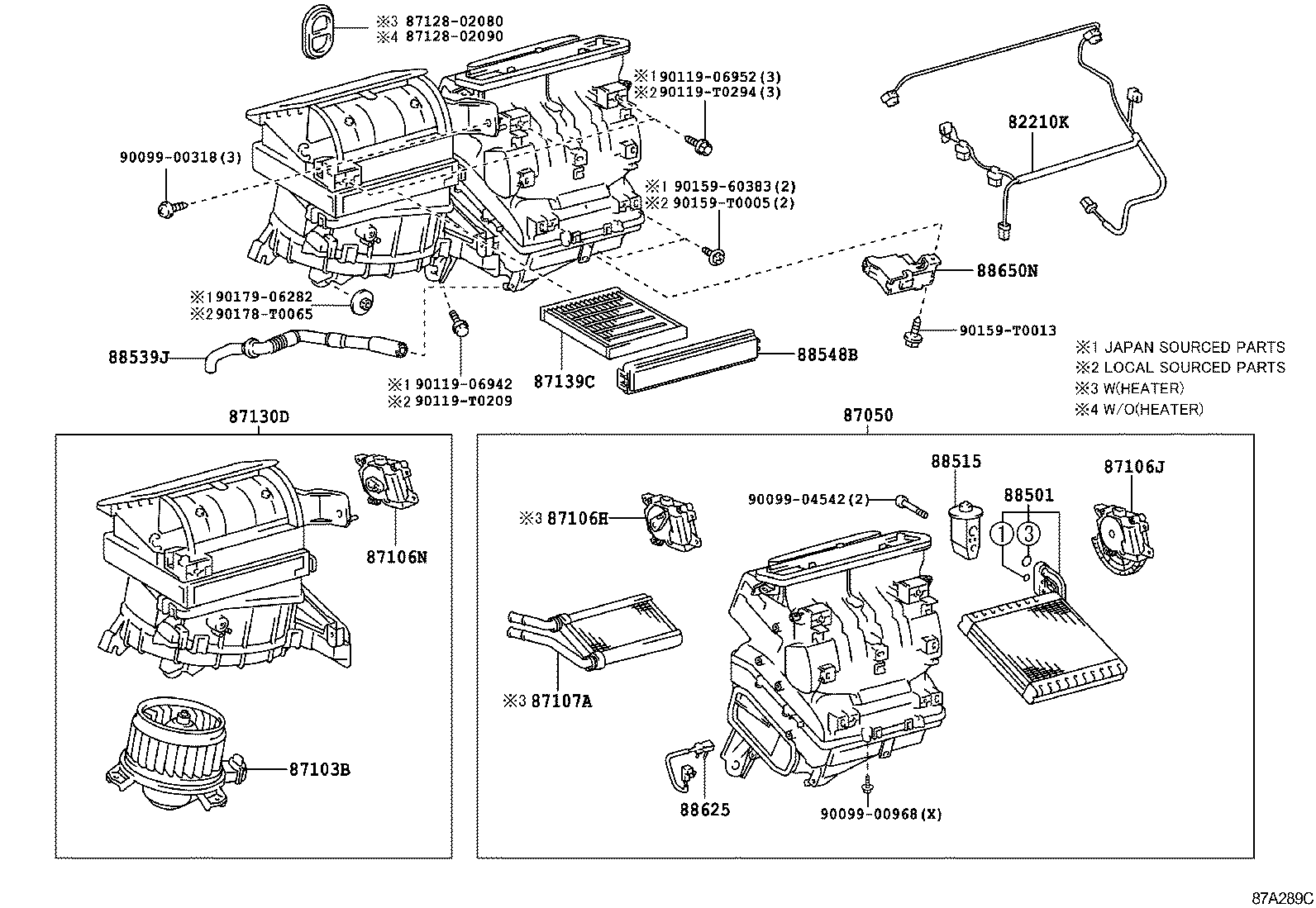

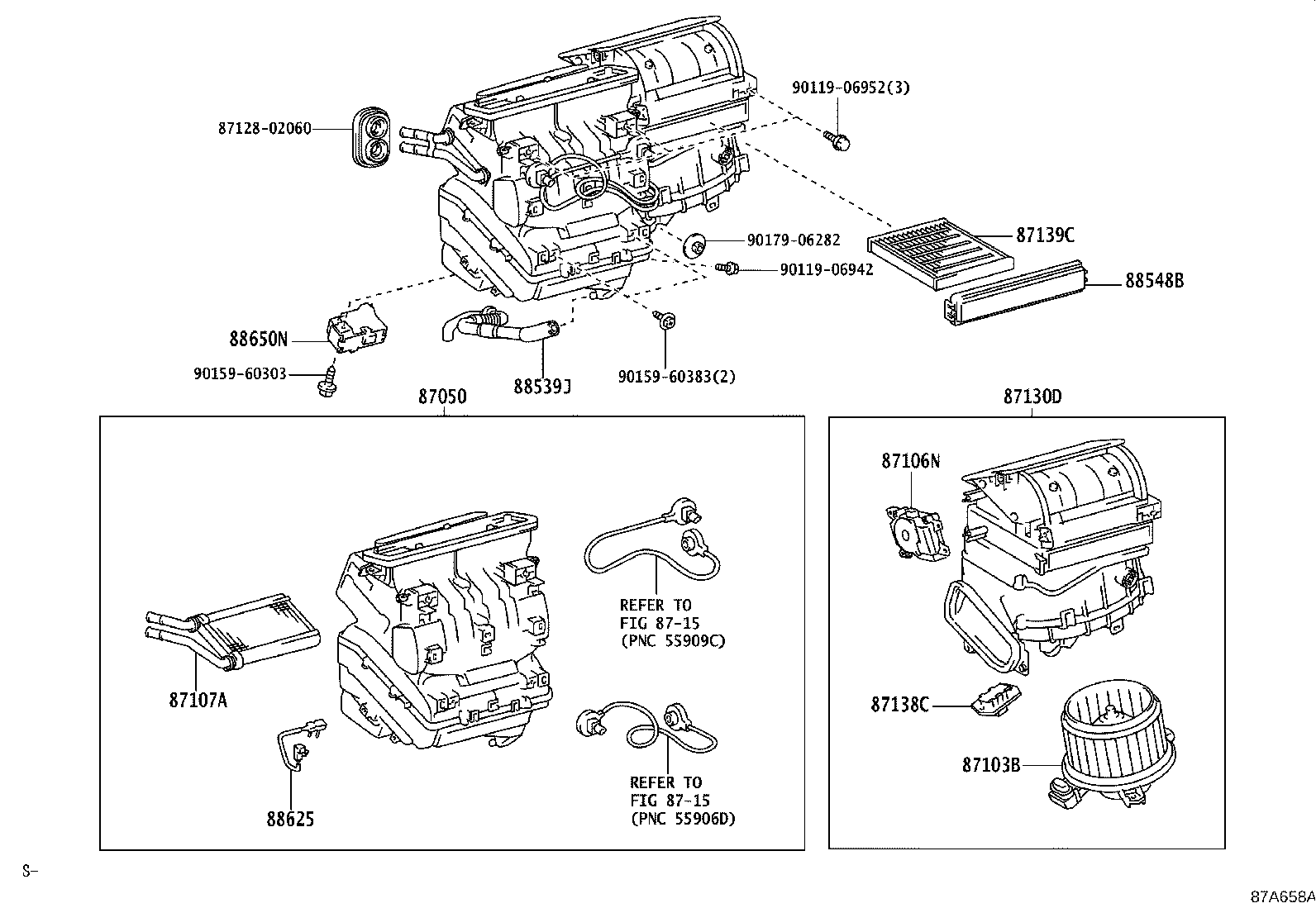

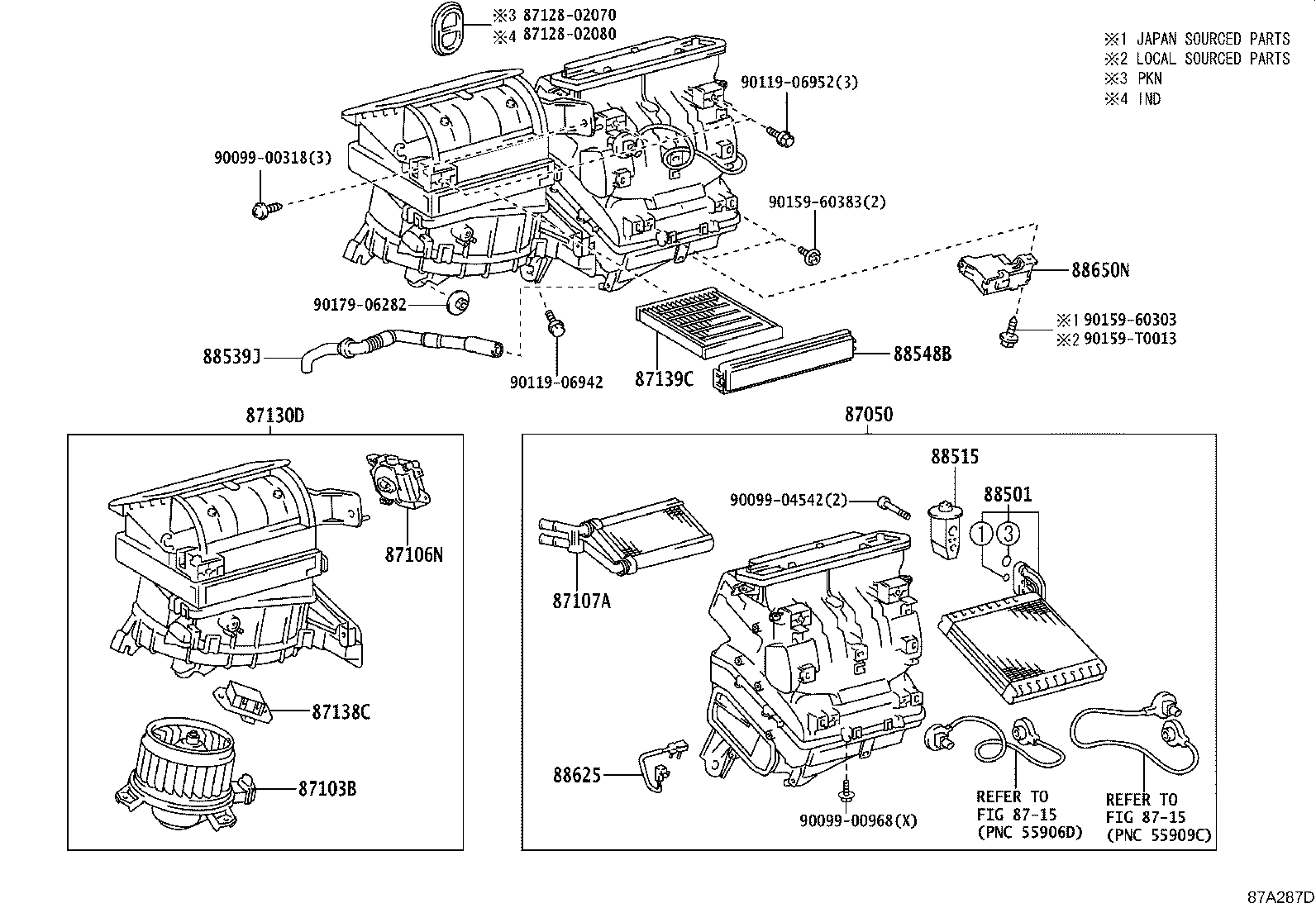

Figure 879936G 879936G 2007-12 → — Figure 879936G 879936G 2007-12 → — Figure 879934C 879934C 2008-02 → — Figure 87A658A 87A658A 2009-01 → — Figure 879935F 879935F 2007-12 → — Figure 87A289C 87A289C 2008-01 → — Figure 879937C 879937C 2008-01 → — Figure 87A287D 87A287D 2008-08 → — Figure 879932 879932 2007-12 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
