Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 8 illustrations

Illustrations

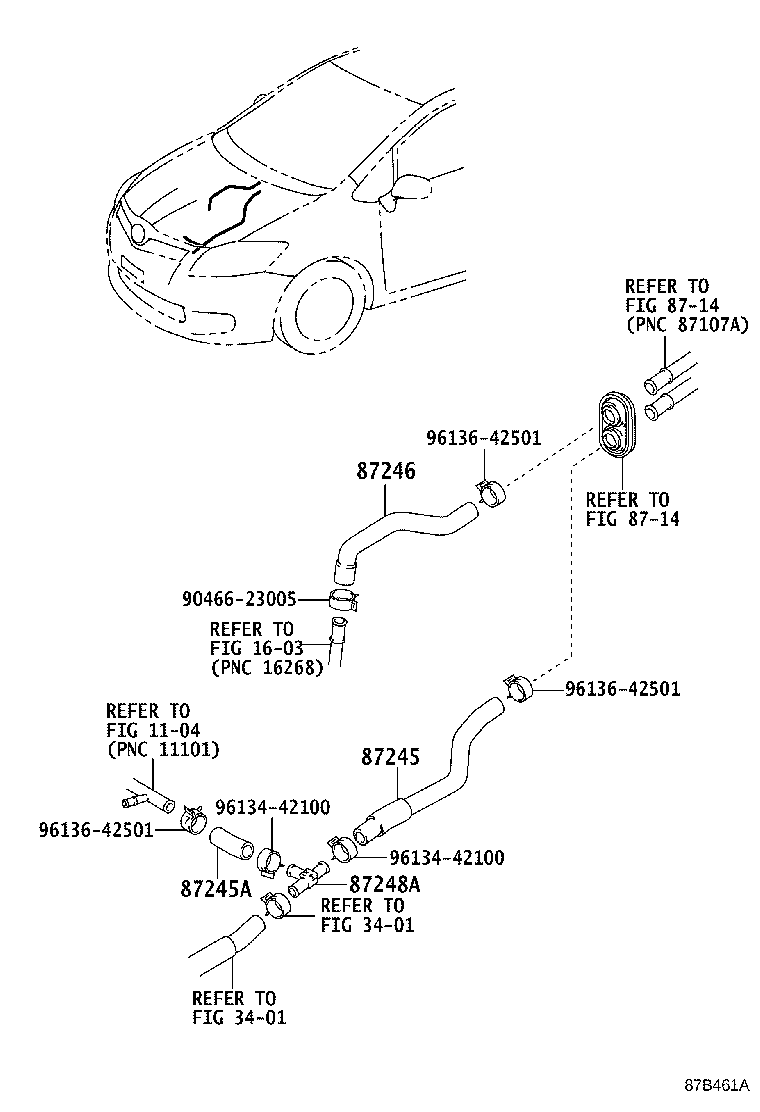

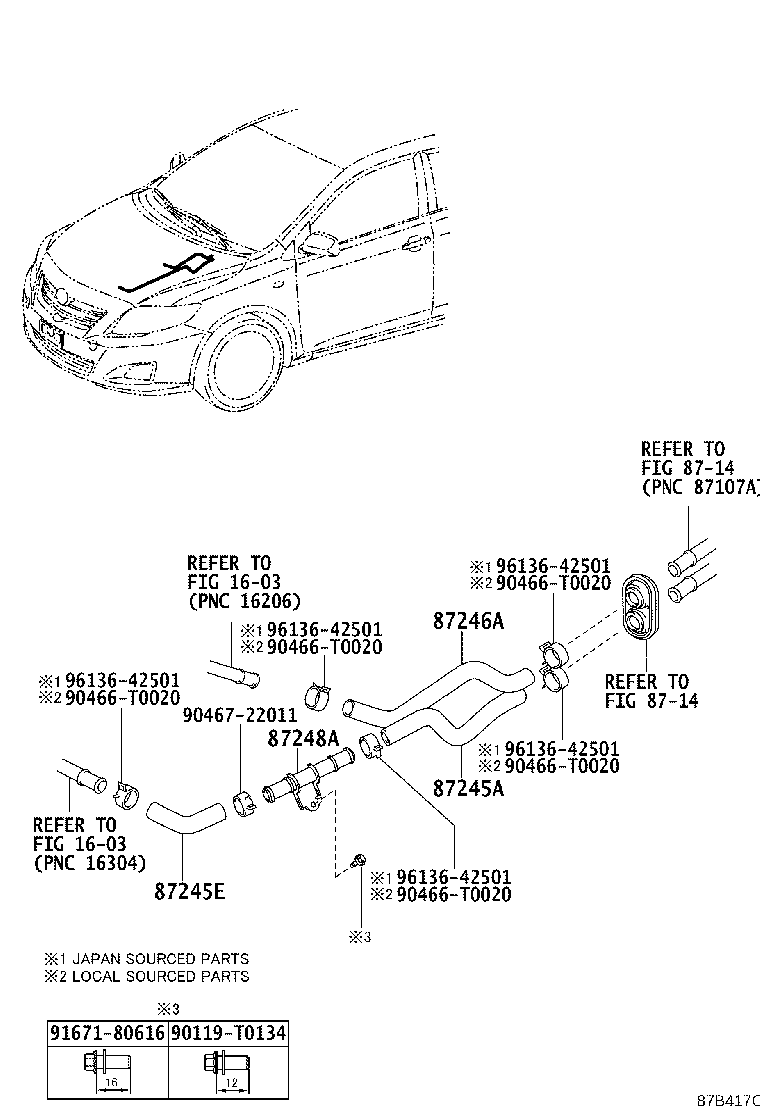

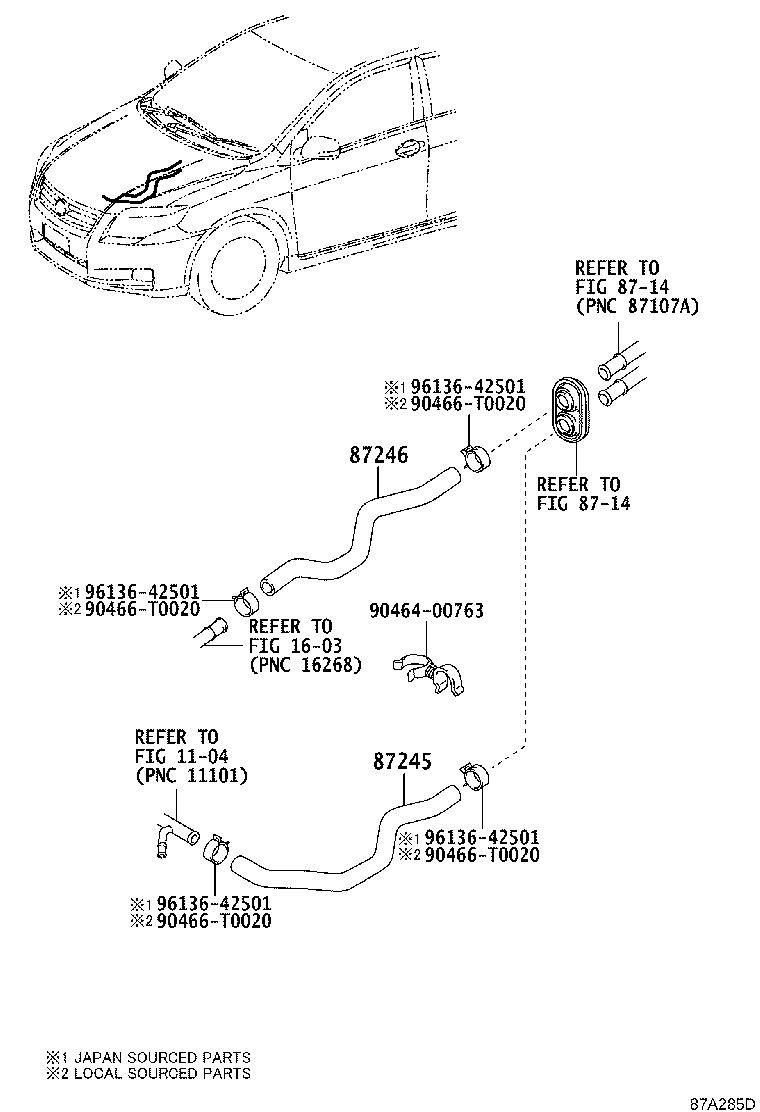

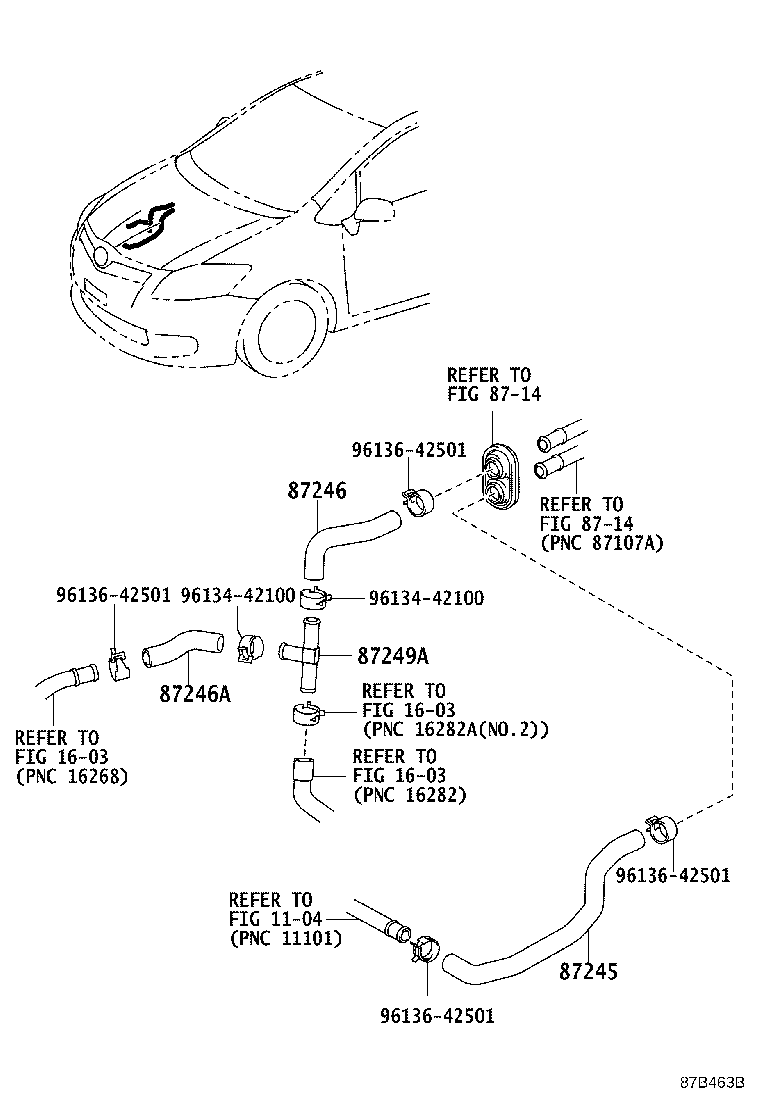

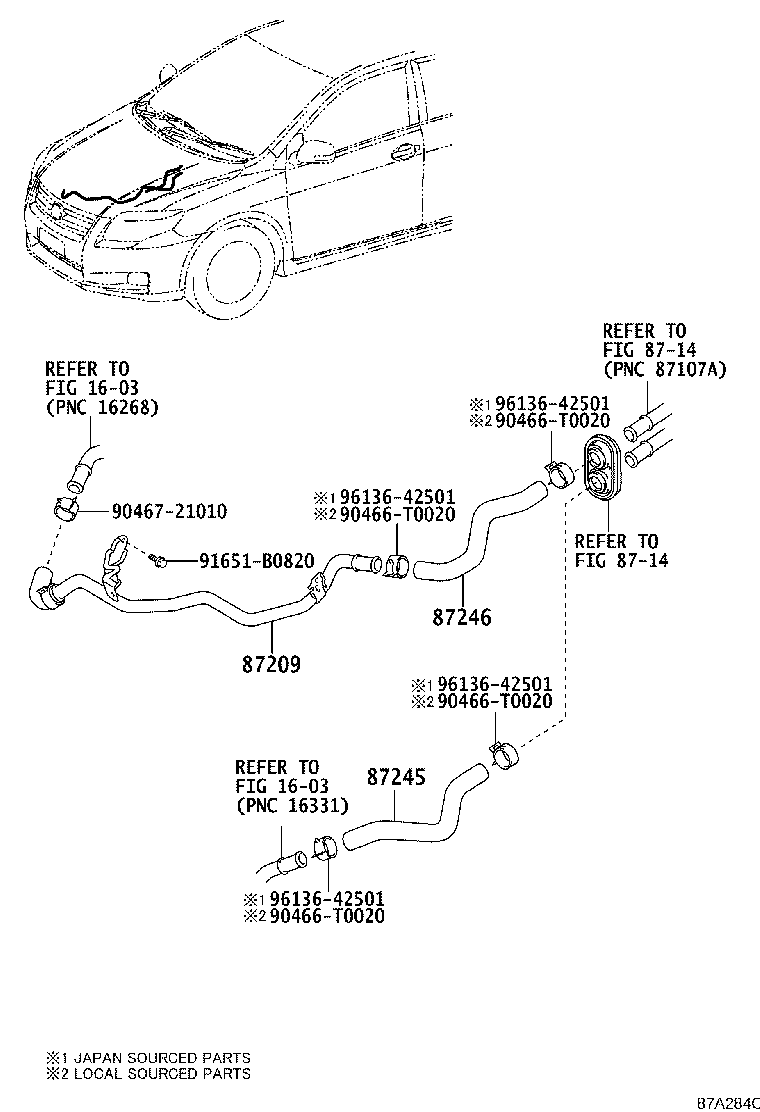

Figure 879898B 879898B 2007-12 → — Figure 879898B 879898B 2009-01 → — Figure 87A284C 87A284C 2008-08 → — Figure 87A285D 87A285D 2008-08 → — Figure 87A646E 87A646E 2008-11 → — Figure 87B417C 87B417C 2010-06 → — Figure 87B463B 87B463B 2010-07 → — Figure 87B461A 87B461A 2010-07 → —

Part groups

PNCDescription
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
