Toyota Corolla/Altis

2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

8 part groups · 7 illustrations

Illustrations

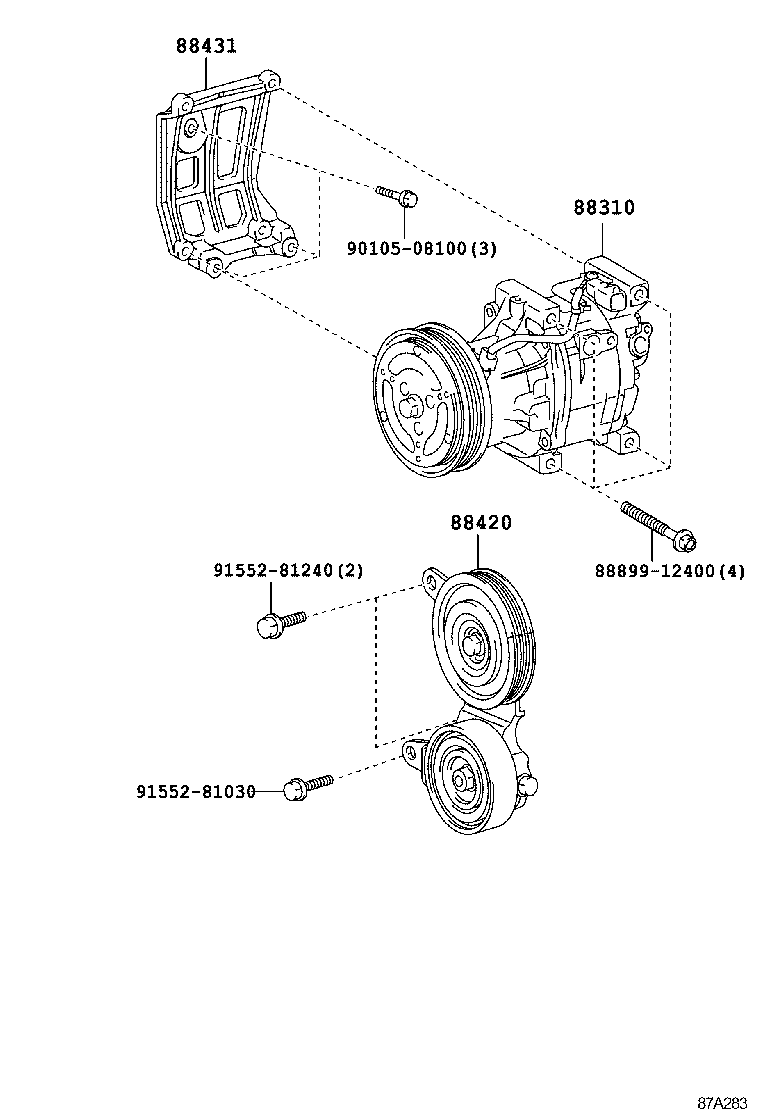

Figure 879897C 879897C 2007-12 → — Figure 87A283 87A283 2008-08 → — Figure 87A281 87A281 2008-08 → — Figure 87A282 87A282 2008-08 → — Figure 87A645C 87A645C 2008-11 → — Figure 87A648 87A648 2009-01 → — Figure 87B415A 87B415A 2010-06 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
