Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

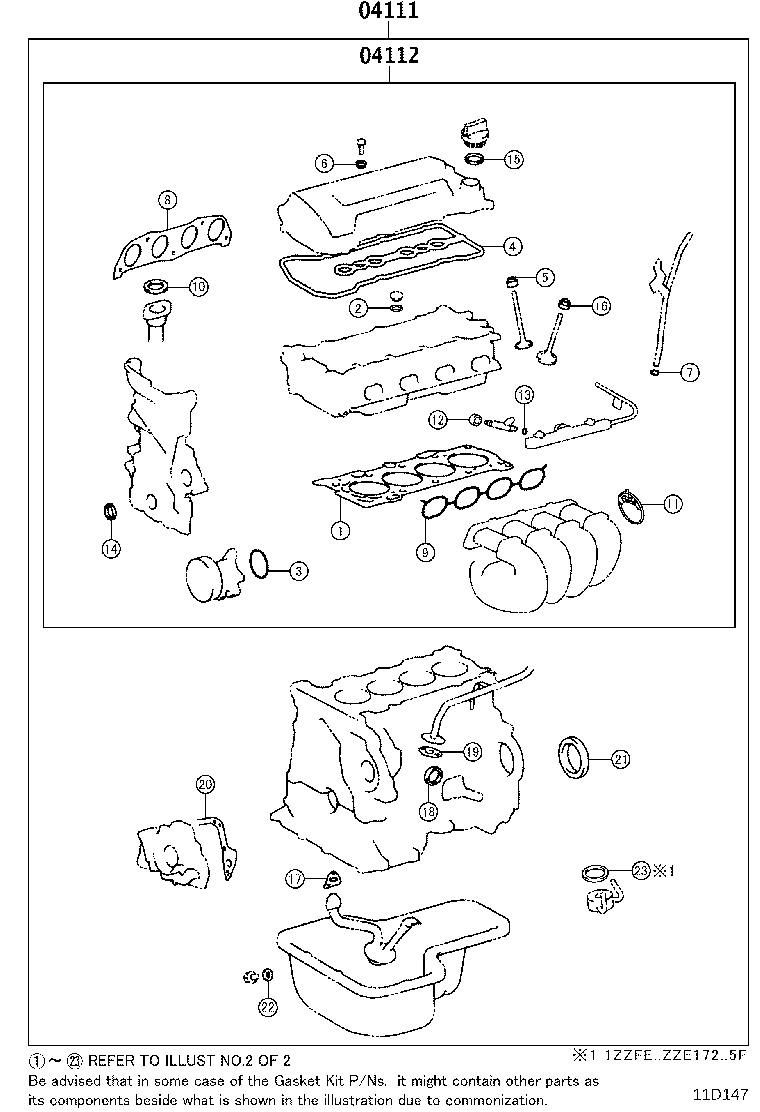

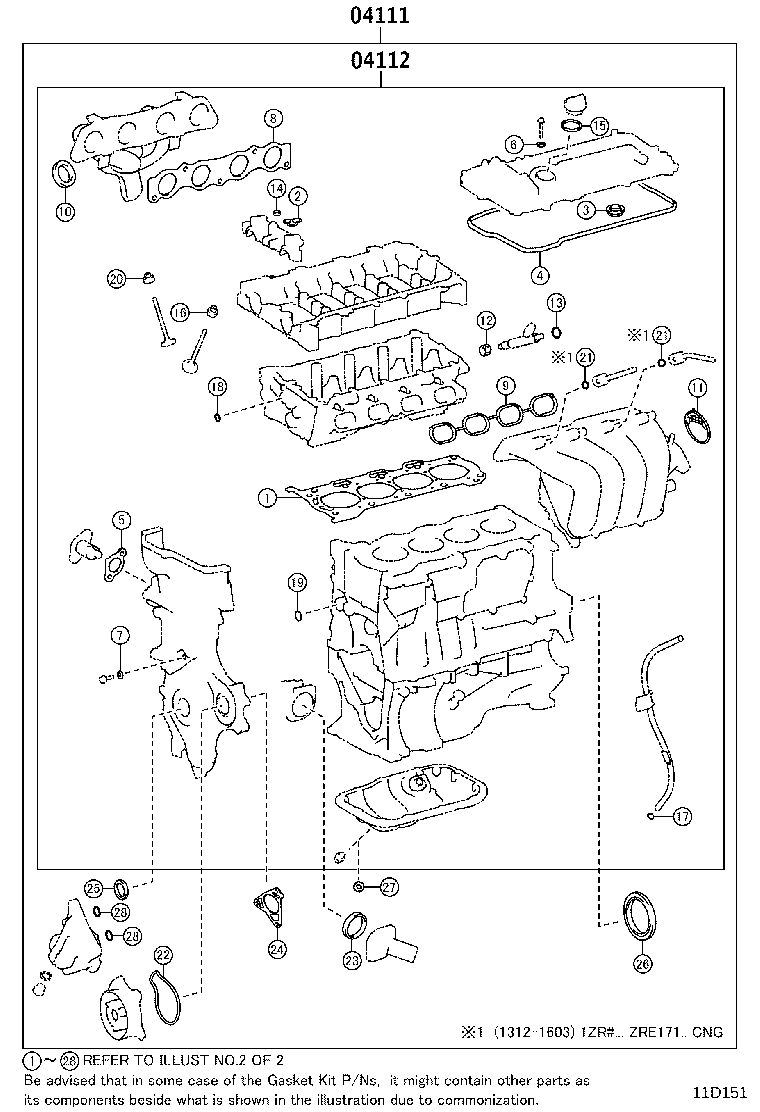

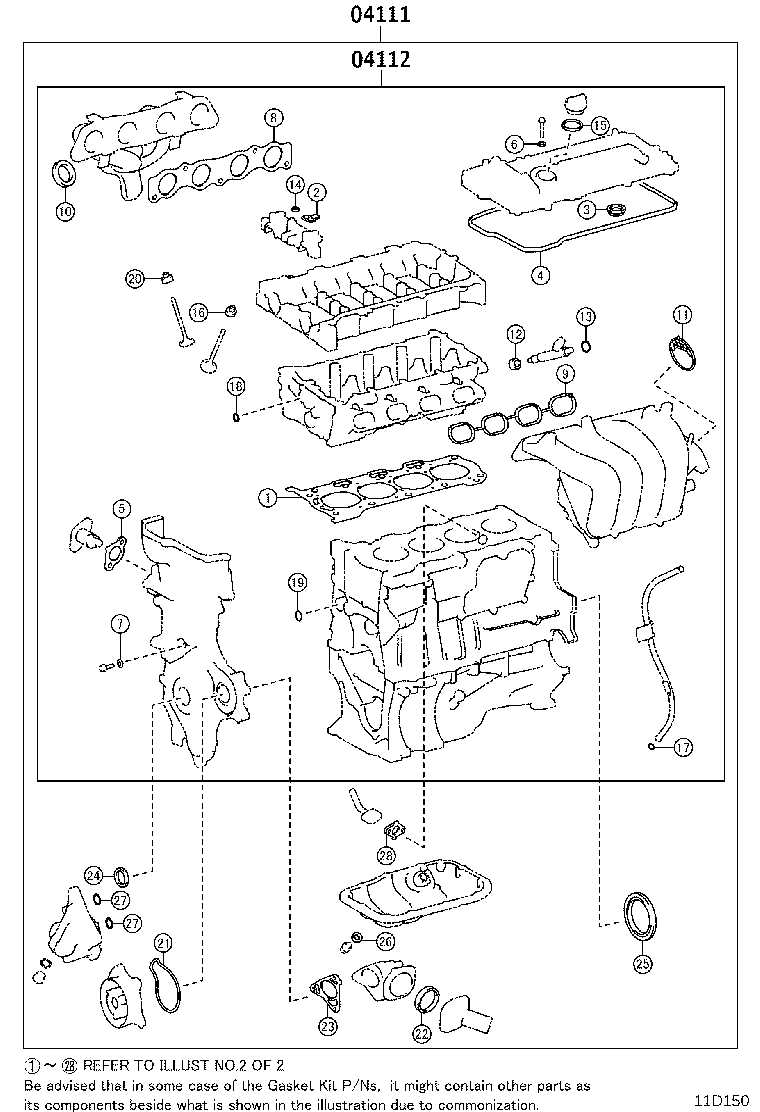

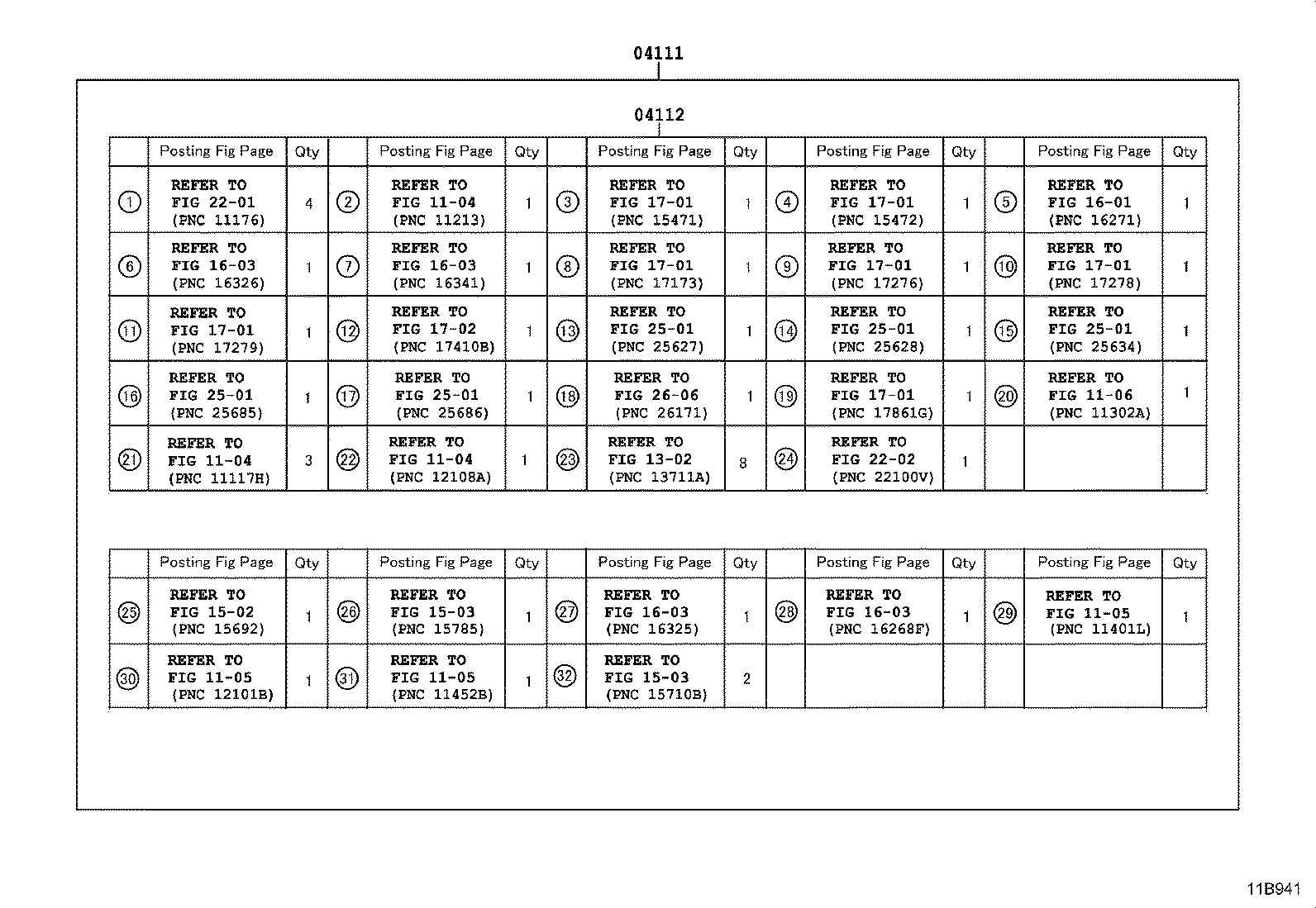

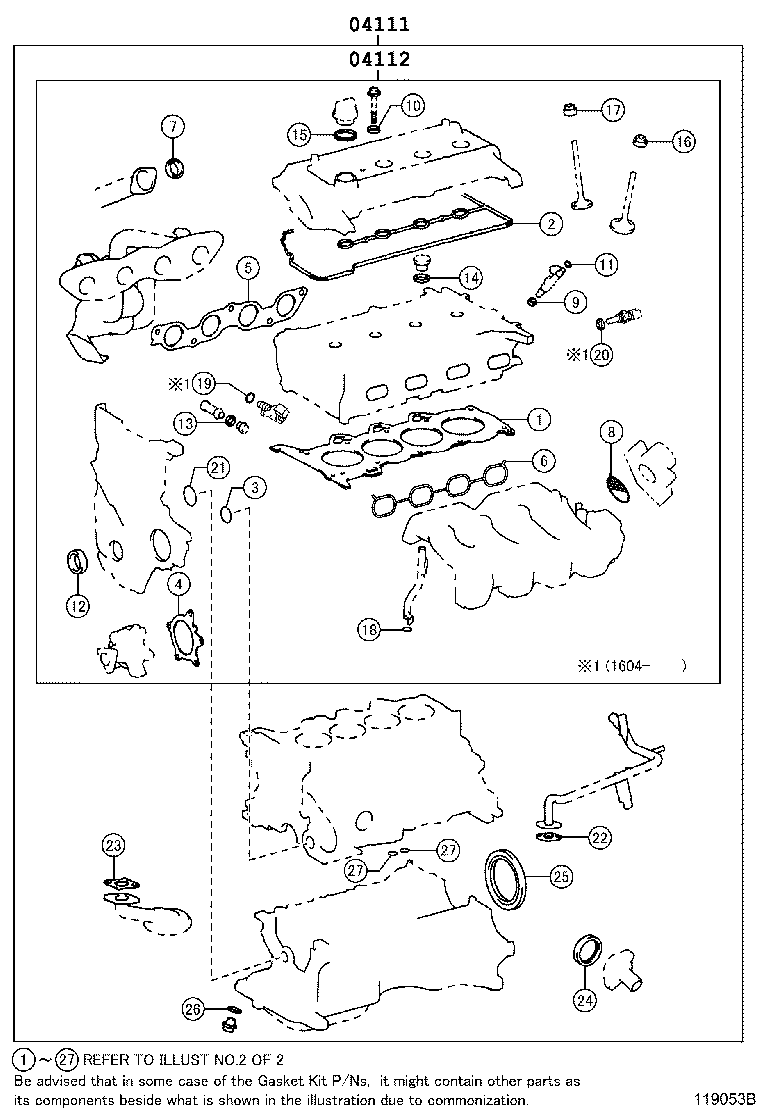

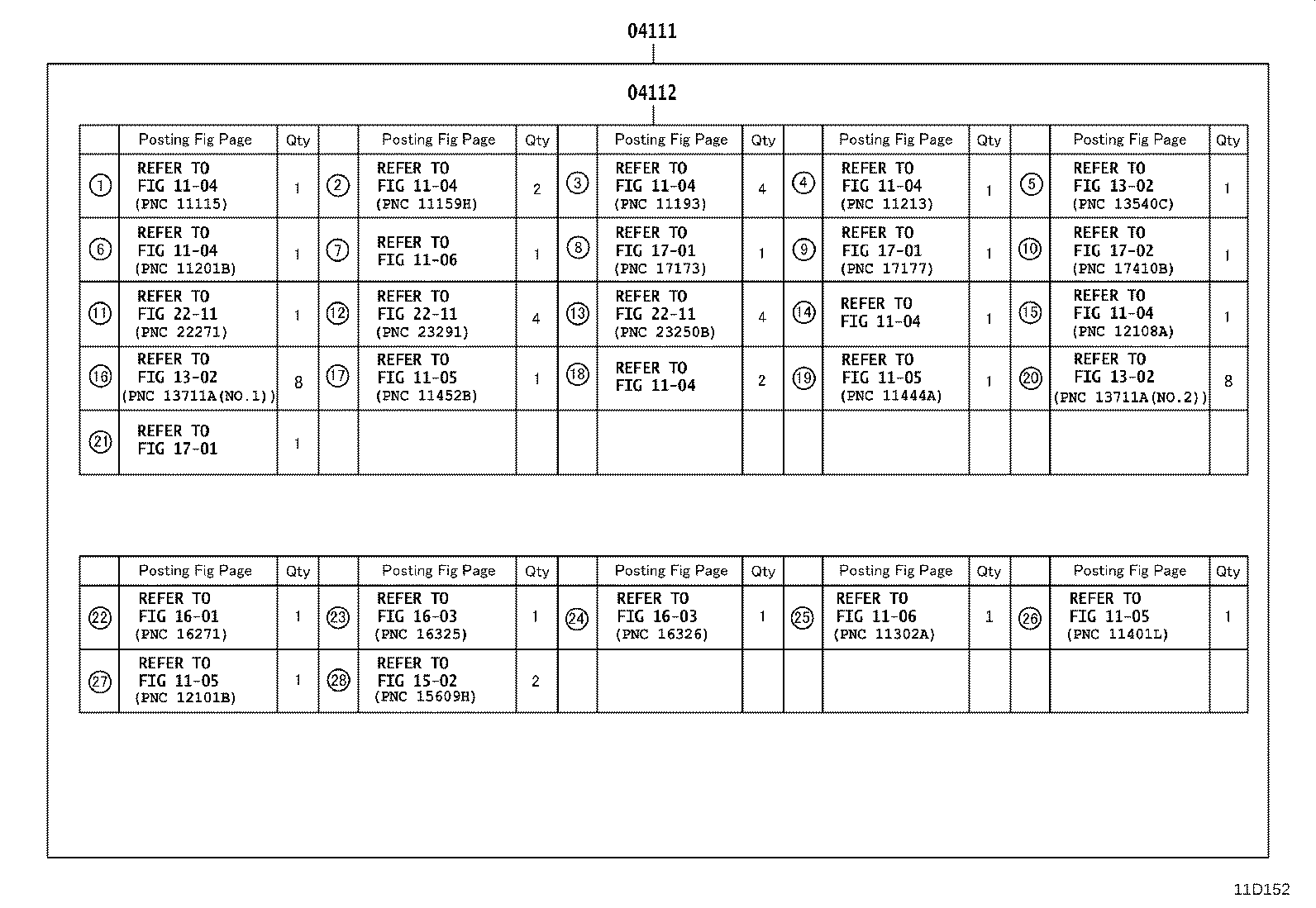

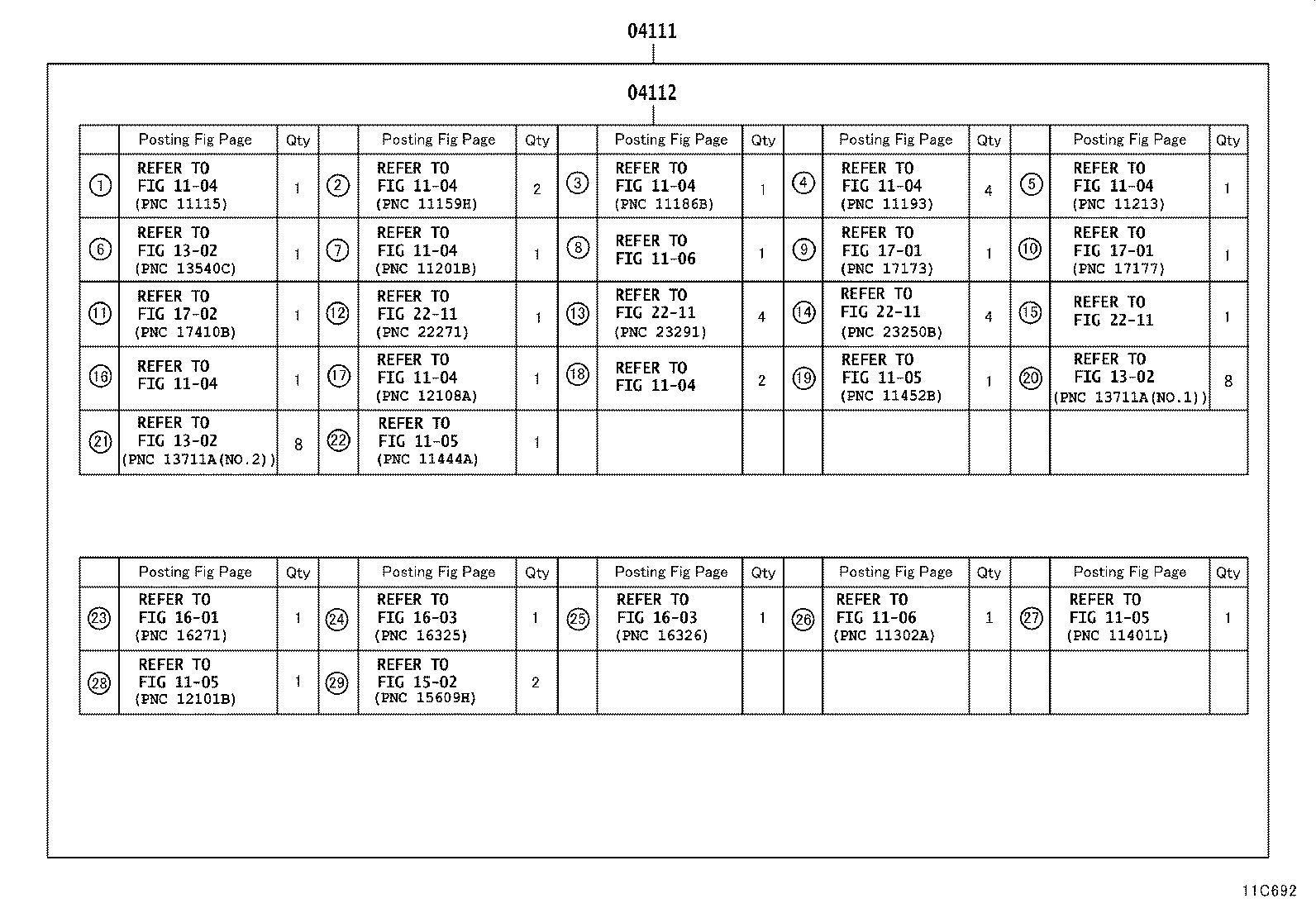

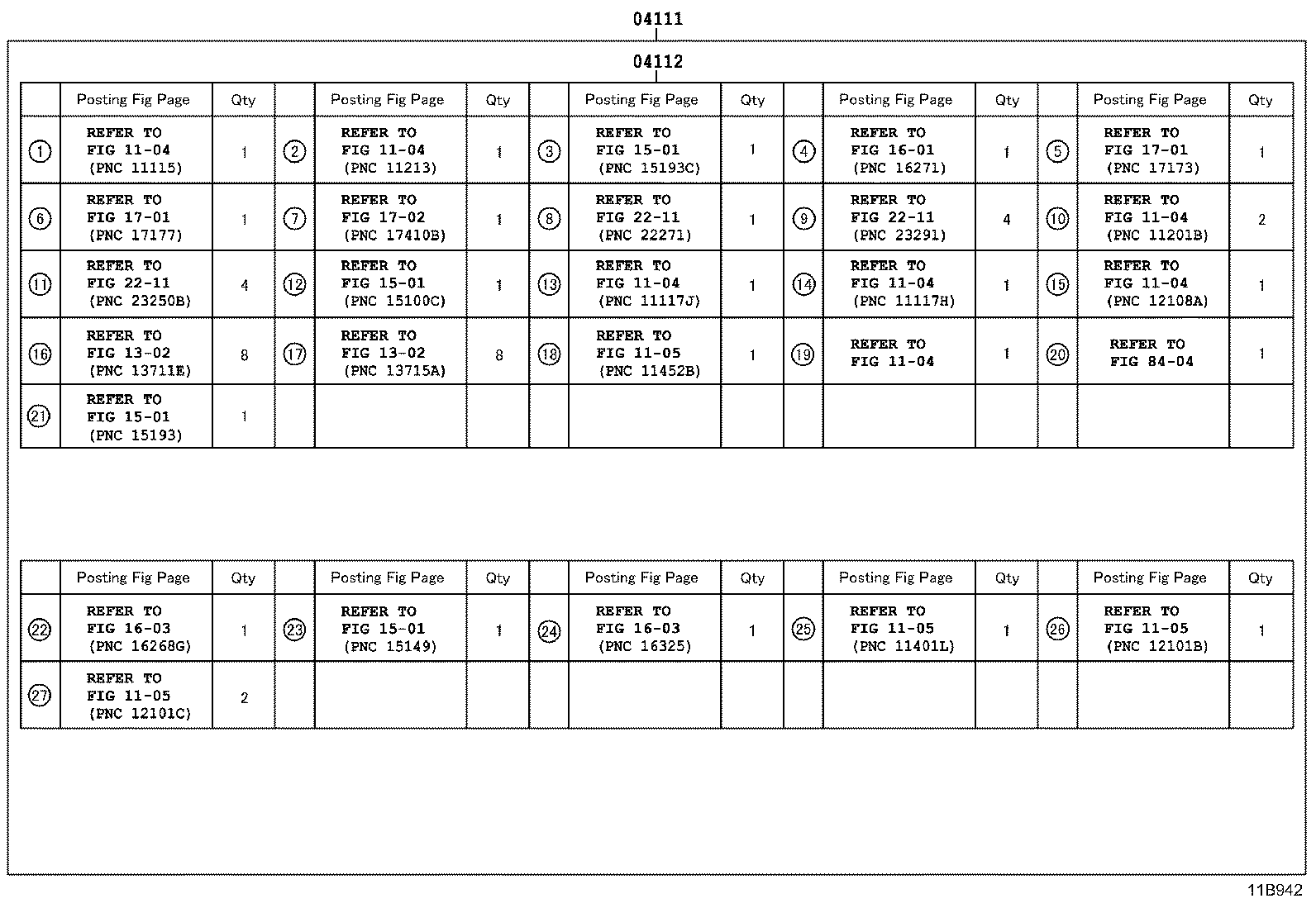

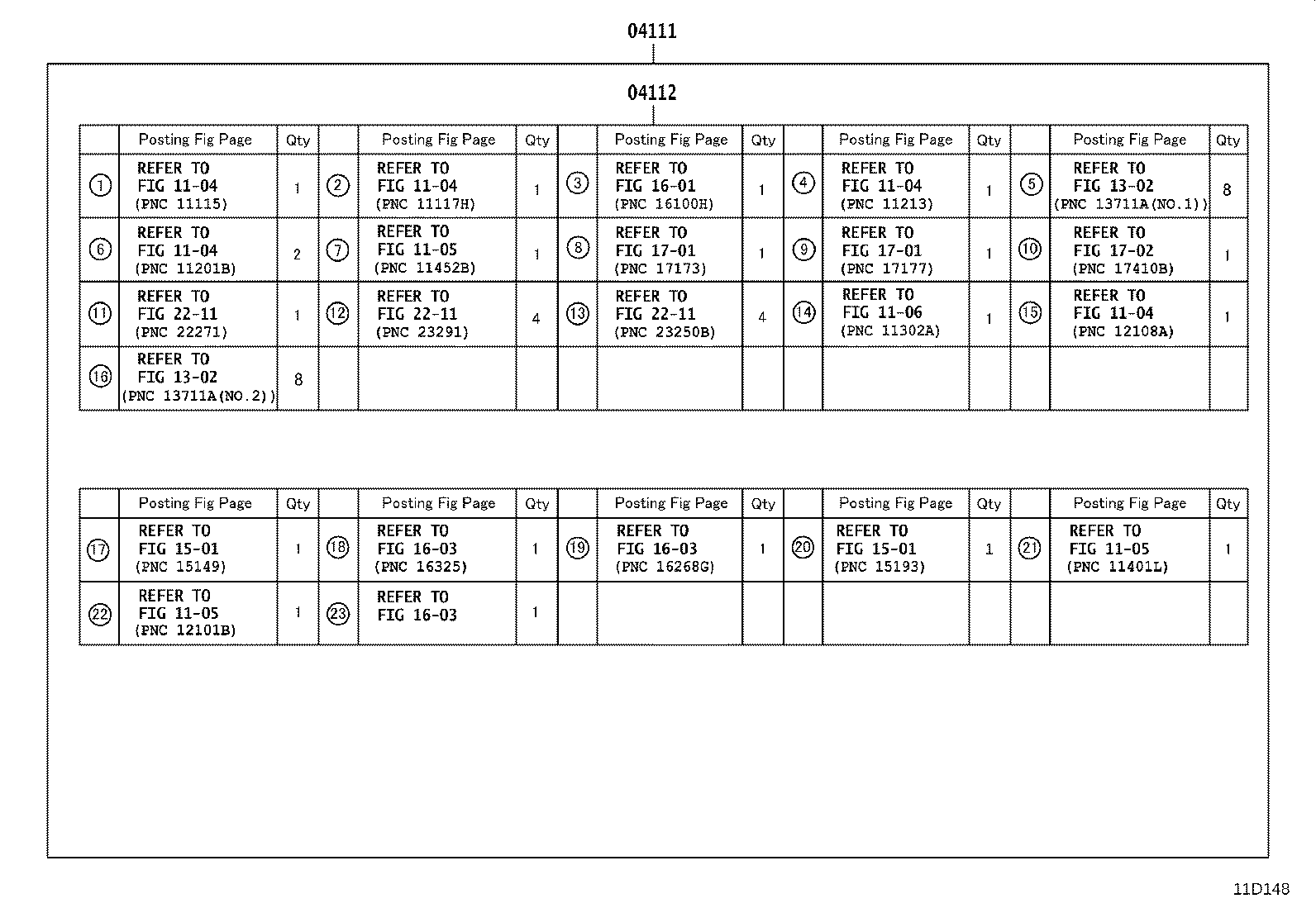

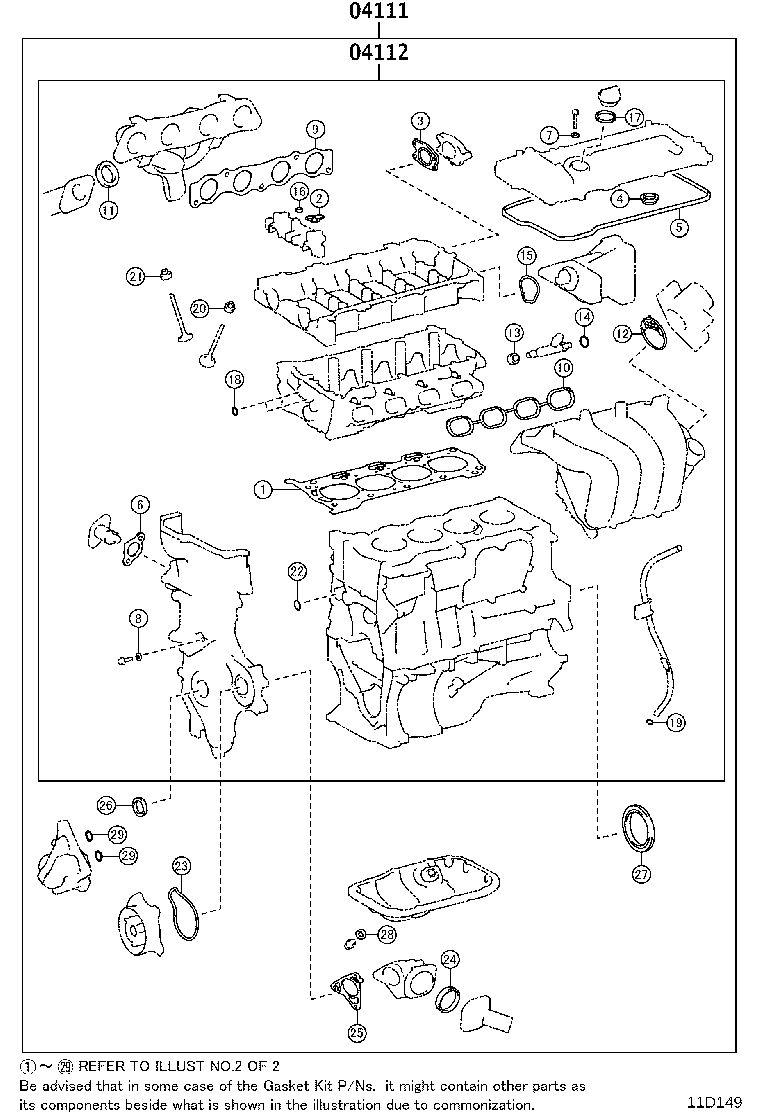

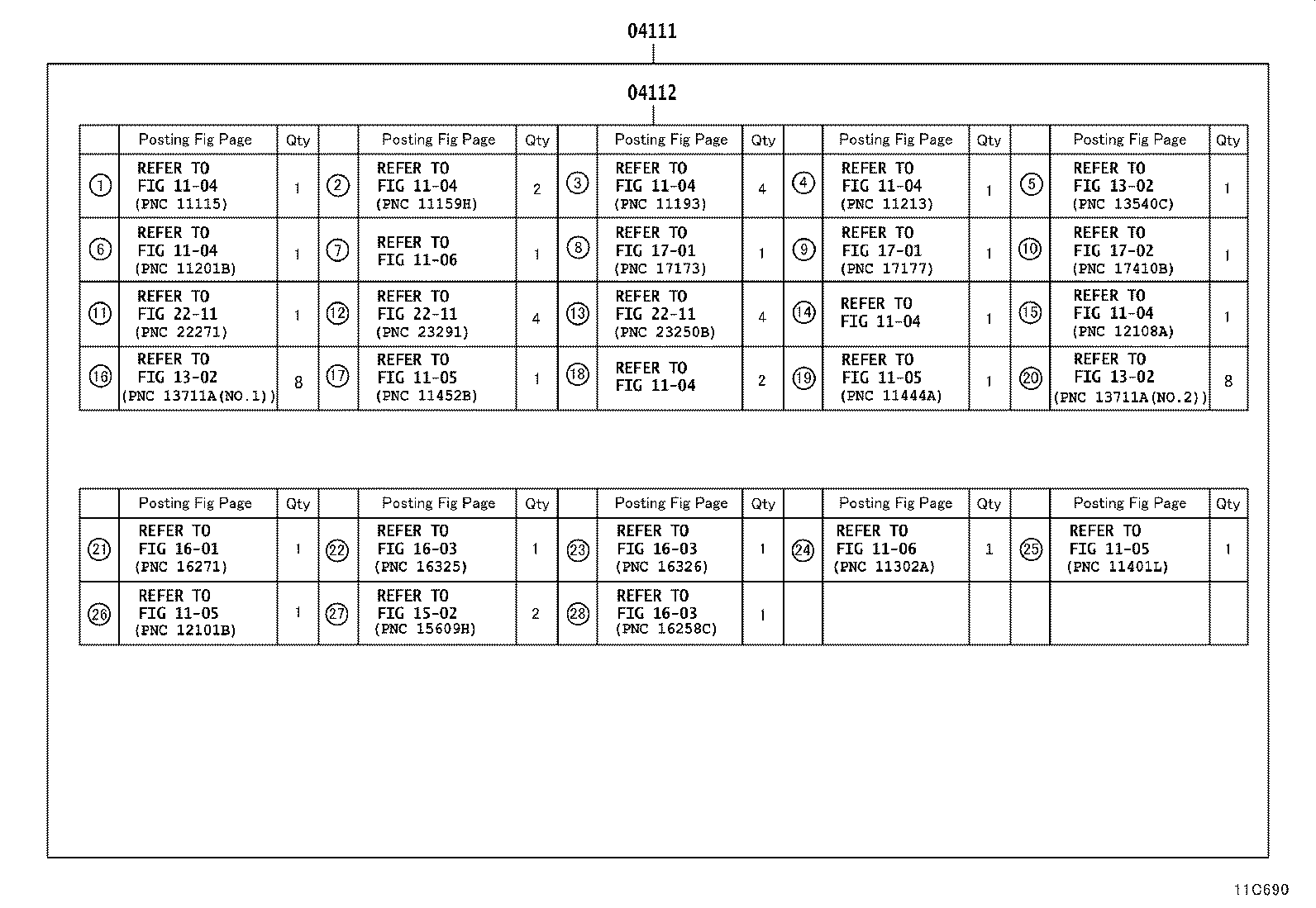

Figure 119052A 119052A 2014-05 → — Figure 11B941 11B941 2014-05 → — Figure 119053B 119053B 2014-07 → — Figure 11B942 11B942 2014-07 → — Figure 11D147 11D147 2013-10 → 2014-09 Figure 11D148 11D148 2013-10 → 2014-09 Figure 11D149 11D149 2016-11 → — Figure 11C692 11C692 2016-11 → — Figure 11D151 11D151 2013-10 → — Figure 11D151 11D151 2022-09 → — Figure 11D152 11D152 2013-10 → — Figure 11D152 11D152 2022-09 → — Figure 11D150 11D150 2013-10 → — Figure 11C690 11C690 2013-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
