Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

15 part groups · 5 illustrations

Illustrations

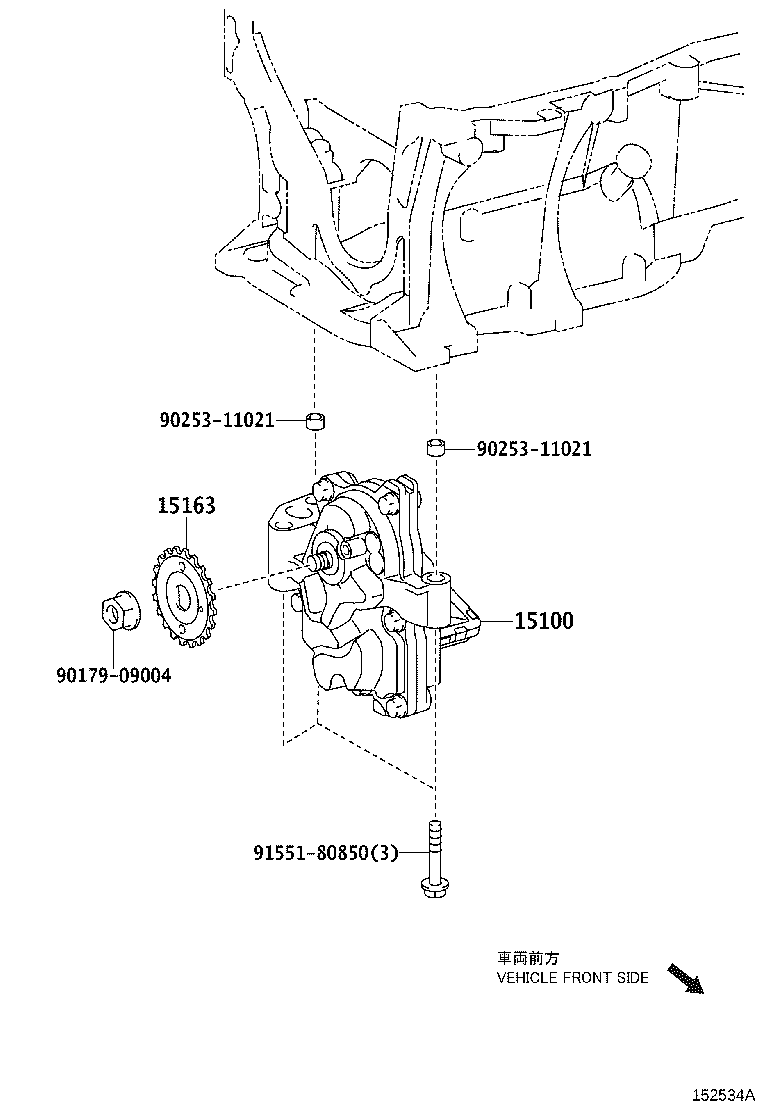

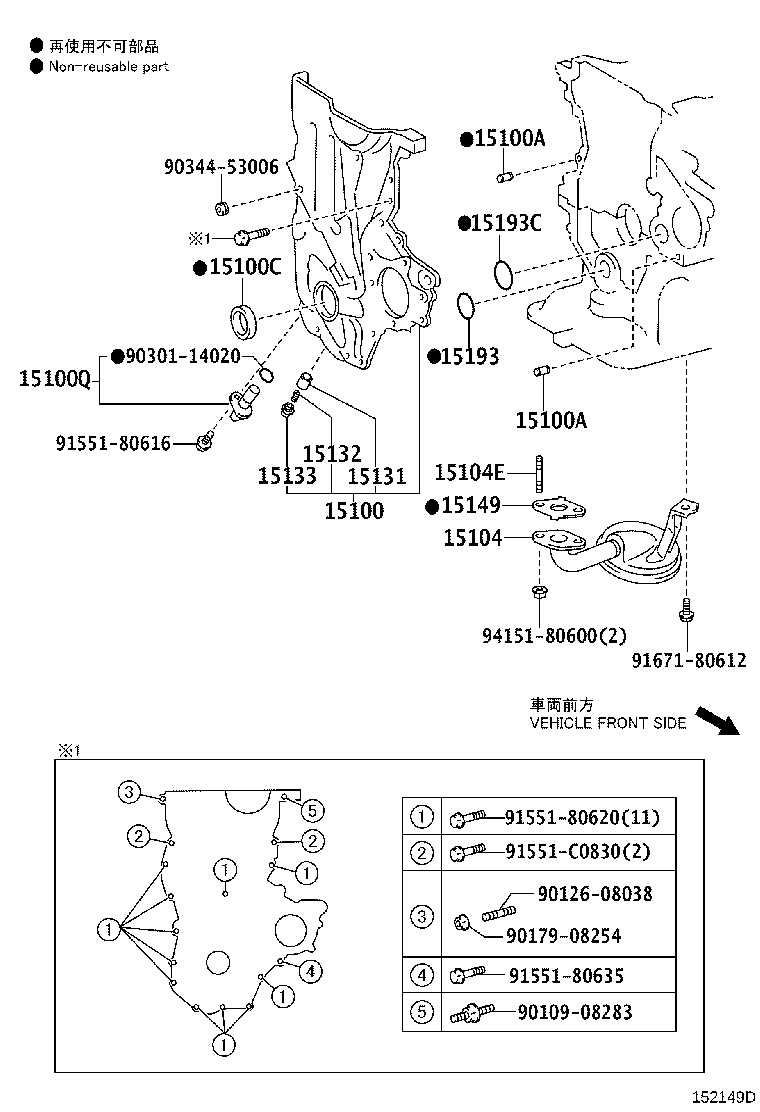

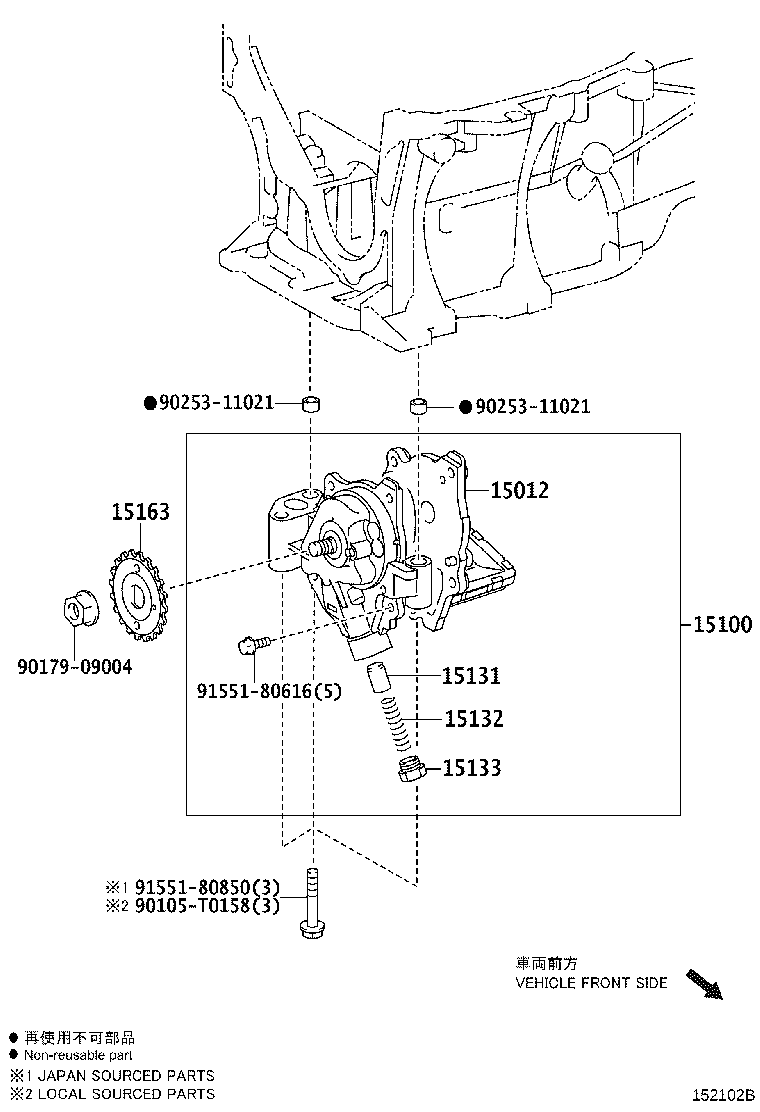

Figure 152148A 152148A 2014-05 → — Figure 152149D 152149D 2014-07 → — Figure 152103B 152103B 2013-10 → 2014-09 Figure 152102B 152102B 2013-10 → — Figure 152534A 152534A 2016-11 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100C Seal(FOR OIL PUMP)
15100Q Sensor, Crank Position
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
15193C Gasket, Oil Pump NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
