Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 12 illustrations

Illustrations

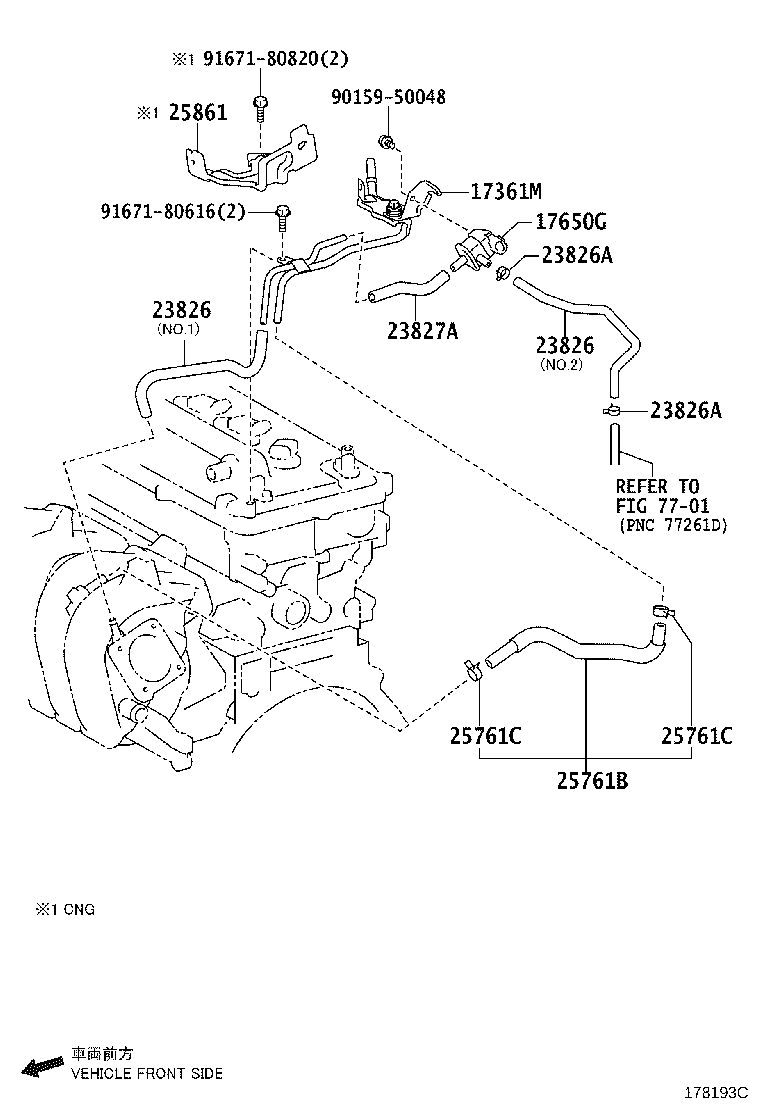

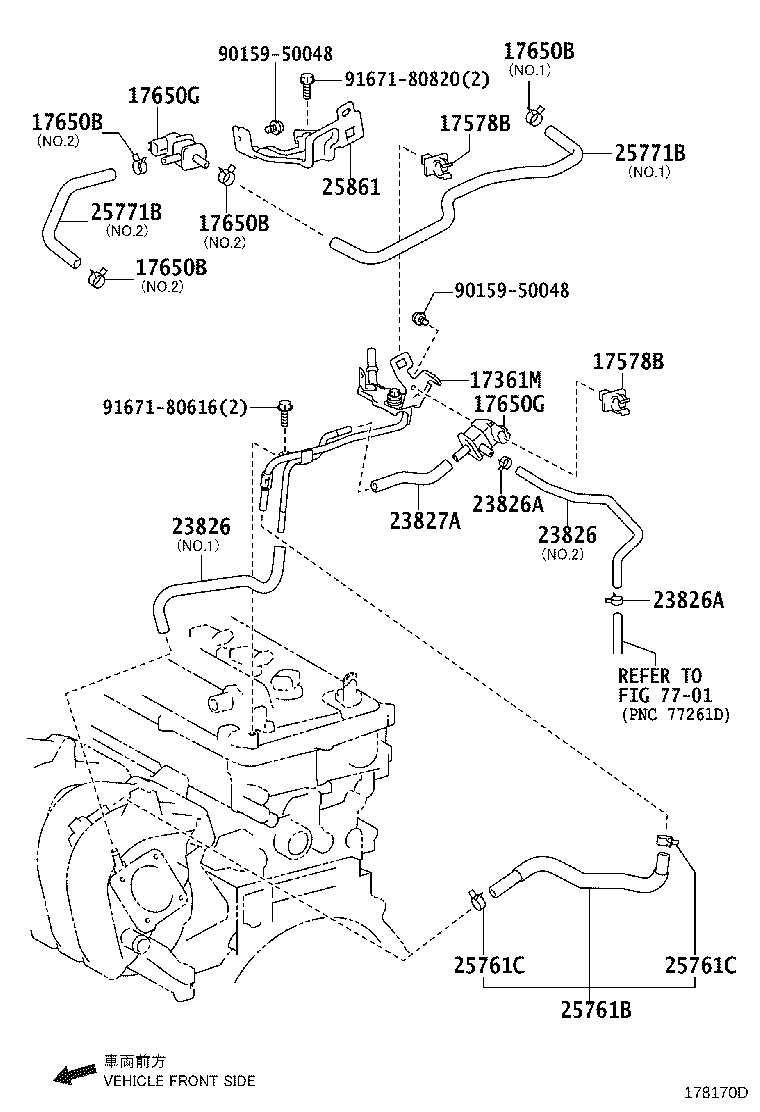

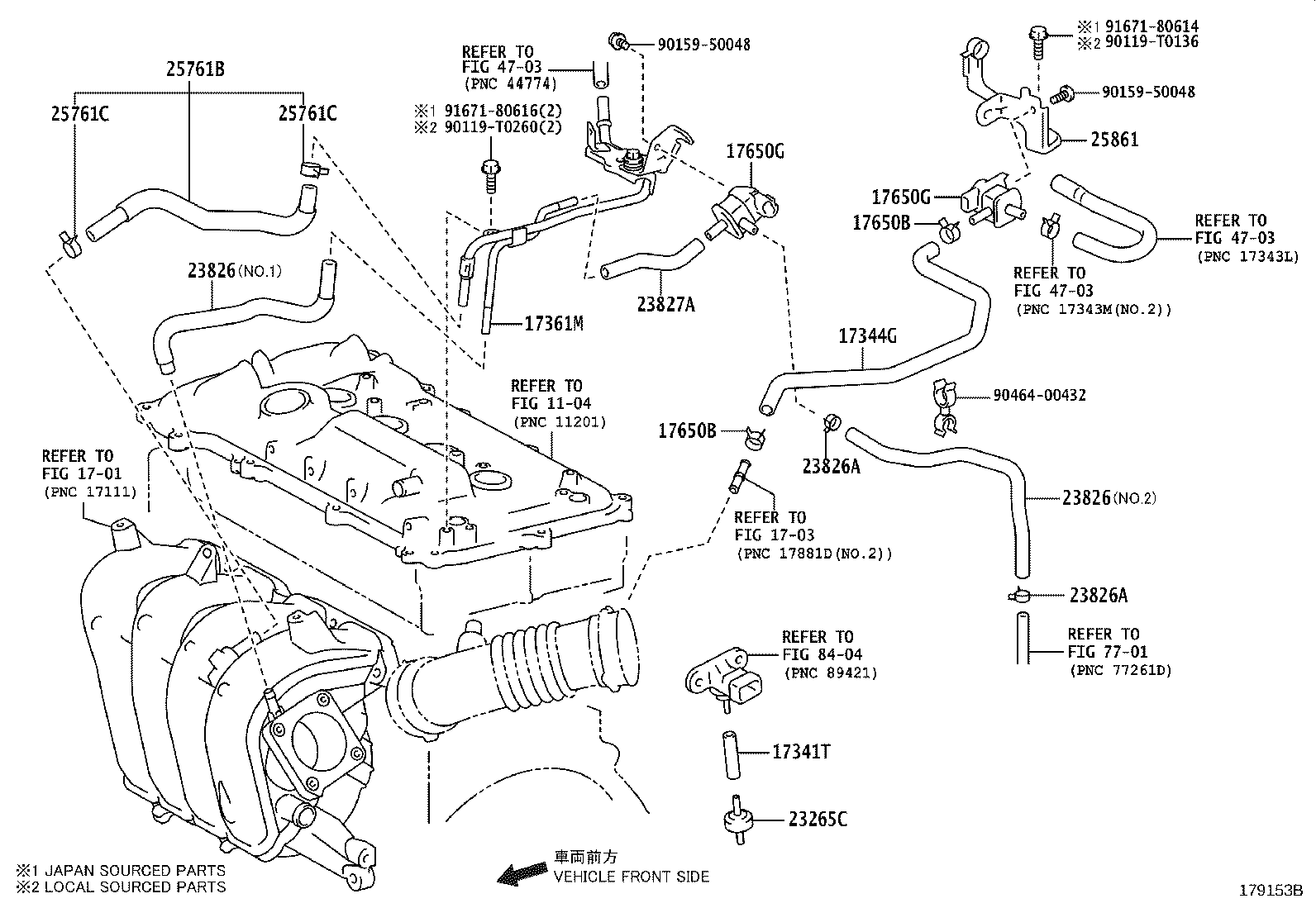

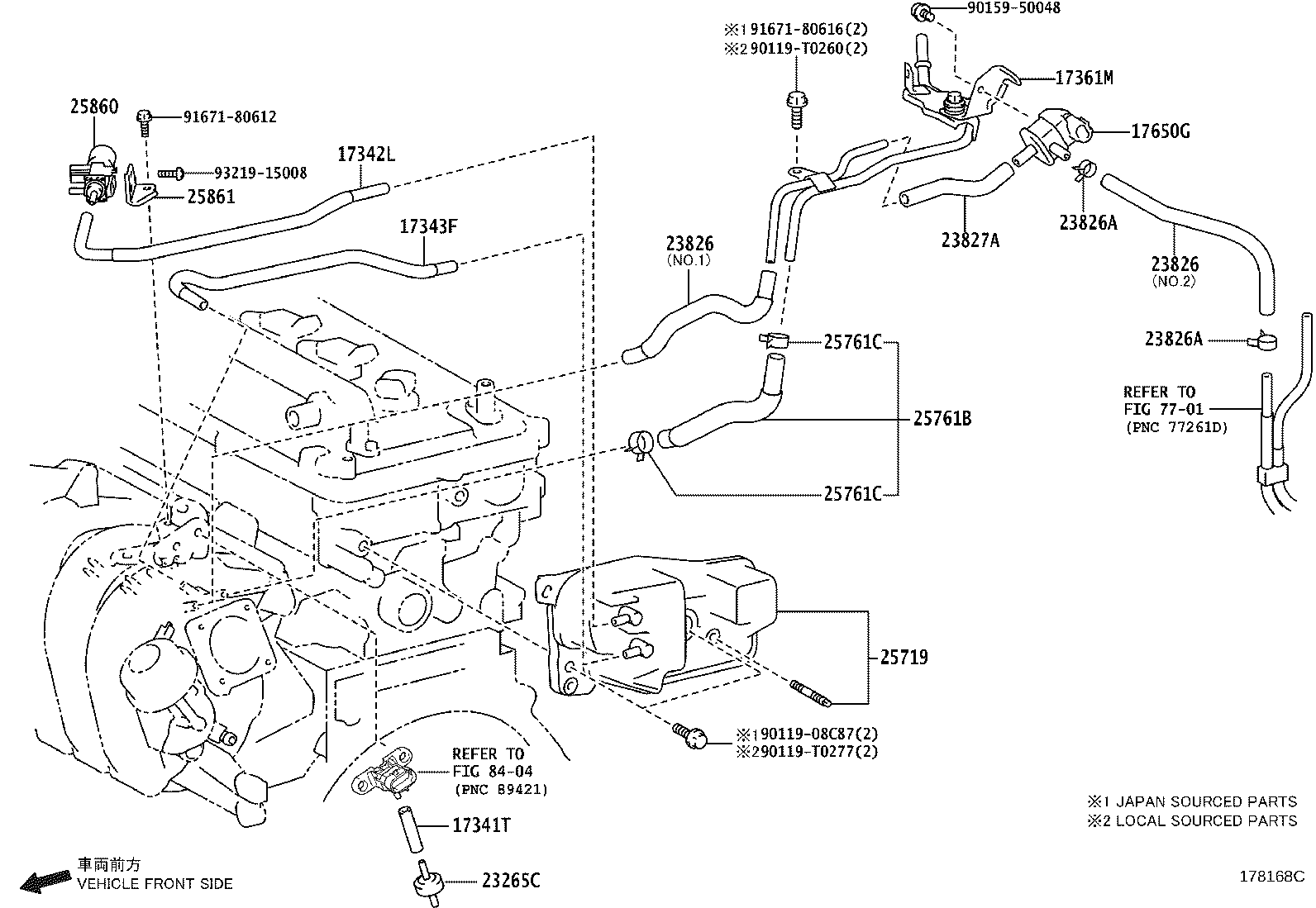

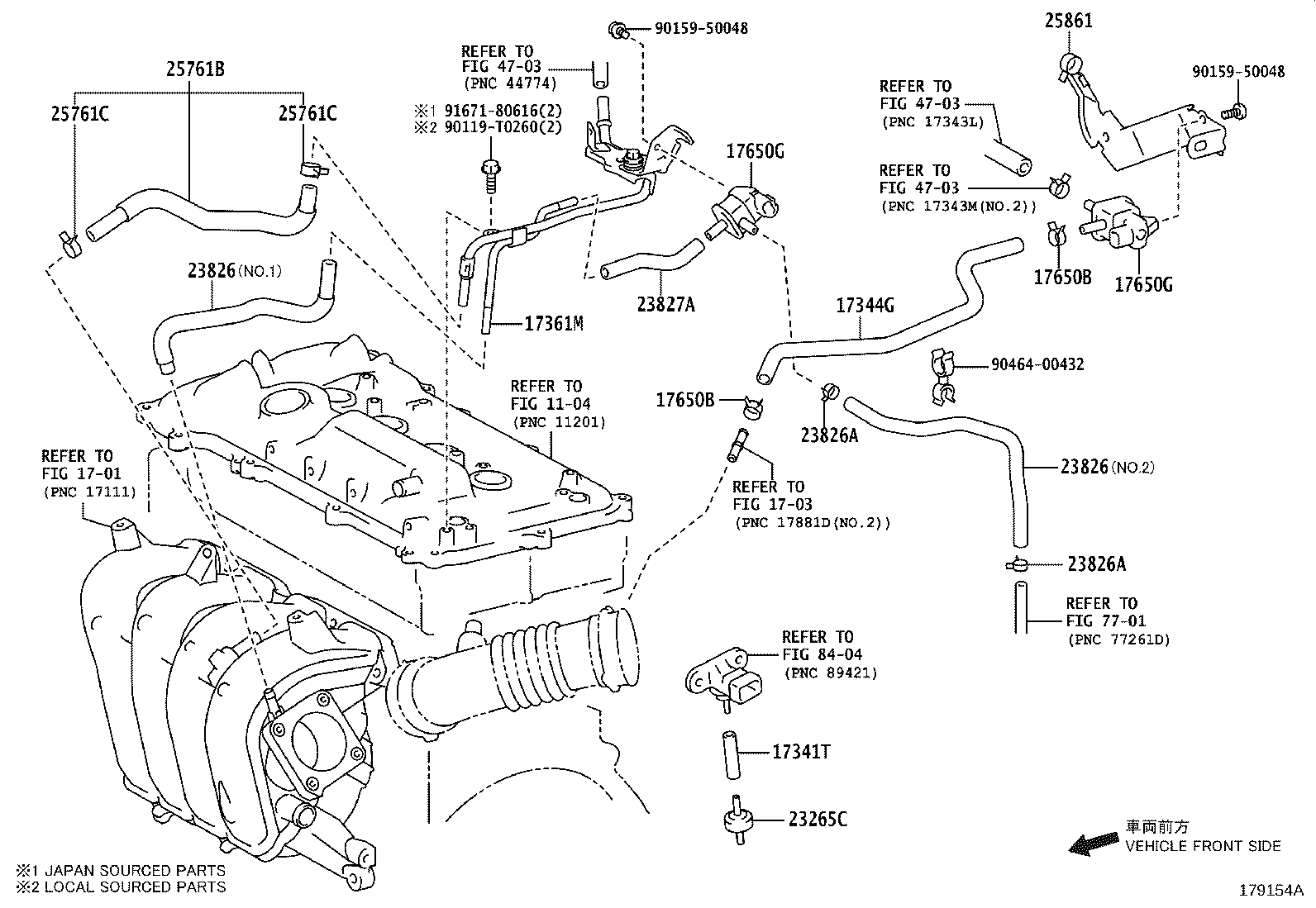

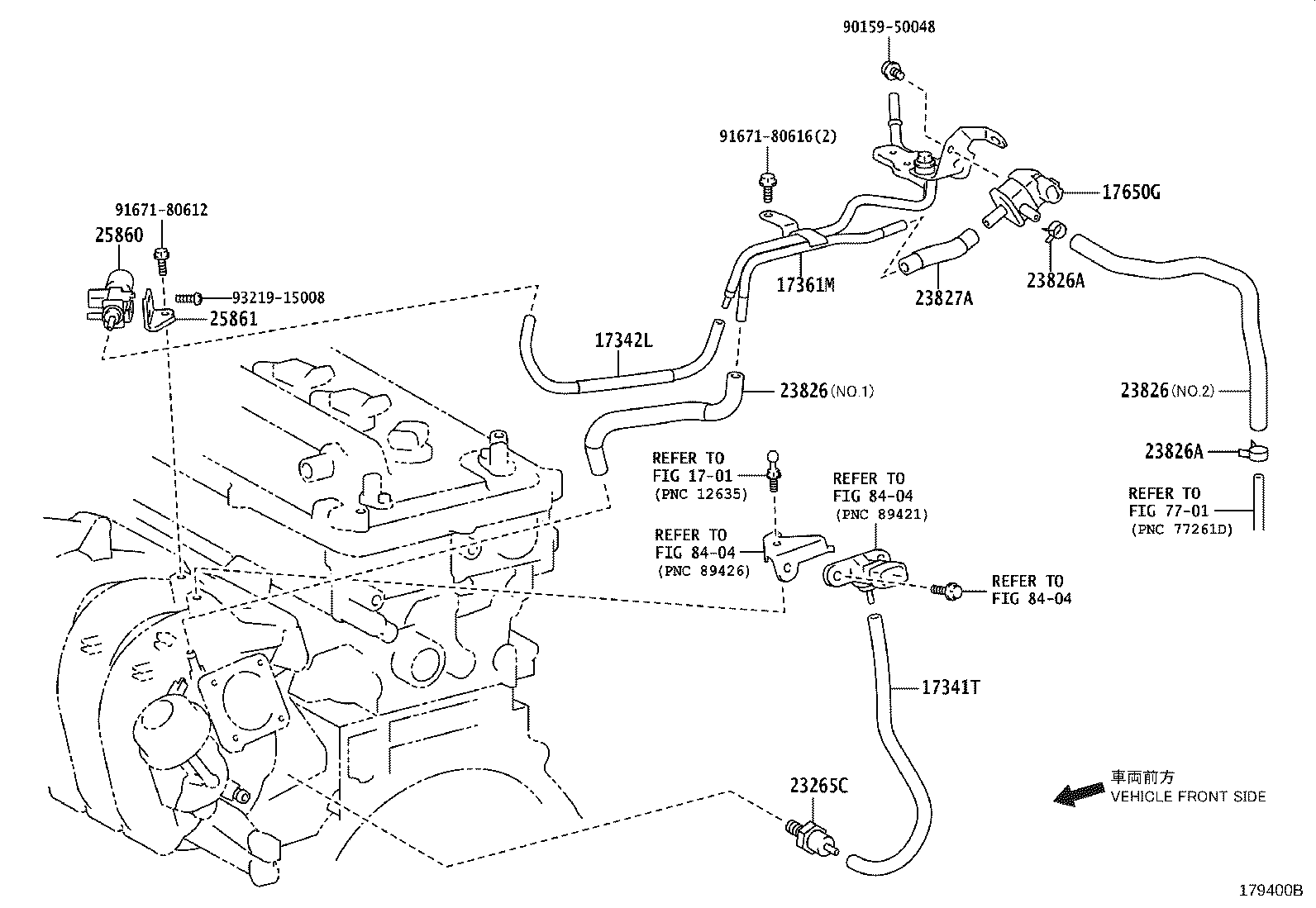

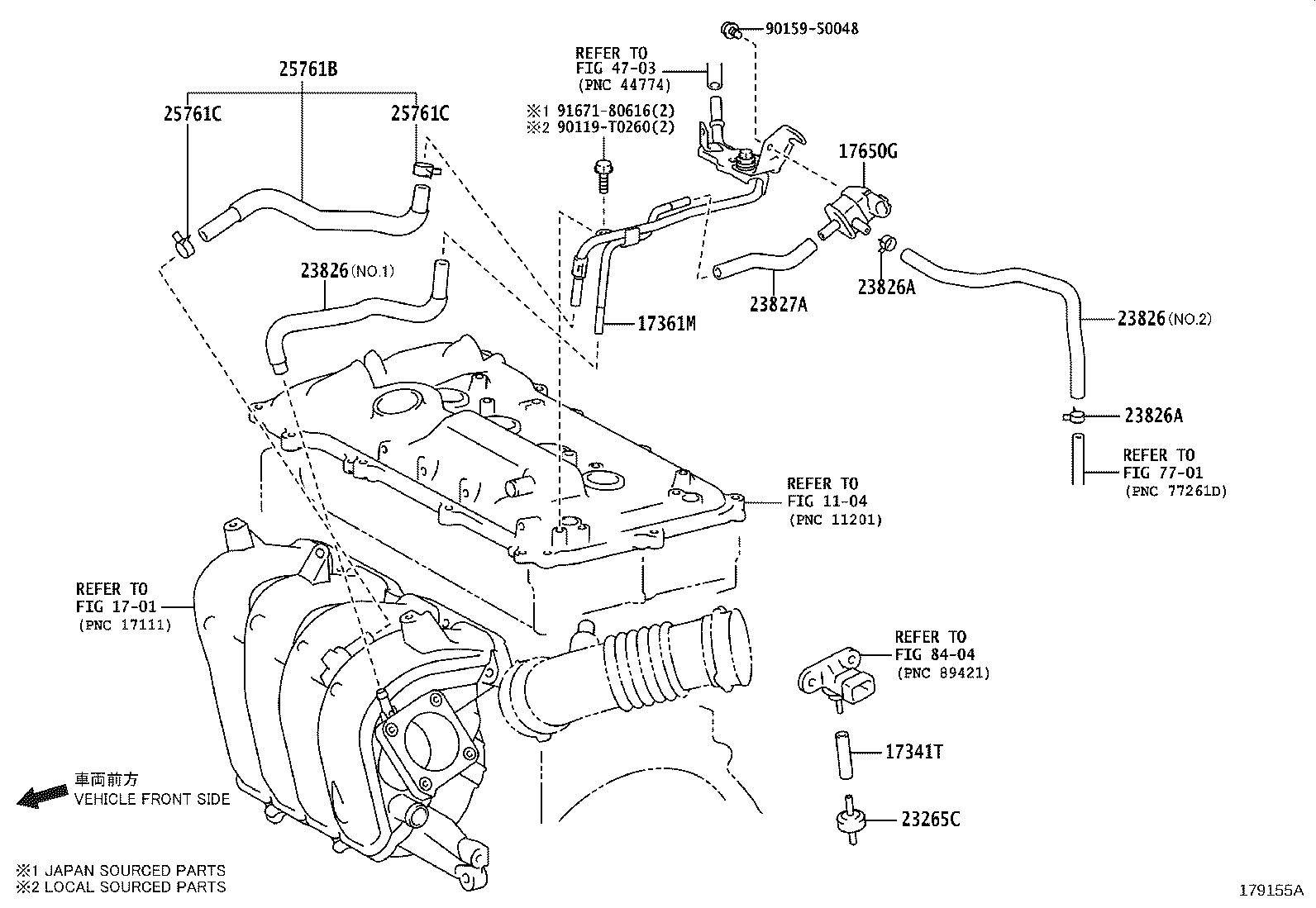

Figure 178381A 178381A 2014-05 → — Figure 178380A 178380A 2014-07 → — Figure 175871A 175871A 2013-10 → 2014-09 Figure 178193C 178193C 2013-10 → 2016-01 Figure 178193C 178193C 2013-10 → — Figure 178170D 178170D 2013-11 → — Figure 178168C 178168C 2013-10 → — Figure 179153B 179153B 2015-12 → — Figure 179154A 179154A 2016-01 → — Figure 179155A 179155A 2016-01 → — Figure 179155A 179155A 2016-10 → — Figure 179400B 179400B 2016-11 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17344G Hose, Air, NO.4
17361M Tube, Air
17578B Clamp, Pipe
17650B Clip(FOR VACUUM SWITCHING VALVE HOSE)
17650G Valve, Duty Vacuum Switching
23265C Filter, Gas
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25719 Tank, Vacuum Surge
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25770A Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
