Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

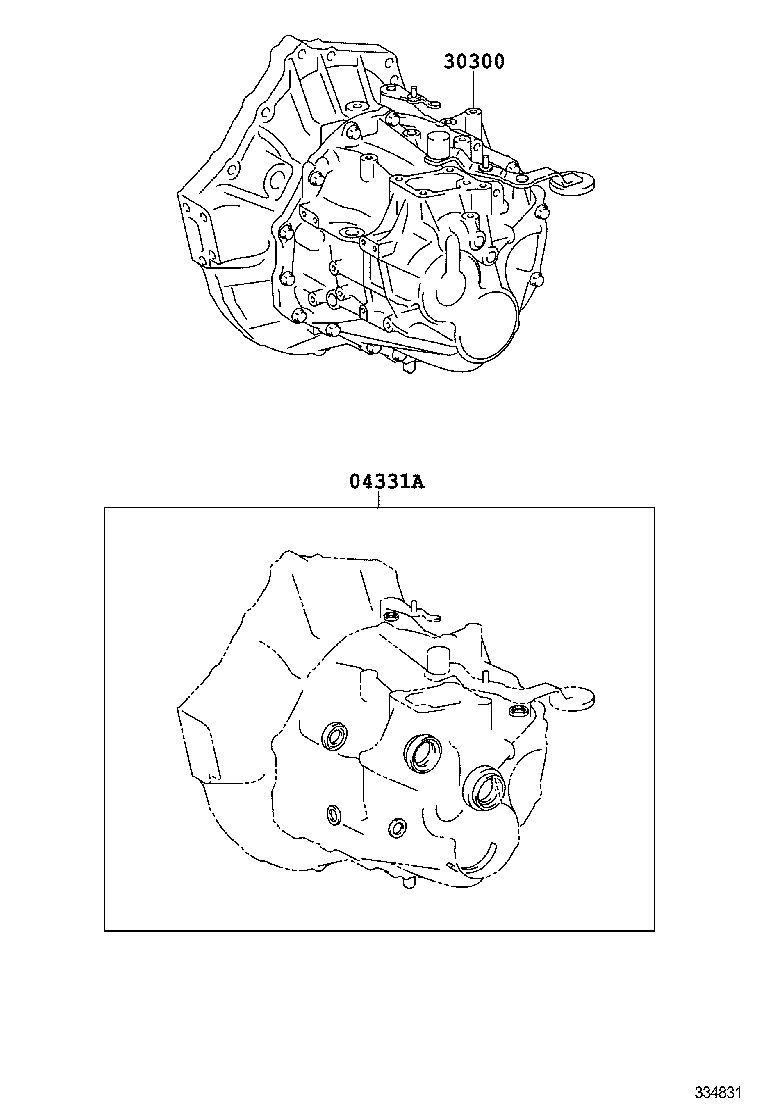

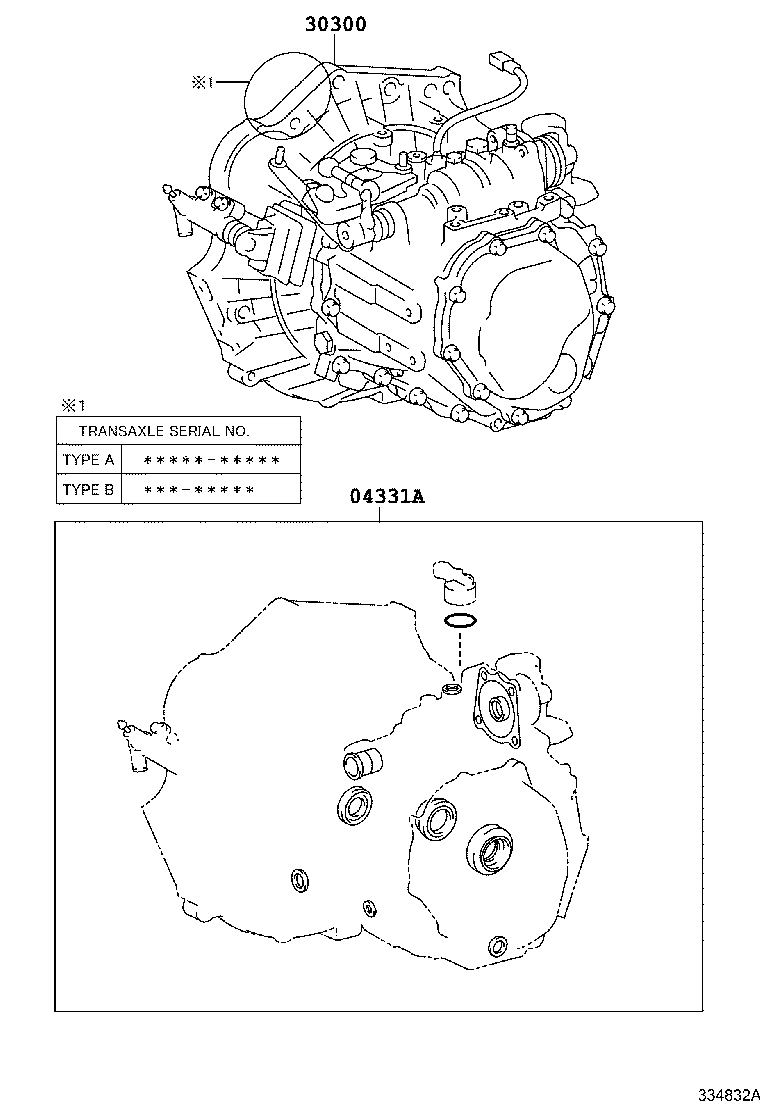

Figure 334830 334830 2013-10 → — Figure 334831 334831 2013-10 → — Figure 334832A 334832A 2013-10 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
