Oil Cooler & Tube (ATM)

21 part groups · 5 illustrations

Illustrations

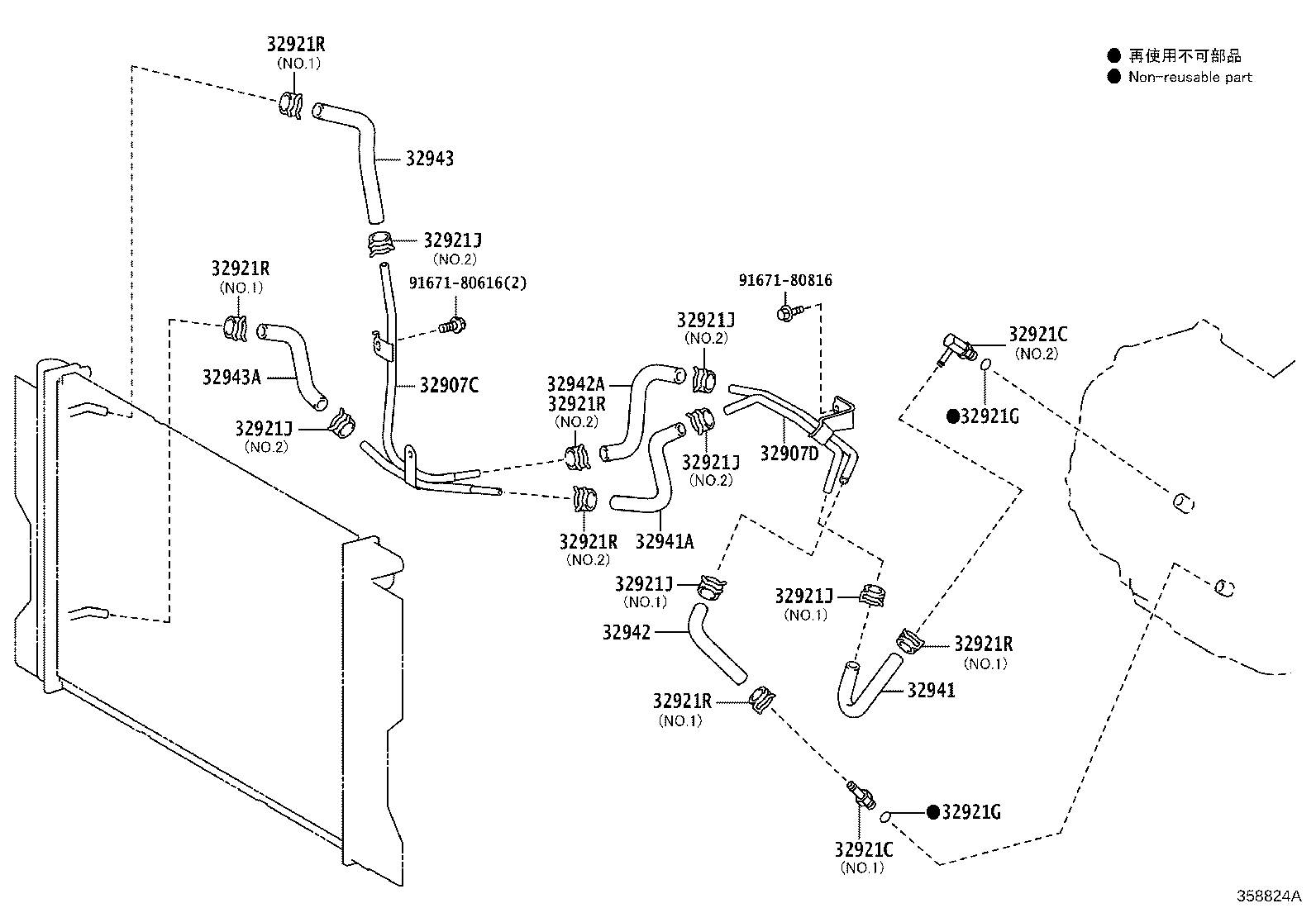

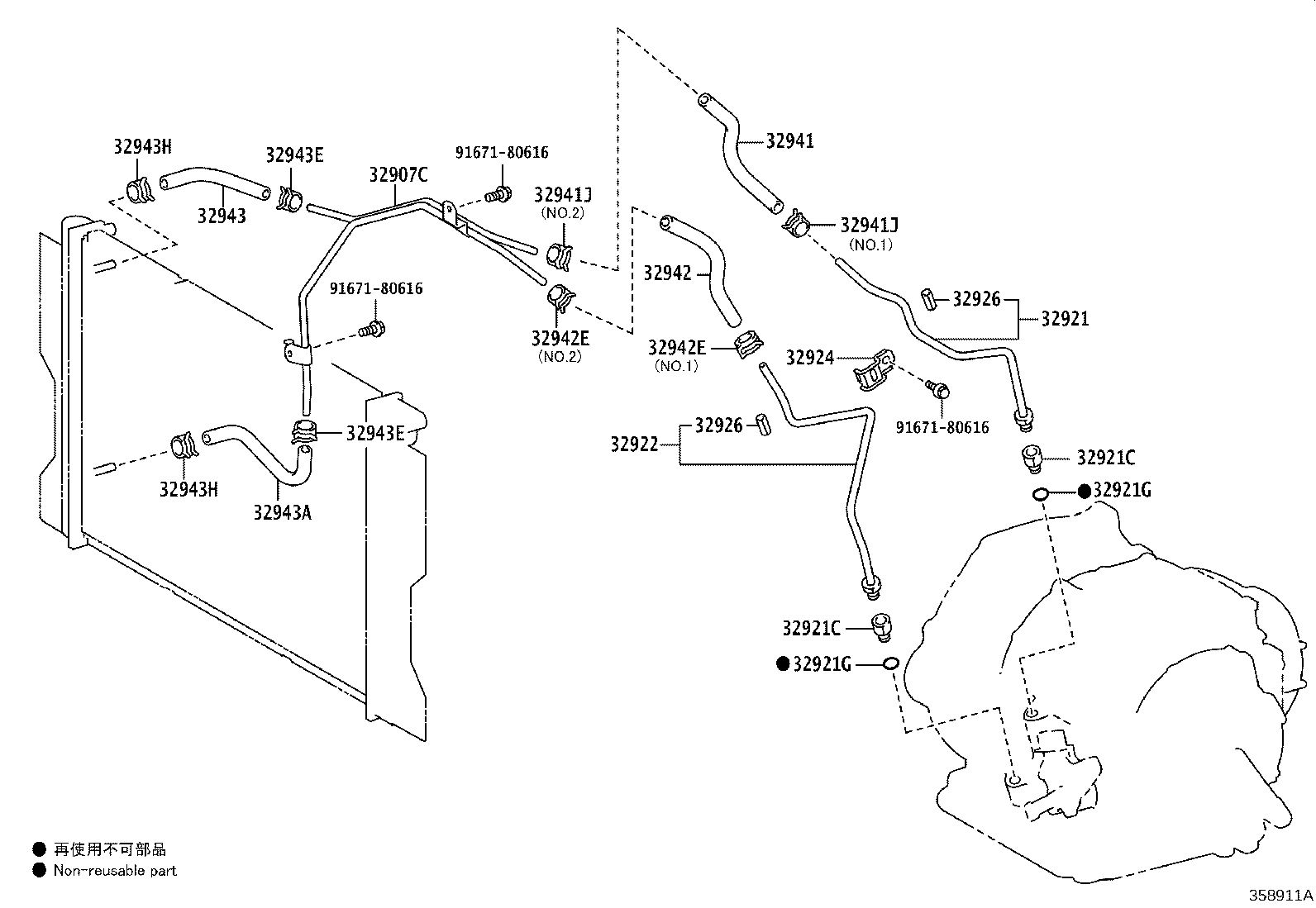

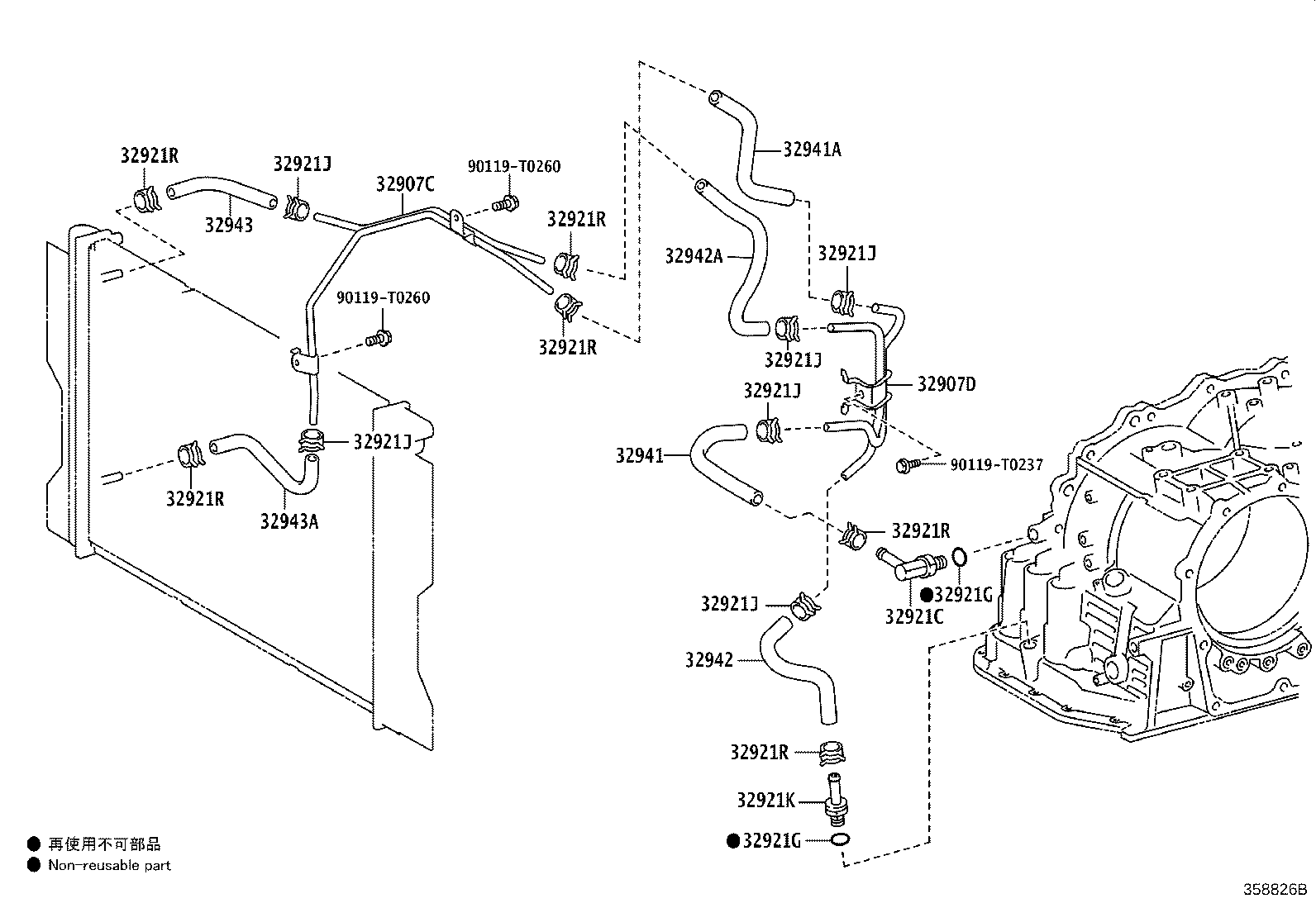

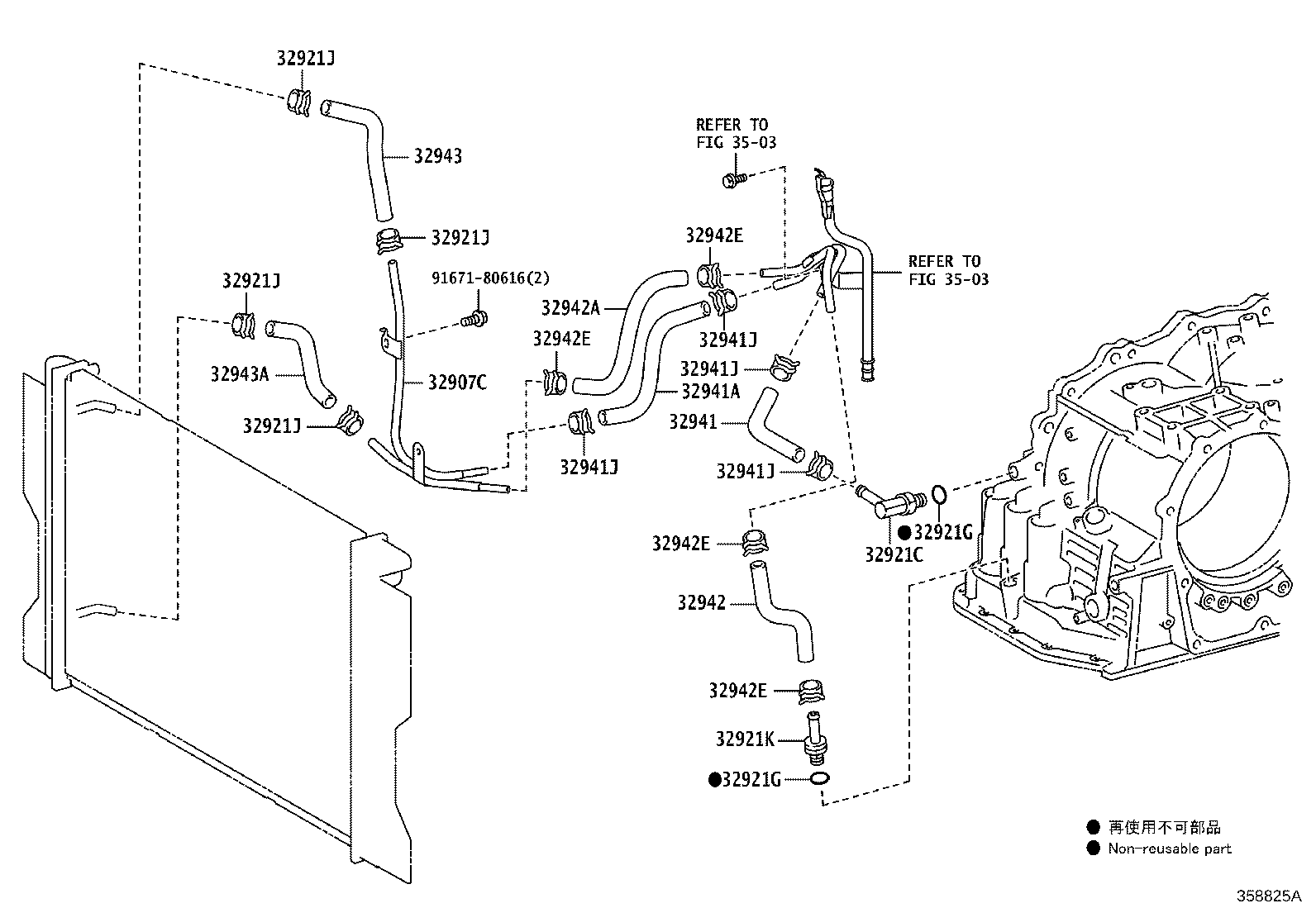

Figure 358823A 358823A 2013-10 → — Figure 358826B 358826B 2013-12 → — Figure 358824A 358824A 2013-10 → — Figure 358825A 358825A 2013-10 → — Figure 358911A 358911A 2014-07 → —

Part groups

PNCDescription
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907D Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921K Union, NO.2(FOR OIL COOLER TUBE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32924 Clamp, Oil Cooler Tube, NO.2
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32943H Clip, NO.4(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
