Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

48 part groups · 9 illustrations

Illustrations

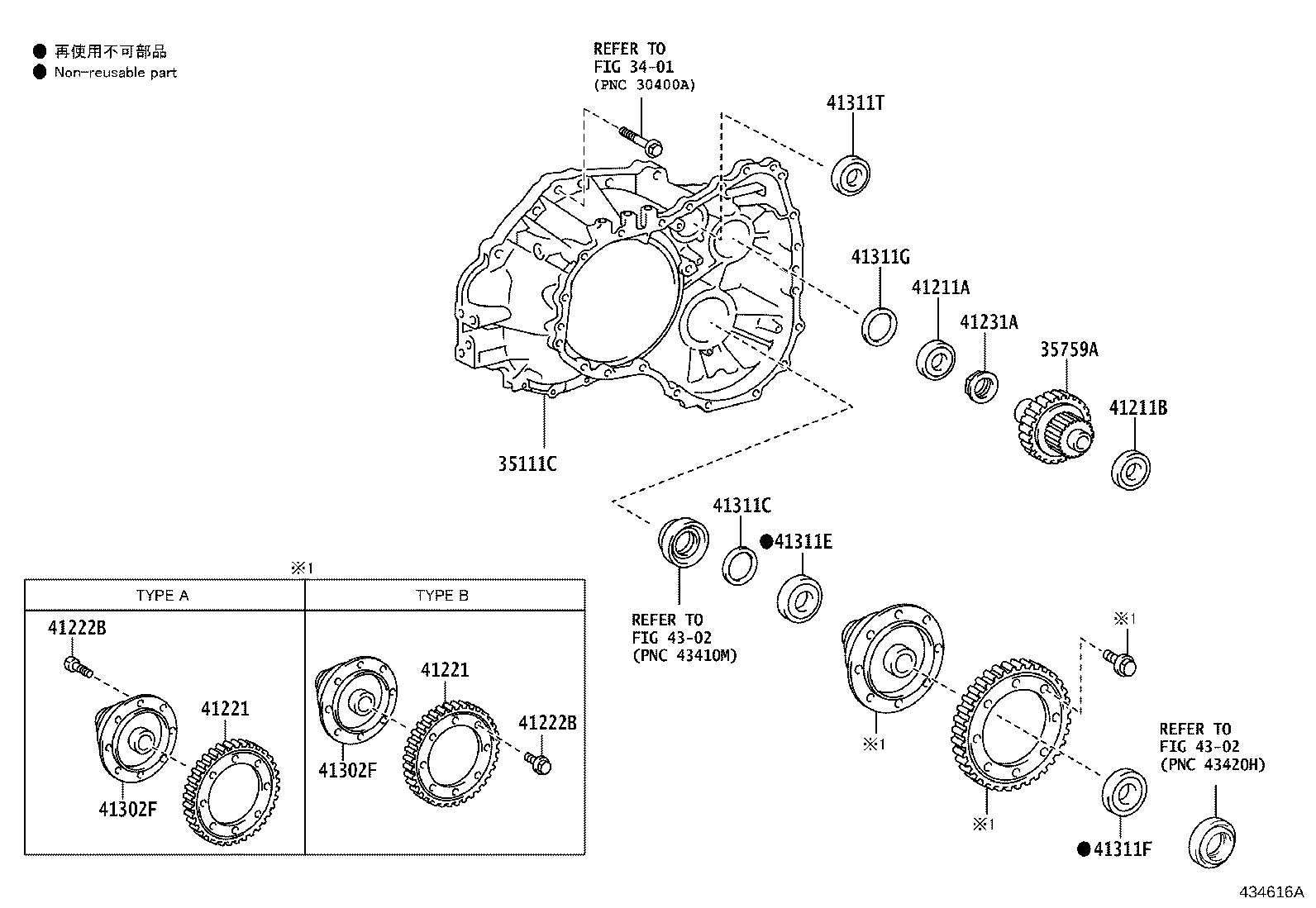

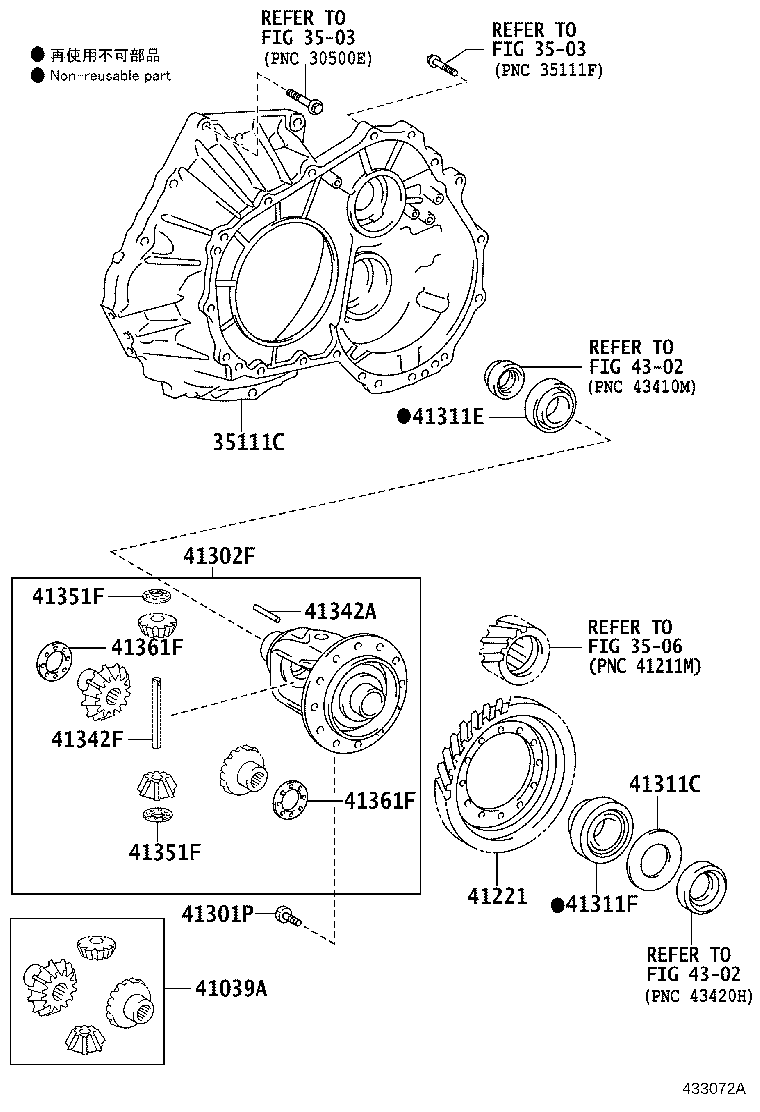

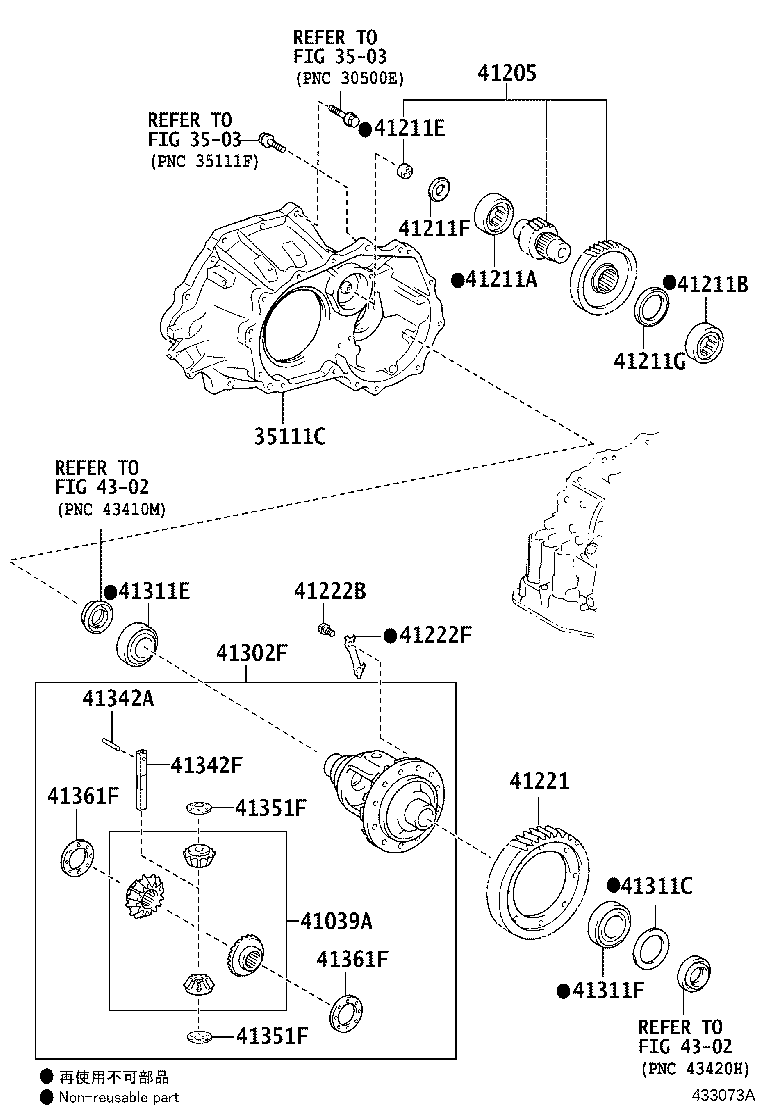

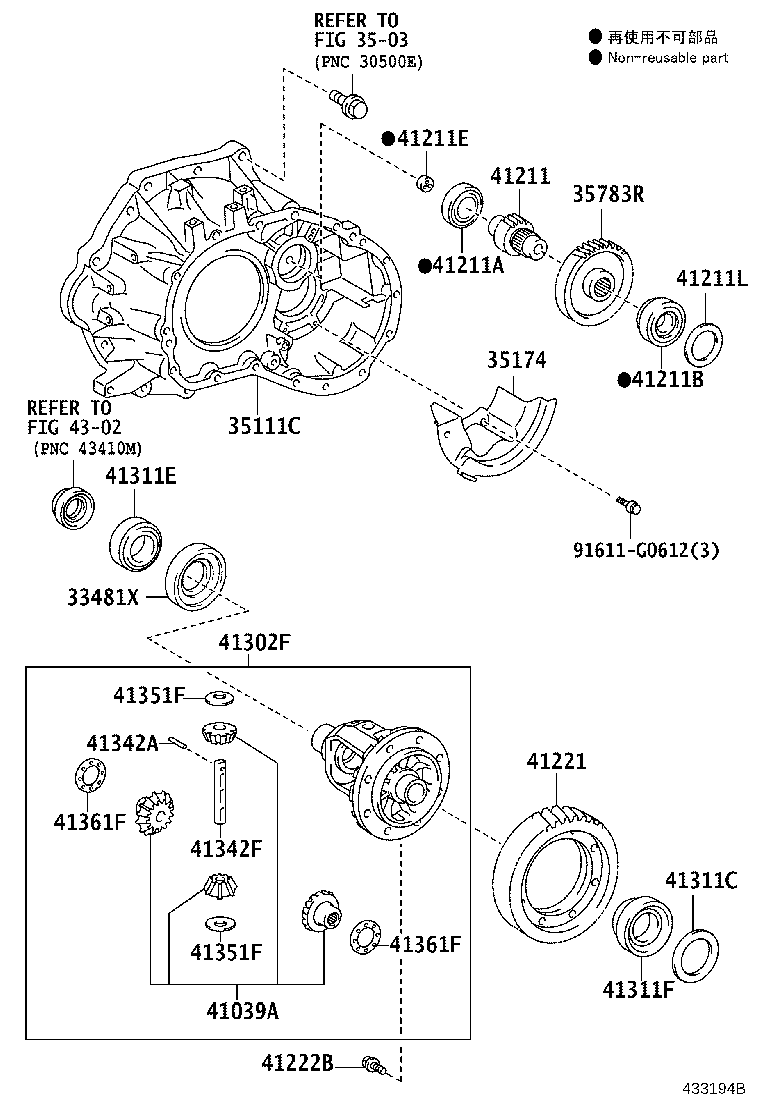

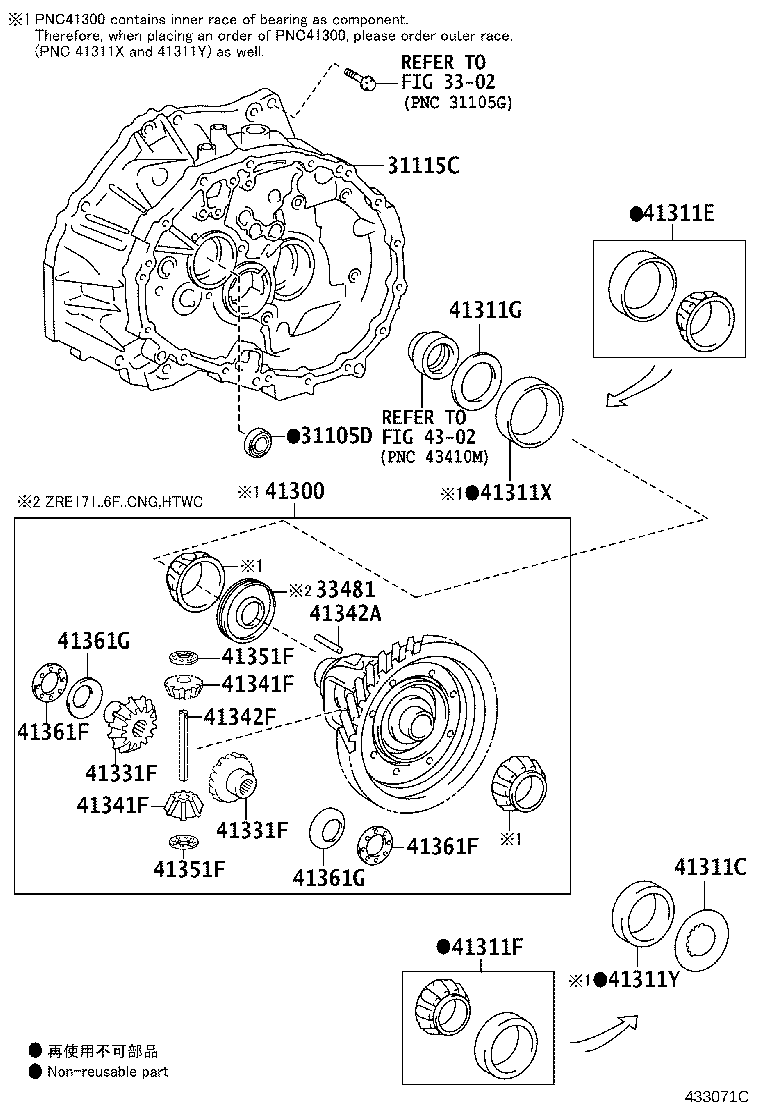

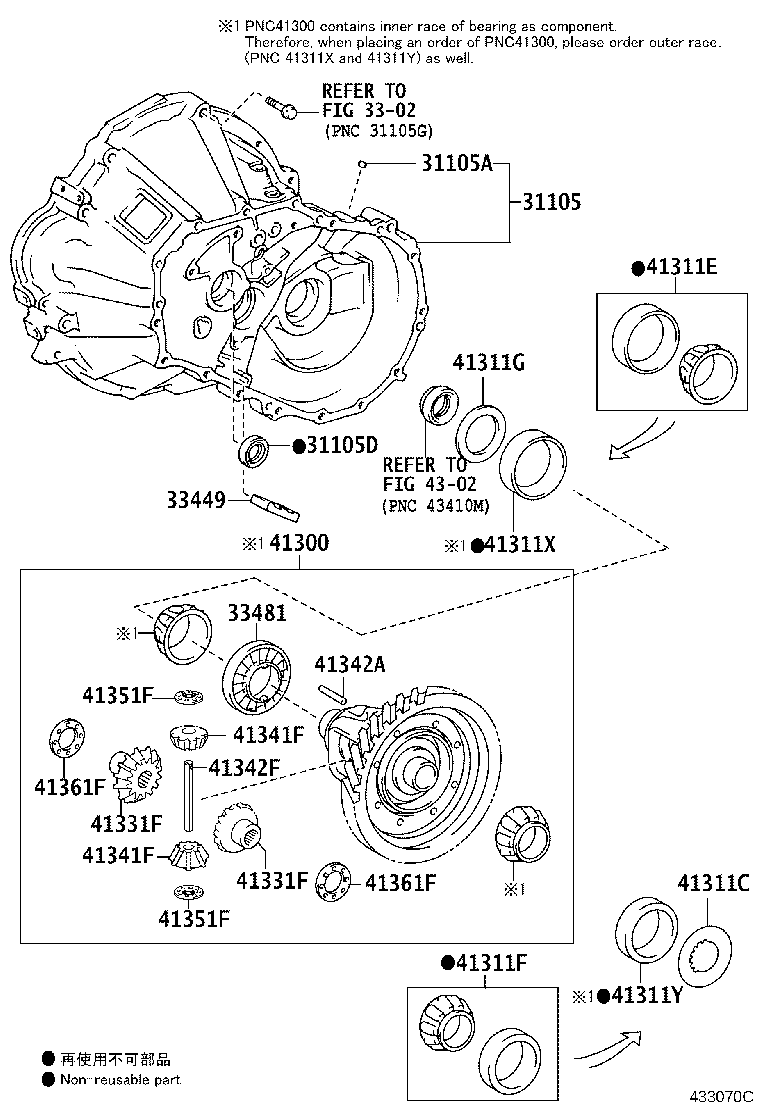

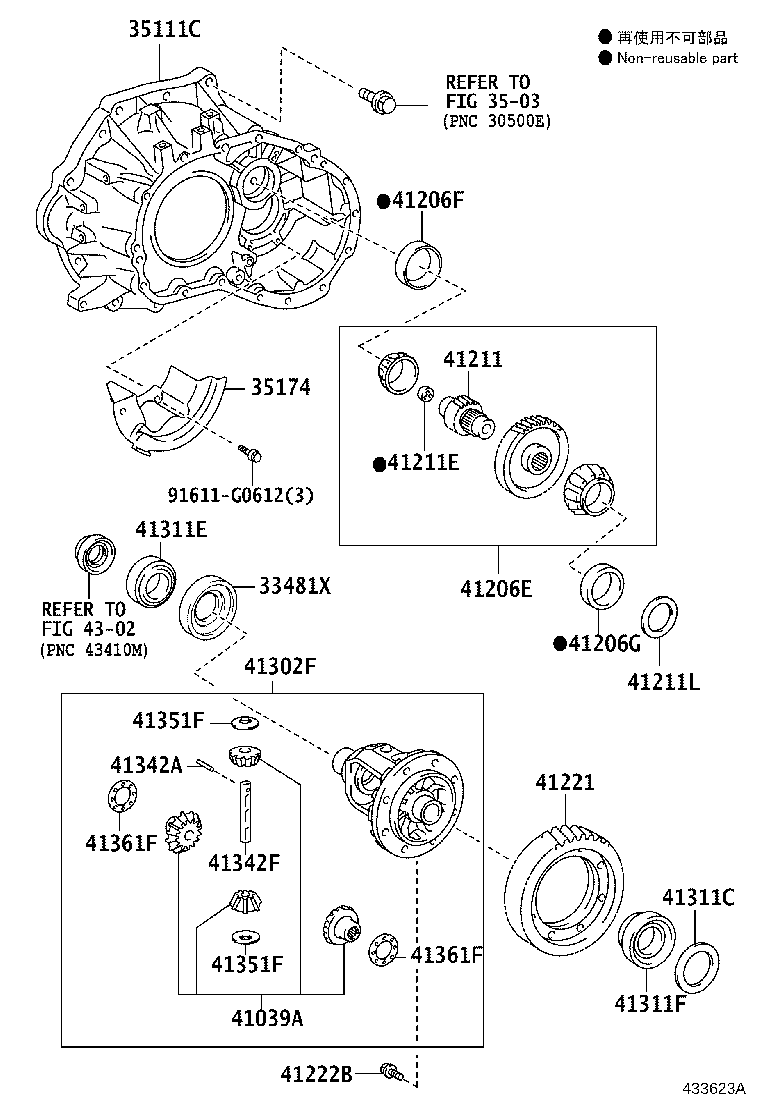

Figure 433069C 433069C 2013-10 → — Figure 433070C 433070C 2013-10 → — Figure 433071C 433071C 2013-10 → — Figure 433072A 433072A 2013-10 → — Figure 433073A 433073A 2013-10 → — Figure 433194B 433194B 2014-07 → 2016-01 Figure 433623A 433623A 2016-01 → — Figure 434959B 434959B 2013-12 → — Figure 434616A 434616A 2015-07 → —

Part groups

PNCDescription
31105 Case Sub-assy, Transaxle(MTM)
31105A Plug, Tight(FOR FRONT TRANSAXLE CASE)
31105C Pin, Straight(FOR TRANSAXLE CASE)
31105D Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
31115C Case, Front Transaxle(MTM)
33143C Baffle, Front Differential Oil
33449 Magnet, Transmission
33481 Gear, Speedometer Drive (MTM)
33481X Gear, Speedometer Drive
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
35759A Gear, Reduction Driven
35783R Gear, Counter Driven
41039A Gear Kit, Differential
41205 Pinion Sub-assy, Differential Drive
41206E Gear Sub-assy, Pinion & Counter Driven
41206F Outer Race, Tapered Roller Bearing RH
41206G Outer Race, Tapered Roller Bearing LH
41211 Pinion, Differential Drive
41211A Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41211E Plug(FOR DIFFERENTIAL DRIVE PINION)
41211F Bearing, Thrust Needle Roller(FOR FRONT DRIVE PINION RH)
41211G Bearing, Thrust Needle Roller(FOR FRONT DRIVE PINION LH)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41221 Gear, Front Differential Ring
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222F Plate, Fornt Differential Ring Gear Set Bolt Lock
41231A Nut, Drive Pinion Lock
41300 Case Assy, Front Differential, W/Ring Gear
41301P Screw(FOR FRONT DIFFERENTIAL CASE)
41302F Case Sub-assy, Front Differential
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311D Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311G Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
41311P Bolt (FOR FRONT DIFFERENTIAL CASE)
41311T Bearing, Cylindrical Roller(FOR SECONDARY SHEAVE SHAFT)
41311X Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
41311Y Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
41331F Gear, Front Differential Side
41341F Pinion, Front Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
41361G Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
