Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 16 illustrations

Illustrations

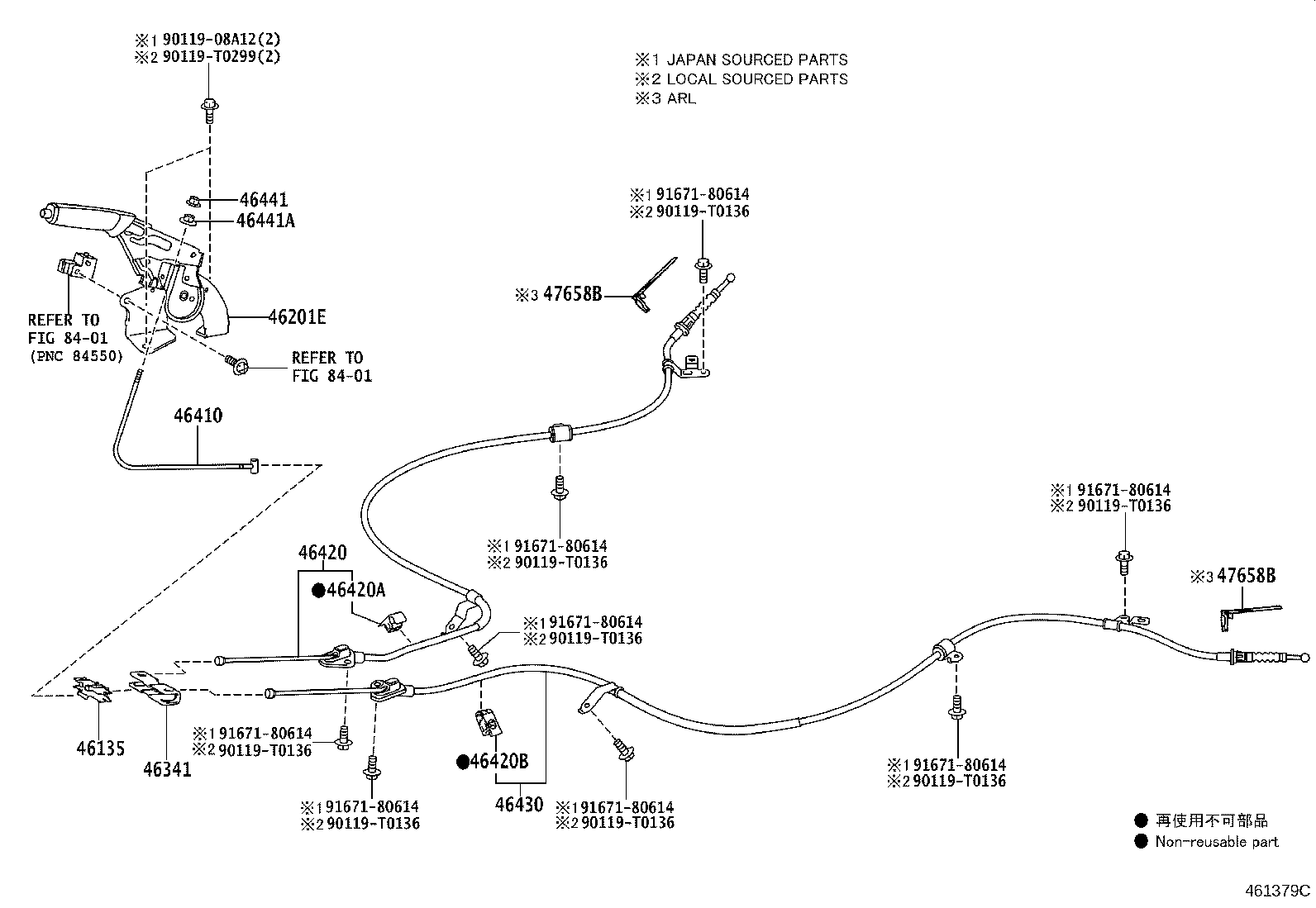

Figure 461380B 461380B 2013-10 → 2014-09 Figure 461380B 461380B 2013-10 → 2016-09 Figure 461380B 461380B 2013-10 → 2016-10 Figure 461379C 461379C 2013-10 → 2016-09 Figure 461379C 461379C 2013-10 → 2016-10 Figure 461379C 461379C 2016-10 → 2017-03 Figure 461379C 461379C 2016-10 → 2017-07 Figure 461379C 461379C 2016-10 → 2017-09 Figure 461543B 461543B 2016-10 → — Figure 461543B 461543B 2016-11 → — Figure 461543B 461543B 2017-09 → — Figure 461542B 461542B 2016-10 → — Figure 461542B 461542B 2016-11 → — Figure 461542B 461542B 2017-03 → — Figure 461542B 461542B 2017-07 → — Figure 461542B 461542B 2017-09 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46201E Lever Sub-assy, Parking Brake
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
47658B Protector, Parking Brake Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
