Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

28 part groups · 12 illustrations

Illustrations

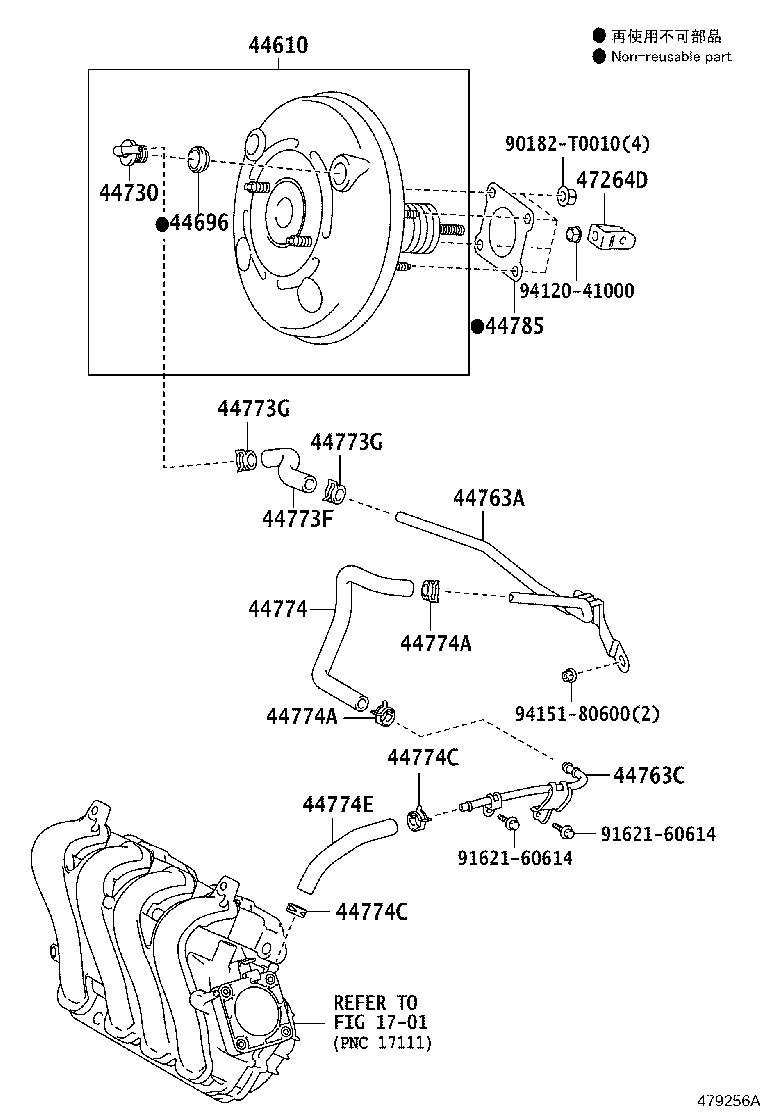

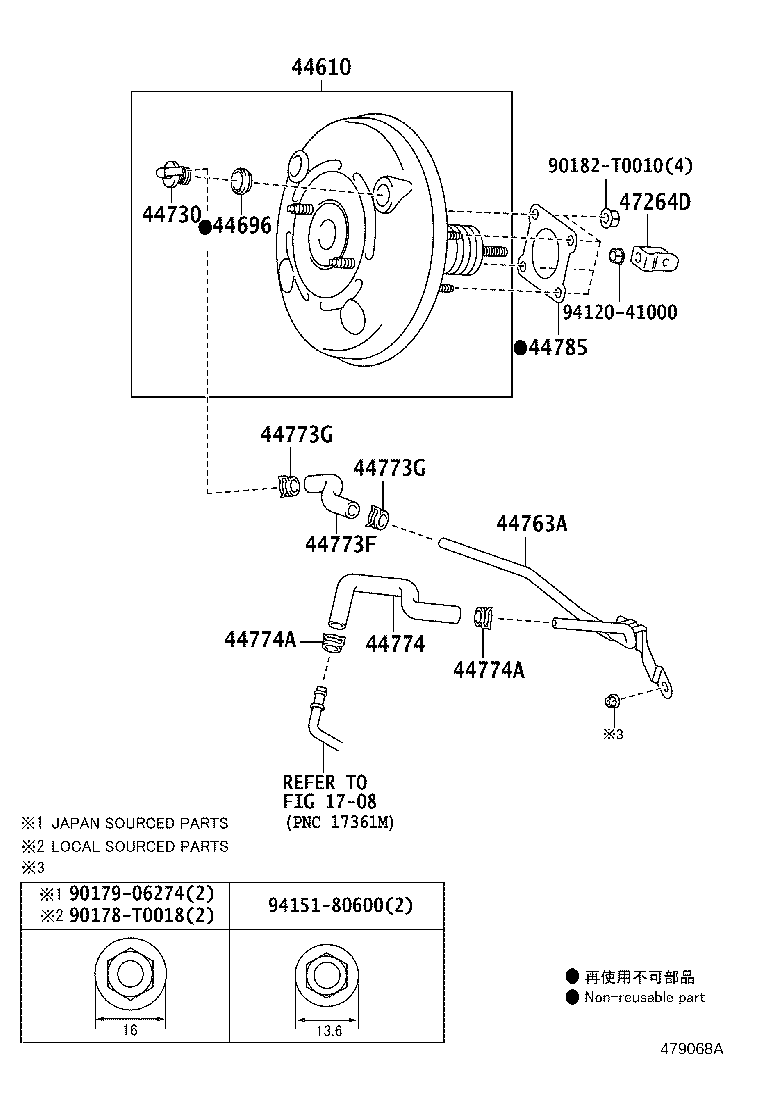

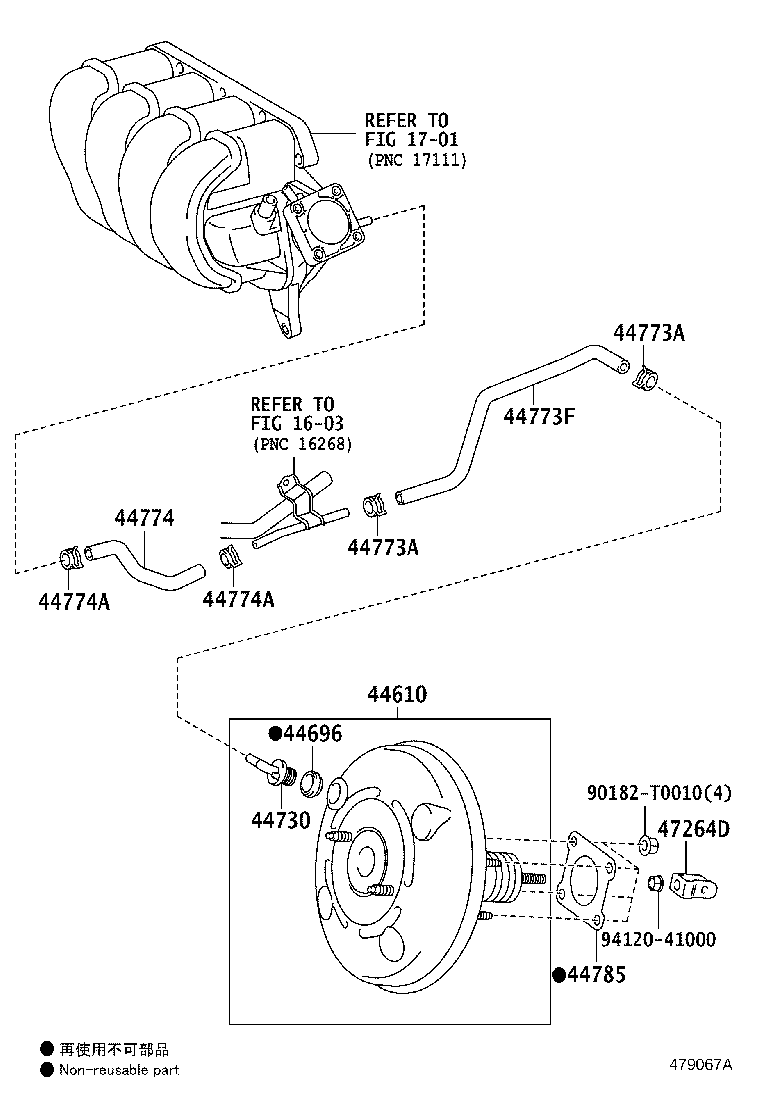

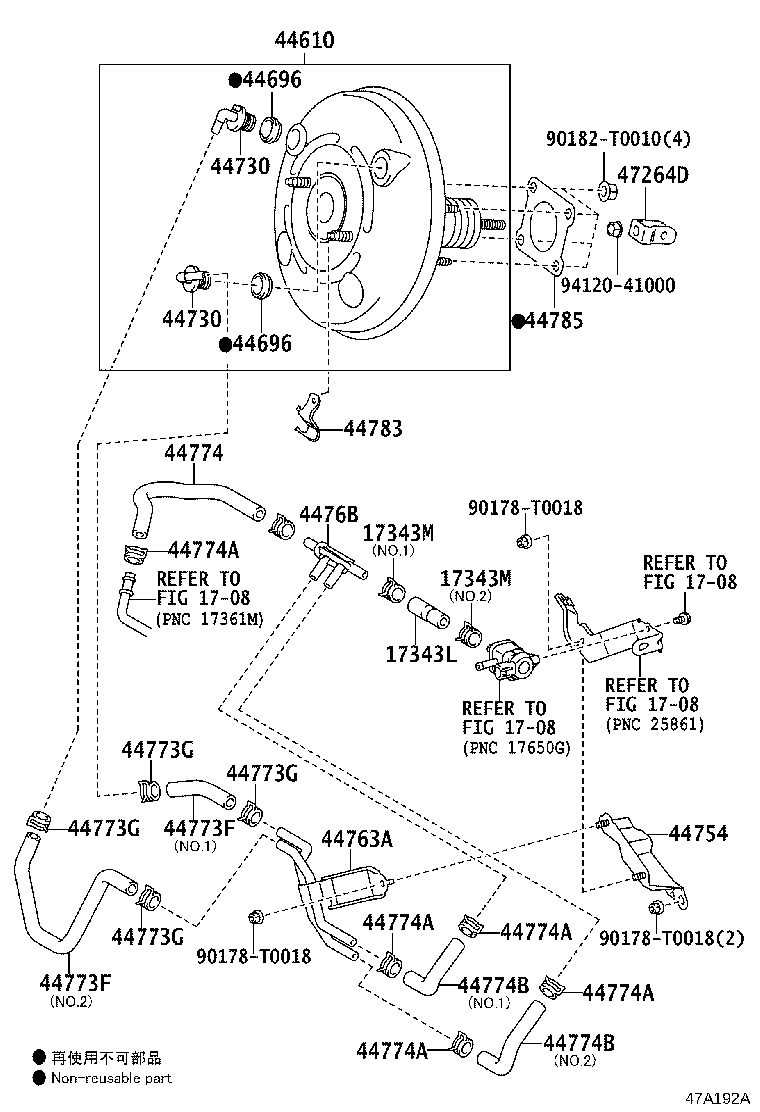

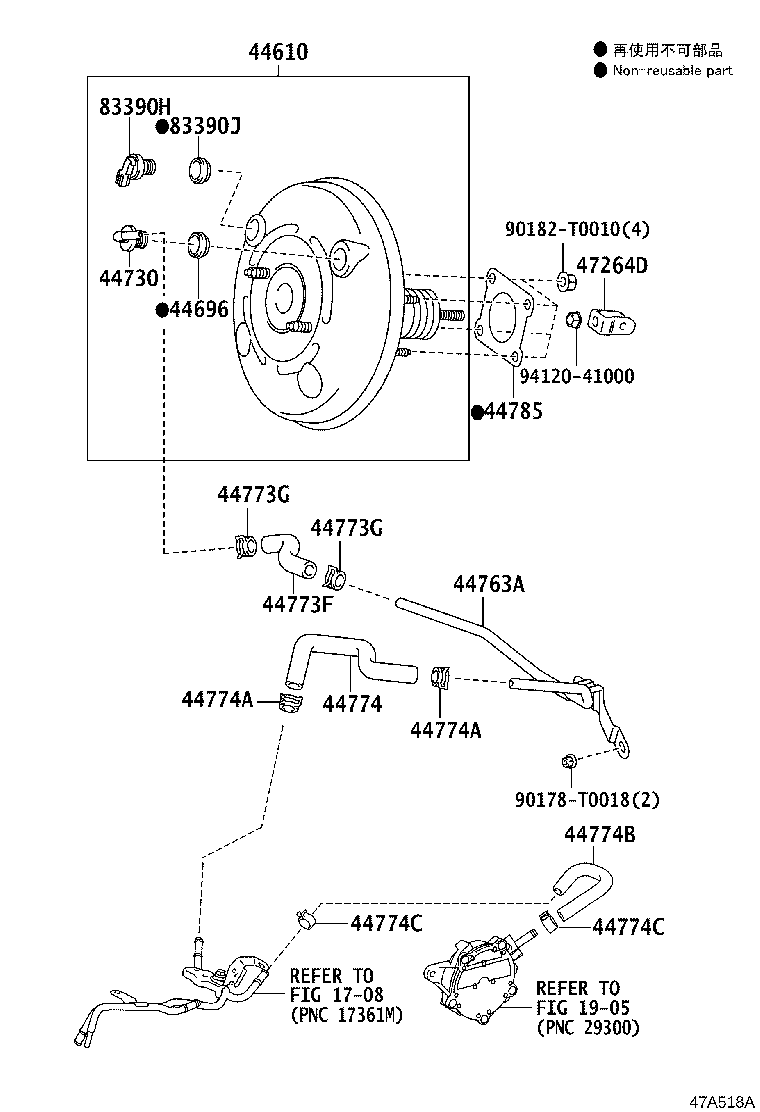

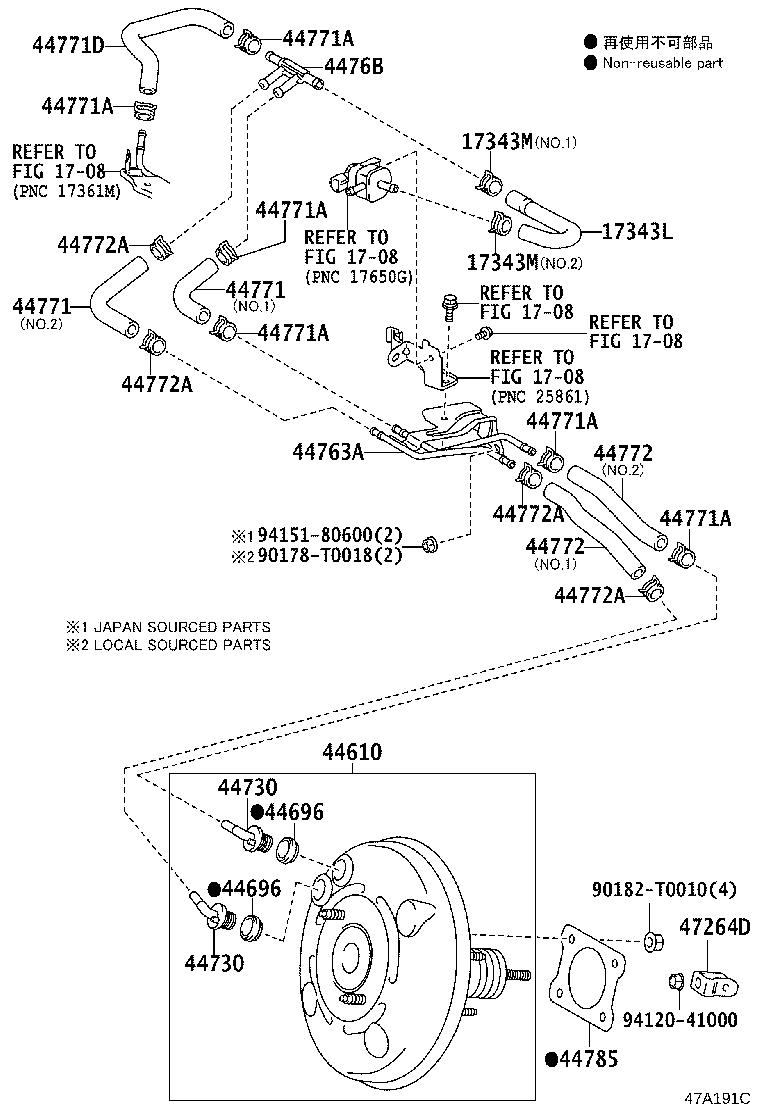

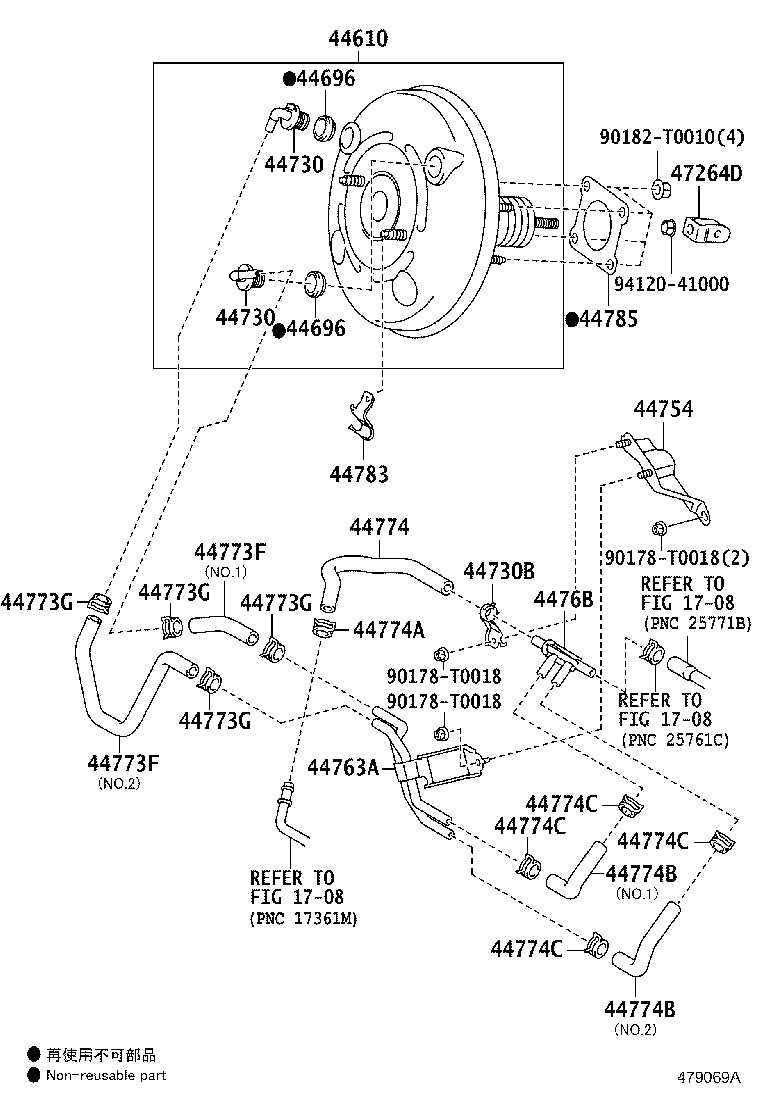

Figure 479066A 479066A 2013-10 → 2016-10 Figure 479066A 479066A 2013-10 → — Figure 479067A 479067A 2013-10 → — Figure 479068A 479068A 2013-12 → — Figure 479069A 479069A 2013-12 → — Figure 479254B 479254B 2014-05 → — Figure 479255C 479255C 2014-05 → — Figure 479256A 479256A 2014-07 → — Figure 47A191C 47A191C 2015-12 → — Figure 47A191C 47A191C 2016-11 → — Figure 47A192A 47A192A 2016-01 → — Figure 47A518A 47A518A 2016-11 → —

Part groups

PNCDescription
17343L Hose, Air, NO.3
17343M Clip(FOR AIR HOSE NO.3)
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44754 Bracket, Air Tube
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
4476B Ejector, Brake Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44771D Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
