Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 3 illustrations

Illustrations

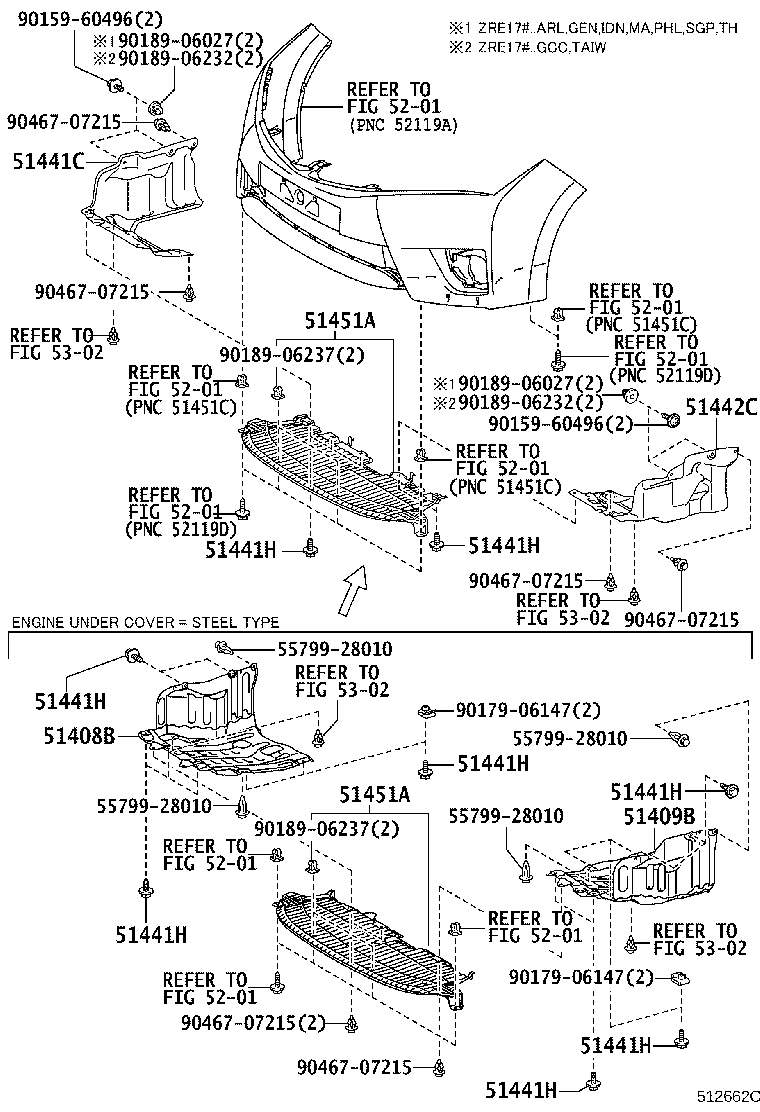

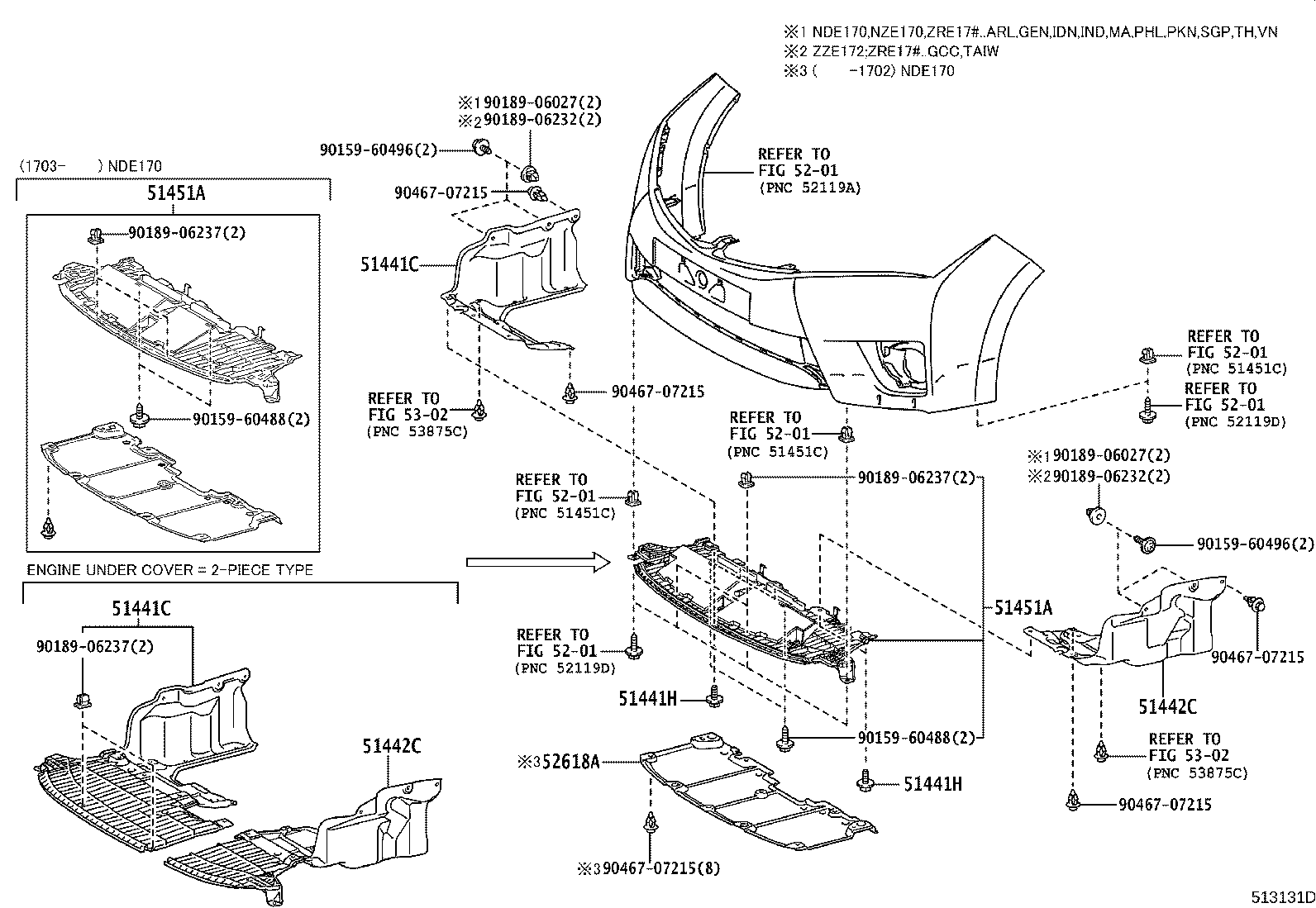

Figure 512661B 512661B 2013-10 → — Figure 512662C 512662C 2013-10 → 2014-04 Figure 513131D 513131D 2014-04 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51227B Damper, Front Suspension Member Dynamic
51408B Cover Sub-assy, Engine Under, RH
51409B Cover Sub-assy, Engine Under, LH
51441C Cover, Engine Under, RH
51441H Bolt, W/Washer(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51451A Cover, Engine Under, Center
51963B Hook, Transport, Front RH
52618A Absorber, Front Bumper, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
