Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 16 illustrations

Illustrations

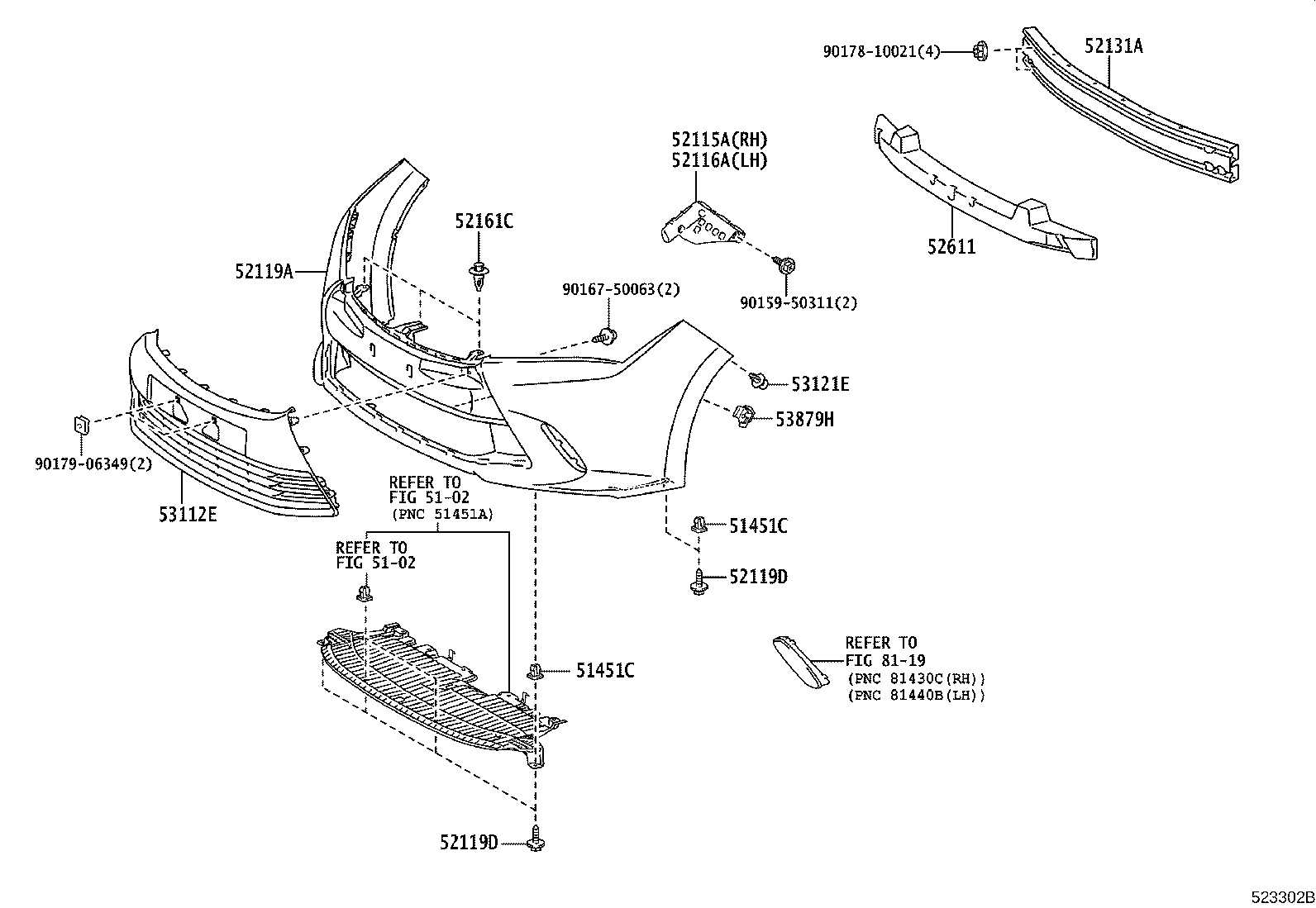

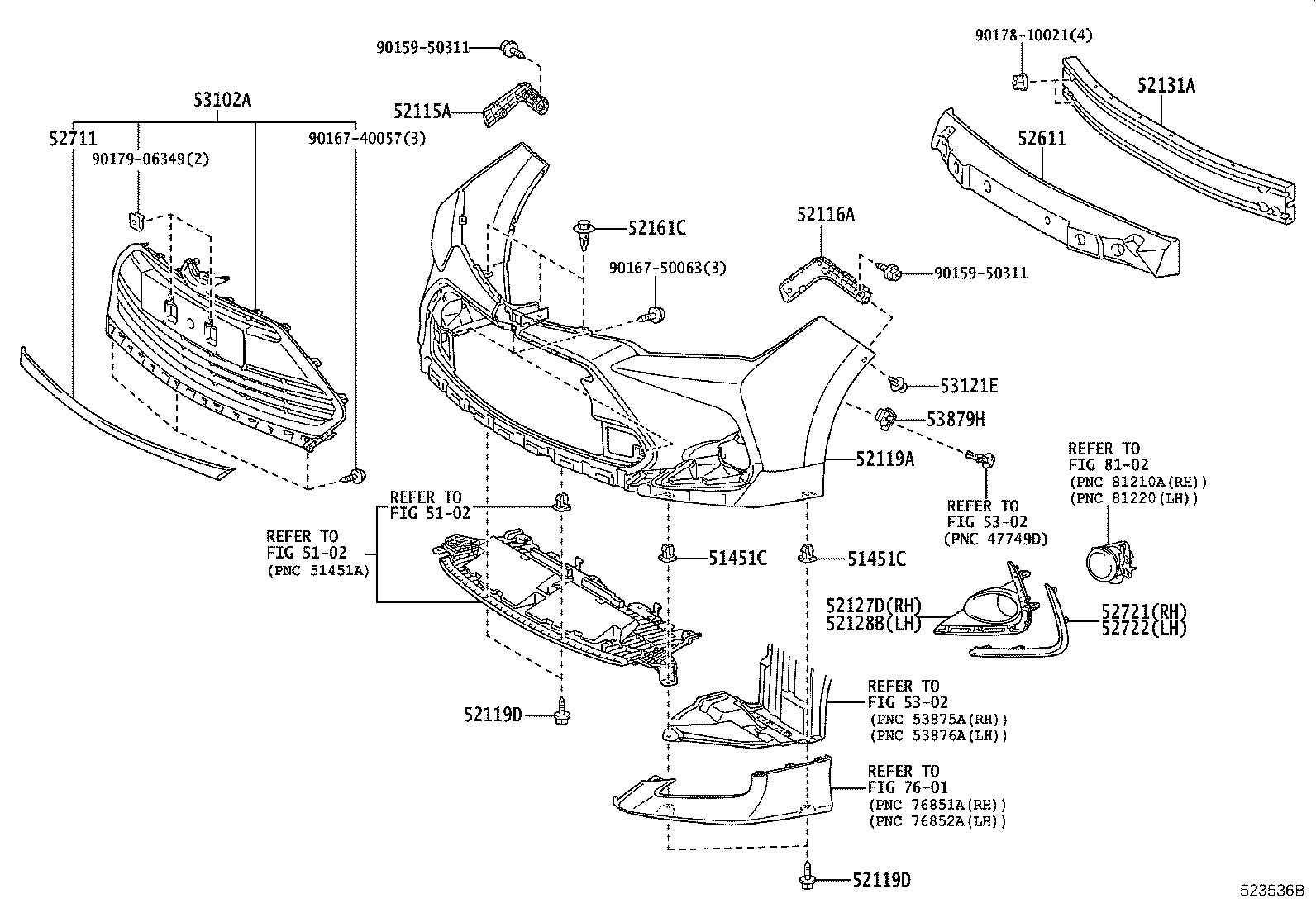

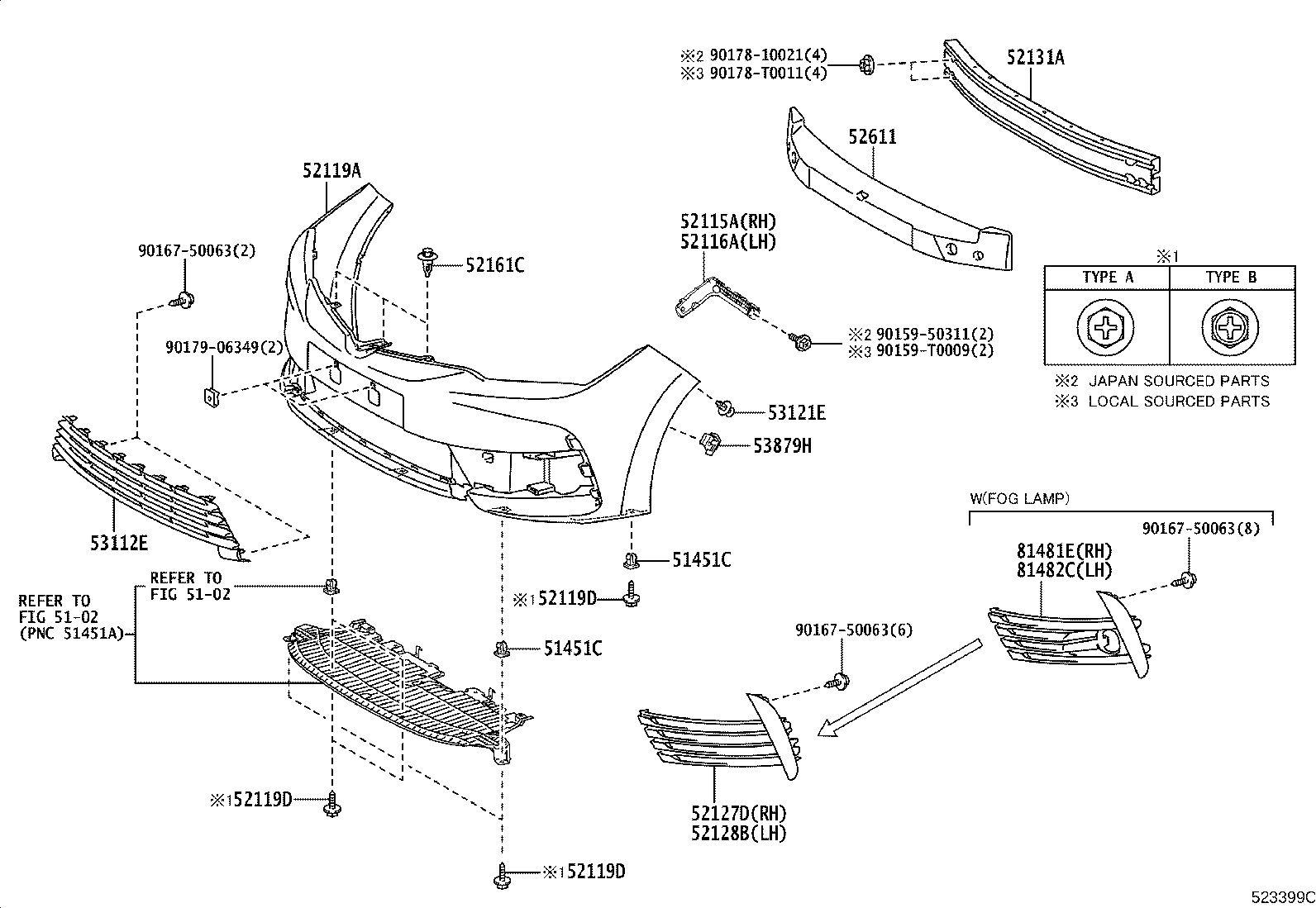

Figure 522878H 522878H 2013-10 → 2016-10 Figure 522878H 522878H 2013-10 → 2016-11 Figure 522878H 522878H 2014-05 → 2017-03 Figure 522878H 522878H 2014-07 → 2017-07 Figure 522878H 522878H 2014-09 → 2017-09 Figure 523302B 523302B 2016-01 → 2016-09 Figure 523399C 523399C 2016-10 → — Figure 523399C 523399C 2016-11 → — Figure 523399C 523399C 2017-03 → — Figure 523399C 523399C 2017-07 → 2020-12 Figure 523399C 523399C 2017-07 → — Figure 523399C 523399C 2017-09 → 2020-08 Figure 523399C 523399C 2017-09 → — Figure 524971A 524971A 2020-08 → — Figure 524971A 524971A 2020-12 → — Figure 523536B 523536B 2017-09 → —

Part groups

PNCDescription
51451C Grommet(FOR ENGINE UNDER COVER)
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
