Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 11 illustrations

Illustrations

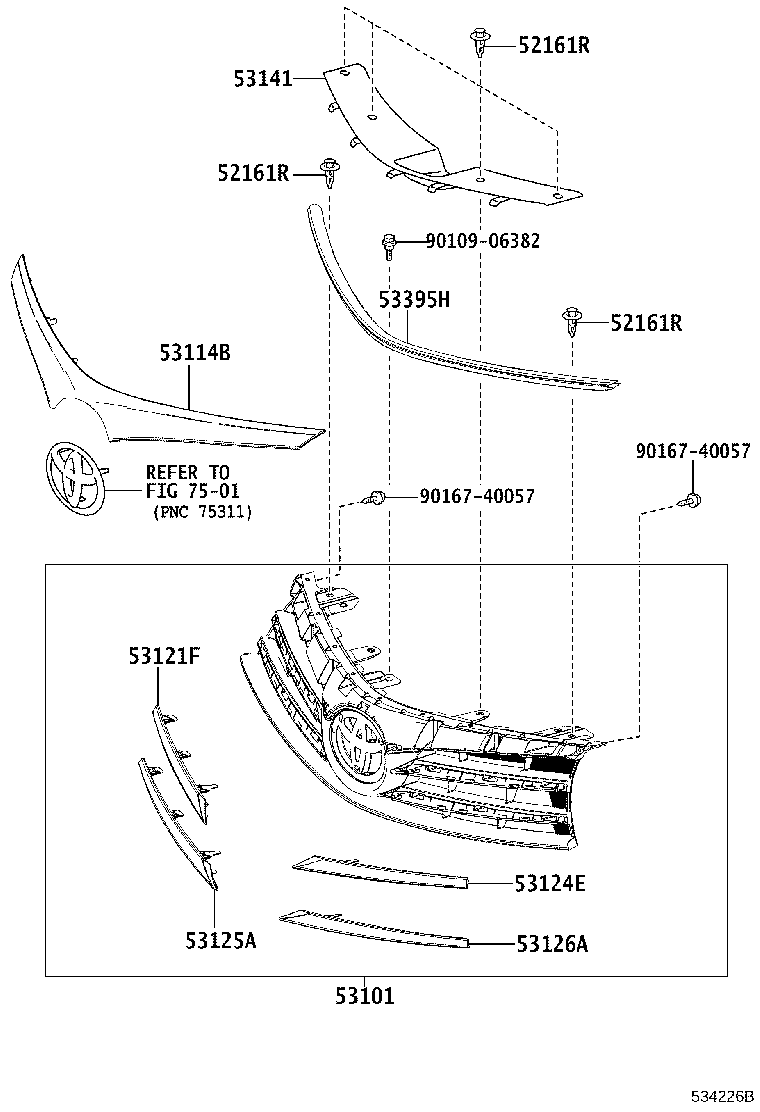

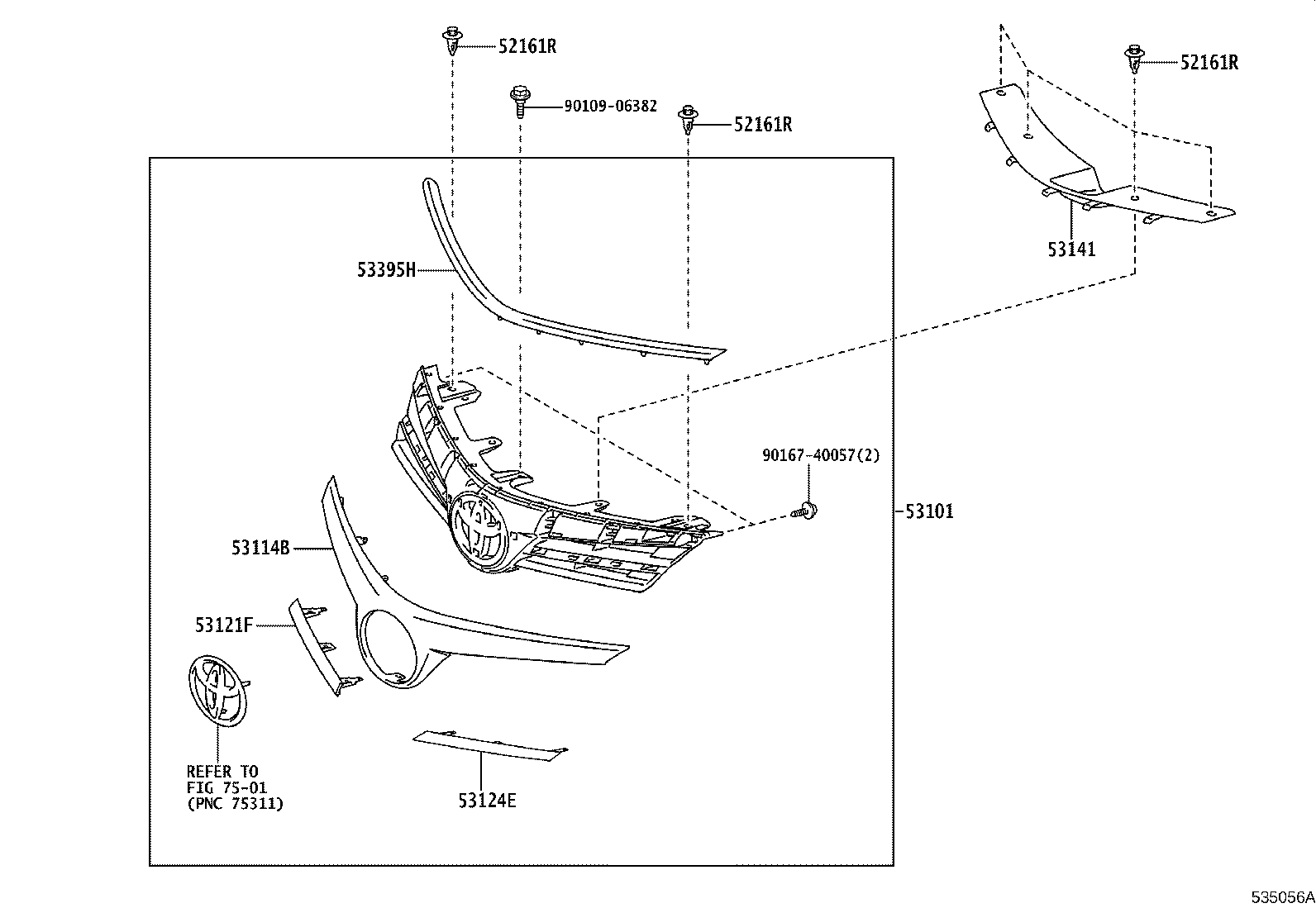

Figure 534085A 534085A 2013-10 → 2016-10 Figure 534085A 534085A 2013-10 → 2016-11 Figure 534085A 534085A 2014-05 → 2017-03 Figure 534085A 534085A 2014-07 → 2017-07 Figure 534085A 534085A 2014-09 → 2017-09 Figure 534226B 534226B 2014-07 → 2017-07 Figure 535056A 535056A 2016-10 → — Figure 535056A 535056A 2016-11 → — Figure 535056A 535056A 2017-03 → — Figure 535056A 535056A 2017-07 → — Figure 535056A 535056A 2017-09 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53114B Grille, Radiator, Upper
53121F Moulding, Radiator Grille, Upper RH
53124E Moulding, Radiator Grille, Lower LH
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53141 Cover, Radiator
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
