Toyota Corolla/Altis
2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General
Supported model
Data version 2022-08

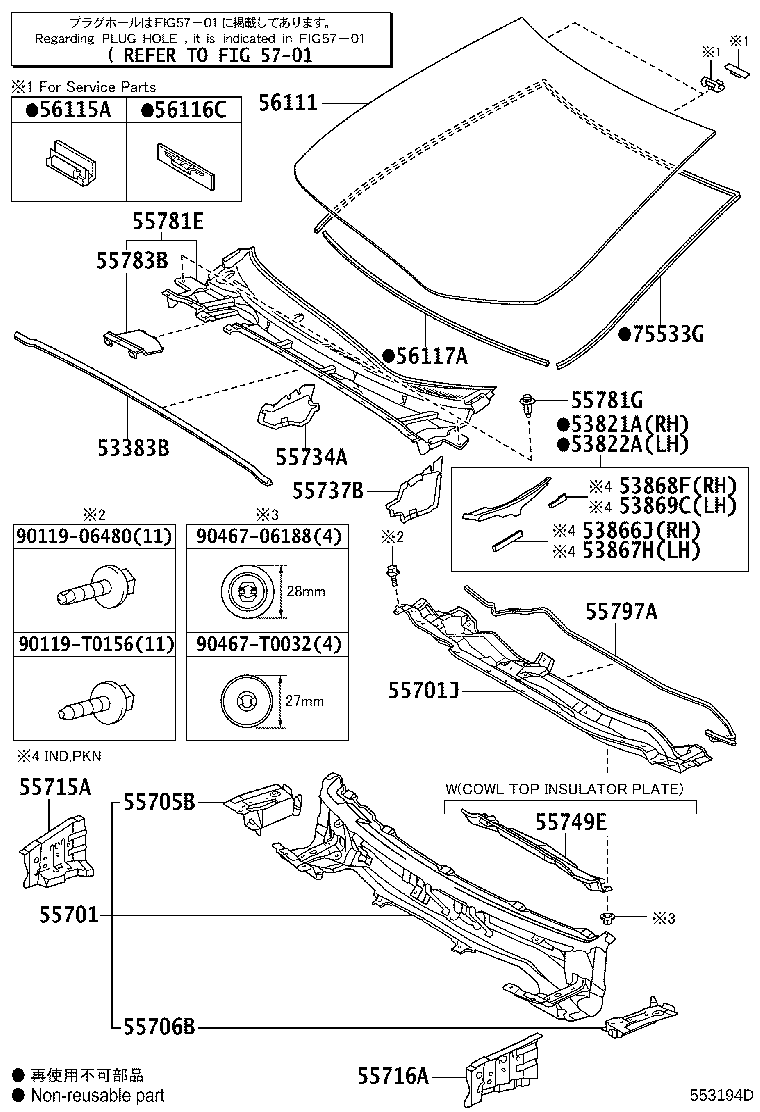

Cowl Panel & Windshield Glass
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53821A | Protector, Front Side Panel, NO.1 RH |
| 53822A | Protector, Front Side Panel, NO.1 LH |
| 53866J | Seal, Front Fender TO Cowl Side, RH |
| 53867H | Seal, Front Fender TO Cowl Side, LH |
| 53868F | Seal, Front Fender TO Cowl Side, NO.2 RH |
| 53869C | Seal, Front Fender TO Cowl Side, NO.2 LH |
| 55701 | Panel Sub-assy, Cowl |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55734A | Plate, Water Guard, RH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55749E | Plate, Cowl Top Insulator, NO.2 |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55783B | Louver, Cowl Top Ventilator, Center NO.1 |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
