Toyota Corolla/Altis
2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General
Supported model
Data version 2022-08

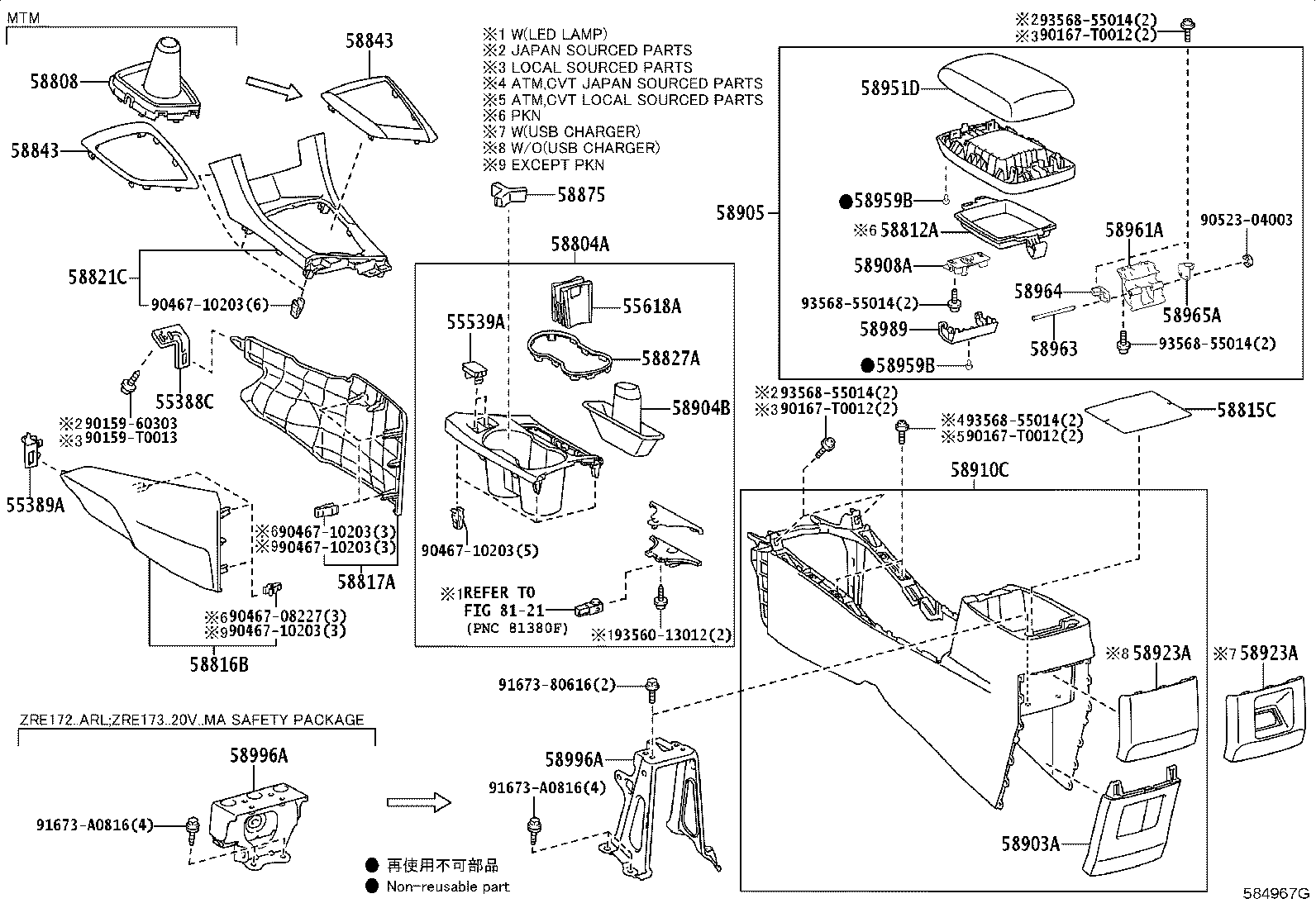

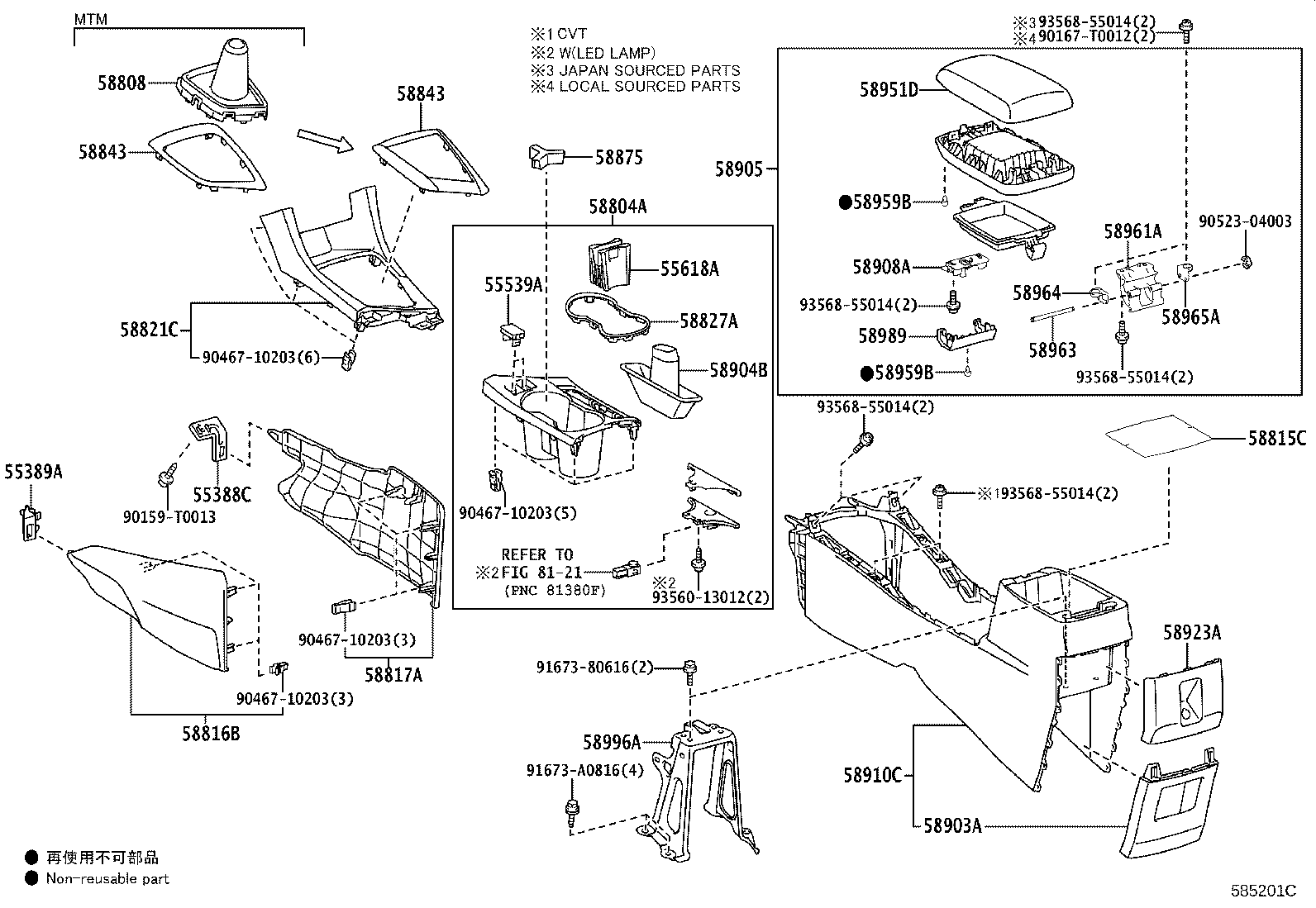

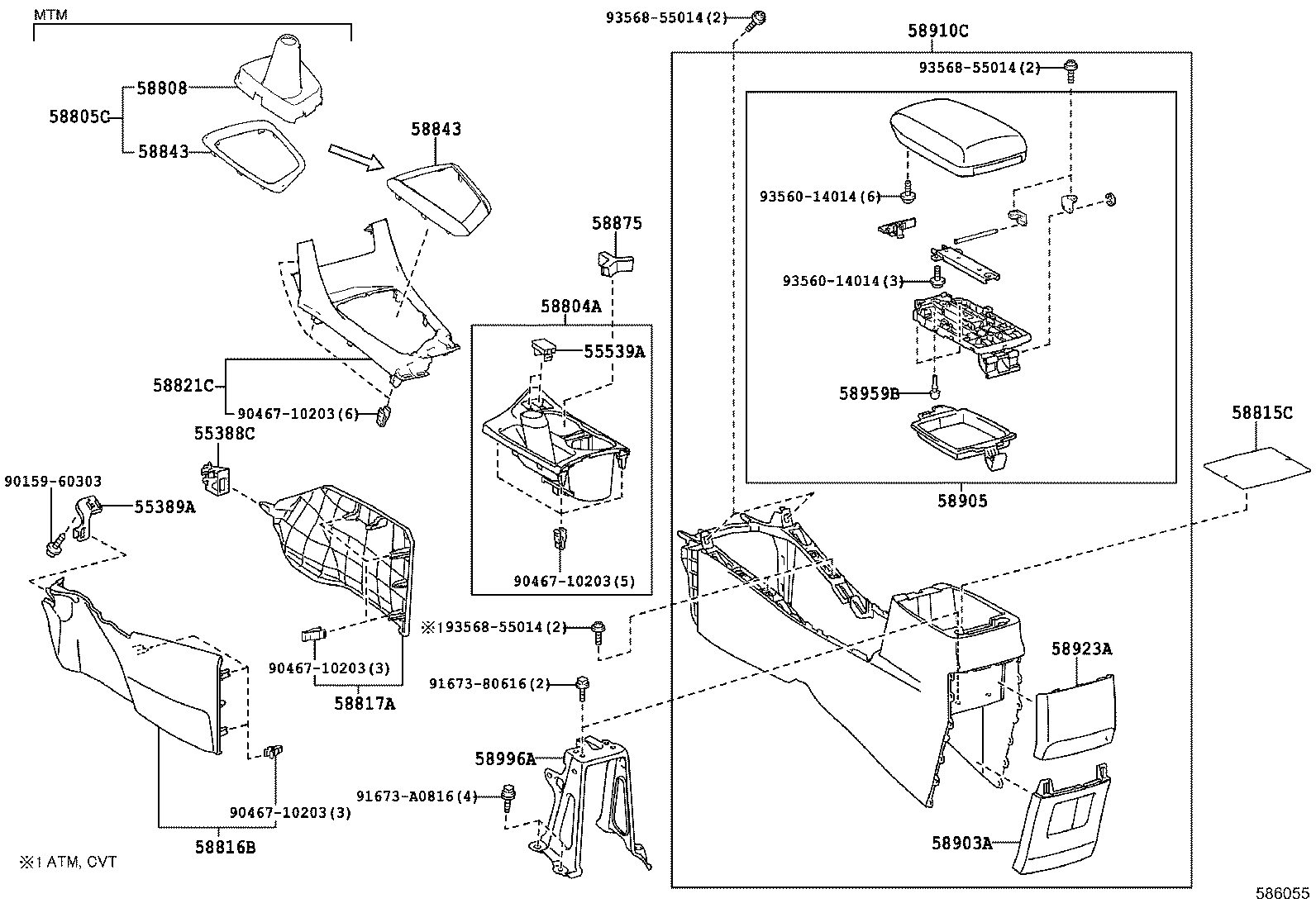

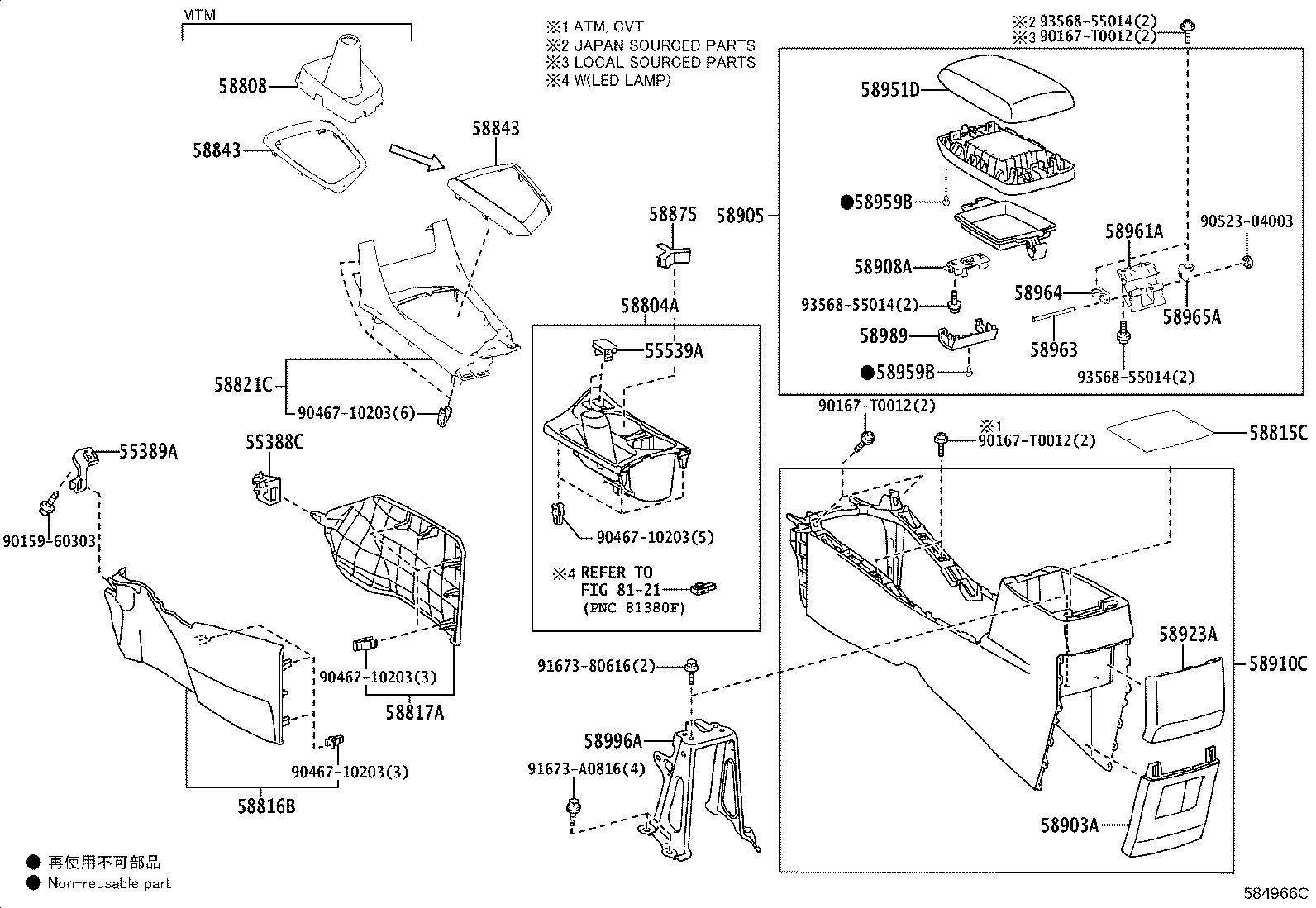

Console Box & Bracket
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55388C | Bracket, Console Mounting, RH |
| 55389A | Bracket, Console Mounting, LH |
| 55539A | Cover, Spare Switch Hole |
| 55618A | Holder, Console Box Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58812A | Box, Console, Lower |
| 58815C | Carpet, Console Box |
| 58816B | Insert, Console Box |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58827A | Garnish, Console Box Pocket |
| 58843 | Bezel, Shifting Hole |
| 58875 | Spacer, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58923A | Panel, Console Rear End |
| 58951D | Door, Console Compartment, Outer |
| 58959B | Cushion, Console Compartment Door |
| 58961A | Hinge, Console Compartment Door Male |
| 58963 | Shaft, Console Compartment Door Hinge |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58989 | Panel, Console Compartment Door |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
