Toyota Corolla/Altis
2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General
Supported model
Data version 2022-08

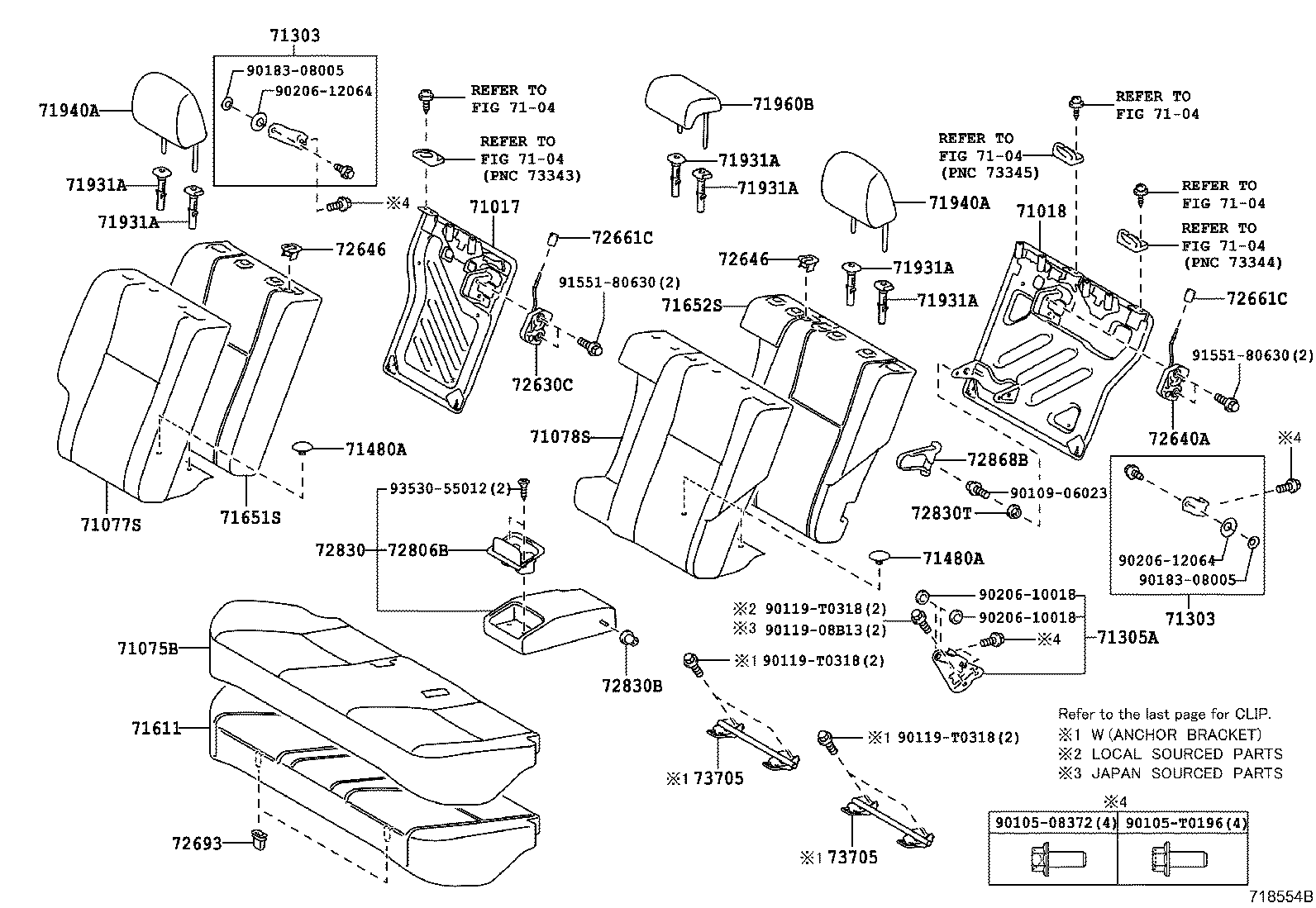

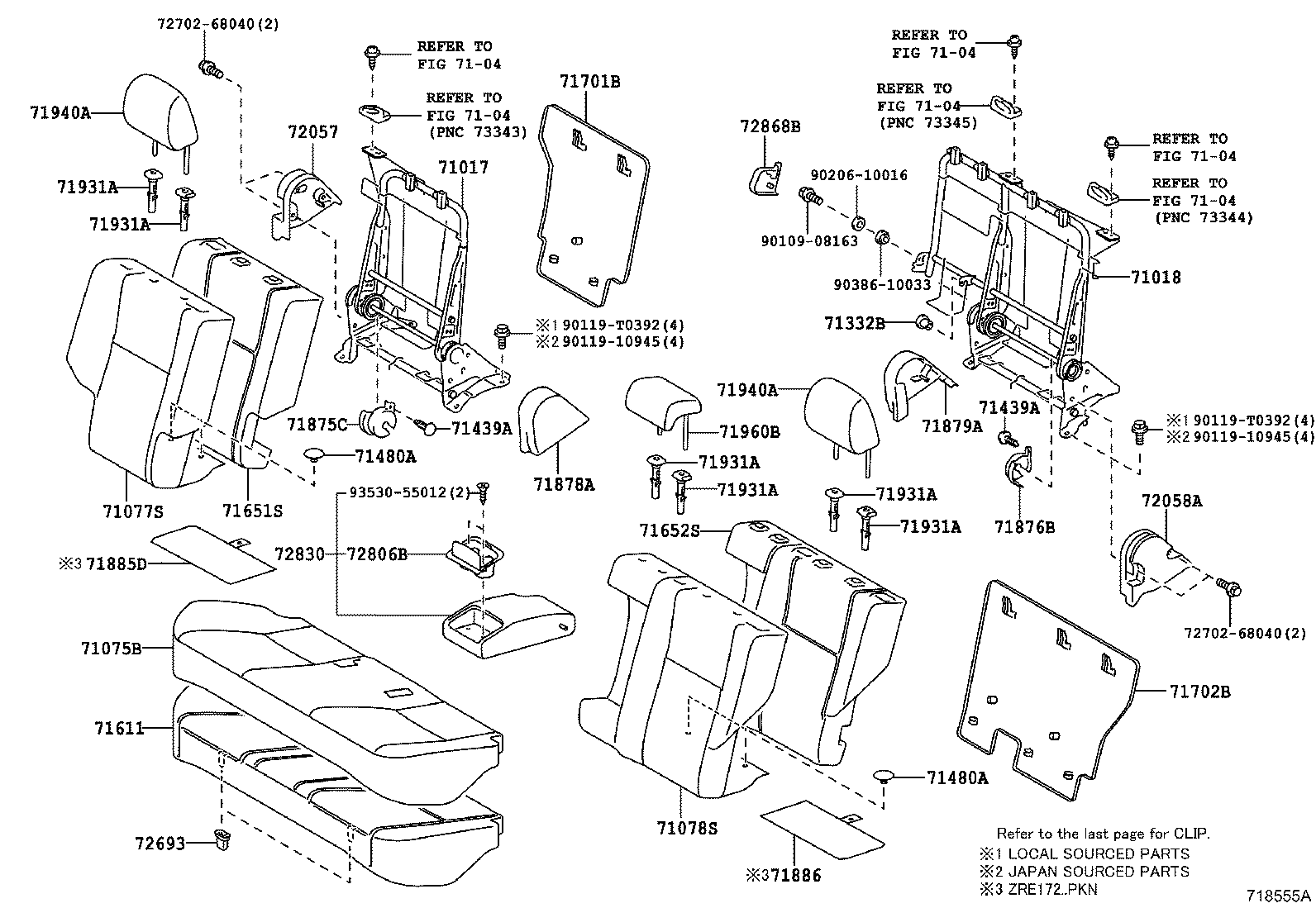

Rear Seat & Seat Track
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71281A | Hinge, Rear Seat Center Armrest |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71332B | Spacer, Rear Seatback Hinge |
| 71439A | Clip |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71701B | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71885D | Carpet, Rear Seatback, RH |
| 71886 | Carpet, Rear Seatback, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72661C | Button, Rear Seatback Lock Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
| 72830T | Bush (FOR REAR SEAT CENTER ARMREST) |
| 72868B | Cover, Center Armrest Hinge |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
