Toyota Corolla/Altis
2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General
Supported model
Data version 2022-08

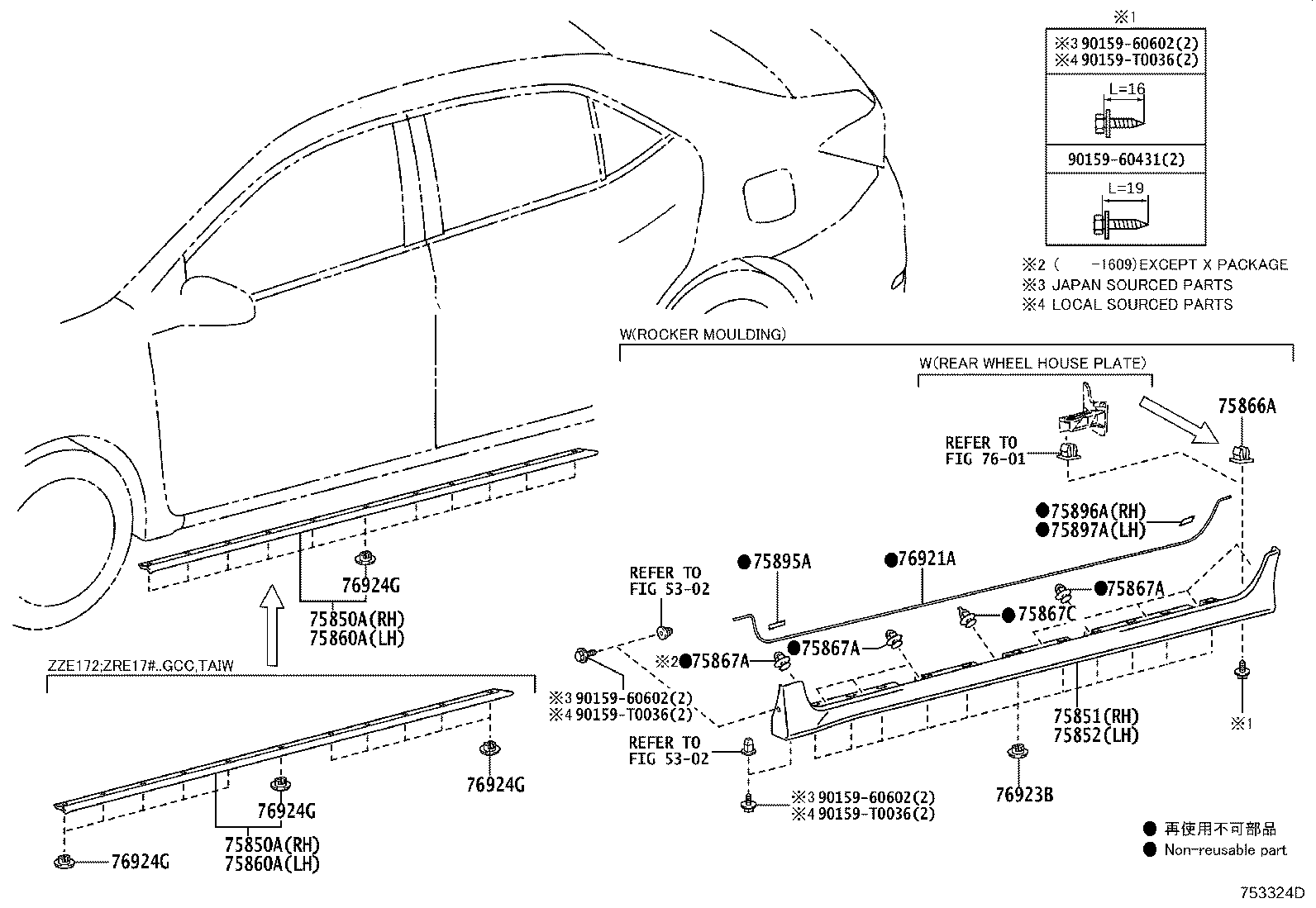

Side Moulding
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 67887F | Weatherstrip, Rear Door, NO.2 RH |
| 67888D | Weatherstrip, Rear Door, NO.2 LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731B | Moulding, Front Door, Outside RH |
| 75732B | Moulding, Front Door, Outside LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75792 | Clip, Door Window Frame Moulding |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75866A | Retainer, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75895A | Tape, Moulding, NO.1 |
| 75896A | Tape, Moulding, NO.2 |
| 75897A | Tape, Moulding, NO.2 |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76923B | Retainer, Side Mudguard |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
