Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

21 part groups · 12 illustrations

Illustrations

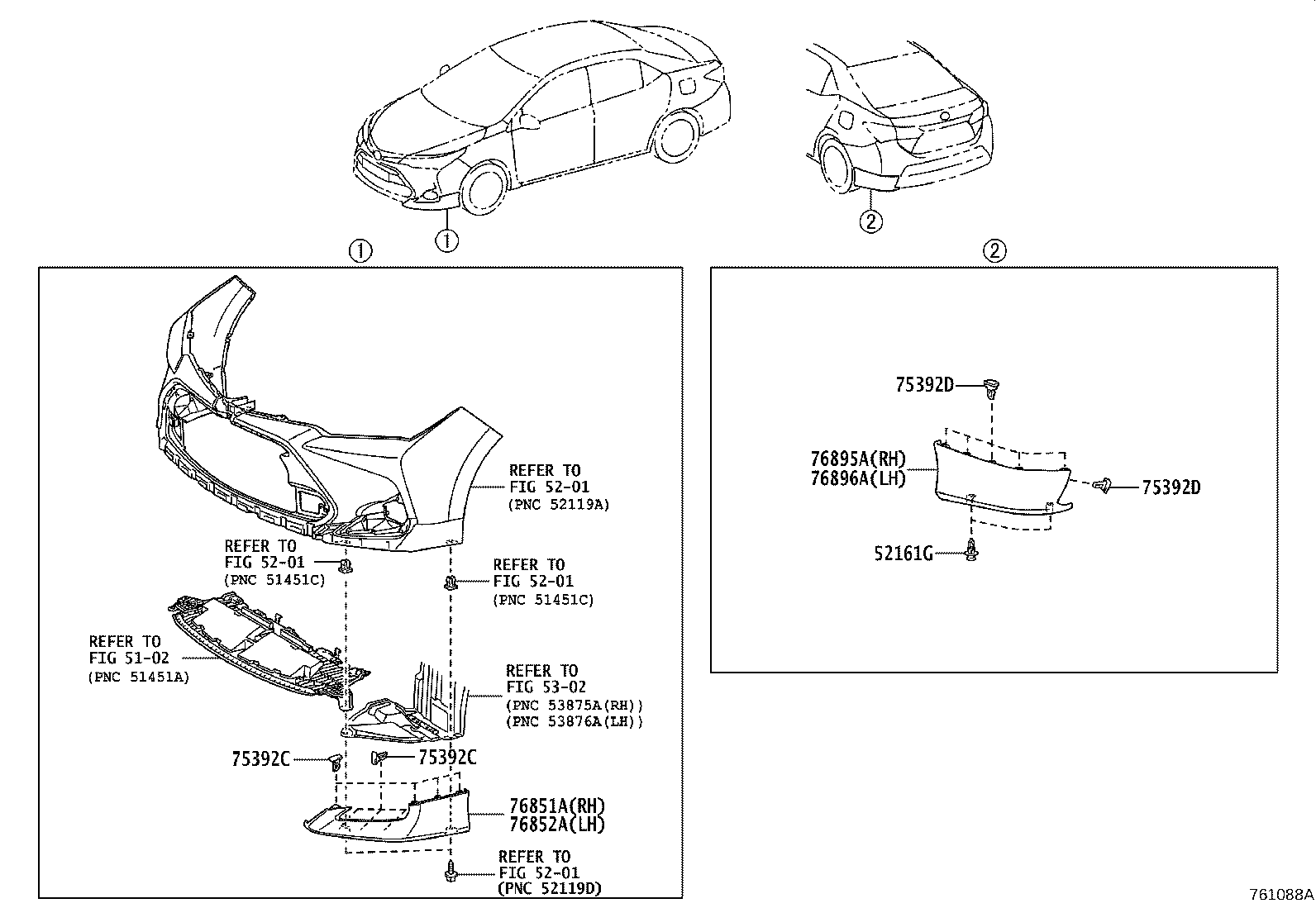

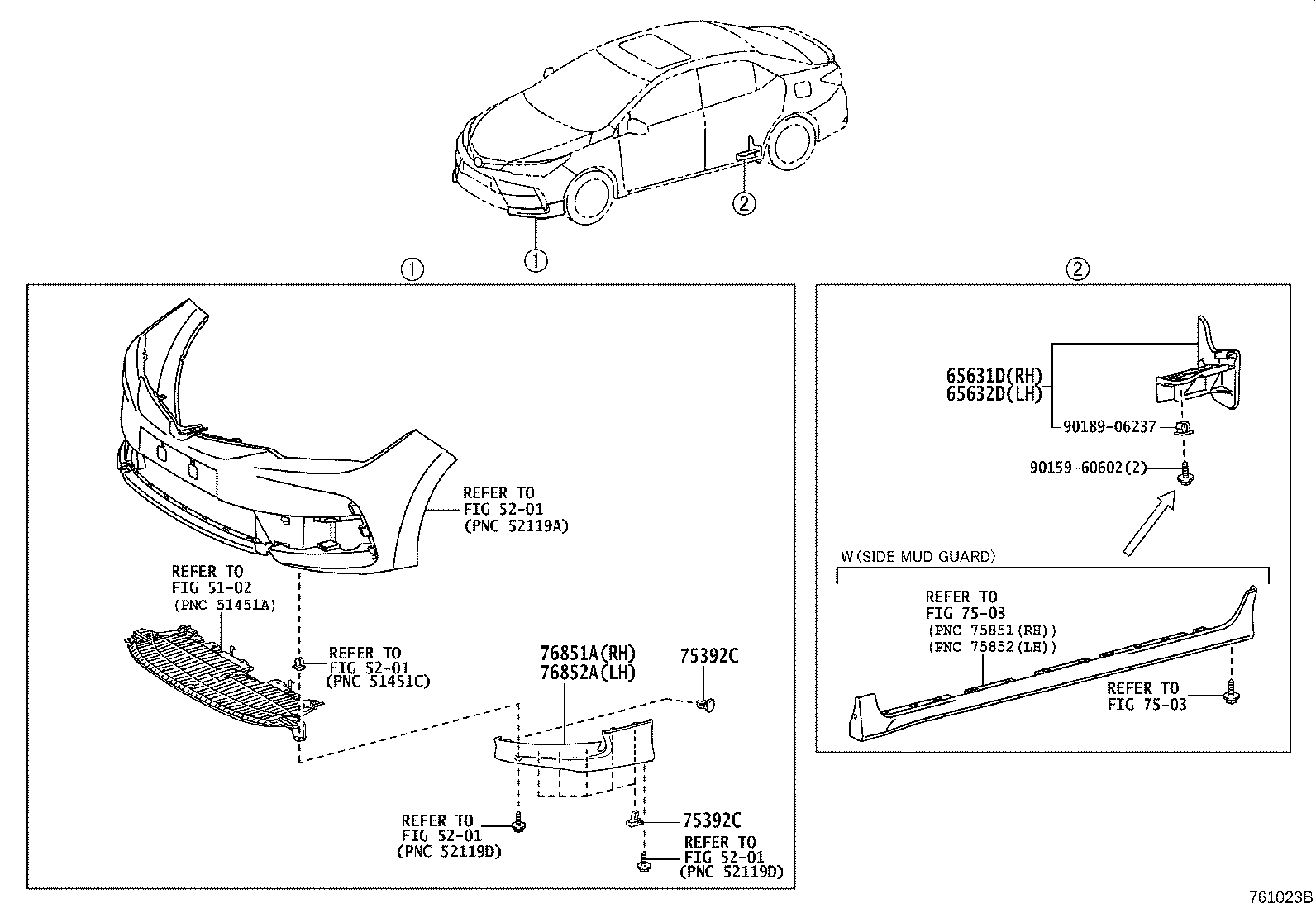

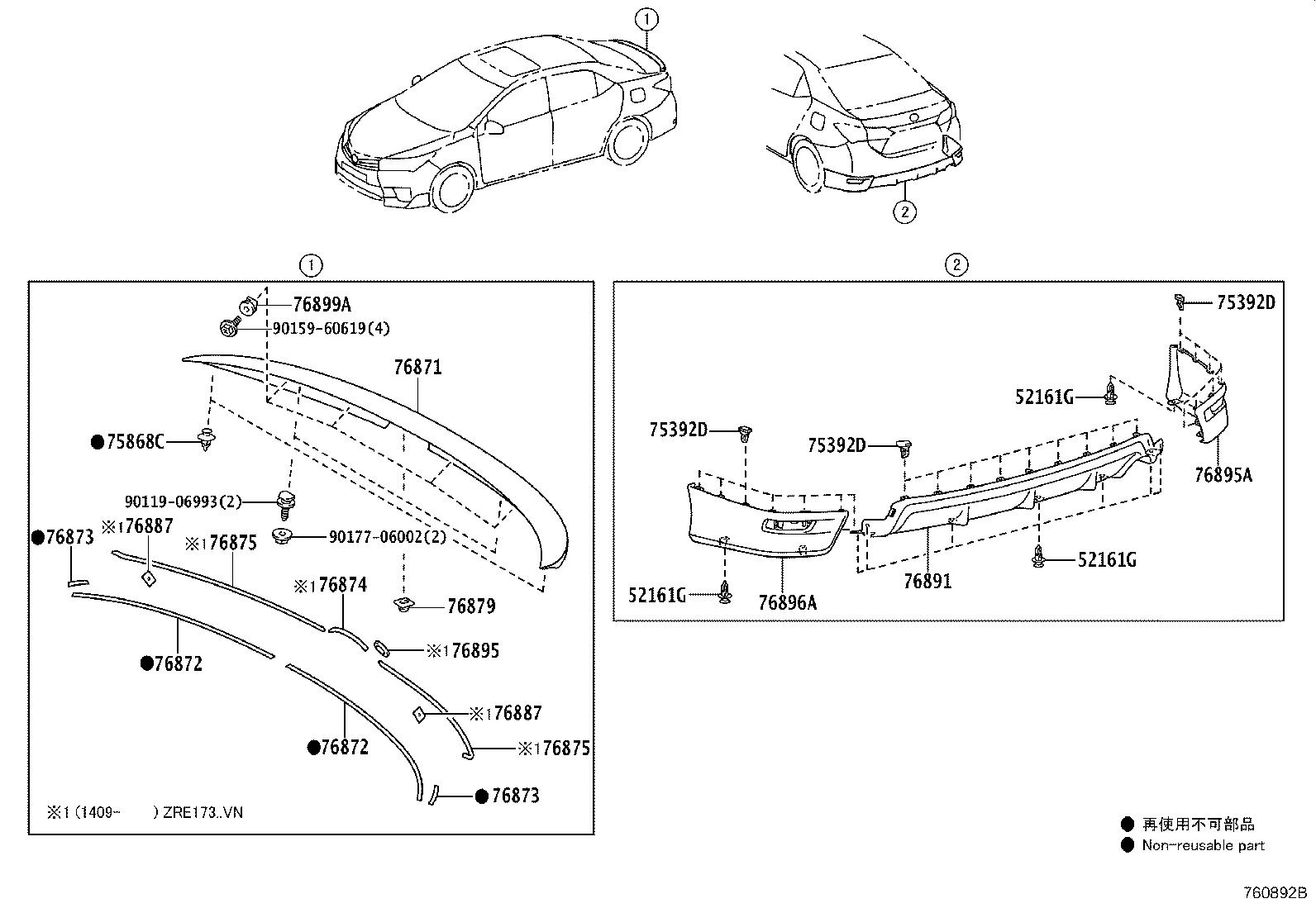

Figure 760891B 760891B 2013-10 → 2016-10 Figure 760891B 760891B 2013-10 → 2016-11 Figure 760891B 760891B 2013-12 → 2016-10 Figure 760891B 760891B 2014-05 → 2017-02 Figure 760891B 760891B 2014-09 → 2017-09 Figure 761023B 761023B 2016-10 → — Figure 761023B 761023B 2016-11 → — Figure 761023B 761023B 2017-02 → — Figure 761023B 761023B 2017-09 → — Figure 760892B 760892B 2013-10 → — Figure 761088A 761088A 2017-09 → — Figure 761136A 761136A 2020-06 → —

Part groups

PNCDescription
52161G Piece, Rear Bumper
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392C Retainer, Outside Moulding
75392D Retainer, Outside Moulding
75868C Clip, Rear Spoiler, NO.2
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76877A Protector, Front Spoiler
76879 Clip, Rear Spoiler, NO.1
76887 Seal, Rear Spoiler
76891 Spoiler, Rear NO.1
76895 Protector, Rear Spoiler, NO.5
76895A Spoiler, Rear Bumper, RH
76896A Spoiler, Rear Bumper, LH
76899A Nut, Rear Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
