Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

22 part groups · 20 illustrations

Illustrations

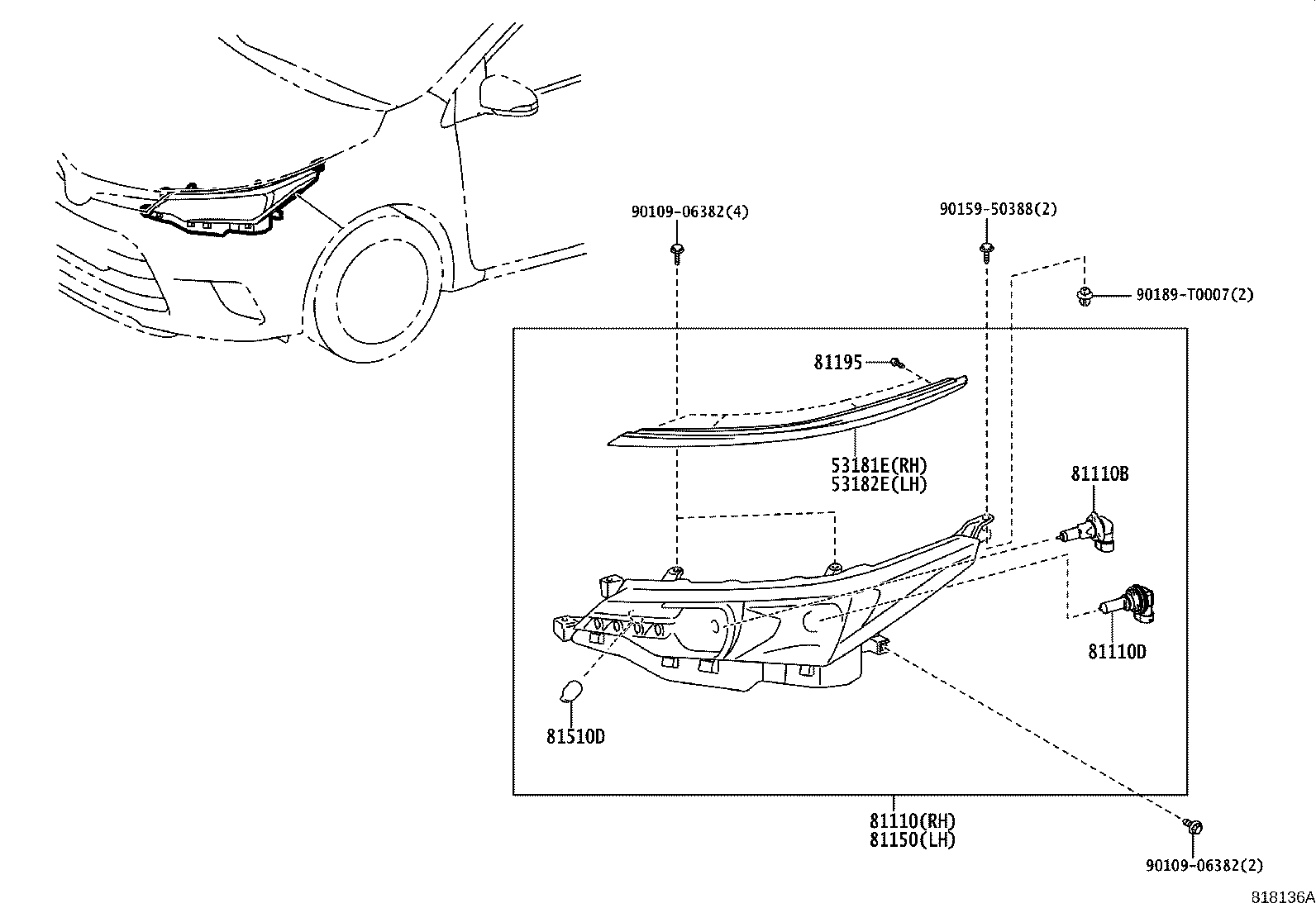

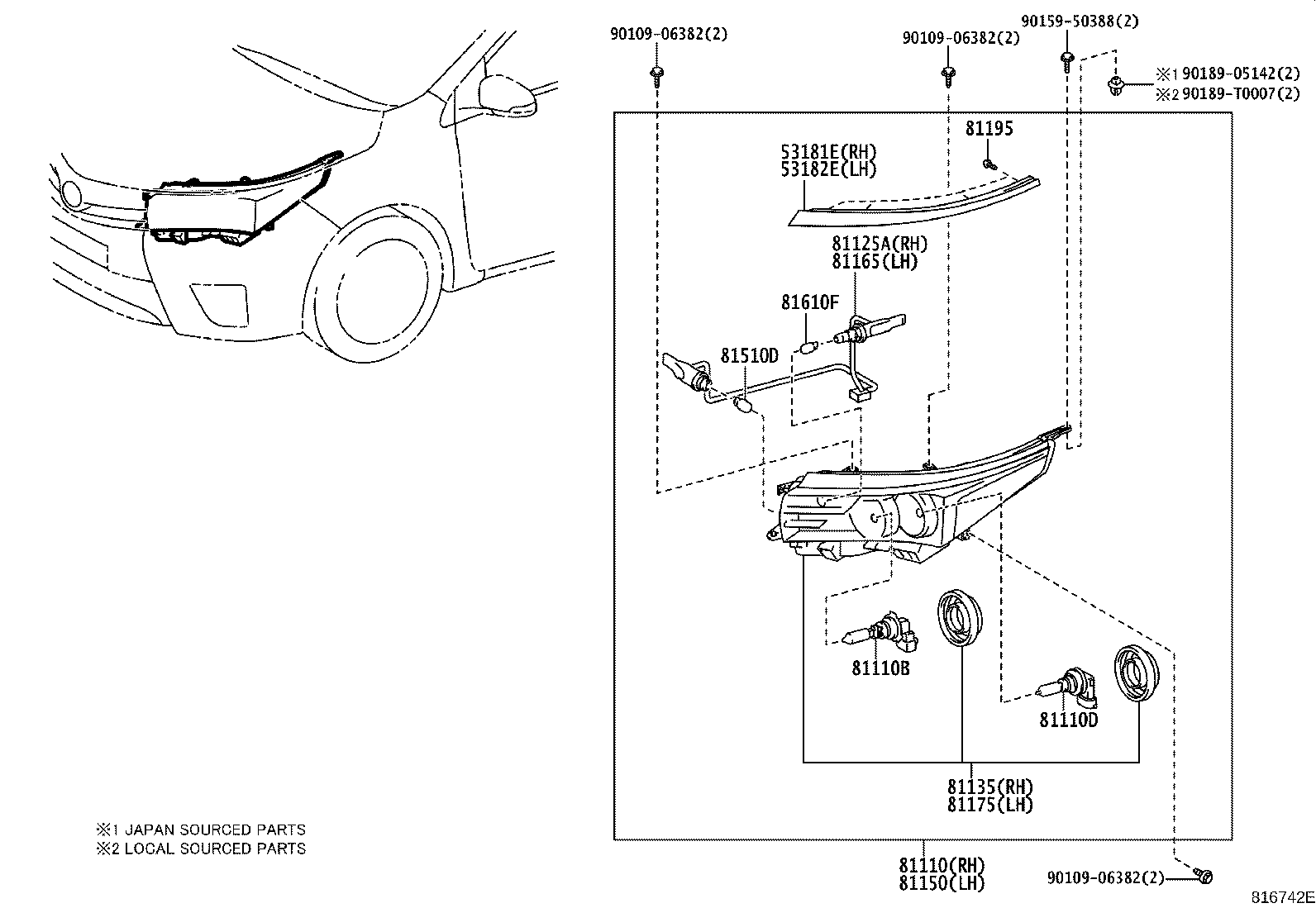

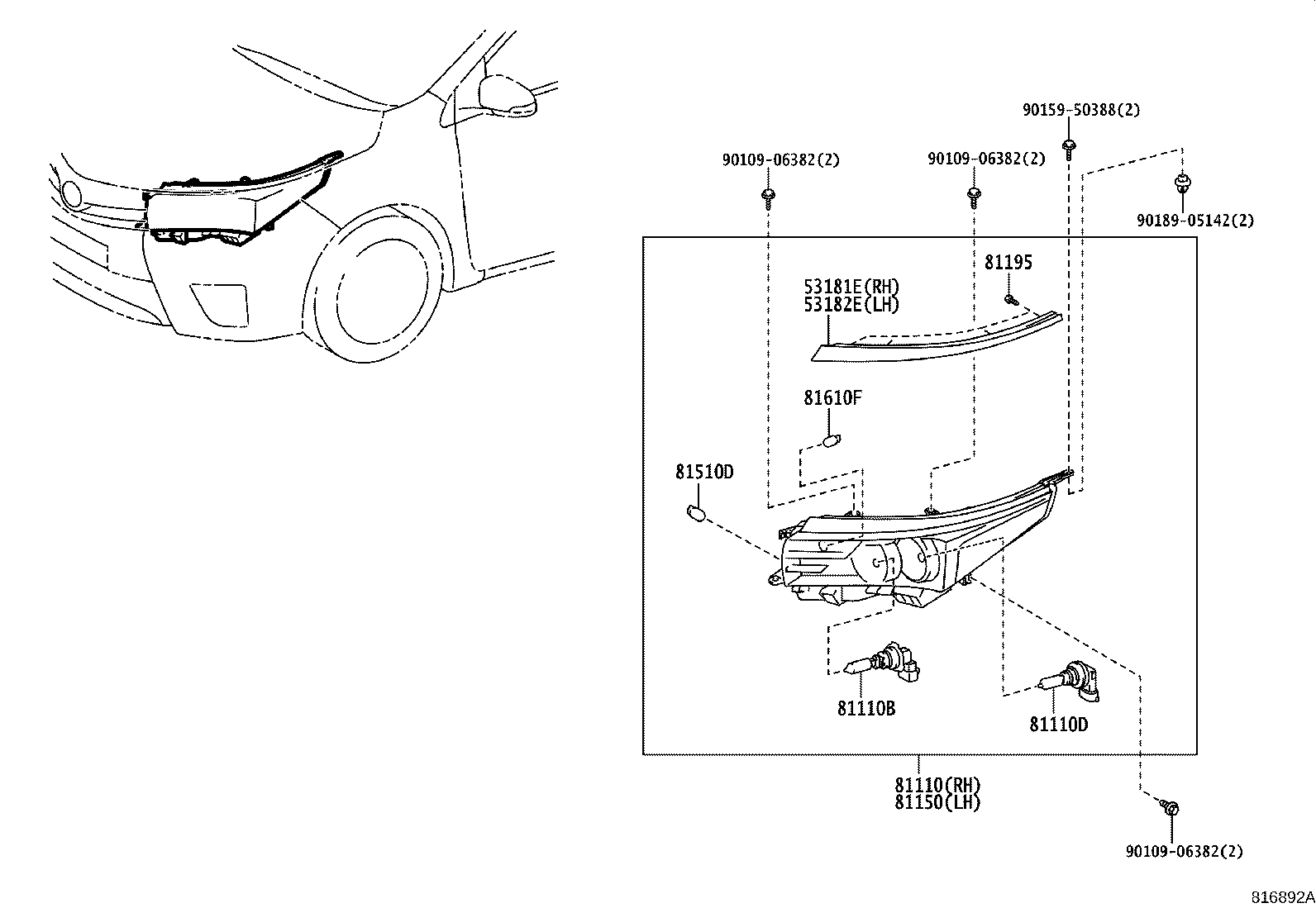

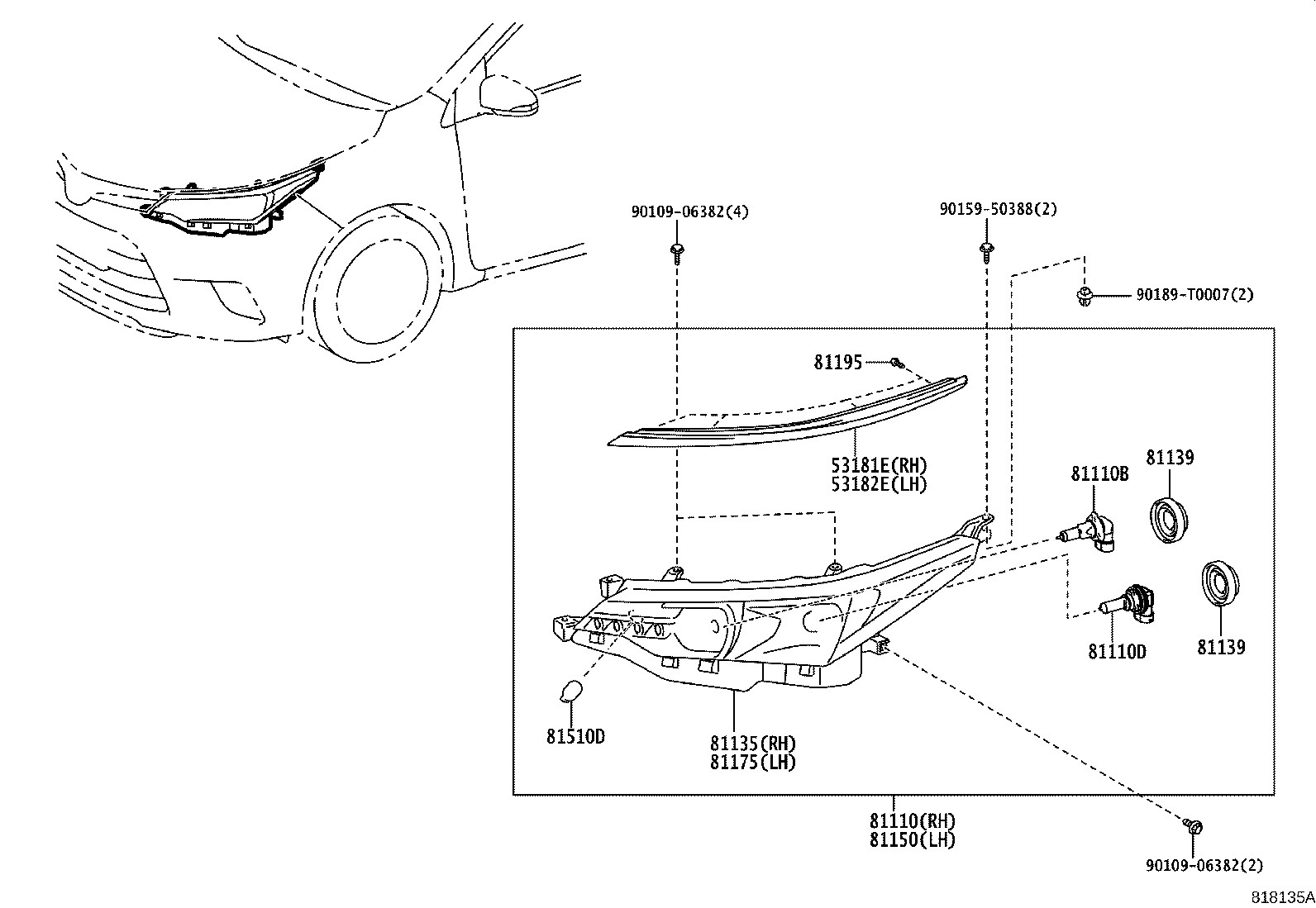

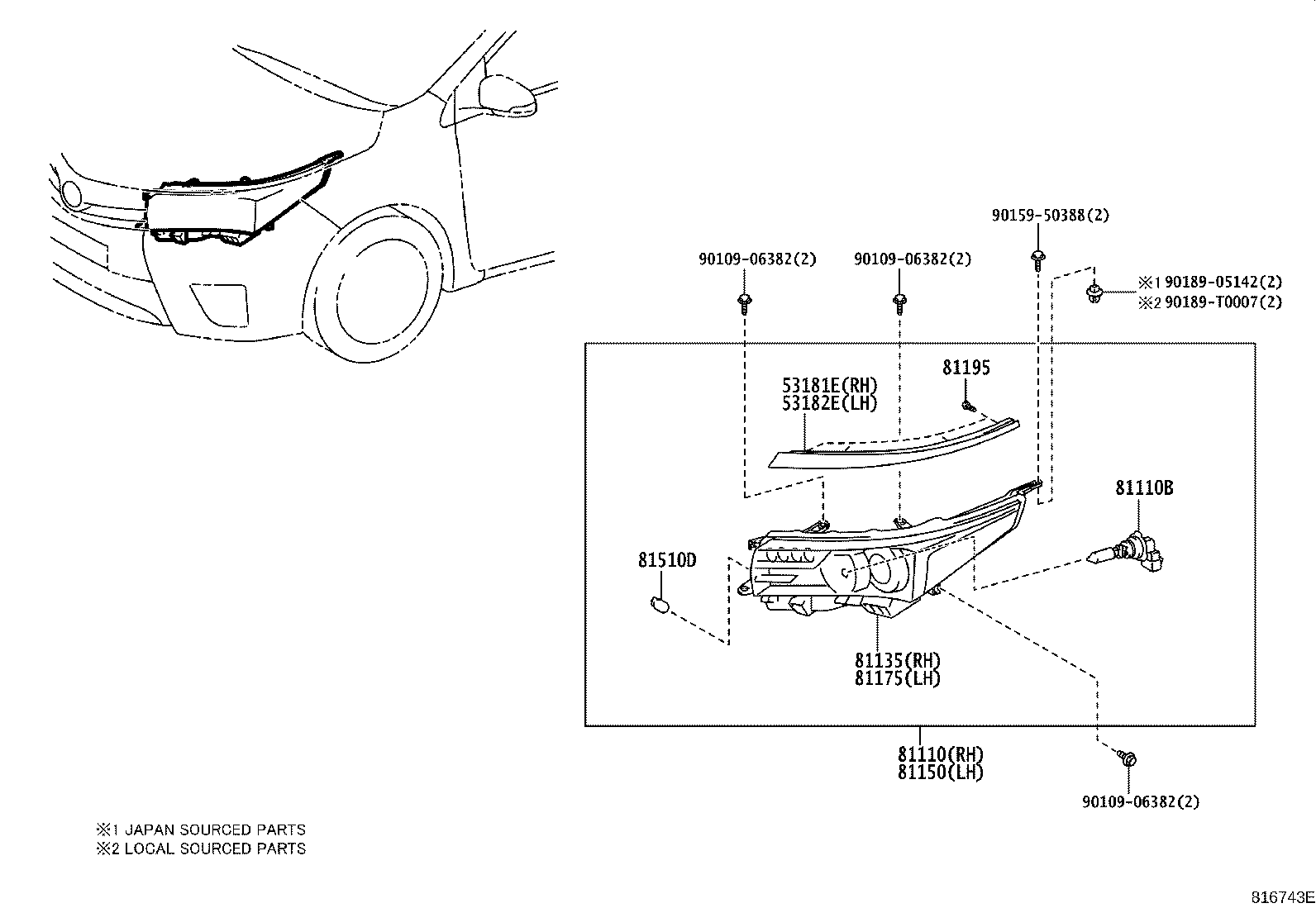

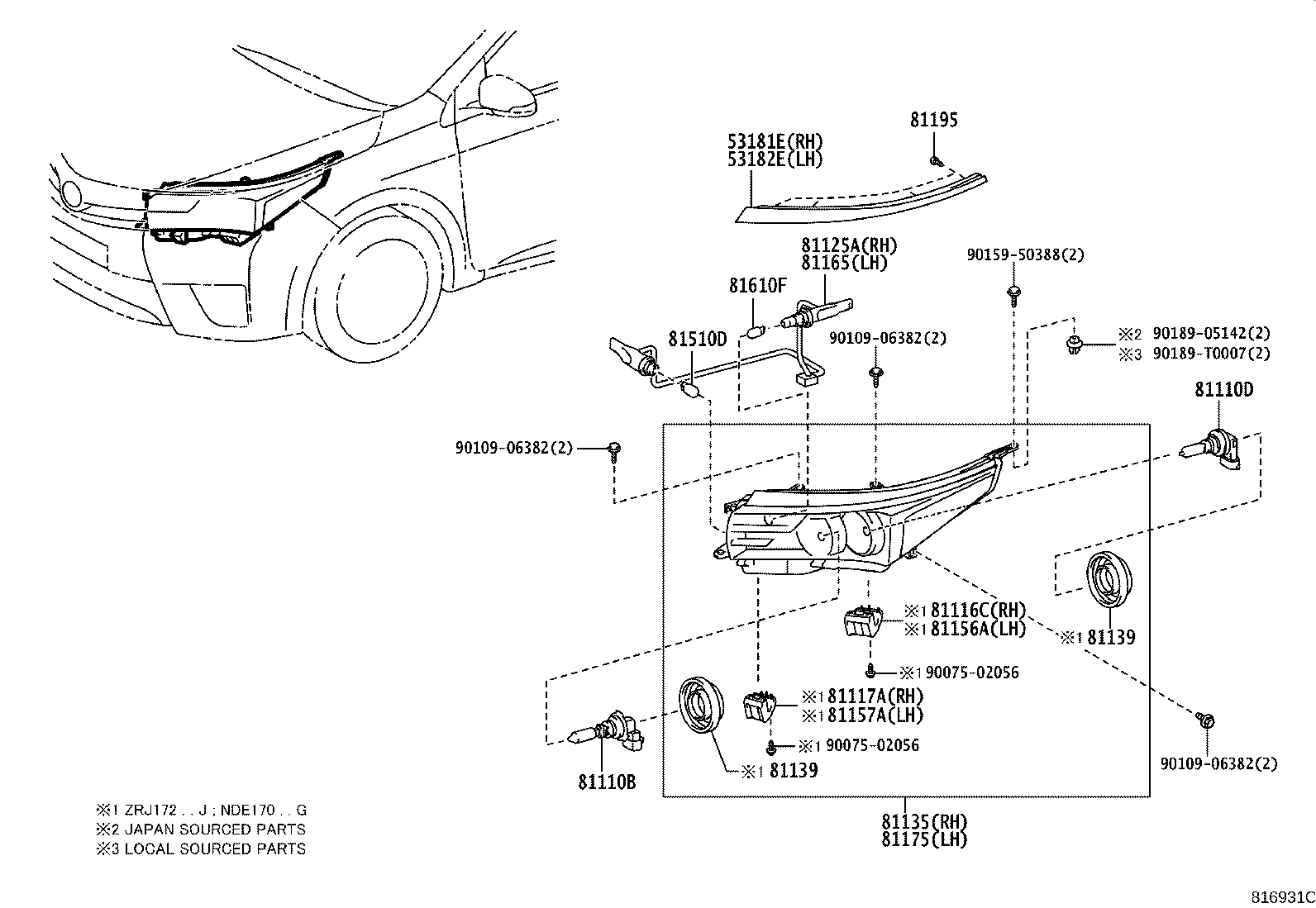

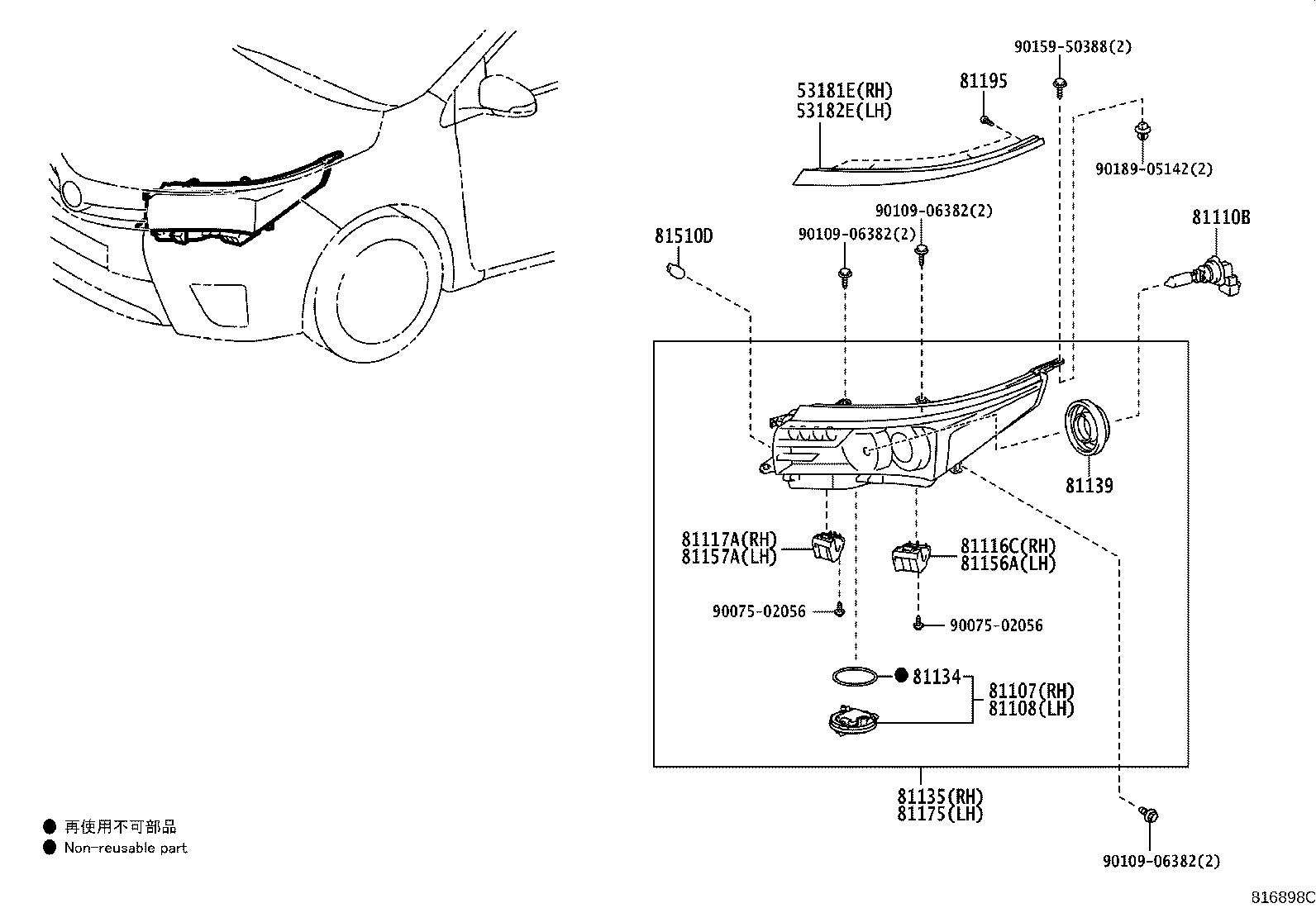

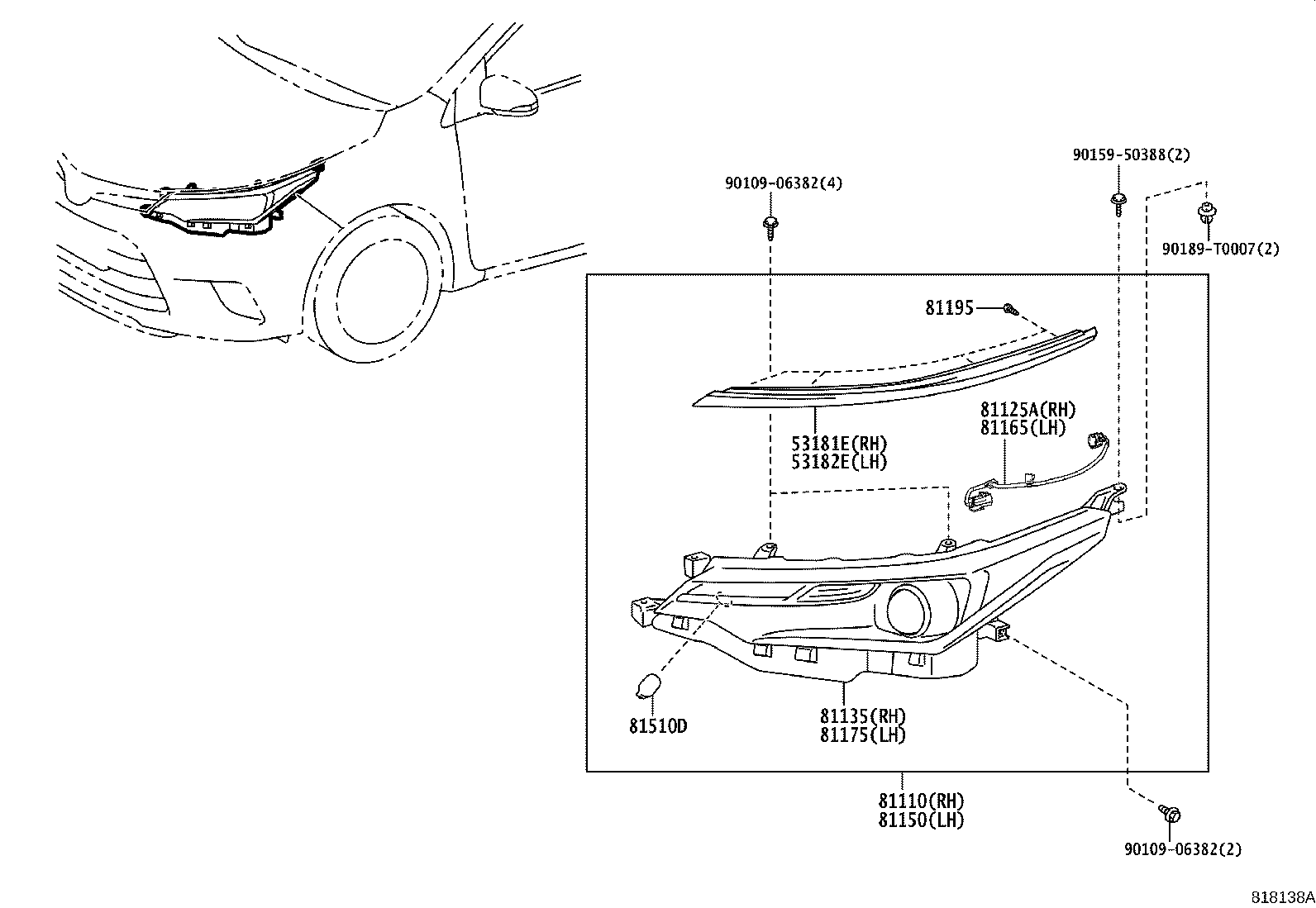

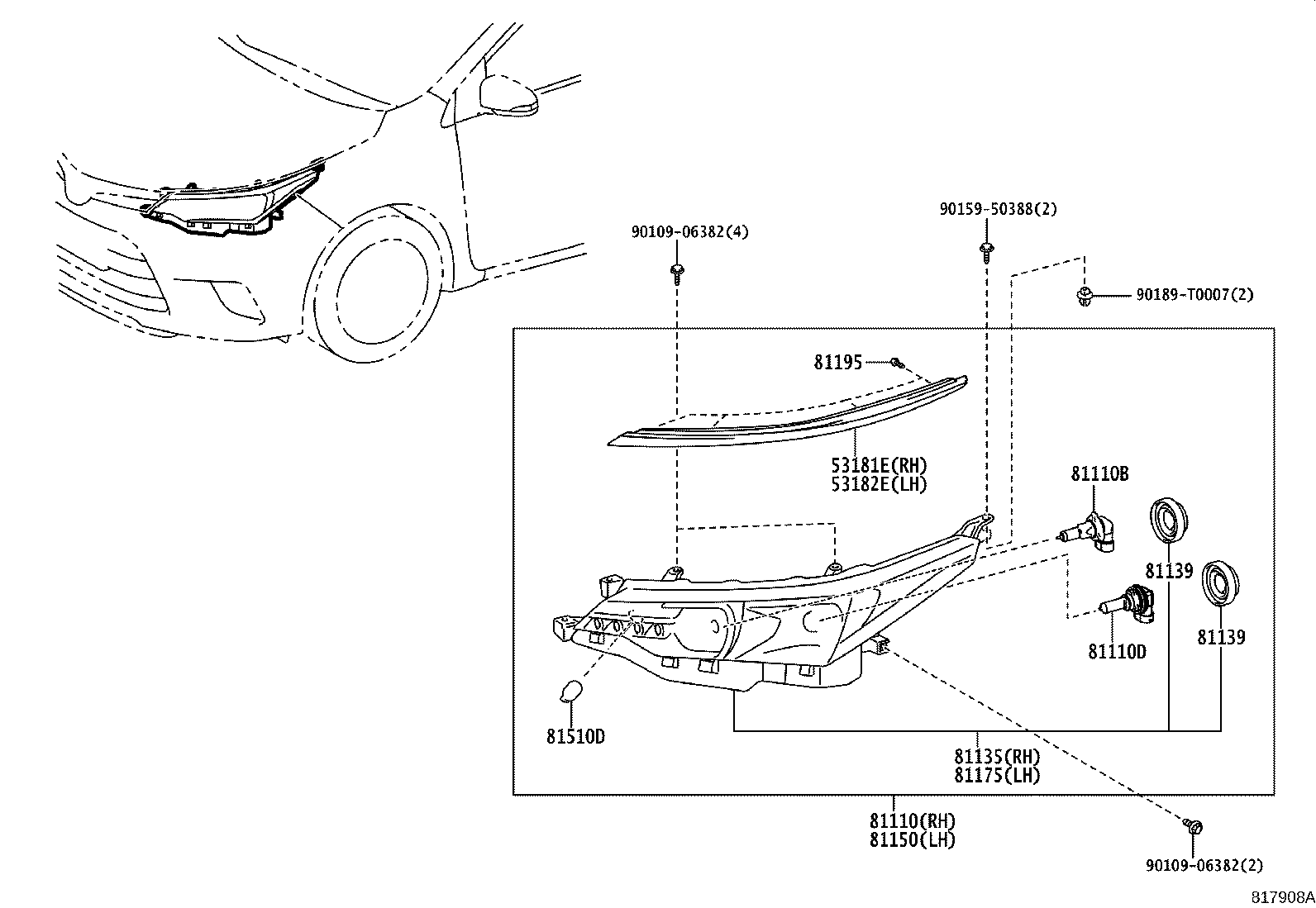

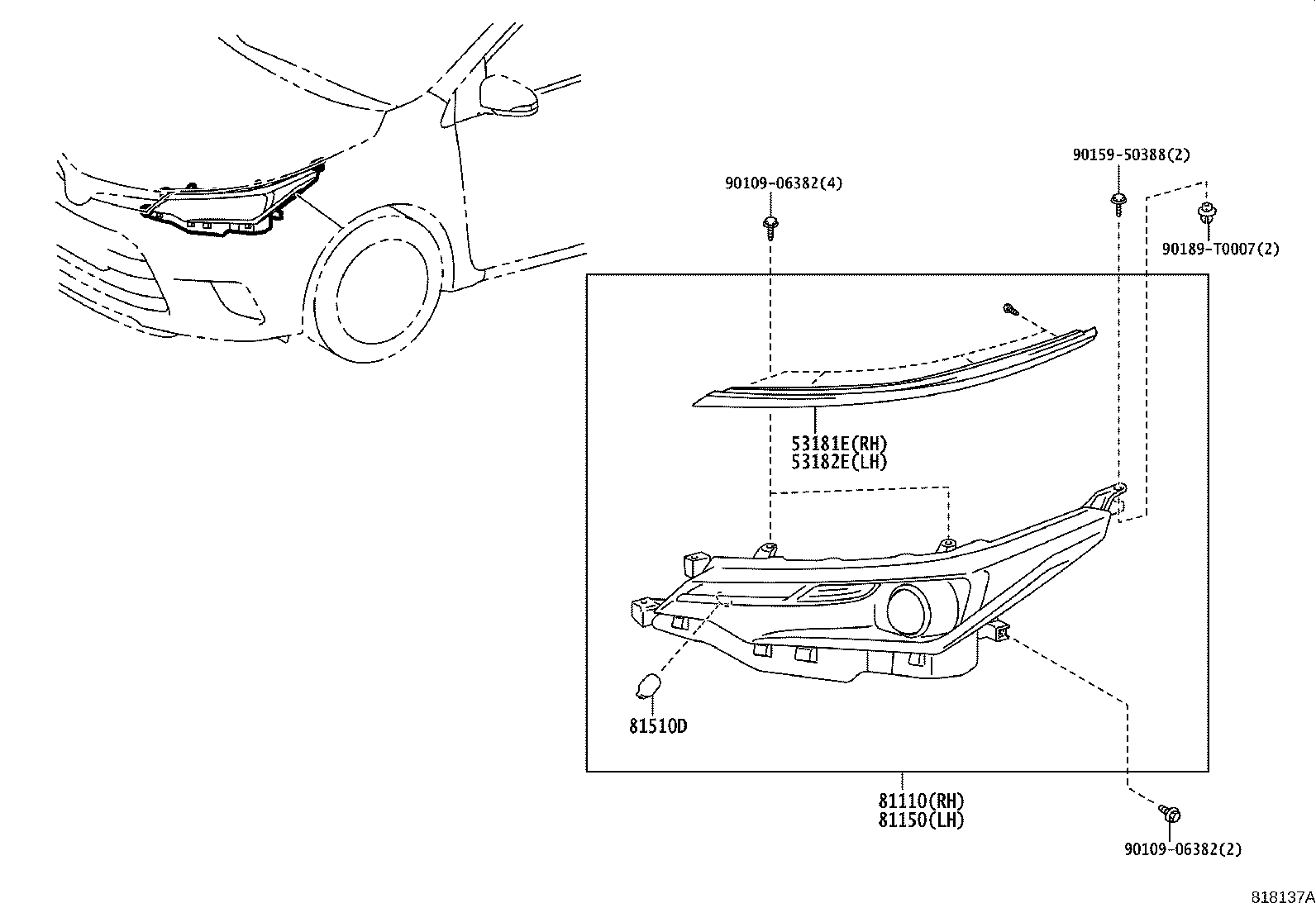

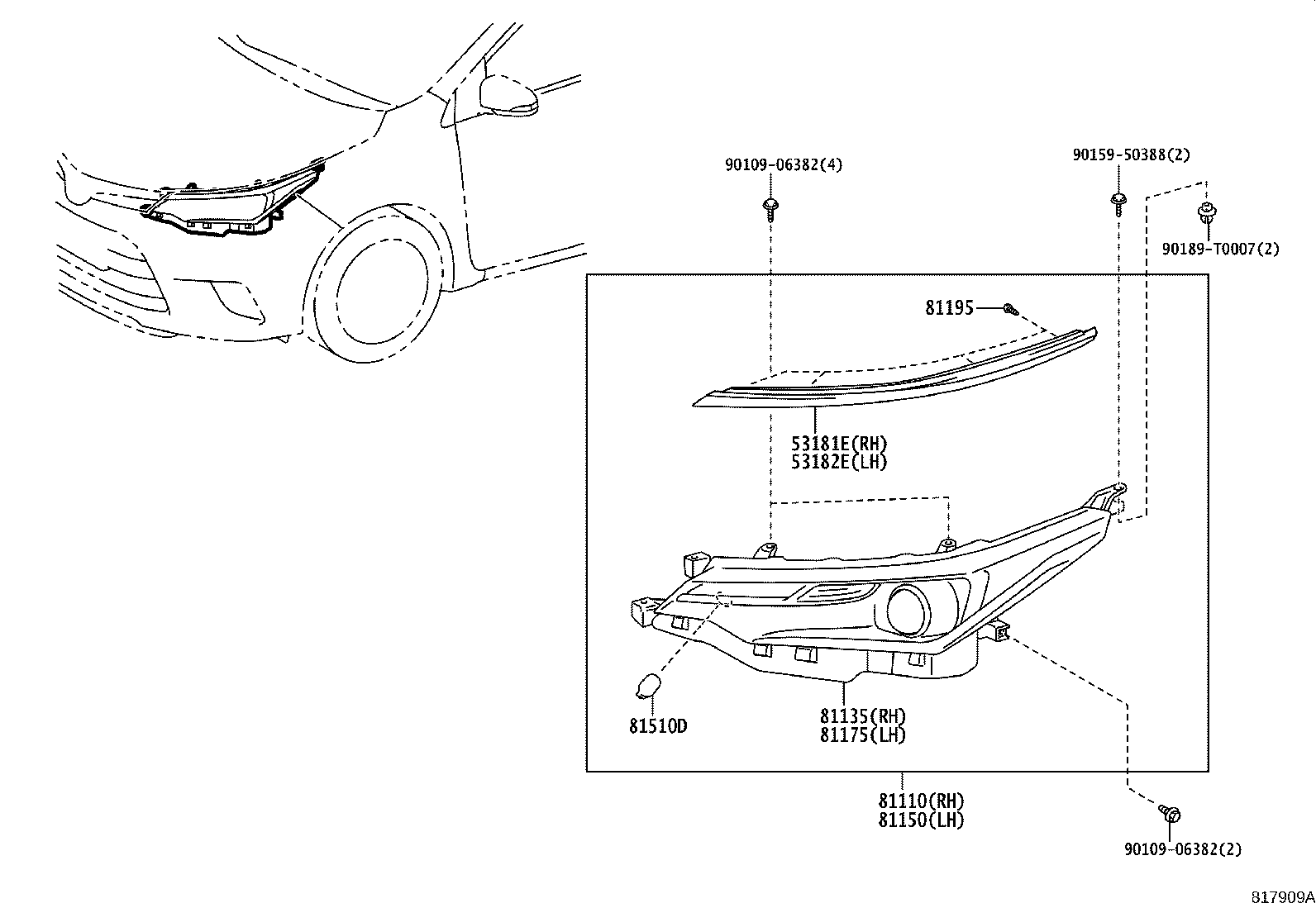

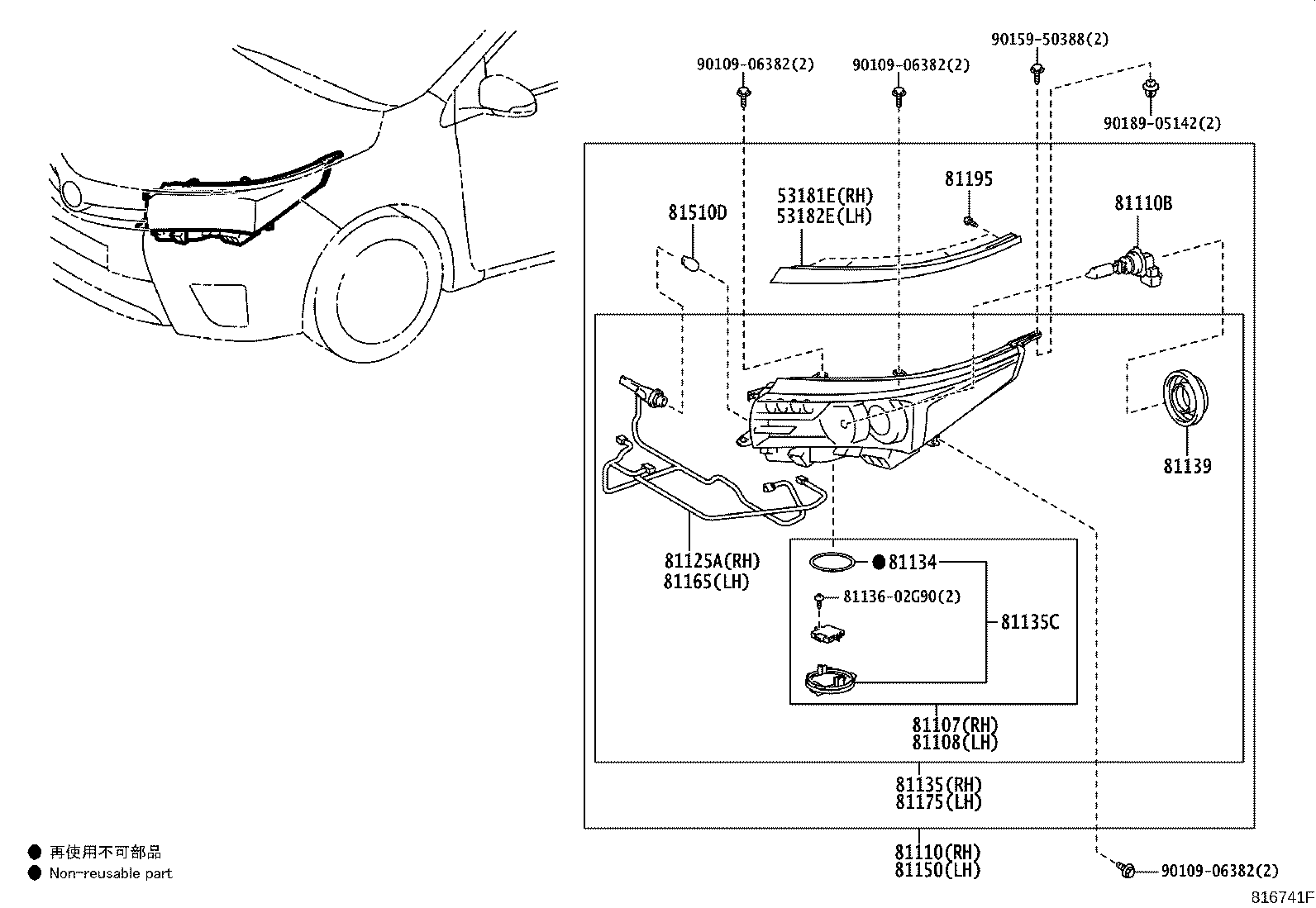

Figure 816744D 816744D 2013-10 → 2014-09 Figure 816744D 816744D 2013-10 → 2016-10 Figure 816741F 816741F 2013-10 → 2016-10 Figure 816742E 816742E 2013-12 → 2016-11 Figure 816742E 816742E 2016-11 → 2017-09 Figure 816743E 816743E 2013-12 → 2016-11 Figure 816743E 816743E 2016-11 → 2017-09 Figure 816931C 816931C 2014-05 → 2017-03 Figure 816898C 816898C 2014-05 → 2017-03 Figure 816892A 816892A 2014-07 → 2017-07 Figure 817908A 817908A 2016-10 → — Figure 818138A 818138A 2016-10 → — Figure 818135A 818135A 2016-11 → — Figure 818135A 818135A 2017-03 → — Figure 818135A 818135A 2017-09 → — Figure 817909A 817909A 2016-11 → — Figure 817909A 817909A 2017-03 → — Figure 817909A 817909A 2017-09 → — Figure 818136A 818136A 2017-07 → — Figure 818137A 818137A 2017-07 → —

Part groups

PNCDescription
53181E Cover, Headlamp, RH
53182E Cover, Headlamp, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81116C Bracket, Headlamp, RH
81117A Bracket, Headlamp, RH
81125A Cord, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81156A Bracket, Headlamp, LH
81157A Bracket, Headlamp, LH
81165 Cord, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
